LH80L-MDBW3 (1987)
Toyota Dyna100

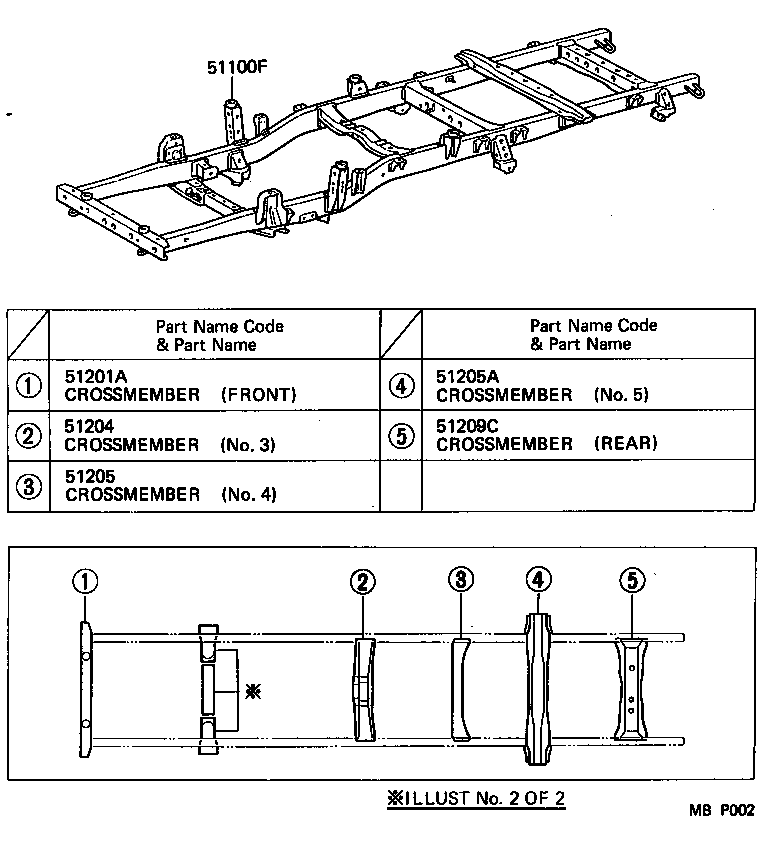

ILLUST NO. 1 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51100F - FRAME SUB-ASSY | ||||
| 51001-26321 |
LH80..T3..EUR |
1 | ||
| 51001-26322 |
LH80..T3..EUR |
1 | ||
| 51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT | ||||
| 51201-26072 |
LH80,YH81..LHD |
1 | ||
| 51201-26071 |
LH80,YH81..LHD |
1 | ||
| 51201-26073 |
LH80,YH81..LHD |
1 | ||
| 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51203-26120 |
LH80,YH81 |
1 | ||
| 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 | ||||
| 51204-26020 |
LH80,YH81 |
1 | ||
| 51209C - CROSSMEMBER SUB-ASSY, FRAME, REAR | ||||
| 51209-26030 |
LH80,YH81 |
1 | ||

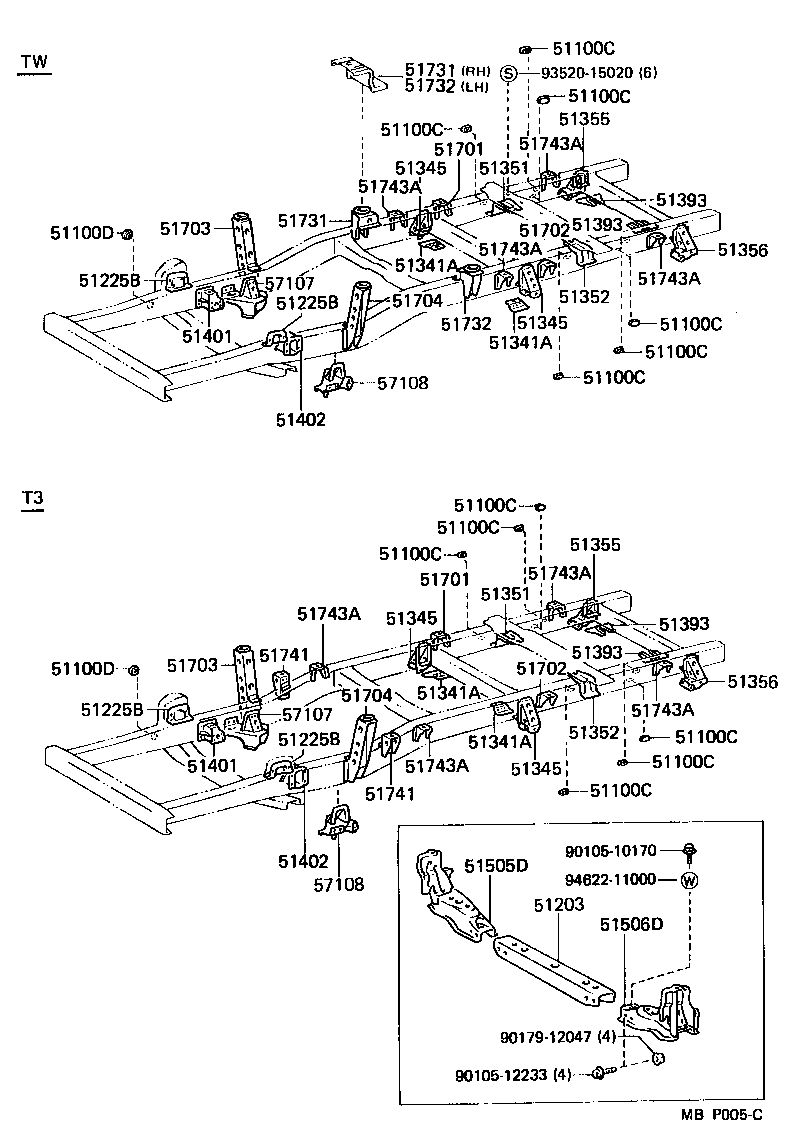

ILLUST NO. 2 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51100C - PLUG, HOLE(FOR FRAME) | ||||
| 90950-01395 |
LH80,YH81 |
6 | ||
| 51100C - PLUG, HOLE(FOR FRAME) | ||||
| 90950-01395 |
LH80,YH81 |
6 | ||
| 51100C - PLUG, HOLE(FOR FRAME) | ||||
| 90950-01395 |
LH80,YH81 |
6 | ||
| 51100C - PLUG, HOLE(FOR FRAME) | ||||
| 90950-01395 |
LH80,YH81 |
6 | ||
| 51100C - PLUG, HOLE(FOR FRAME) | ||||
| 90950-01395 |
LH80,YH81 |
6 | ||
| 51100C - PLUG, HOLE(FOR FRAME) | ||||
| 90950-01395 |
LH80,YH81 |
6 | ||
| 51100C - PLUG, HOLE(FOR FRAME) | ||||
| 90950-01395 |
LH80,YH81 |
6 | ||
| 51100C - PLUG, HOLE(FOR FRAME) | ||||
| 90950-01395 |
LH80,YH81 |
6 | ||
| 51100C - PLUG, HOLE(FOR FRAME) | ||||
| 90950-01395 |
LH80,YH81 |
6 | ||
| 51100C - PLUG, HOLE(FOR FRAME) | ||||
| 90950-01395 |
LH80,YH81 |
6 | ||
| 51100C - PLUG, HOLE(FOR FRAME) | ||||
| 90950-01395 |
LH80,YH81 |
6 | ||
| 51100C - PLUG, HOLE(FOR FRAME) | ||||
| 90950-01395 |
LH80,YH81 |
6 | ||
| 51100D - PLUG, HOLE(FOR FRAME) | ||||
| 90950-01420 |
LH80,YH81 |
1 | ||
| 51100D - PLUG, HOLE(FOR FRAME) | ||||
| 90950-01420 |
LH80,YH81 |
1 | ||
| 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 | ||||
| 51203-26110 |
LH80 |
1 | ||
| 51203-26111 |
LH80 |
1 | ||
| 51225B - BRACKET, FRONT SUSPENSION MEMBER, RH | ||||
| 51225-26010 |
LH80,YH81 |
2 | ||
| 51225B - BRACKET, FRONT SUSPENSION MEMBER, RH | ||||
| 51225-26010 |
LH80,YH81 |
2 | ||
| 51225B - BRACKET, FRONT SUSPENSION MEMBER, RH | ||||
| 51225-26010 |
LH80,YH81 |
2 | ||
| 51225B - BRACKET, FRONT SUSPENSION MEMBER, RH | ||||
| 51225-26010 |
LH80,YH81 |
2 | ||
| 51341A - GUSSET, CROSSMEMBER, NO.4 LOWER | ||||
| 51342-26010 |
LH80,YH81 |
2 | ||
| 51342-26011 |
LH80,YH81 |
2 | ||
| 51342-26012 |
LH80,YH81 |
2 | ||
| 51341A - GUSSET, CROSSMEMBER, NO.4 LOWER | ||||
| 51342-26010 |
LH80,YH81 |
2 | ||
| 51342-26011 |
LH80,YH81 |
2 | ||
| 51342-26012 |
LH80,YH81 |
2 | ||
| 51341A - GUSSET, CROSSMEMBER, NO.4 LOWER | ||||
| 51342-26010 |
LH80,YH81 |
2 | ||
| 51342-26011 |
LH80,YH81 |
2 | ||
| 51342-26012 |
LH80,YH81 |
2 | ||
| 51341A - GUSSET, CROSSMEMBER, NO.4 LOWER | ||||
| 51342-26010 |
LH80,YH81 |
2 | ||
| 51342-26011 |
LH80,YH81 |
2 | ||
| 51342-26012 |
LH80,YH81 |
2 | ||
| 51345 - BRACKET, REAR SPRING, FRONT | ||||
| 51305-26020 |
LH80,YH81 RH |
1 | ||
| 51345 - BRACKET, REAR SPRING, FRONT | ||||
| 51305-26020 |
LH80,YH81 RH |
1 | ||
| 51345 - BRACKET, REAR SPRING, FRONT | ||||
| 51305-26020 |
LH80,YH81 RH |
1 | ||
| 51345 - BRACKET, REAR SPRING, FRONT | ||||
| 51305-26020 |
LH80,YH81 RH |
1 | ||
| 51355 - BRACKET, REAR SPRING, REAR RH | ||||
| 51355-26010 |
LH80,YH81 |
1 | ||
| 51355 - BRACKET, REAR SPRING, REAR RH | ||||
| 51355-26010 |
LH80,YH81 |
1 | ||
| 51356 - BRACKET, REAR SPRING, REAR LH | ||||
| 51356-26010 |
LH80,YH81 |
1 | ||
| 51356 - BRACKET, REAR SPRING, REAR LH | ||||
| 51356-26010 |
LH80,YH81 |
1 | ||
| 51393 - GUSSET, REAR FRAME CROSSMEMBER, LOWER | ||||
| 51393-26010 |
LH80,YH81 |
2 | ||
| 51393 - GUSSET, REAR FRAME CROSSMEMBER, LOWER | ||||
| 51393-26010 |
LH80,YH81 |
2 | ||
| 51393 - GUSSET, REAR FRAME CROSSMEMBER, LOWER | ||||
| 51393-26010 |
LH80,YH81 |
2 | ||
| 51393 - GUSSET, REAR FRAME CROSSMEMBER, LOWER | ||||
| 51393-26010 |
LH80,YH81 |
2 | ||
| 51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH | ||||
| 51401-26010 |
LH80,YH81 |
1 | ||
| 51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH | ||||
| 51401-26010 |
LH80,YH81 |
1 | ||
| 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH | ||||
| 51401-26010 |
LH80,YH81 |
1 | ||
| 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH | ||||
| 51401-26010 |
LH80,YH81 |
1 | ||
| 51505D - SUPPORT ASSY, FRONT SUSPENSION RH | ||||
| 51505-26901 |
YH81;LH80..T3;LH80..TW..CBU |
1 | ||
| 51505-26902 |
YH81;LH80..T3;LH80..TW..CBU |
1 | ||
| 51506D - SUPPORT ASSY, FRONT SUSPENSION, LH | ||||
| 51506-26901 |
YH81;LH80..T3;LH80..TW..CBU |
1 | ||
| 51506-26902 |
YH81;LH80..T3;LH80..TW..CBU |
1 | ||
| 51701 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH | ||||
| 51711-26080 |
LH80,YH81 |
1 | ||
| 51701 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH | ||||
| 51711-26080 |
LH80,YH81 |
1 | ||
| 51702 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH | ||||
| 51711-26080 |
LH80,YH81 |
1 | ||
| 51702 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH | ||||
| 51711-26080 |
LH80,YH81 |
1 | ||
| 51703 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH | ||||
| 51703-26011 |
LH80,YH81 |
1 | ||
| 51703 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH | ||||
| 51703-26011 |
LH80,YH81 |
1 | ||
| 51704 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH | ||||
| 51703-26011 |
LH80,YH81 |
1 | ||
| 51704 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH | ||||
| 51703-26011 |
LH80,YH81 |
1 | ||
| 51741 - BRACKET, REAR BODY MOUNTING, NO.1 | ||||
| 51741-26052 |
LH80,YH81..T3 RH |
1 | ||
| 51742-26021 |
LH80,YH81..T3 LH |
1 | ||
| 51741-26051 |
LH80,YH81..T3 RH |
1 | ||
| 51742-26022 |
LH80,YH81..T3 LH |
1 | ||
| 51741 - BRACKET, REAR BODY MOUNTING, NO.1 | ||||
| 51741-26052 |
LH80,YH81..T3 RH |
1 | ||
| 51742-26021 |
LH80,YH81..T3 LH |
1 | ||
| 51741-26051 |
LH80,YH81..T3 RH |
1 | ||
| 51742-26022 |
LH80,YH81..T3 LH |
1 | ||
| 51743A - BRACKET, REAR BODY MOUNTING, NO.2 LH | ||||
| 51743-26010 |
LH80,YH81 |
4 | ||
| 51743A - BRACKET, REAR BODY MOUNTING, NO.2 LH | ||||
| 51743-26010 |
LH80,YH81 |
4 | ||
| 51743A - BRACKET, REAR BODY MOUNTING, NO.2 LH | ||||
| 51743-26010 |
LH80,YH81 |
4 | ||
| 51743A - BRACKET, REAR BODY MOUNTING, NO.2 LH | ||||
| 51743-26010 |
LH80,YH81 |
4 | ||
| 51743A - BRACKET, REAR BODY MOUNTING, NO.2 LH | ||||
| 51743-26010 |
LH80,YH81 |
4 | ||
| 51743A - BRACKET, REAR BODY MOUNTING, NO.2 LH | ||||
| 51743-26010 |
LH80,YH81 |
4 | ||
| 51743A - BRACKET, REAR BODY MOUNTING, NO.2 LH | ||||
| 51743-26010 |
LH80,YH81 |
4 | ||
| 51743A - BRACKET, REAR BODY MOUNTING, NO.2 LH | ||||
| 51743-26010 |
LH80,YH81 |
4 | ||
| 57107 - BRACKET SUB-ASSY, STRUT BAR, RH | ||||
| 57107-26010 |
LH80,YH81 |
1 | ||
| 57107 - BRACKET SUB-ASSY, STRUT BAR, RH | ||||
| 57107-26010 |
LH80,YH81 |
1 | ||
| 57108 - BRACKET SUB-ASSY, STRUT BAR, LH | ||||
| 57108-26010 |
LH80,YH81 |
1 | ||
| 57108 - BRACKET SUB-ASSY, STRUT BAR, LH | ||||
| 57108-26010 |
LH80,YH81 |
1 | ||
| Common parts | ||||
| 90105-10170 | ||||
| 90105-12233 | ||||
| 90179-12047 | ||||
| 93520-15020 | ||||
| 94622-11000 | ||||
