LH80L-MDBW3 (1987)
Toyota Dyna100
Production
Aug 1987
-
May 1995
Engine
2L
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )2L

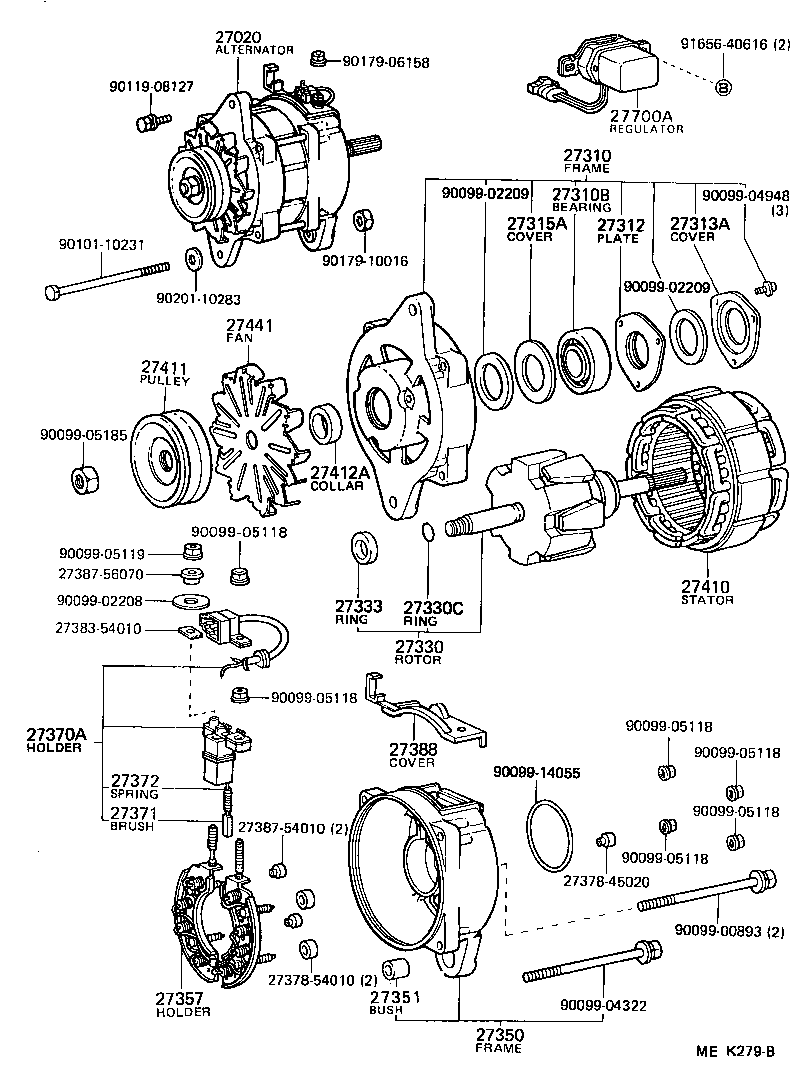

Click highlighted areas on diagram
12V 45A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-54381 |
2L..LH80 12V 45A |
1 | ||
| 27020-54380 |
2L..LH80 12V 45A |
1 | ||
| 27020-54382 |
2L..LH80 12V 45A |
1 | ||
| 27020-54200 |
2L..LH80 12V 45A |
1 | ||
| 27020-54383 |
2L..LH80 12V 45A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-54110 |
2L..LH80 |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10137 |
2L..LH80 |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-57060 |
2L..LH80 |
1 | ||
| 27313A - COVER, ALTERNATOR FELT, INNER NO.2 | ||||
| 27313-57060 |
2L..LH80 |
1 | ||
| 27315A - COVER, ALTERNATOR FELT, INNER NO.1 | ||||
| 27315-57060 |
2L..LH80 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-54201 |
2L..LH80 |
1 | ||
| 27330-54200 |
2L..LH80 |
1 | ||
| 27330-54200 |
2L..LH80 |
1 | ||
| 27330C - RING, SNAP | ||||
| 90099-07103 |
2L..LH80 |
1 | ||
| 27333 - COLLAR, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27333-57060 |
2L..LH80 |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| 27350-54190 |
2L..LH80 |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-56013 |
2L..LH80 |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-54190 |
2L..LH80 |
1 | ||
| 27370A - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-54250 |
2L..LH80 |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-56070 |
2L..LH80 |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-56070 |
2L..LH80 |
2 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-54341 |
2L..LH80 |
1 | ||
| 27388-54200 |
2L..LH80 |
1 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-64090 |
2L..LH80 |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-54170 |
2L..LH80 |
1 | ||
| 27411-54350 |
2L..LH80 |
1 | ||
| 27412A - COLLAR, SPACE(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-57060 |
2L..LH80 |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-56090 |
2L..LH80 |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-44020 |
2L..LH80 |
1 | ||
| 27700-44021 |
2L..LH80 |
1 | ||
| Common parts | ||||
| 27378-45020 | ||||
| 27378-54010 | ||||
| 27383-54010 | ||||
| 27387-54010 | ||||
| 27387-56070 | ||||
| 90099-00893 | ||||
| 90099-02208 | ||||
| 90099-02209 | ||||
| 90099-04322 | ||||
| 90099-04948 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90099-05185 | ||||
| 90099-14055 | ||||
| 90101-10231 | ||||
| 90119-08127 | ||||
| 90179-06158 | ||||
| 90179-10016 | ||||
| 90201-10283 | ||||
| 91656-40616 | ||||
