Toyota Dyna100 LH80 HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

Manufacturers Home
Toyota
EU
DYNA100
LH80L-MDBW (1987)
8715 - HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

LH80L-MDBW (1987)

Toyota Dyna100

Production Aug 1987 - May 1995

Engine 2L

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

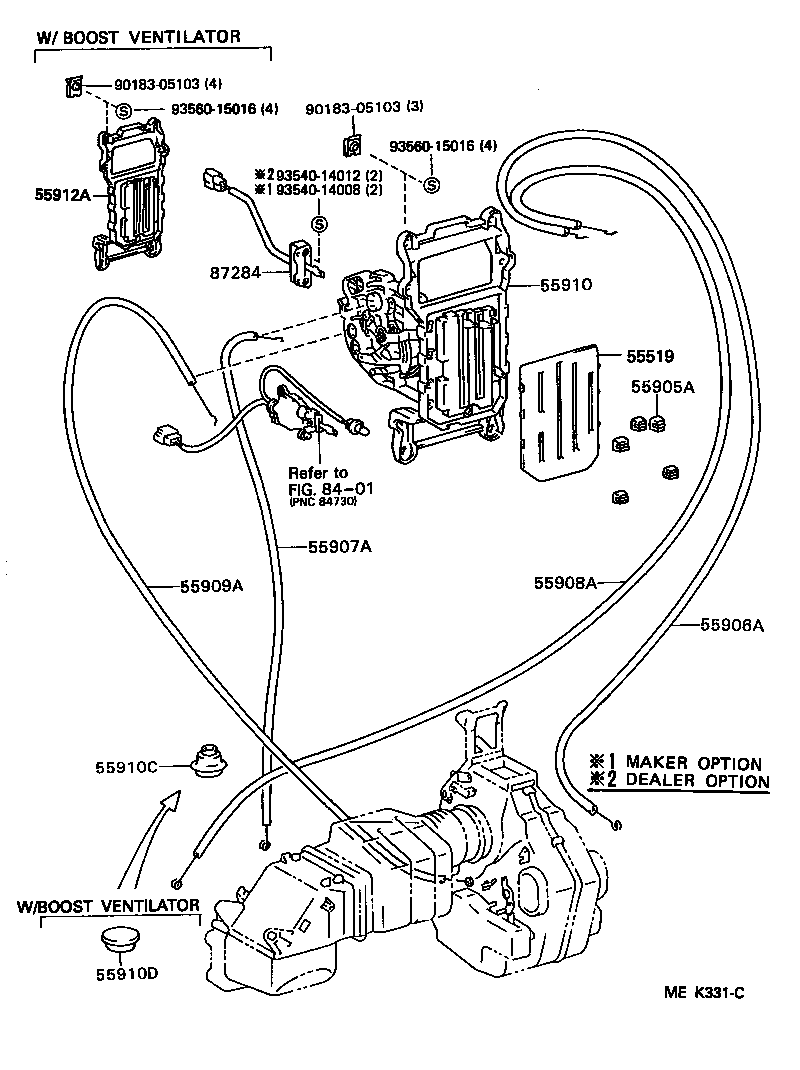

ILLUST NO. 1 OF 2(8708-9110)

Click highlighted areas on diagram

Part #	Description	Period	Qty
55519 - PLATE, HEATER CONTROL NAME
55519-95406	LH80,YH81..ARL,EUR	08/1987 - 05/1995	1
55519-95403	LH80,YH81..EUR,GEN W(BOOST VENTILATOR)	08/1987 - 05/1995	1
55905A - KNOB, HEATER CONTROL
55905-10110	YH81..EUR,GEN;LH80..TW..CBU;LH80..T3..(EUR,GEN) WHITE	08/1987 - 05/1995	2
55905-95707	YH81..ARL,EUR;LH80..TW..CBU;LH80..T3..(ARL,EUR) BLUE	08/1987 - 09/1993	1
55905-10110	YH81..ARL,EUR;LH80..TW..CBU;LH80..T3..(ARL,EUR) WHITE	08/1987 - 05/1995	3
55905-95707	LH80..TW..CBU;LH80,YH81..T3..(ARL,EUR) BLUE	09/1993 - 05/1995	1
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-95406	LH80,YH81..LHD	08/1987 - 10/1991	1
55906-36050	LH80,YH81..LHD	10/1991 - 05/1995	1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-36030	LH80,YH81..LHD	10/1991 - 05/1995	1
55907-95406	LH80,YH81..LHD	08/1987 - 10/1991	1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-95402	LH80,YH81..ARL,EUR	08/1987 - 09/1993	1
55908-95402	LH80,YH81	09/1993 - 04/1994	1
55908-95402	YH81;LH80..IV;LH80..EUR..CBU	04/1994 - 05/1995	1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-95406	LH80,YH81..LHD	08/1987 - 05/1995	1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-36090	LH80,YH81..ARL,EUR	10/1991 - 05/1995	1
55910-95409	LH80,YH81..ARL,EUR	08/1987 - 10/1991	1
55910-95410	LH80,YH81..EUR,GEN W(BOOST VENTILATOR)	08/1987 - 10/1991	1
55910-36100	LH80,YH81..EUR,GEN W(BOOST VENTILATOR)	10/1991 - 05/1995	1
55910C - GROMMET(FOR HEATER CONTROL CABLE)
90480-24215	LH80,YH81	08/1987 - 04/1994	1
90480-24215	YH81;LH80..IV;LH80..EUR..CBU	04/1994 - 05/1995	1
55910D - PLUG, HOLE(FOR HEATER CONTROL CABLE HOLE)
90950-01127	LH80,YH81..EUR,GEN	08/1987 - 05/1995	1
55912A - HOUSING, HEATER CONTROL
55912-95404	LH80,YH81..EUR,GEN	09/1993 - 05/1995	1
Common parts
90183-05103
93540-14008
93540-14012
93560-15016
Linked diagrams
8401

ILLUST NO. 1 OF 2(8708- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
55519 - PLATE, HEATER CONTROL NAME
55519-95406	LH80,YH81..ARL,EUR	08/1987 - 05/1995	1
55519-95403	LH80,YH81..EUR,GEN W(BOOST VENTILATOR)	08/1987 - 05/1995	1
55905A - KNOB, HEATER CONTROL
55905-10110	YH81..EUR,GEN;LH80..TW..CBU;LH80..T3..(EUR,GEN) WHITE	08/1987 - 05/1995	2
55905-95707	YH81..ARL,EUR;LH80..TW..CBU;LH80..T3..(ARL,EUR) BLUE	08/1987 - 09/1993	1
55905-10110	YH81..ARL,EUR;LH80..TW..CBU;LH80..T3..(ARL,EUR) WHITE	08/1987 - 05/1995	3
55905-95707	LH80..TW..CBU;LH80,YH81..T3..(ARL,EUR) BLUE	09/1993 - 05/1995	1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-95402	LH80,YH81..ARL,EUR	08/1987 - 09/1993	1
55908-95402	LH80,YH81	09/1993 - 04/1994	1
55908-95402	YH81;LH80..IV;LH80..EUR..CBU	04/1994 - 05/1995	1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-36090	LH80,YH81..ARL,EUR	10/1991 - 05/1995	1
55910-95409	LH80,YH81..ARL,EUR	08/1987 - 10/1991	1
55910-95410	LH80,YH81..EUR,GEN W(BOOST VENTILATOR)	08/1987 - 10/1991	1
55910-36100	LH80,YH81..EUR,GEN W(BOOST VENTILATOR)	10/1991 - 05/1995	1
55910D - PLUG, HOLE(FOR HEATER CONTROL CABLE HOLE)
90950-01127	LH80,YH81..EUR,GEN	08/1987 - 05/1995	1
Common parts
82711-22690
90183-05103
93560-15016

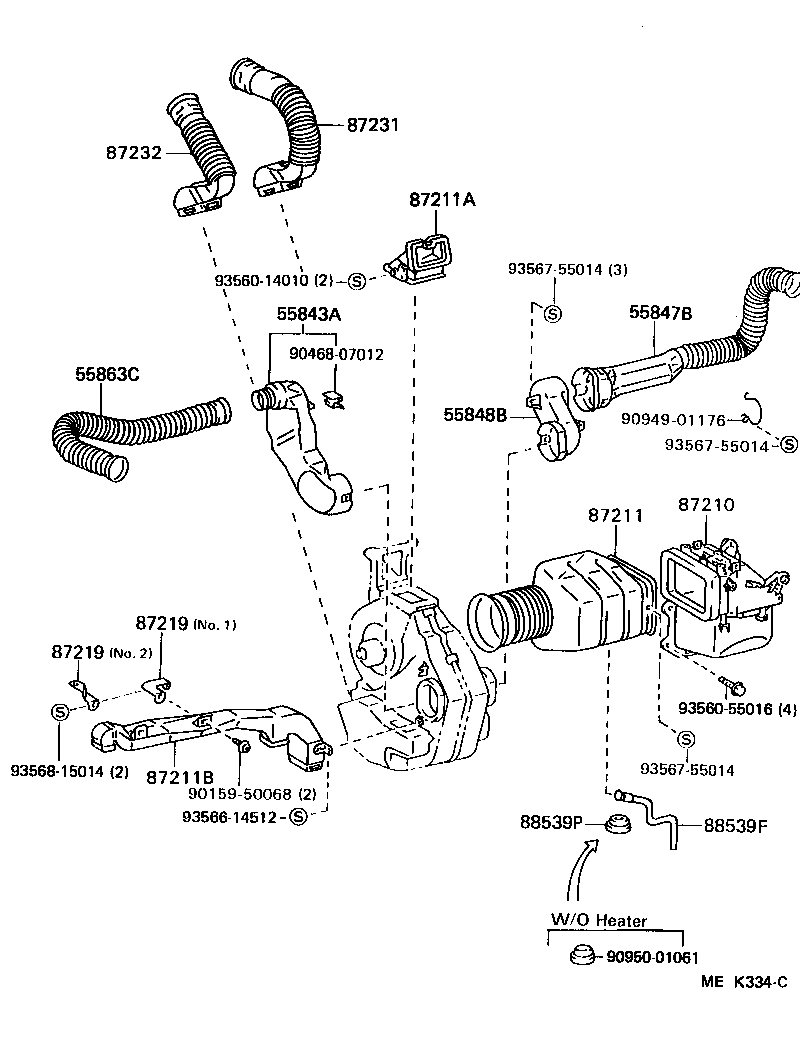

ILLUST NO. 2 OF 2(8708- )LHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-95406	LH80,YH81..LHD	08/1987 - 05/1995	1
55847B - DUCT, HEATER TO REGISTER, NO.5
55847-95400	LH80,YH81	08/1987 - 05/1995	1
55848B - DUCT, HEATER TO REGISTER, NO.6
55848-95401	LH80,YH81..LHD	08/1987 - 05/1995	1
55863C - BOOT, SIDE VENTILATOR DUCT
55863-95405	LH80,YH81	08/1987 - 05/1995	1
87210 - DAMPER ASSY, AIR
87210-95404	LH80,YH81..LHD	08/1987 - 05/1995	1
87211 - DUCT, AIR, NO.1
87211-95405	LH80,YH81..LHD	08/1987 - 05/1995	1
87211A - DUCT, AIR, NO.2
87201-95403	LH80,YH81..LHD	08/1987 - 05/1995	1
87211B - DUCT, AIR, NO.3
87211-95409	LH80,YH81..LHD	08/1987 - 05/1995	1
87219 - BRACKET, FRONT AIR DUCT
87214-95402	LH80,YH81 NO.1	08/1987 - 04/1994	1
87214-95402	YH81;LH80..IV;LH80..EUR..CBU NO.1	04/1994 - 05/1995	1
87214-95403	LH80,YH81 NO.2	08/1987 - 04/1994	1
87214-95403	YH81;LH80..IV;LH80..EUR..CBU NO.2	04/1994 - 05/1995	1
87219 - BRACKET, FRONT AIR DUCT
87214-95402	LH80,YH81 NO.1	08/1987 - 04/1994	1
87214-95402	YH81;LH80..IV;LH80..EUR..CBU NO.1	04/1994 - 05/1995	1
87214-95403	LH80,YH81 NO.2	08/1987 - 04/1994	1
87214-95403	YH81;LH80..IV;LH80..EUR..CBU NO.2	04/1994 - 05/1995	1
87231 - HOSE, HEATER DEFROSTER, RH
87231-95408	LH80,YH81..LHD	08/1987 - 05/1995	1
87232 - HOSE, HEATER DEFROSTER, LH
87231-95407	LH80,YH81..LHD	08/1987 - 05/1995	1
88539F - HOSE, DRAIN
88539-95A10	LH80,YH81..LHD	08/1987 - 05/1995	1
88539P - GROMMET(FOR DRAIN HOSE)
88897-30580	LH80,YH81	08/1987 - 04/1994	1
88897-30580	YH81;LH80..IV;LH80..EUR..CBU	04/1994 - 05/1995	1
Common parts
90159-50068
90468-07012
90949-01176
90950-01061
93560-14010
93560-55016
93566-14512
93567-55014
93568-15014

ILLUST NO. 1 OF 2(9110- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
55519 - PLATE, HEATER CONTROL NAME
55519-95406	LH80,YH81..ARL,EUR	08/1987 - 05/1995	1
55519-95403	LH80,YH81..EUR,GEN W(BOOST VENTILATOR)	08/1987 - 05/1995	1
55905A - KNOB, HEATER CONTROL
55905-10110	YH81..EUR,GEN;LH80..TW..CBU;LH80..T3..(EUR,GEN) WHITE	08/1987 - 05/1995	2
55905-95707	YH81..ARL,EUR;LH80..TW..CBU;LH80..T3..(ARL,EUR) BLUE	08/1987 - 09/1993	1
55905-10110	YH81..ARL,EUR;LH80..TW..CBU;LH80..T3..(ARL,EUR) WHITE	08/1987 - 05/1995	3
55905-95707	LH80..TW..CBU;LH80,YH81..T3..(ARL,EUR) BLUE	09/1993 - 05/1995	1
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-95406	LH80,YH81..LHD	08/1987 - 10/1991	1
55906-36050	LH80,YH81..LHD	10/1991 - 05/1995	1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-36030	LH80,YH81..LHD	10/1991 - 05/1995	1
55907-95406	LH80,YH81..LHD	08/1987 - 10/1991	1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-95402	LH80,YH81..ARL,EUR	08/1987 - 09/1993	1
55908-95402	LH80,YH81	09/1993 - 04/1994	1
55908-95402	YH81;LH80..IV;LH80..EUR..CBU	04/1994 - 05/1995	1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-95406	LH80,YH81..LHD	08/1987 - 05/1995	1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-36090	LH80,YH81..ARL,EUR	10/1991 - 05/1995	1
55910-95409	LH80,YH81..ARL,EUR	08/1987 - 10/1991	1
55910-95410	LH80,YH81..EUR,GEN W(BOOST VENTILATOR)	08/1987 - 10/1991	1
55910-36100	LH80,YH81..EUR,GEN W(BOOST VENTILATOR)	10/1991 - 05/1995	1
55910C - GROMMET(FOR HEATER CONTROL CABLE)
90480-24215	LH80,YH81	08/1987 - 04/1994	1
90480-24215	YH81;LH80..IV;LH80..EUR..CBU	04/1994 - 05/1995	1
55910D - PLUG, HOLE(FOR HEATER CONTROL CABLE HOLE)
90950-01127	LH80,YH81..EUR,GEN	08/1987 - 05/1995	1
55912A - HOUSING, HEATER CONTROL
55912-95404	LH80,YH81..EUR,GEN	09/1993 - 05/1995	1
Common parts
90183-05103
93540-14008
93540-14012
93560-15016
Linked diagrams
8401

LH80L-MDBW (1987)

ILLUST NO. 1 OF 2(8708-9110)

ILLUST NO. 1 OF 2(8708- )

ILLUST NO. 2 OF 2(8708- )LHD

ILLUST NO. 1 OF 2(9110- )
