LH80L-MDBW (1987)

Toyota Dyna100

Production Aug 1987 - May 1995
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

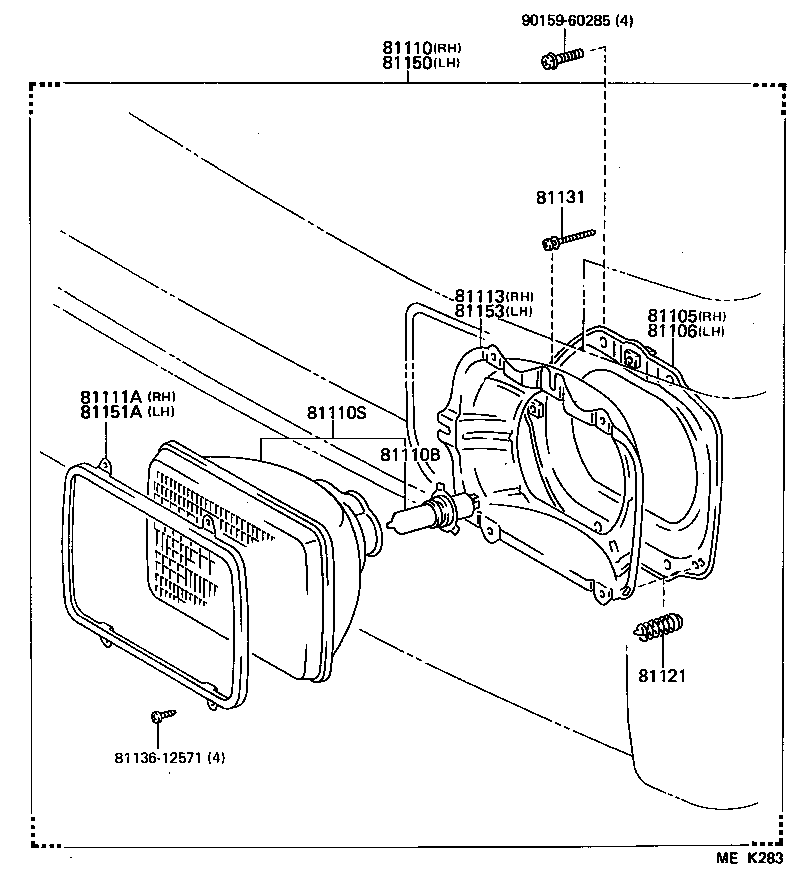

Click highlighted areas on diagram

diagram 81105 81106 81110 81110B 81110S 81111A 81113 81121 81131 8113612571 81150 81151A 81153 9015960285
Part # Description Qty Price
81105 - HOUSING SUB-ASSY, HEADLAMP, RH
81105-95A25

LH80,YH81

 1
81106 - HOUSING SUB-ASSY, HEADLAMP, LH
81106-95A25

LH80,YH81

 1
81110 - HEADLAMP ASSY, RH
81110-95A30

LH80,YH81..LHD

W(SEMI-SEALD BEAM,HALOGEN YELLOW)

 1
81110-95A29

LH80,YH81..EUR

W(SEMI-SEALD BEAM,HALOGEN WHITE)

 1
81110-95A36

LH80,YH81..EUR

W(SEMI-SEALD BEAM,HALOGEN WHITE)

 1
81110-95A27

LH80,YH81..EUR

 1
81110-95A35

LH80,YH81..EUR

 1
81110-95A37

LH80,YH81..LHD

W(SEMI-SEALD BEAM,HALOGEN YELLOW)

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015

LH80,YH81..EUR

12V 60/55W,*HAL *WH

 2
90981-13013

YH81..EUR;LH80..EUR,GEN;YH81..RHD..GEN

12V 45/40W,WHITE

 2
90981-13016

LH80,YH81..LHD

12V 60/55W,*HAL *YE

 2
81110S - SEALED BEAM UNIT, NO.1
90981-04036

LH80,YH81..LHD

12V 60/55W,*YSB

 2
90981-04035

LH80,YH81..EUR

12V 60/55W,*WSB

 2
90981-04034

LH80,YH81..EUR

12V 45/40W,*WSB

 2
81111A - RING, SEALED BEAM RETAINING, NO.1 RH
81111-16020

LH80,YH81

 1
81113 - RING, SEALED BEAM MOUNTING, NO.1 RH
81153-16220

LH80,YH81

 1
81121 - SPRING, HEADLAMP TENSION
81121-16020

LH80,YH81

 2
81131 - SCREW, HEADLAMP ADJUSTING
81131-10031

LH80,YH81

 4
81150 - HEADLAMP ASSY, LH
81150-95A35

LH80,YH81..EUR

 1
81150-95A30

LH80,YH81..LHD

W(SEMI-SEALD BEAM,HALOGEN YELLOW)

 1
81150-95A37

LH80,YH81..LHD

W(SEMI-SEALD BEAM,HALOGEN YELLOW)

 1
81150-95A29

LH80,YH81..EUR

W(SEMI-SEALD BEAM,HALOGEN WHITE)

 1
81150-95A27

LH80,YH81..EUR

 1
81150-95A36

LH80,YH81..EUR

W(SEMI-SEALD BEAM,HALOGEN WHITE)

 1
81151A - RING, SEALED BEAM RETAINING, NO.1 LH
81111-16020

LH80,YH81

 1
81153 - RING, SEALED BEAM MOUNTING, NO.1 LH
81113-16220

LH80,YH81

 1
Common parts
81136-12571
90159-60285
