LH80L-MDBW (1987)

Toyota Dyna100

Production Aug 1987 - May 1995
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

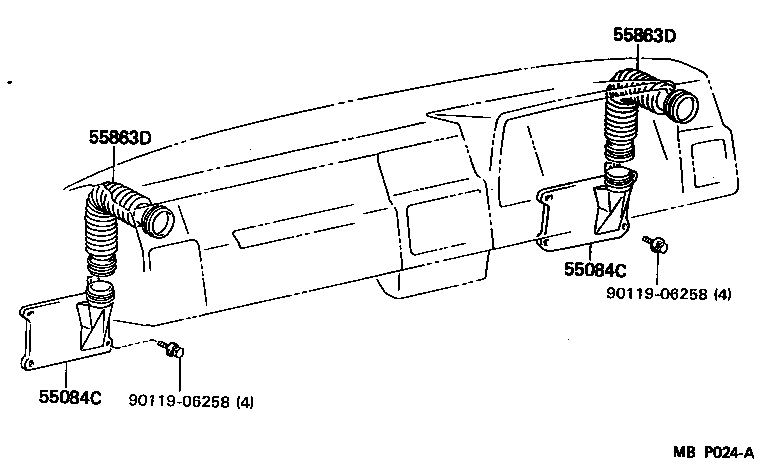

Click highlighted areas on diagram

diagram 55084C 55084C 55863D 55863D 9011906258 9011906258
Part # Description Qty Price
55084C - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1
55084-95400

LH80,YH81..EUR,GEN

 2
55084C - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1
55084-95400

LH80,YH81..EUR,GEN

 2
55863D - BOOT, SIDE VENTILATOR DUCT
55863-95405

LH80,YH81..EUR,GEN

 2
55863D - BOOT, SIDE VENTILATOR DUCT
55863-95405

LH80,YH81..EUR,GEN

 2
Common parts
90119-06258

(8708- )LHD

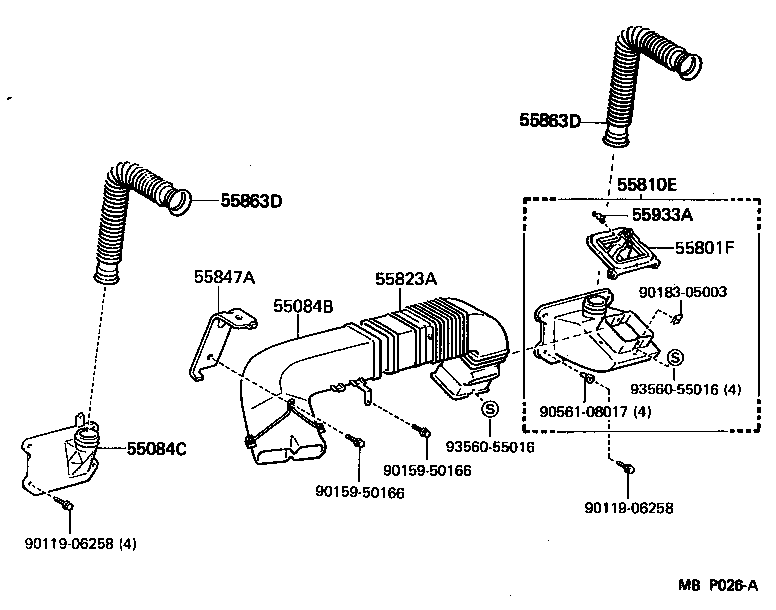

Click highlighted areas on diagram

diagram 55084B 55084C 55801F 55810E 55823A 55847A 55863D 55863D 55933A 9011906258 9011906258 9015950166 9015950166 9018305003 9056108017 9356055016 9356055016
Part # Description Qty Price
55084C - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1
55084-95400

LH80,YH81..EUR,GEN

 2
55863D - BOOT, SIDE VENTILATOR DUCT
55863-95405

LH80,YH81..EUR,GEN

 2
55863D - BOOT, SIDE VENTILATOR DUCT
55863-95405

LH80,YH81..EUR,GEN

 2
Common parts
90119-06258
90159-50166
90183-05003
90561-08017
93560-55016
