LH80L-MDB3 (1985)
Toyota Dyna100

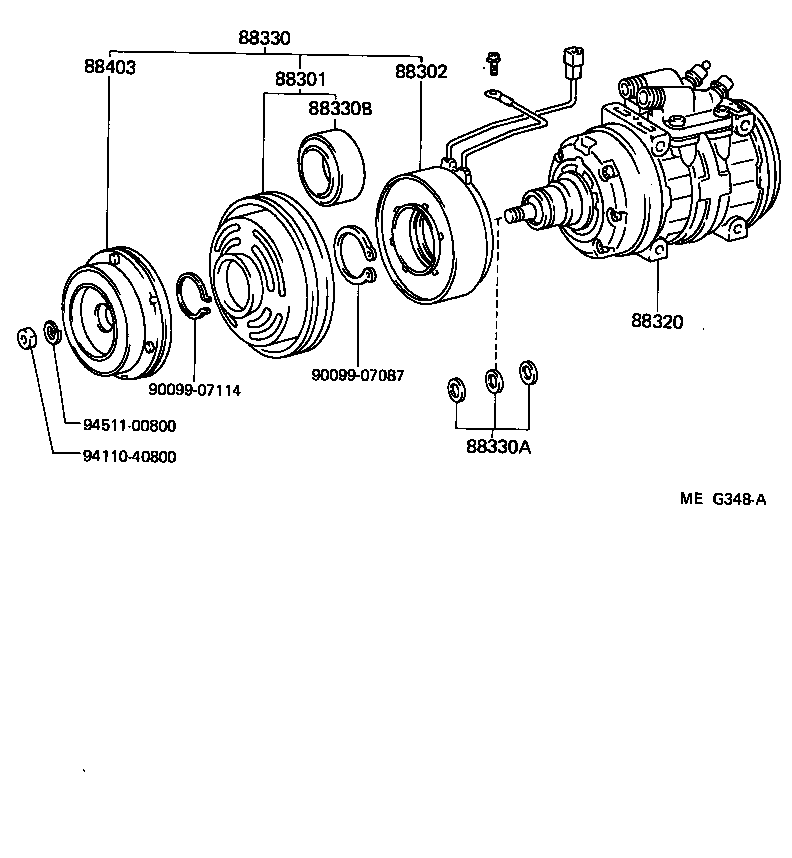

(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-22030 |
LH80,YH8#..ARL,GEN |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-14050 |
LH80,YH8#..ARL,GEN |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-26230 |
LH80..ARL,GEN |
1 | ||
| 88330 - CLUTCH ASSY, MAGNET | ||||
| 88410-22080 |
LH80,YH8#..ARL,GEN |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-12050 |
LH80,YH8#..ARL,GEN |
1 | ||
| 88330B - BEARING, MAGNET CLUTCH | ||||
| 90099-10162 |
LH80,YH8#..ARL,GEN |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-12030 |
LH80,YH8#..ARL,GEN |
1 | ||
| Common parts | ||||
| 90099-07087 | ||||
| 90099-07114 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||

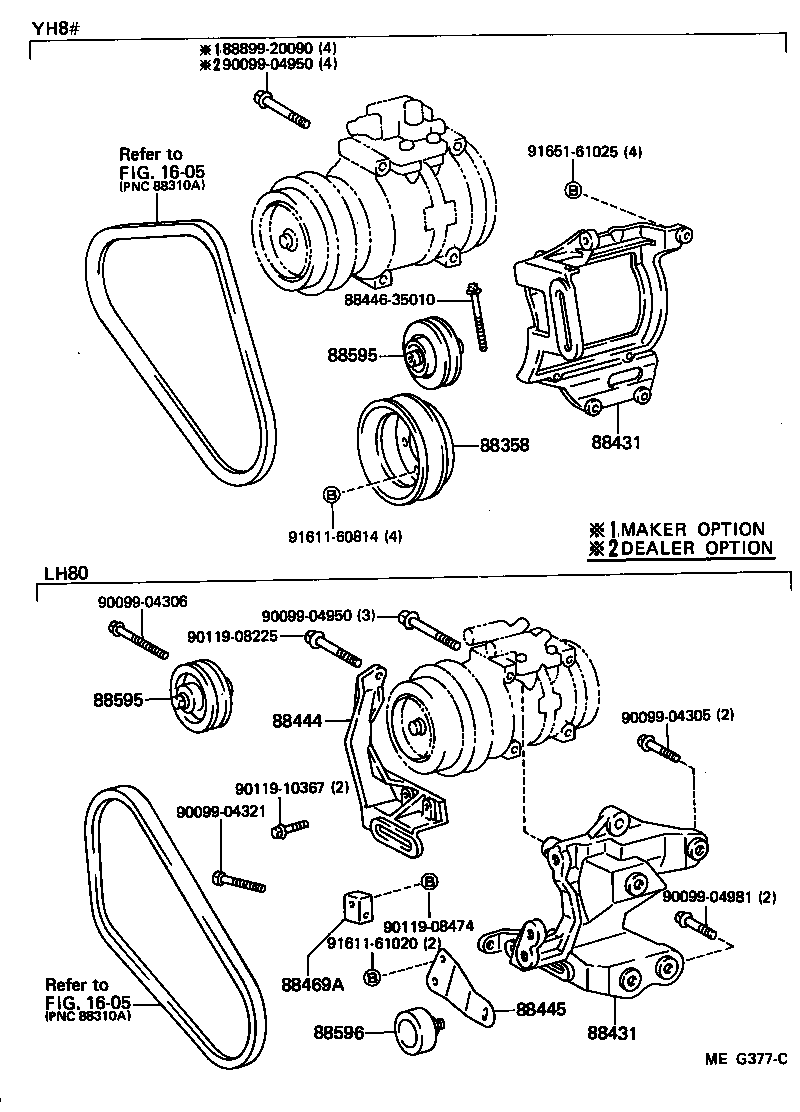

(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-35100 |
LH80..ARL,GEN |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-35100 |
LH80..ARL,GEN |
1 | ||
| 88444 - BRACKET, IDLE PULLEY | ||||
| 88444-26100 |
LH80..ARL,GEN |
1 | ||
| 88445 - BRACKET, IDLE PULLEY | ||||
| 88444-26070 |
LH80..ARL,GEN |
1 | ||
| 88469A - COLLAR, ADJUSTING | ||||
| 88469-30280 |
LH80..ARL,GEN |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-35010 |
LH80..ARL,GEN |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-35010 |
LH80..ARL,GEN |
1 | ||
| 88596 - PULLEY ASSY, IDLE, NO.2 | ||||
| 88440-26070 |
LH80..ARL,GEN |
1 | ||
| Common parts | ||||
| 88446-35010 | ||||
| 88899-20090 | ||||
| 90099-04305 | ||||
| 90099-04306 | ||||
| 90099-04321 | ||||
| 90099-04950 | ||||
| 90099-04981 | ||||
| 90119-08225 | ||||
| 90119-08474 | ||||
| 90119-10367 | ||||
| 91611-60814 | ||||
| 91611-61020 | ||||
| 91651-61025 | ||||
| Linked diagrams | ||||
| 1605 | ||||

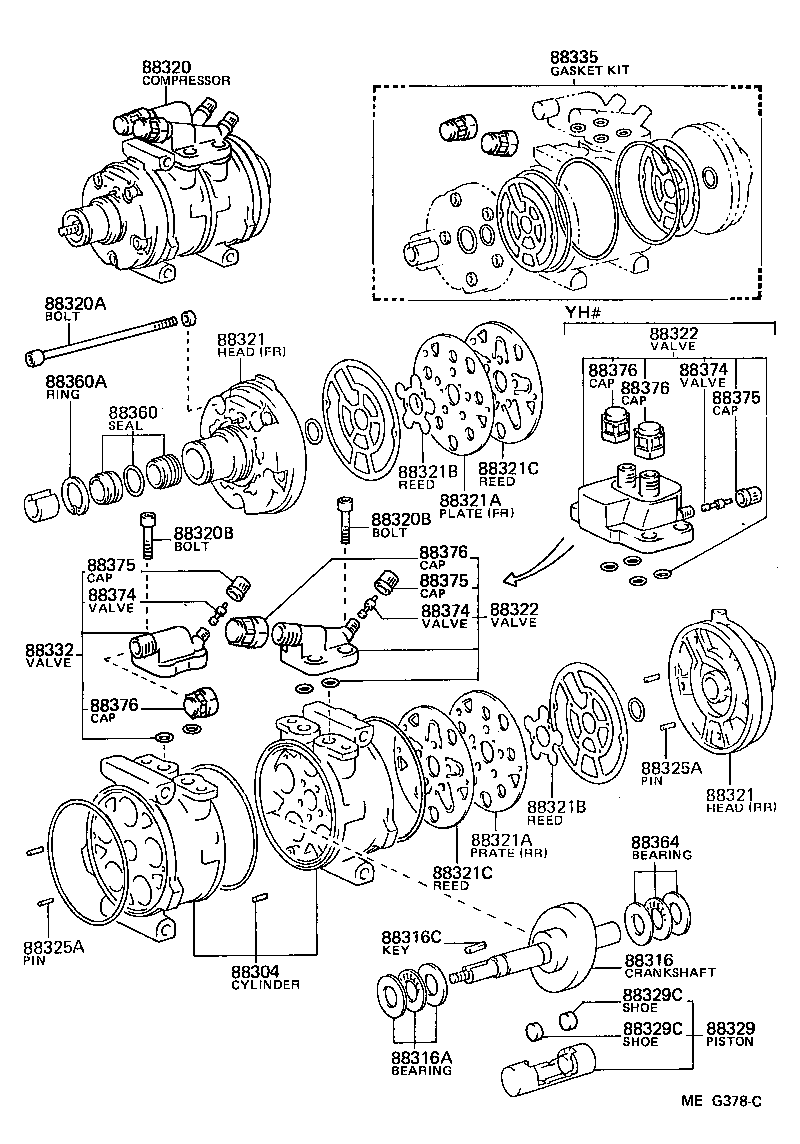

(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88304 - CYLINDER SUB-ASSY, COOLER COMPRESSOR | ||||
| 88304-14041 |
LH80..ARL,GEN |
1 | ||
| 88316 - CRANKSHAFT, COOLER COMPRESSOR | ||||
| 88316-14021 |
LH80..ARL,GEN |
1 | ||
| 88316A - BEARING, COMPRESSOR CRANKSHAFT, FRONT | ||||
| 88366-14010 |
LH80,YH8#..ARL,GEN |
1 | ||
| 88316C - KEY, COMPRESSOR CRANKSHAFT | ||||
| 90099-13024 |
LH80,YH8#..ARL,GEN |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-26230 |
LH80..ARL,GEN |
1 | ||
| 88320A - BOLT, THROUGH | ||||
| 90099-04968 |
LH80..ARL,GEN |
5 | ||
| 88320B - BOLT, SERVICE VALVE | ||||
| 90099-04924 |
LH80..ARL,GEN |
4 | ||
| 88320B - BOLT, SERVICE VALVE | ||||
| 90099-04924 |
LH80..ARL,GEN |
4 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-14011 |
LH80,YH8#..ARL,GEN RR |
1 | ||
| 88321-14011 |
LH80,YH8#..ARL,GEN FR |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-14011 |
LH80,YH8#..ARL,GEN RR |
1 | ||
| 88321-14011 |
LH80,YH8#..ARL,GEN FR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88341-14010 |
LH80,YH8#..ARL,GEN FR |
1 | ||
| 88342-14010 |
LH80,YH8#..ARL,GEN RR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88341-14010 |
LH80,YH8#..ARL,GEN FR |
1 | ||
| 88342-14010 |
LH80,YH8#..ARL,GEN RR |
1 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88344-14011 |
LH80,YH8#..ARL,GEN |
2 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88344-14011 |
LH80,YH8#..ARL,GEN |
2 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-14011 |
LH80,YH8#..ARL,GEN |
2 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-14011 |
LH80,YH8#..ARL,GEN |
2 | ||
| 88322 - VALVE, COOLER COMPRESSOR SUCTION SERVICE | ||||
| 88371-26100 |
LH80..ARL,GEN |
1 | ||
| 88322 - VALVE, COOLER COMPRESSOR SUCTION SERVICE | ||||
| 88371-26100 |
LH80..ARL,GEN |
1 | ||
| 88325A - PIN, CYLINDER BLOCK | ||||
| 90099-08058 |
LH80,YH8#..ARL,GEN |
4 | ||
| 88325A - PIN, CYLINDER BLOCK | ||||
| 90099-08058 |
LH80,YH8#..ARL,GEN |
4 | ||
| 88329 - PISTON SUB-ASSY, COOLER COMPRESSOR | ||||
| 88301-12050 |
LH80,YH8#..ARL,GEN |
5 | ||
| 88329C - SHOE, PISTON | ||||
| 88313-14010 |
LH80,YH8#..ARL,GEN |
10 | ||
| 88329C - SHOE, PISTON | ||||
| 88313-14010 |
LH80,YH8#..ARL,GEN |
10 | ||
| 88332 - VALVE, COOLER COMPRESSOR DISCHARGE SERVICE | ||||
| 88372-26080 |
LH80..ARL,GEN |
1 | ||
| 88335 - GASKET KIT, OVERHAUL | ||||
| 88335-12030 |
LH80,YH8#..ARL,GEN |
1 | ||
| 88360 - SEAL ASSY, COOLER COMPRESSOR SHAFT | ||||
| 88360-40010 |
LH80,YH8#..ARL,GEN |
1 | ||
| 88360A - RING, COMPRESSOR SEAL PLATE SNAP | ||||
| 90096-90022 |
LH80,YH8#..ARL,GEN |
1 | ||
| 88364 - BEARING, COMPRESSOR CRANKSHAFT, REAR | ||||
| 88366-14010 |
LH80,YH8#..ARL,GEN |
1 | ||
| 88374 - VALVE, COOLER COMPRESSOR SERVICE | ||||
| 88374-12020 |
LH80,YH8#..ARL,GEN |
2 | ||
| 88374 - VALVE, COOLER COMPRESSOR SERVICE | ||||
| 88374-12020 |
LH80,YH8#..ARL,GEN |
2 | ||
| 88374 - VALVE, COOLER COMPRESSOR SERVICE | ||||
| 88374-12020 |
LH80,YH8#..ARL,GEN |
2 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-30270 |
LH80,YH8#..ARL,GEN |
2 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-30270 |
LH80,YH8#..ARL,GEN |
2 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-30270 |
LH80,YH8#..ARL,GEN |
2 | ||
| 88376 - CAP, BLIND | ||||
| 88376-22010 |
LH80,YH8#..ARL,GEN SUCTION |
1 | ||
| 88376-22020 |
LH80,YH8#..ARL,GEN DISCHAREG |
1 | ||
| 88376 - CAP, BLIND | ||||
| 88376-22010 |
LH80,YH8#..ARL,GEN SUCTION |
1 | ||
| 88376-22020 |
LH80,YH8#..ARL,GEN DISCHAREG |
1 | ||
| 88376 - CAP, BLIND | ||||
| 88376-22010 |
LH80,YH8#..ARL,GEN SUCTION |
1 | ||
| 88376-22020 |
LH80,YH8#..ARL,GEN DISCHAREG |
1 | ||
