LH80L-MDB3 (1985)

Toyota Dyna100

Production Aug 1985 - Aug 1987
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )LH80

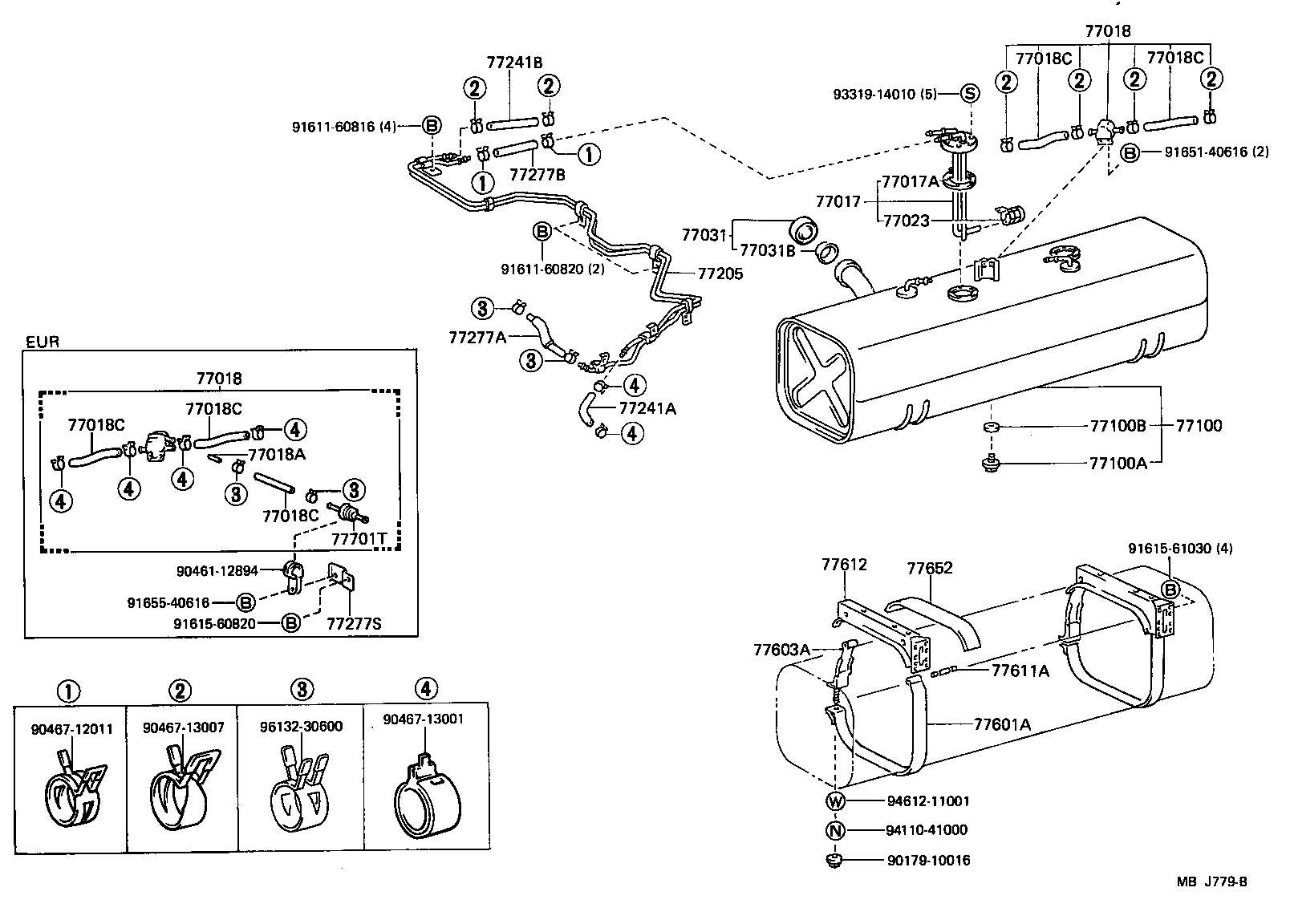

Click highlighted areas on diagram

diagram 77017 77017A 77018 77018 77018A 77018C 77018C 77018C 77018C 77018C 77023 77031 77031B 77100 77100A 77100B 77205 77241A 77241B 77277A 77277B 77277S 77601A 77603A 77611A 77612 77652 77701T 9017910016 9046112894 9046712011 9046713001 9046713007 9161160816 9161160820 9161560820 9161561030 9165140616 9165540616 9331914010 9411041000 9461211001 9613230600
Part # Description Qty Price
77017 - TUBE SUB-ASSY, FUEL AND EVAPORATION VENT
77017-26120

LH80

 1
77017A - GASKET, FUEL TANK VENT
77169-14020

LH80,YH8#

 1
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-25110

LH80,YH80..ARL,GEN

 1
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-25110

LH80,YH80..ARL,GEN

 1
77018C - HOSE, FUEL NO.1 (FOR FUEL LIQUID VAPOUR SEPARATE VALVE)
95332-08020

LH80,YH80..ARL,GEN

*H,L=160,ID=7.6

 2
77018C - HOSE, FUEL NO.1 (FOR FUEL LIQUID VAPOUR SEPARATE VALVE)
95332-08020

LH80,YH80..ARL,GEN

*H,L=160,ID=7.6

 2
77018C - HOSE, FUEL NO.1 (FOR FUEL LIQUID VAPOUR SEPARATE VALVE)
95332-08020

LH80,YH80..ARL,GEN

*H,L=160,ID=7.6

 2
77018C - HOSE, FUEL NO.1 (FOR FUEL LIQUID VAPOUR SEPARATE VALVE)
95332-08020

LH80,YH80..ARL,GEN

*H,L=160,ID=7.6

 2
77018C - HOSE, FUEL NO.1 (FOR FUEL LIQUID VAPOUR SEPARATE VALVE)
95332-08020

LH80,YH80..ARL,GEN

*H,L=160,ID=7.6

 2
77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE
77023-32010

LH80

 1
77031 - CAP ASSY, FUEL TANK
77310-55080

LH80

 1
77031B - GASKET (FOR FUEL TANK CAP)
77316-27010

LH80,YH8#

 1
77100 - TANK ASSY, FUEL
77001-26290

LH80..T3

 1
77100A - PLUG(FOR FUEL TANK)
90105-12116

LH80,YH8#

 1
77100B - GASKET(FOR FUEL TANK)
90430-12245

LH80,YH8#

 1
77205 - TUBE SUB-ASSY, FUEL MAIN
77205-26010

LH80..T3..(ARL,GEN)

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-08030

LH80..T3

*H,L=300,ID=7.6

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95332-08020

LH80

*H,L=150,ID=7.6

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
90447-12018

LH80

 1
77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
95332-06020

LH80

*H,L=140

 1
95333-06014

LH80

*H,L=140

 1
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-26050

LH80,YH8#

 2
77603A - BAND SUB-ASSY, FUEL TANK, NO.2
77603-28010

LH80,YH8#

 2
77611A - PIN (FOR FUEL TANK BAND)
77629-25010

LH80,YH8#

 4
77612 - BRACKET SUB-ASSY, FUEL TANK
77501-28011

LH80,YH8#

 2
77652 - CUSHION, FUEL TANK, NO.1
77651-26040

LH80,YH8#

 2
Common parts
90179-10016
90461-12894
90467-12011
90467-13001
90467-13007
91611-60816
91611-60820
91615-60820
91615-61030
91651-40616
91655-40616
93319-14010
94110-41000
94612-11001
96132-30600
