YU80R-MDDT3 (1984)

Toyota Dyna

Production Sep 1984 - Aug 1986
Engine 4Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )

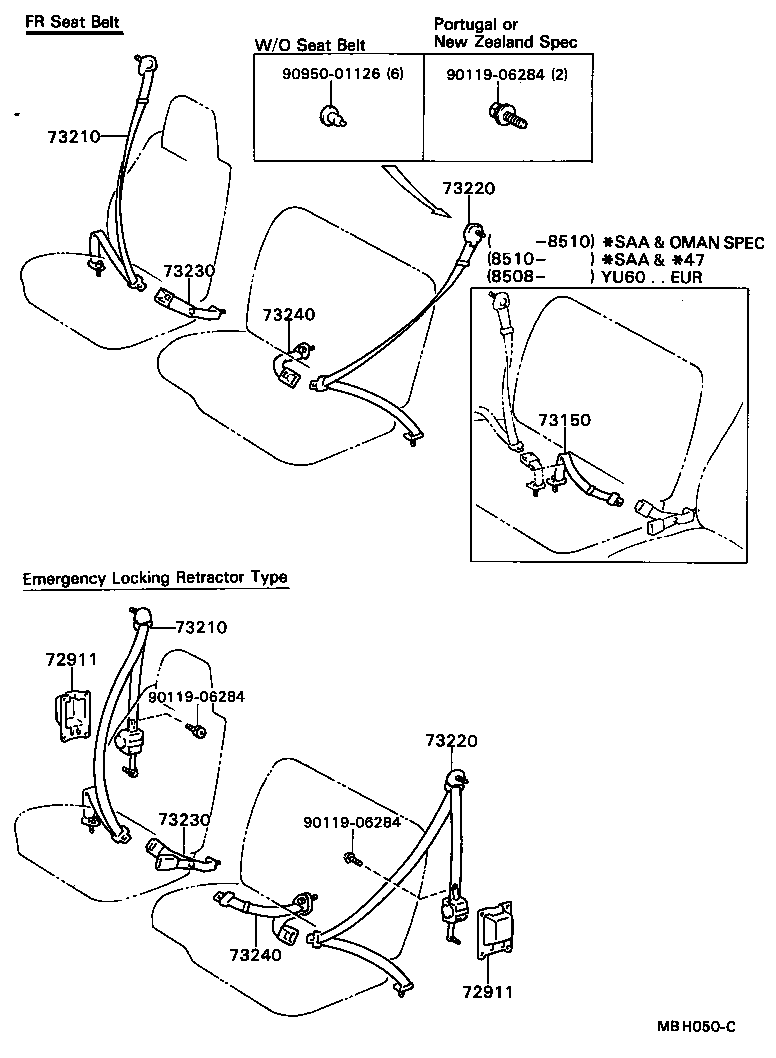

Click highlighted areas on diagram

diagram 72911 72911 73150 73210 73210 73220 73220 73230 73230 73240 73240 9011906284 9011906284 9011906284 9095001126
Part # Description Qty Price
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-9540703

YU6#,70,80..GEN

GRAY,SHADOW GRAY

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-9540703

YU6#,70,80..GEN

GRAY,SHADOW GRAY

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73210-9540703

YU6#,70,80..GEN

GRAY,SHADOW GRAY

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73210-9540703

YU6#,70,80..GEN

GRAY,SHADOW GRAY

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-9540403

RU75,85,WU9#,YU6#,70,80..GEN

GRAY,SHADOW GRAY

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-9540403

RU75,85,WU9#,YU6#,70,80..GEN

GRAY,SHADOW GRAY

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-9540703

YU6#,70,80..GEN

GRAY,SHADOW GRAY

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-9540703

YU6#,70,80..GEN

GRAY,SHADOW GRAY

 1
Common parts
90119-06284
90950-01126

(8409- )

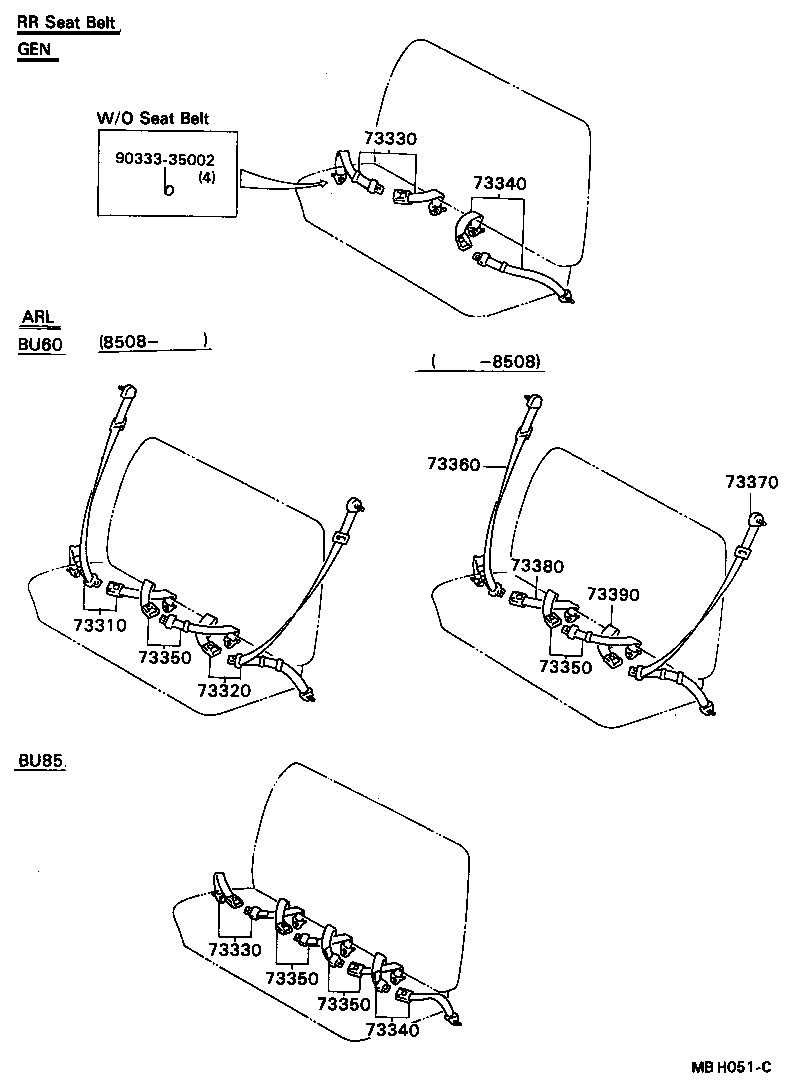

Click highlighted areas on diagram

diagram 73310 73320 73330 73330 73340 73340 73350 73350 73350 73350 73360 73370 73380 73390 9033335002
Part # Description Qty Price
Common parts
90333-35002

(8409- )

Click highlighted areas on diagram

diagram 72911 72911 73150 73210 73210 73220 73220 73230 73230 73240 73240 9011906284 9011906284 9011906284 9095001126
Part # Description Qty Price
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-9540703

YU6#,70,80..GEN

GRAY,SHADOW GRAY

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-9540703

YU6#,70,80..GEN

GRAY,SHADOW GRAY

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73210-9540703

YU6#,70,80..GEN

GRAY,SHADOW GRAY

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73210-9540703

YU6#,70,80..GEN

GRAY,SHADOW GRAY

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-9540403

RU75,85,WU9#,YU6#,70,80..GEN

GRAY,SHADOW GRAY

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-9540403

RU75,85,WU9#,YU6#,70,80..GEN

GRAY,SHADOW GRAY

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-9540703

YU6#,70,80..GEN

GRAY,SHADOW GRAY

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-9540703

YU6#,70,80..GEN

GRAY,SHADOW GRAY

 1
Common parts
90119-06284
90950-01126

(8409- )

Click highlighted areas on diagram

diagram 73310 73320 73330 73330 73340 73340 73350 73350 73350 73350 73360 73370 73380 73390 9033335002
Part # Description Qty Price
Common parts
90333-35002
