YU80R-MDDT3 (1984)
Toyota Dyna
Production
Sep 1984
-
Aug 1986
Engine
4Y
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8409- )BU75,76,80,81,85,86

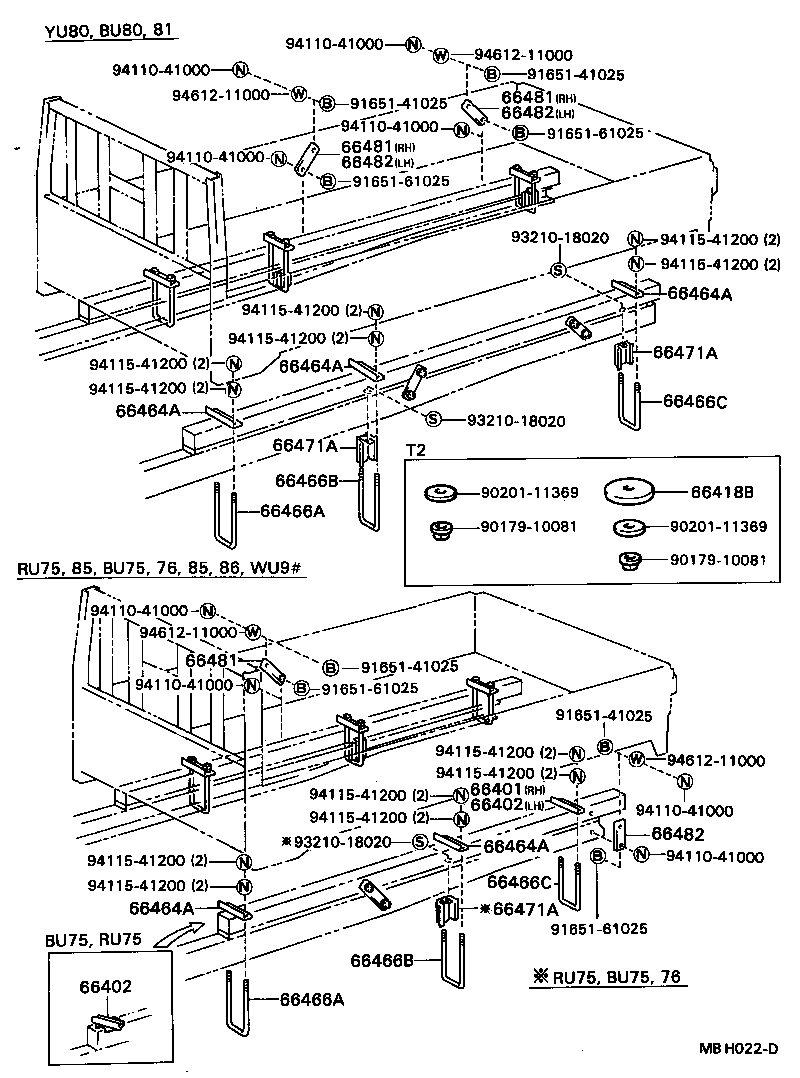

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 66464A - PLATE, U BOLT | ||||
| 66466-92580 |
YU8# |
6 | ||
| 66464A - PLATE, U BOLT | ||||
| 66466-92580 |
YU8# |
6 | ||
| 66464A - PLATE, U BOLT | ||||
| 66466-92580 |
YU8# |
6 | ||
| 66464A - PLATE, U BOLT | ||||
| 66466-92580 |
YU8# |
6 | ||
| 66464A - PLATE, U BOLT | ||||
| 66466-92580 |
YU8# |
6 | ||
| 66466A - BOLT, U, NO.1 | ||||
| 90117-12021 |
YU8# |
2 | ||
| 66466A - BOLT, U, NO.1 | ||||
| 90117-12021 |
YU8# |
2 | ||
| 66466B - BOLT, U, NO.2 | ||||
| 90117-12021 |
YU8# |
2 | ||
| 66466B - BOLT, U, NO.2 | ||||
| 90117-12021 |
YU8# |
2 | ||
| 66466C - BOLT, U, NO.3 | ||||
| 90117-12022 |
YU8# |
2 | ||
| 66466C - BOLT, U, NO.3 | ||||
| 90117-12022 |
YU8# |
2 | ||
| 66471A - REINFORCEMENT, FRAME U BOLT | ||||
| 66471-92802 |
YU8# L=185 |
2 | ||
| 66471-92701 |
YU8# L=135 |
2 | ||
| 66471A - REINFORCEMENT, FRAME U BOLT | ||||
| 66471-92802 |
YU8# L=185 |
2 | ||
| 66471-92701 |
YU8# L=135 |
2 | ||
| 66471A - REINFORCEMENT, FRAME U BOLT | ||||
| 66471-92802 |
YU8# L=185 |
2 | ||
| 66471-92701 |
YU8# L=135 |
2 | ||
| 66481 - BRACE, SILL TO FRAME, RH | ||||
| 66446-92701 |
RU85,WU90,YU8# |
2 | ||
| 66481 - BRACE, SILL TO FRAME, RH | ||||
| 66446-92701 |
RU85,WU90,YU8# |
2 | ||
| 66481 - BRACE, SILL TO FRAME, RH | ||||
| 66446-92701 |
RU85,WU90,YU8# |
2 | ||
| 66482 - BRACE, SILL TO FRAME, LH | ||||
| 66446-92701 |
RU85,WU90,YU8# RR |
1 | ||
| 66446-92701 |
RU85,WU90,YU80 |
2 | ||
| 66482 - BRACE, SILL TO FRAME, LH | ||||
| 66446-92701 |
RU85,WU90,YU8# RR |
1 | ||
| 66446-92701 |
RU85,WU90,YU80 |
2 | ||
| 66482 - BRACE, SILL TO FRAME, LH | ||||
| 66446-92701 |
RU85,WU90,YU8# RR |
1 | ||
| 66446-92701 |
RU85,WU90,YU80 |
2 | ||
| Common parts | ||||
| 90179-10081 | ||||
| 90201-11369 | ||||
| 91651-41025 | ||||
| 91651-61025 | ||||
| 93210-18020 | ||||
| 94110-41000 | ||||
| 94115-41200 | ||||
| 94612-11000 | ||||
(8409- )RU75,85,WU9#,YU8#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 66464A - PLATE, U BOLT | ||||
| 66466-92580 |
YU8# |
6 | ||
| 66464A - PLATE, U BOLT | ||||
| 66466-92580 |
YU8# |
6 | ||
| 66464A - PLATE, U BOLT | ||||
| 66466-92580 |
YU8# |
6 | ||
| 66464A - PLATE, U BOLT | ||||
| 66466-92580 |
YU8# |
6 | ||
| 66464A - PLATE, U BOLT | ||||
| 66466-92580 |
YU8# |
6 | ||
| 66466A - BOLT, U, NO.1 | ||||
| 90117-12021 |
YU8# |
2 | ||
| 66466A - BOLT, U, NO.1 | ||||
| 90117-12021 |
YU8# |
2 | ||
| 66466B - BOLT, U, NO.2 | ||||
| 90117-12021 |
YU8# |
2 | ||
| 66466B - BOLT, U, NO.2 | ||||
| 90117-12021 |
YU8# |
2 | ||
| 66466C - BOLT, U, NO.3 | ||||
| 90117-12022 |
YU8# |
2 | ||
| 66466C - BOLT, U, NO.3 | ||||
| 90117-12022 |
YU8# |
2 | ||
| 66471A - REINFORCEMENT, FRAME U BOLT | ||||
| 66471-92802 |
YU8# L=185 |
2 | ||
| 66471-92701 |
YU8# L=135 |
2 | ||
| 66471A - REINFORCEMENT, FRAME U BOLT | ||||
| 66471-92802 |
YU8# L=185 |
2 | ||
| 66471-92701 |
YU8# L=135 |
2 | ||
| 66471A - REINFORCEMENT, FRAME U BOLT | ||||
| 66471-92802 |
YU8# L=185 |
2 | ||
| 66471-92701 |
YU8# L=135 |
2 | ||
| 66481 - BRACE, SILL TO FRAME, RH | ||||
| 66446-92701 |
RU85,WU90,YU8# |
2 | ||
| 66481 - BRACE, SILL TO FRAME, RH | ||||
| 66446-92701 |
RU85,WU90,YU8# |
2 | ||
| 66481 - BRACE, SILL TO FRAME, RH | ||||
| 66446-92701 |
RU85,WU90,YU8# |
2 | ||
| 66482 - BRACE, SILL TO FRAME, LH | ||||
| 66446-92701 |
RU85,WU90,YU8# RR |
1 | ||
| 66446-92701 |
RU85,WU90,YU80 |
2 | ||
| 66482 - BRACE, SILL TO FRAME, LH | ||||
| 66446-92701 |
RU85,WU90,YU8# RR |
1 | ||
| 66446-92701 |
RU85,WU90,YU80 |
2 | ||
| 66482 - BRACE, SILL TO FRAME, LH | ||||
| 66446-92701 |
RU85,WU90,YU8# RR |
1 | ||
| 66446-92701 |
RU85,WU90,YU80 |
2 | ||
| Common parts | ||||
| 90179-10081 | ||||
| 90201-11369 | ||||
| 91651-41025 | ||||
| 91651-61025 | ||||
| 93210-18020 | ||||
| 94110-41000 | ||||
| 94115-41200 | ||||
| 94612-11000 | ||||
