YU70LB-MD (1984)

Toyota Dyna

Production Sep 1984 - Aug 1986
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )

Click highlighted areas on diagram

diagram 11301 11301A 11301B 11302 11302A 11312 11328 11345 11348 11355 11355A 11381 11381A 11383 11391 1501 9161160814 9161160825 9161161016 9161161016
Part # Description Qty Price
Common parts
91611-60814
91611-60825
91611-61016
Linked diagrams
1501

(8409- )

Click highlighted areas on diagram

diagram 9011908145 9011910073 9011910073 9161160825 9161160835 9161160835 9161160840 9161161060
Part # Description Qty Price
Common parts
90119-08145
90119-10073
91611-60825
91611-60835
91611-60840
91611-61060

(8409- )3Y,4Y

Click highlighted areas on diagram

diagram 11301 11301A 11301E 11301F 11302 11302A 11305B 11314 11328 11354 11355 11381 11381A 11383 11444B 11444C 1619271010 1619471010 9017908146 9151160616 9161160820 9161160820 9161160830 9161161020 9161161020 9165140814 9165160816
Part # Description Qty Price

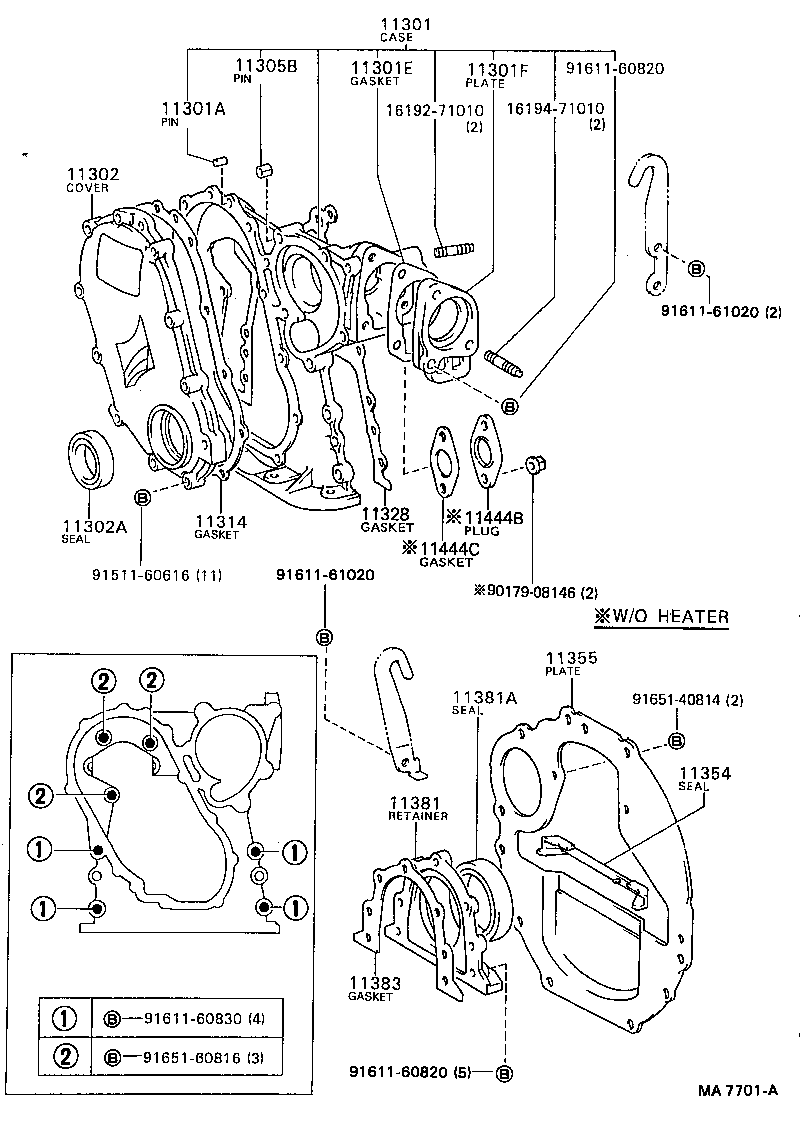

11301 - CASE SUB-ASSY, TIMING GEAR
11301-71010

3Y,4Y..YU6#,7#,8#

 1
11301A - PIN, STRAIGHT(FOR TIMING GEAR CASE)
90250-06001

3Y,4Y..YU6#,7#,8#

L=14,OD=6

 2
11301E - GASKET, THERMOSTAT GUIDE
16119-71010

3Y,4Y..YU6#,7#,8#

 1
11301F - PLATE, WATER PUMP THERMOSTAT GUIDE
16128-71010

3Y,4Y..YU6#,7#,8#

 1
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11321-71010

3Y,4Y..YU6#,7#,8#

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-42007

3Y,4Y..YU6#,7#,8#

 1
11305B - PIN, RING(FOR OIL SEAL RETAINER, NO.2)
16159-71010

3Y,4Y..YU6#,7#,8#

 2
11314 - GASKET, TIMING CHAIN NO.2 COVER
11329-71010

3Y,4Y..YU6#,7#,8#

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-71010

3Y,4Y..YU6#,7#,8#

 1
11354 - SEAL, FLYWHEEL HOUSING DUST
11354-71010

3Y,4Y..YU6#,7#,8#

 1
11355 - PLATE, REAR END
11355-71010

3Y,4Y..YU6#,7#,8#

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-71010

3Y,4Y..YU6#,7#,8#

 1
11381A - SEAL, ENGINE REAR OIL
90311-80003

3Y,4Y..YU6#,7#,8#

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-25010

3Y,4Y..YU6#,7#,8#

 1
11444B - PLUG, HOLE(FOR WATER INLET HOUSING)
11444-71010

3Y,4Y..YU6#,70,80..GEN

W/O HEATER

 1
11444C - GASKET, HEATER PIPE
17175-72010

3Y,4Y..YU6#,70,80..GEN

W/O HEATER

 1
Common parts
16192-71010
16194-71010
90179-08146
91511-60616
91611-60820
91611-60830
91611-61020
91651-40814
91651-60816
