YU62L-MDB (1986)
Toyota Dyna
(8608- )4Y

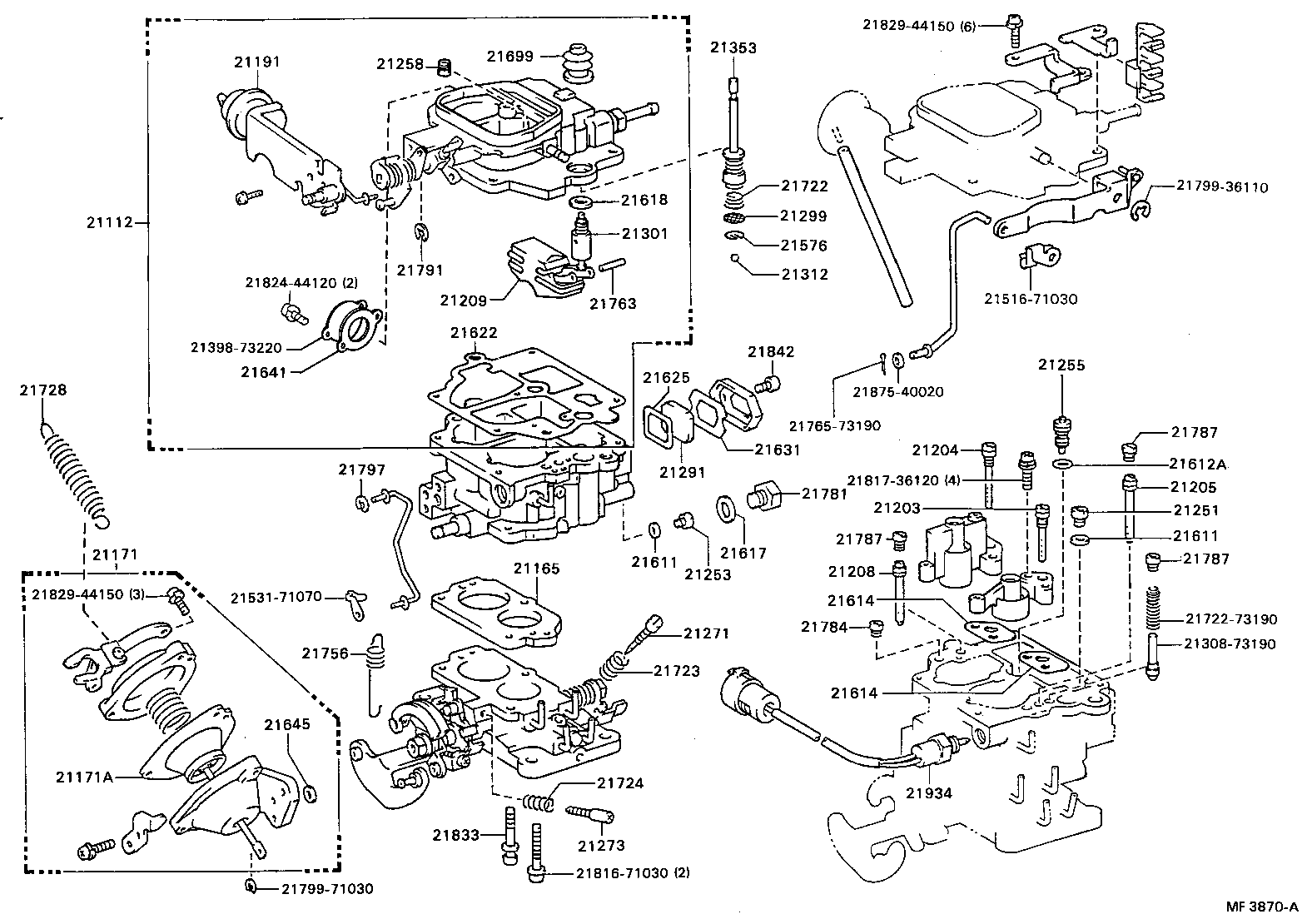

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21112 - HORN, AIR | ||||
| 21012-73260 |
4Y..YU6#,71,81 |
1 | ||
| 21012-73130 |
3Y,4Y..YU6#,70,80 |
1 | ||
| 21165 - INSULATOR | ||||
| 21106-73220 |
4Y..YU6#,71,81 |
1 | ||
| 21106-71030 |
3Y,4Y..YU6#,70,80 |
1 | ||
| 21171 - CHAMBER, DIAPHRAGM | ||||
| 21171-73110 |
3Y,4Y..YU6#,70,80 |
1 | ||
| 21171-73260 |
4Y..YU6#,71,81 |
1 | ||
| 21171A - DIAPHRAGM(FOR DIDPHRAGM CHAMBER) | ||||
| 21173-71030 |
3Y,4Y..YU6#,7#,8# |
1 | ||
| 21191 - OPENER | ||||
| 21039-73110 |
3Y,4Y..YU6#,7#,8# |
1 | ||
| 21203 - BLEEDER SUB-ASSY, 1ST MAIN AIR | ||||
| 21203-71030 |
3Y,4Y..YU6#,70,80 |
1 | ||
| 21203-72210 |
4Y..YU6#,71,81 |
1 | ||
| 21204 - BLEEDER SUB-ASSY, 2ND MAIN AIR | ||||
| 21204-73110 |
3Y,4Y..YU6#,70,80 |
1 | ||
| 21204-73190 |
4Y..YU6#,71,81 |
1 | ||
| 21205 - JET SUB-ASSY, SLOW | ||||
| 21205-34400 |
3Y,4Y..YU6#,70,80 |
1 | ||
| 21205-73220 |
4Y..YU6#,71,81 |
1 | ||
| 21208 - JET SUB-ASSY, STEP | ||||
| 21205-73190 |
4Y..YU6#,71,81 |
1 | ||
| 21208-44310 |
3Y,4Y..YU6#,70,80 |
1 | ||
| 21209 - FLOAT SUB-ASSY | ||||
| 21209-73110 |
3Y,4Y..YU6#,7#,8# |
1 | ||
| 21251 - JET, 1ST MAIN | ||||
| 21251-44350 |
4Y..YU6#,71,81 |
1 | ||
| 21244-36120 |
3Y,4Y..YU6#,70,80 |
1 | ||
| 21253 - JET, 2ND MAIN | ||||
| 21253-71030 |
3Y,4Y..YU6#,7#,8# |
1 | ||
| 21255 - JET, POWER | ||||
| 21302-71030 |
3Y,4Y..YU6#,7#,8# |
1 | ||
| 21258 - JET, SLOW | ||||
| 21249-73200 |
4Y..YU6#,71,81 |
1 | ||
| 21271 - SCREW, IDLE ADJUSTING | ||||
| 21271-71030 |
3Y,4Y..YU6#,7#,8#..ARL,GEN,SA |
1 | ||
| 21273 - SCREW, THROTTLE ADJUSTING | ||||
| 21272-71030 |
3Y,4Y..YU6#,7#,8# |
1 | ||
| 21291 - GLASS, LEVEL GAGE | ||||
| 21291-36120 |
3Y,4Y..YU6#,7#,8# |
1 | ||
| 21299 - NET, PUMP FILTER | ||||
| 21299-31030 |
3Y,4Y..YU6#,7#,8# |
1 | ||
| 21301 - VALVE SUB-ASSY, NEEDLE | ||||
| 21301-71030 |
3Y,4Y..YU6#,7#,8# |
1 | ||
| 21312 - BALL, STEEL | ||||
| 21312-40020 |
3Y,4Y..YU6#,7#,8# |
1 | ||
| 21353 - PLUNGER, PUMP | ||||
| 21305-71030 |
3Y,4Y..YU6#,7#,8# |
1 | ||
| 21576 - CLIP, PUMP STRAINER | ||||
| 21576-31030 |
3Y,4Y..YU6#,7#,8# |
1 | ||
| 21611 - GASKET, MAIN JET | ||||
| 21611-40021 |
3Y,4Y..YU6#,7#,8# |
2 | ||
| 21611 - GASKET, MAIN JET | ||||
| 21611-40021 |
3Y,4Y..YU6#,7#,8# |
2 | ||
| 21612A - GASKET, POWER JET | ||||
| 21612-31100 |
3Y,4Y..YU6#,7#,8# |
1 | ||
| 21614 - GASKET, VENTURI | ||||
| 21614-71030 |
3Y,4Y..YU6#,7#,8# |
2 | ||
| 21614 - GASKET, VENTURI | ||||
| 21614-71030 |
3Y,4Y..YU6#,7#,8# |
2 | ||
| 21617 - GASKET, MAIN PASSAGE PLUG | ||||
| 21633-44150 |
3Y,4Y..YU6#,7#,8# |
1 | ||
| 21618 - GASKET, NEEDLE VALVE SEAT | ||||
| 21637-71030 |
3Y,4Y..YU6#,7#,8# |
1 | ||
| 21622 - GASKET, AIR HORN | ||||
| 21622-71030 |
3Y,4Y..YU6#,70,80 |
1 | ||
| 21622-73220 |
4Y..YU6#,71,81 |
1 | ||
| 21625 - GASKET, LEVEL GAGE | ||||
| 21625-36120 |
3Y,4Y..YU6#,7#,8# |
1 | ||
| 21631 - GASKET, MAIN GUIDE | ||||
| 21631-36120 |
3Y,4Y..YU6#,7#,8# |
1 | ||
| 21641 - GASKET(FOR THERMOSTATIC VALVE COVER) | ||||
| 21626-71030 |
3Y,4Y..YU6#,70,80 |
1 | ||
| 21626-73220 |
4Y..YU6#,71,81 |
1 | ||
| 21645 - GASKET, DIAPHRAGM, CAP | ||||
| 21638-71030 |
3Y,4Y..YU6#,7#,8# |
1 | ||
| 21699 - BOOT(FOR PUMP PLUNGER) | ||||
| 21656-71030 |
3Y,4Y..YU6#,7#,8# |
1 | ||
| 21722 - SPRING, PUMP DAMPING | ||||
| 21735-71030 |
3Y,4Y..YU6#,7#,8# |
1 | ||
| 21723 - SPRING, IDLE ADJUSTING | ||||
| 21723-30030 |
3Y,4Y..YU6#,7#,8# |
1 | ||
| 21724 - SPRING, THROTTLE ADJUSTING | ||||
| 21723-71030 |
3Y,4Y..YU6#,7#,8# |
1 | ||
| 21728 - SPRING, THROTTLE VALVE RETURN | ||||
| 21728-71030 |
3Y,4Y..YU6#,70,80 |
1 | ||
| 21728-73190 |
4Y..YU6#,71,81 |
1 | ||
| 21756 - SPRING, BACK(FOR THROTTLE SHAFT) | ||||
| 21727-73110 |
3Y,4Y..YU6#,70,80 |
1 | ||
| 21727-73190 |
4Y..YU6#,71,81 |
1 | ||
| 21763 - PIN, FLOAT LEVER | ||||
| 21768-73110 |
3Y,4Y..YU6#,7#,8# |
1 | ||
| 21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET) | ||||
| 21776-44310 |
3Y,4Y..YU6#,7#,8# |
1 | ||
| 21784 - PLUG, SLOW PASSAGE | ||||
| 21787-36120 |
3Y,4Y..YU6#,70,80 |
1 | ||
| 21249-73190 |
4Y..YU6#,71,81 |
1 | ||
| 21787 - PLUG, PUMP JET | ||||
| 21776-71030 |
3Y,4Y..YU6#,70,80 |
1 | ||
| 21776-73190 |
4Y..YU6#,71,81 |
3 | ||
| 21787 - PLUG, PUMP JET | ||||
| 21776-71030 |
3Y,4Y..YU6#,70,80 |
1 | ||
| 21776-73190 |
4Y..YU6#,71,81 |
3 | ||
| 21787 - PLUG, PUMP JET | ||||
| 21776-71030 |
3Y,4Y..YU6#,70,80 |
1 | ||
| 21776-73190 |
4Y..YU6#,71,81 |
3 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21797-44050 |
3Y,4Y..YU6#,7#,8# |
1 | ||
| 21797 - RING, SNAP, NO.4(FOR CARBURETOR LINK) | ||||
| 21797-44050 |
3Y,4Y..YU6#,7#,8# |
1 | ||
| 21833 - SCREW, SET, NO.1(FOR CARBURETOR BODY SET) | ||||
| 21804-71030 |
3Y,4Y..YU6#,70,80 |
1 | ||
| 21804-73150 |
4Y..YU6#,71,81 |
1 | ||
| 21842 - SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET) | ||||
| 21832-36120 |
3Y,4Y..YU6#,7#,8# |
2 | ||
| 21934 - SOLENOID, THROTTLE VALVE | ||||
| 21391-71070 |
3Y,4Y..YU6#,7#,8# |
1 | ||
| Common parts | ||||
| 21308-73190 | ||||
| 21398-73220 | ||||
| 21516-71030 | ||||
| 21531-71070 | ||||
| 21722-73190 | ||||
| 21765-73190 | ||||
| 21799-36110 | ||||
| 21799-71030 | ||||
| 21816-71030 | ||||
| 21817-36120 | ||||
| 21824-44120 | ||||
| 21829-44150 | ||||
| 21875-40020 | ||||
