YU61LD-MDT (1984)

Toyota Dyna

Production Sep 1984 - Aug 1986
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )YU6#,7#,8#..LHD

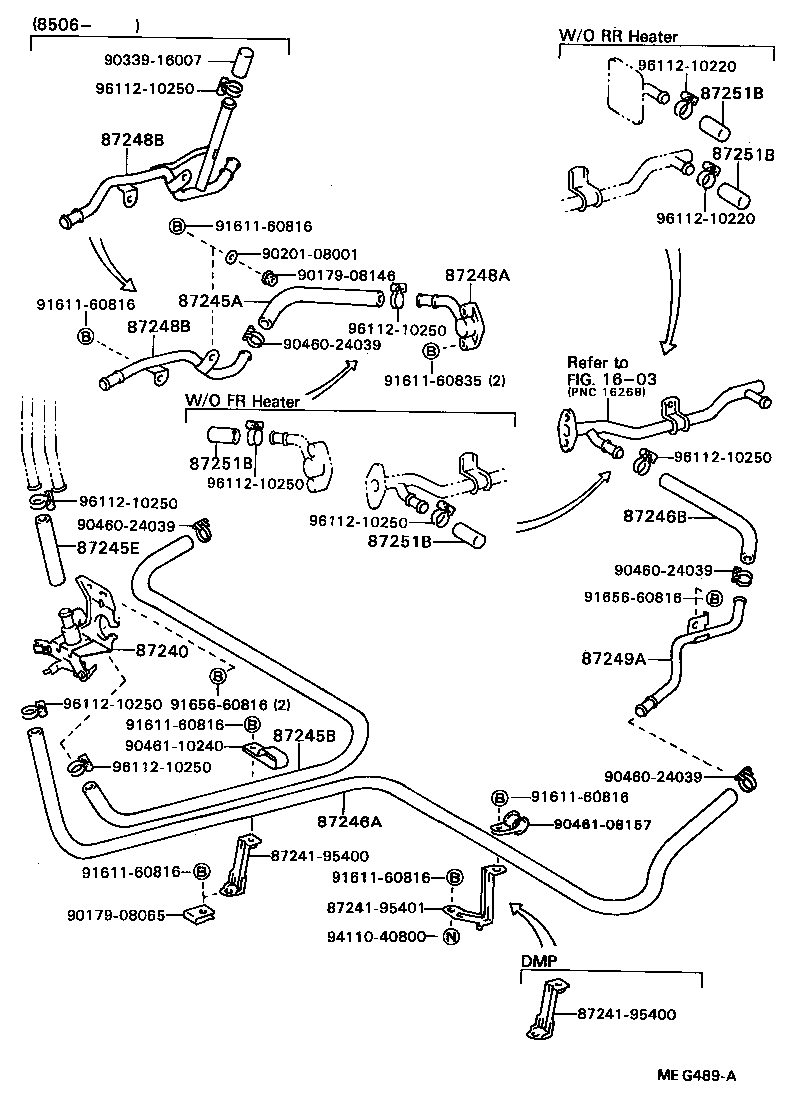

Click highlighted areas on diagram

diagram 1603 87240 8724195400 8724195400 8724195401 87245A 87245B 87245E 87246A 87246B 87248A 87248B 87248B 87249A 87251B 87251B 87251B 87251B 9017908065 9017908146 9020108001 9033916007 9046024039 9046024039 9046024039 9046024039 9046108157 9046110240 9161160816 9161160816 9161160816 9161160816 9161160816 9161160816 9161160835 9165660816 9165660816 9411040800 9611210220 9611210220 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87240 - VALVE ASSY, HEATER WATER
87240-95406

RU75,85,WU9#,YU6#,7#,8#..LHD

 1
87245A - HOSE, HEATER WATER, INLET A
99556-30300

YU6#,7#,8#

*H,L=270

 1
87245B - HOSE, HEATER WATER, INLET B
99556-30700

YU6#,7#,8#..LHD

L=700

 1
87245E - HOSE, HEATER WATER, INLET E
99556-30100

RU75,85,WU9#,YU6#,7#,8#

*H,L=60

 1
87246A - HOSE, HEATER WATER, OUTLET A
99556-30980

YU6#,7#,8#..LHD

*H,L=960

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-95460

YU6#,7#,8#

 1
87248A - PIPE, HEATER WATER INLET, A
87208-28010

YU6#,7#,8#

 1
87248B - PIPE, HEATER WATER INLET, B
87208-95407

YU6#,70,80

 1
87248B - PIPE, HEATER WATER INLET, B
87208-95407

YU6#,70,80

 1
87249A - PIPE, HEATER WATER OUTLET, A
87208-95408

YU6#,70,80

 1
87251B - PLUG, HEATER WATER
90339-16007

YU6#,7#,8#

FR HEATER

 2
90339-13009

YU6#,7#,8#

RR HEATER

 2
87251B - PLUG, HEATER WATER
90339-16007

YU6#,7#,8#

FR HEATER

 2
90339-13009

YU6#,7#,8#

RR HEATER

 2
87251B - PLUG, HEATER WATER
90339-16007

YU6#,7#,8#

FR HEATER

 2
90339-13009

YU6#,7#,8#

RR HEATER

 2
87251B - PLUG, HEATER WATER
90339-16007

YU6#,7#,8#

FR HEATER

 2
90339-13009

YU6#,7#,8#

RR HEATER

 2
Common parts
87241-95400
87241-95401
90179-08065
90179-08146
90201-08001
90339-16007
90460-24039
90461-08157
90461-10240
91611-60816
91611-60835
91656-60816
94110-40800
96112-10220
96112-10250
Linked diagrams
1603
