YU61LD-MDT (1984)

Toyota Dyna

Production Sep 1984 - Aug 1986
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )YU61,63

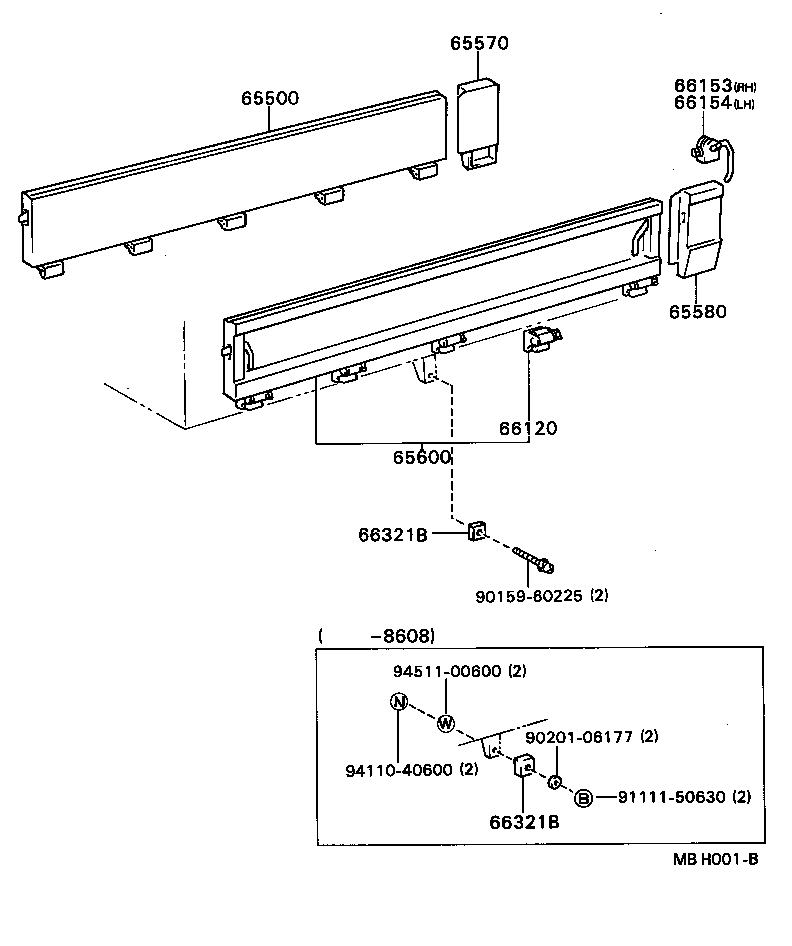

Click highlighted areas on diagram

diagram 65500 65570 65580 65600 66120 66153 66154 66321B 66321B 9015960225 9020106177 9111150630 9411040600 9451100600
Part # Description Qty Price
65500 - PANEL ASSY, REAR BODY SIDE, RH
65500-93100

YU61

 1
65570 - POST ASSY, SIDE PANEL REAR END, RH
65202-93100

YU61,63..L2

 1
65580 - POST ASSY, SIDE PANEL REAR END, LH
65203-93100

YU61,63..L2

 1
65600 - PANEL ASSY, REAR BODY SIDE, LH
65600-93101

YU61

 1
66120 - HINGE ASSY, SIDE GATE
65050-93100

YU61,63

RH 1ST

 1
65040-93101

YU61,63

RH 2ND,3RD,4TH,5TH

 4
65040-93101

YU61,63

LH 1ST

 1
65050-93100

YU61,63

LH 2ND,3RD,4TH,5TH

 4
66153 - LATCH, TAIL GATE FEMALE, RH
66201-93104

YU61,63

 1
66154 - LATCH, TAIL GATE FEMALE, LH
66202-93104

YU61,63

 1
66321B - BUMPER, GATE RUBBER
66321-93103

YU61,63..L2

 2
66321B - BUMPER, GATE RUBBER
66321-93103

YU61,63..L2

 2
Common parts
90159-60225
90201-06177
91111-50630
94110-40600
94511-00600
