YU61LD-MDT (1984)

Toyota Dyna

Production Sep 1984 - Aug 1986
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )YU61,63

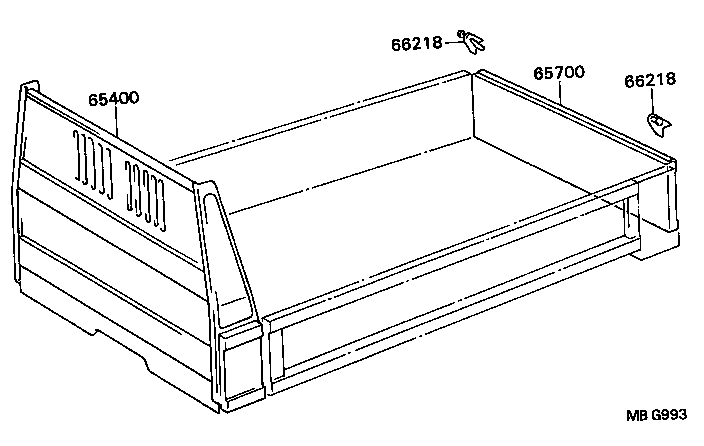

Click highlighted areas on diagram

diagram 65400 65700 66218 66218
Part # Description Qty Price
65400 - FRAME ASSY, REAR BODY GUARD
65402-93100

YU61,63..L2

 1
65700 - GATE ASSY, REAR BODY TAIL
65701-93100

YU61,63..L2

 1
66218 - BRACKET, TAIL GATE LATCH PIN
66267-93100

YU61,63

LH

 1
66266-93100

YU61,63

RH

 1
66218 - BRACKET, TAIL GATE LATCH PIN
66267-93100

YU61,63

LH

 1
66266-93100

YU61,63

RH

 1
