YU61LD-MDT (1984)

Toyota Dyna

Production Sep 1984 - Aug 1986
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )

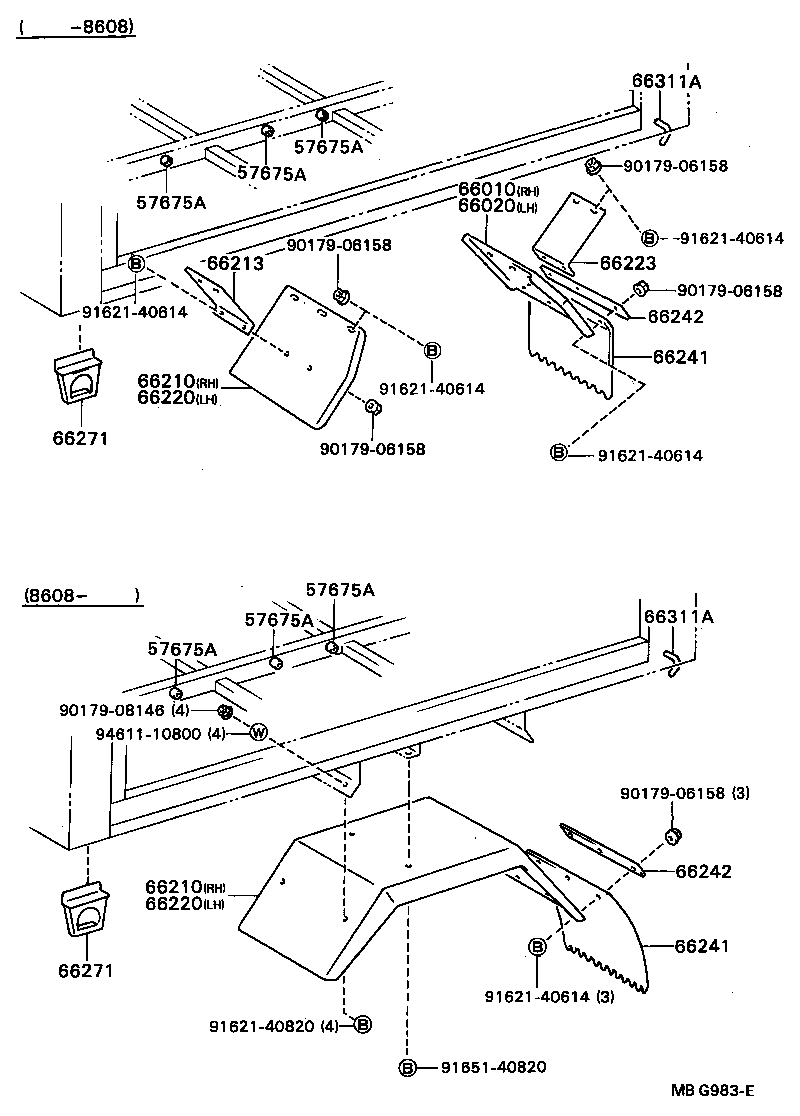

Click highlighted areas on diagram

diagram 66311A
Part # Description Qty Price
66311A - HOOK, ROPE, NO.1
66311-93105

YU61,63

 1

(8409- )YU61,63

Click highlighted areas on diagram

diagram 57675A 57675A 57675A 57675A 57675A 57675A 66010 66020 66210 66210 66213 66220 66220 66223 66241 66241 66242 66242 66271 66271 66311A 66311A 9017906158 9017906158 9017906158 9017906158 9017906158 9017908146 9162140614 9162140614 9162140614 9162140614 9162140614 9162140820 9165140820 9461110800
Part # Description Qty Price
66010 - FENDER ASSY, REAR BODY, REAR RH
66221-93100

YU61

 1
66020 - FENDER ASSY, REAR BODY, REAR LH
66222-93100

YU61

 1
66210 - FENDER ASSY, REAR BODY, FRONT RH
66211-93100

YU61

 1
66210 - FENDER ASSY, REAR BODY, FRONT RH
66211-93100

YU61

 1
66213 - STAY, REAR FENDER FRONT PLATE
66235-93100

YU61

 2
66220 - FENDER ASSY, REAR BODY, FRONT LH
66212-93100

YU61

 1
66220 - FENDER ASSY, REAR BODY, FRONT LH
66212-93100

YU61

 1
66223 - STAY, REAR FENDER REAR PLATE
66235-93100

YU61

 2
66241 - MUDGUARD, REAR
53884-93101

YU61,63..L2

 2
66241 - MUDGUARD, REAR
53884-93101

YU61,63..L2

 2
66242 - PLATE, REAR MUDGUARD SET RETAINER
66332-93103

YU61

 2
66242 - PLATE, REAR MUDGUARD SET RETAINER
66332-93103

YU61

 2
66271 - STEP, REAR BODY
66271-93100

YU61,63..L2

 2
66271 - STEP, REAR BODY
66271-93100

YU61,63..L2

 2
66311A - HOOK, ROPE, NO.1
66311-93105

YU61,63

 1
66311A - HOOK, ROPE, NO.1
66311-93105

YU61,63

 1
Common parts
90179-06158
90179-08146
91621-40614
91621-40820
91651-40820
94611-10800
