YU61LD-MDT (1984)

Toyota Dyna

Production Sep 1984 - Aug 1986

Engine 3Y

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

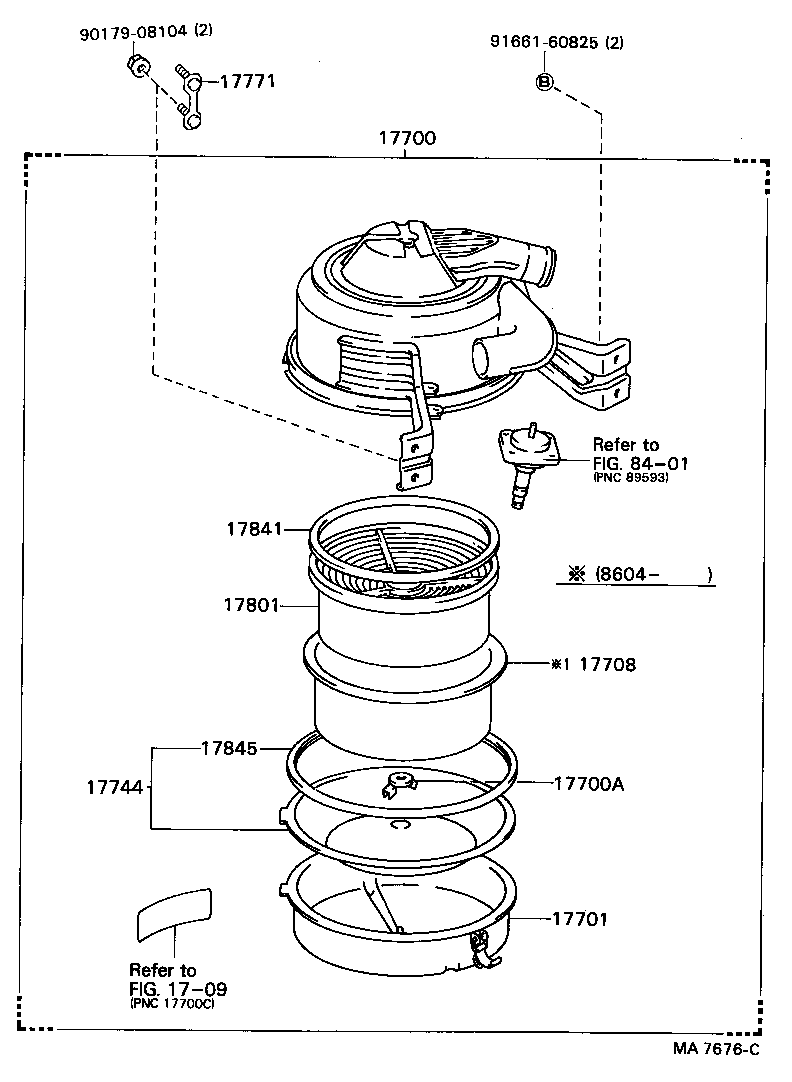

(8409-8508)3Y..LHD..GEN ; (8508- )3Y,4Y..YU60,62,7#,8#..LHD..GEN

Click highlighted areas on diagram

Part #	Description	Period	Qty
17700 - CLEANER ASSY, AIR
17700-56340	3Y,4Y..YU6#,70,80..LHD..GEN	09/1984 - 08/1985	1
17700A - NUT, WING(FOR AIR CLEANER)
90099-05187	3Y,4Y..YU6#,70,80..ARL,GEN,SA	09/1984 - 08/1985	1
17701 - CASE SUB-ASSY, AIR CLEANER
17701-56160	3Y,4Y..YU6#,70,80..LHD..GEN	09/1984 - 08/1985	1
17744 - CUP, PRECLEANER
17744-56010	3Y,4Y..YU6#,70,80..ARL,GEN,SA	09/1984 - 08/1985	1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-56030	3Y,4Y..YU6#,70,80..ARL,GEN,SA	09/1984 - 08/1985	1
17841 - GASKET, FILTER ELEMENT
17841-56030	3Y,4Y..YU6#,70,80..ARL,GEN,SA	09/1984 - 08/1985	1
17845 - GASKET, AIR CLEANER CAP
17845-56050	3Y,4Y..YU6#,70,80..ARL,GEN,SA	09/1984 - 08/1985	1
Common parts
90179-08104
91661-60825
Linked diagrams
1709
8401

(8409- )3Y,4Y..YU60,62,8# ; (8508- )3Y,4Y..YU61,63

Click highlighted areas on diagram

Part #	Description	Period	Qty
17700 - CLEANER ASSY, AIR
17700-56340	3Y,4Y..YU6#,70,80..LHD..GEN	09/1984 - 08/1985	1
17700A - NUT, WING(FOR AIR CLEANER)
90099-05187	3Y,4Y..YU6#,70,80..ARL,GEN,SA	09/1984 - 08/1985	1
17701 - CASE SUB-ASSY, AIR CLEANER
17701-56160	3Y,4Y..YU6#,70,80..LHD..GEN	09/1984 - 08/1985	1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-56030	3Y,4Y..YU6#,70,80..ARL,GEN,SA	09/1984 - 08/1985	1
17841 - GASKET, FILTER ELEMENT
17841-56030	3Y,4Y..YU6#,70,80..ARL,GEN,SA	09/1984 - 08/1985	1
17841 - GASKET, FILTER ELEMENT
17841-56030	3Y,4Y..YU6#,70,80..ARL,GEN,SA	09/1984 - 08/1985	1
17845 - GASKET, AIR CLEANER CAP
17845-56050	3Y,4Y..YU6#,70,80..ARL,GEN,SA	09/1984 - 08/1985	1
Common parts
90179-08104
91661-60825
Linked diagrams
1709
8401

(8409- )3Y,4Y..YU60,62,8# ; (8508- )3Y,4Y..YU61,63

Click highlighted areas on diagram

Part #	Description	Period	Qty
17700 - CLEANER ASSY, AIR
17700-56340	3Y,4Y..YU6#,70,80..LHD..GEN	09/1984 - 08/1985	1
17700A - NUT, WING(FOR AIR CLEANER)
90099-05187	3Y,4Y..YU6#,70,80..ARL,GEN,SA	09/1984 - 08/1985	1
17701 - CASE SUB-ASSY, AIR CLEANER
17701-56160	3Y,4Y..YU6#,70,80..LHD..GEN	09/1984 - 08/1985	1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-56030	3Y,4Y..YU6#,70,80..ARL,GEN,SA	09/1984 - 08/1985	1
17841 - GASKET, FILTER ELEMENT
17841-56030	3Y,4Y..YU6#,70,80..ARL,GEN,SA	09/1984 - 08/1985	1
17845 - GASKET, AIR CLEANER CAP
17845-56050	3Y,4Y..YU6#,70,80..ARL,GEN,SA	09/1984 - 08/1985	1
Common parts
90179-08104
91651-61025
91661-60825
94271-00600
94511-00600
94611-10601
Linked diagrams
1709
8401

(8409- )3Y,4Y..ARL,GEN,SA

Click highlighted areas on diagram

Part #	Description	Period	Qty
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06018	3Y,4Y..YU6#,7#,8#	09/1984 - 08/1987	1
17706 - INLET SUB-ASSY, AIR CLEANER, NO.2
53097-95403	3Y,4Y..YU6#,70,80..LHD..GEN	09/1984 - 08/1985	1
17730 - PRECLEANER ASSY, AIR W/HOSE
17730-56010	3Y..YU61	08/1985 - 05/1986	1
17742 - PLATE, AIR CLEANER INLET COVER
53977-95400	3Y,4Y..YU6#,70,80..ARL,GEN,SA	09/1984 - 08/1985	1
17768 - COVER, AIR CLEANER INLET
53767-95401	3Y,4Y..YU6#,70,80..LHD..GEN	09/1984 - 08/1985	1
17805 - CONNECTOR SUB-ASSY, INTAKE AIR
17805-71010	3Y,4Y..YU6#,70,80	09/1984 - 10/1984	1
17805A - GASKET & WASHER, SEAL
90210-09026	3Y,4Y..YU6#,7#,8#	09/1984 - 08/1987	1
17848 - GASKET, AIR CLEANER TO CARBURETOR
17848-35010	3Y,4Y..YU6#,7#,8#	09/1984 - 08/1987	1
17861 - CONNECTOR, INTAKE AIR
17806-73021	3Y,4Y..YU6#,70,80..LHD..GEN	01/1985 - 07/1985	1
17806-73020	3Y,4Y..YU6#,70,80..LHD..GEN	09/1984 - 01/1985	1
17806-73022	3Y,4Y..YU6#,70,80..LHD..GEN	07/1985 - 08/1985	1
17861D - CLAMP(FOR INTAKE AIR CONNECTOR)
96111-10750	3Y,4Y..YU6#,70,80..ARL,GEN,SA	07/1985 - 08/1985	1
96111-10830	3Y,4Y..YU6#,70,80..ARL,GEN,SA	09/1984 - 07/1985	1
17881 - HOSE, AIR CLEANER, NO.1
17881-58080	3Y,4Y..YU6#,70,80..ARL,GEN,SA	09/1984 - 08/1985	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10690	3Y,4Y..YU6#,70,80..ARL,GEN,SA INTAKE MANIFOLD SIDE	09/1984 - 08/1985	1
96111-10750	3Y,4Y..YU6#,70,80..ARL,GEN,SA PIPE SIDE	09/1984 - 08/1985	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10690	3Y,4Y..YU6#,70,80..ARL,GEN,SA INTAKE MANIFOLD SIDE	09/1984 - 08/1985	1
96111-10750	3Y,4Y..YU6#,70,80..ARL,GEN,SA PIPE SIDE	09/1984 - 08/1985	1
17882 - HOSE, AIR CLEANER, NO.2
17883-95402	3Y,4Y..YU6#,70,80..ARL,GEN,SA	09/1984 - 08/1985	1
17882 - HOSE, AIR CLEANER, NO.2
17883-95402	3Y,4Y..YU6#,70,80..ARL,GEN,SA	09/1984 - 08/1985	1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10690	3Y,4Y..YU6#,70,80..ARL,GEN,SA	09/1984 - 08/1985	2
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10690	3Y,4Y..YU6#,70,80..ARL,GEN,SA	09/1984 - 08/1985	2
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10690	3Y,4Y..YU6#,70,80..ARL,GEN,SA	09/1984 - 08/1985	2
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10690	3Y,4Y..YU6#,70,80..ARL,GEN,SA	09/1984 - 08/1985	2
17883 - HOSE, AIR CLEANER, NO.3
17883-58020	3Y,4Y..YU6#,70,80..ARL,GEN,SA	07/1985 - 08/1985	1
Common parts
90101-08106
90119-08198
90119-08471
90149-80016
90170-08026
90176-08015
90179-06007
90179-06012
90201-08055
90387-08016
90480-16005
91611-60814
91651-40612
91651-40820
94613-10800

(8409- )3Y,4Y..YU60,62,8#..T3 ; (8508- )3Y,4Y..YU61,63

Click highlighted areas on diagram

Part #	Description	Period	Qty
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06018	3Y,4Y..YU6#,7#,8#	09/1984 - 08/1987	1
17730 - PRECLEANER ASSY, AIR W/HOSE
17730-56010	3Y..YU61	08/1985 - 05/1986	1
17805 - CONNECTOR SUB-ASSY, INTAKE AIR
17805-71010	3Y,4Y..YU6#,70,80	09/1984 - 10/1984	1
17805A - GASKET & WASHER, SEAL
90210-09026	3Y,4Y..YU6#,7#,8#	09/1984 - 08/1987	1
17848 - GASKET, AIR CLEANER TO CARBURETOR
17848-35010	3Y,4Y..YU6#,7#,8#	09/1984 - 08/1987	1
17881 - HOSE, AIR CLEANER, NO.1
17881-58080	3Y,4Y..YU6#,70,80..ARL,GEN,SA	09/1984 - 08/1985	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10690	3Y,4Y..YU6#,70,80..ARL,GEN,SA INTAKE MANIFOLD SIDE	09/1984 - 08/1985	1
96111-10750	3Y,4Y..YU6#,70,80..ARL,GEN,SA PIPE SIDE	09/1984 - 08/1985	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10690	3Y,4Y..YU6#,70,80..ARL,GEN,SA INTAKE MANIFOLD SIDE	09/1984 - 08/1985	1
96111-10750	3Y,4Y..YU6#,70,80..ARL,GEN,SA PIPE SIDE	09/1984 - 08/1985	1
17882 - HOSE, AIR CLEANER, NO.2
17883-95402	3Y,4Y..YU6#,70,80..ARL,GEN,SA	09/1984 - 08/1985	1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10690	3Y,4Y..YU6#,70,80..ARL,GEN,SA	09/1984 - 08/1985	2
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10690	3Y,4Y..YU6#,70,80..ARL,GEN,SA	09/1984 - 08/1985	2
17883 - HOSE, AIR CLEANER, NO.3
17883-58020	3Y,4Y..YU6#,70,80..ARL,GEN,SA	07/1985 - 08/1985	1
17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3)
96111-10750	3Y,4Y..YU6#,70,80..ARL,GEN,SA	07/1985 - 08/1985	1
17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3)
96111-10750	3Y,4Y..YU6#,70,80..ARL,GEN,SA	07/1985 - 08/1985	1
Common parts
90109-08025
90175-08008
90179-08025
90480-16011
91651-40612
91651-40816
91651-61025
94612-11200
