YU60R-MDBTQ3 (1984)

Toyota Dyna

Production Sep 1984 - Aug 1986
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )YU60,62..T3 ; (8409- )RU75,85,WU9#,YU61,63,8#..GEN,SA

Click highlighted areas on diagram

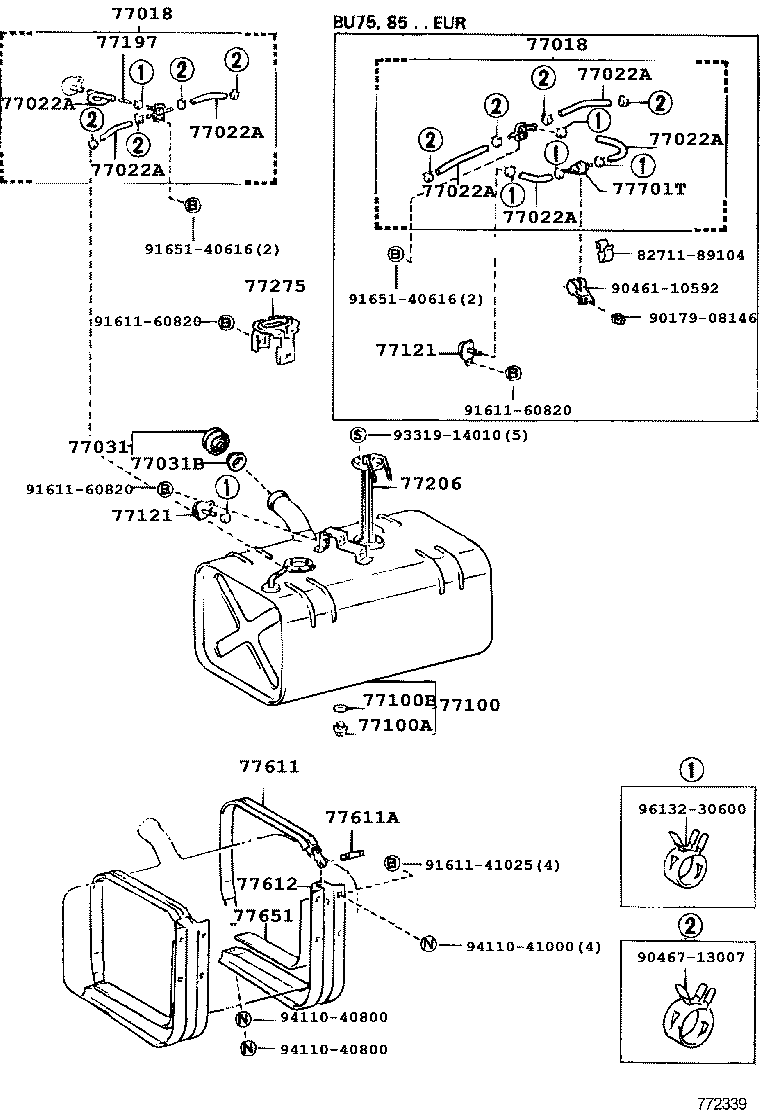

diagram 77018 77018 77022A 77022A 77022A 77022A 77022A 77022A 77022A 77031 77031B 77100 77100A 77100B 77121 77121 77197 77206 77275 77611 77611A 77612 77651 77701T 8271189104 9017908146 9046110592 9046713007 9161141025 9161160820 9161160820 9161160820 9165140616 9165140616 9331914010 9411040800 9411040800 9411041000 9613230600
Part # Description Qty Price
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-36140

YU60,62..ARL

 1
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-36140

YU60,62..ARL

 1
77031 - CAP ASSY, FUEL TANK
77310-12041

RU75,85,YU6#,70,80

 1
77031B - GASKET (FOR FUEL TANK CAP)
77316-12040

RU75,85,YU6#,70,80

 1
77100 - TANK ASSY, FUEL
77001-36710

YU60..WT;RU75,85,WU9#,YU80..GEN,SA

 1
77100A - PLUG(FOR FUEL TANK)
90105-12018

RU75,85,WU9#,YU6#,7#,8#

 1
77100B - GASKET(FOR FUEL TANK)
90430-12245

RU75,85,WU9#,YU6#,7#,8#

 1
77121 - PROTECTOR, FUEL TUBE
77243-36010

YU60,62;RU75,85,WU9#,YU61,63,7#,8#..GEN,SA

 1
77121 - PROTECTOR, FUEL TUBE
77243-36010

YU60,62;RU75,85,WU9#,YU61,63,7#,8#..GEN,SA

 1
77611 - BAND, FUEL TANK
77601-36150

YU61,63;WU90,YU60,62..ARL

 2
77611A - PIN (FOR FUEL TANK BAND)
77629-36010

RU75,85,WU9#,YU6#,8#..L1,L2,T1,T3

 2
77612 - BRACKET SUB-ASSY, FUEL TANK
77633-36111

YU61,63;WU90,YU60,62..ARL

 2
77651 - PACKING, FUEL TANK BRACKET
77651-36100

RU75,85,WU9#,YU6#,8#..L1,L2,T3

 2
Common parts
82711-89104
90179-08146
90461-10592
90467-13007
91611-41025
91611-60820
91651-40616
93319-14010
94110-40800
94110-41000
96132-30600

(8409- )YU60,62,80

Click highlighted areas on diagram

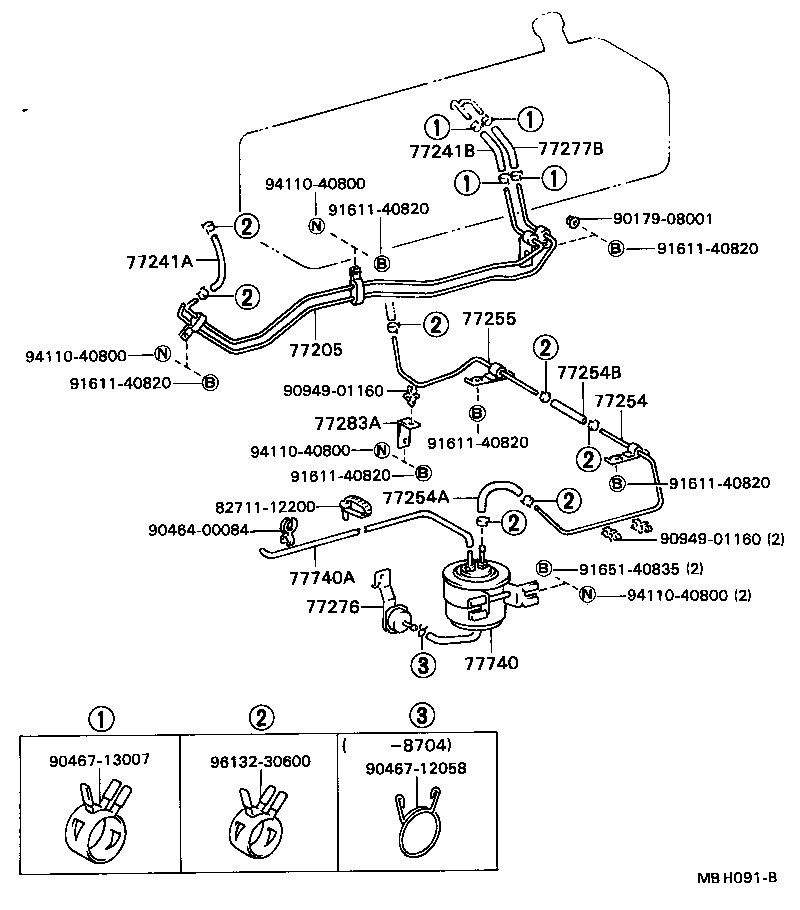

diagram 77205 77241A 77241B 77254 77254A 77254B 77255 77276 77277B 77283A 77740 77740A 8271112200 9017908001 9046400084 9046712058 9046713007 9094901160 9094901160 9161140820 9161140820 9161140820 9161140820 9161140820 9161140820 9165140835 9411040800 9411040800 9411040800 9411040800 9613230600
Part # Description Qty Price
77205 - TUBE SUB-ASSY, FUEL MAIN
77205-36250

YU60,61,8#

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-06030

YU60,70,80

*H,L=300

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95332-08030

RU75,85,YU60,80..T1,T3

*H,L=280,ID=7.6

 1
77254 - TUBE, FUEL EMISSION, NO.1
77028-36010

YU60,62..ARL

 1
77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1)
95332-06030

YU60,62..ARL

*H,L=220

 1
77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1)
95332-06020

YU60,62..ARL

*H,L=150

 1
77255 - TUBE, FUEL EMISSION, NO.2
77027-36010

YU60,62..ARL

 1
77276 - PROTECTOR, FUEL HOSE
77276-36030

YU60,62..ARL

 1
77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
95332-08030

RU75,85,YU60,80..T1,T3

*H,L=280,ID=7.6

 1
77283A - BRACKET, FUEL TUBE CLAMP, NO.1
58266-36210

YU60,62..ARL

 1
77740 - CANISTER ASSY, CHARCOAL
77740-36090

YU60,62..ARL

 1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
95411-10695

YU60,62..ARL

*H,L=950

 1
Common parts
82711-12200
90179-08001
90464-00084
90467-12058
90467-13007
90949-01160
91611-40820
91651-40835
94110-40800
96132-30600
