YU60R-MDBT (1984)

Toyota Dyna

Production Sep 1984 - Aug 1986
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )

Click highlighted areas on diagram

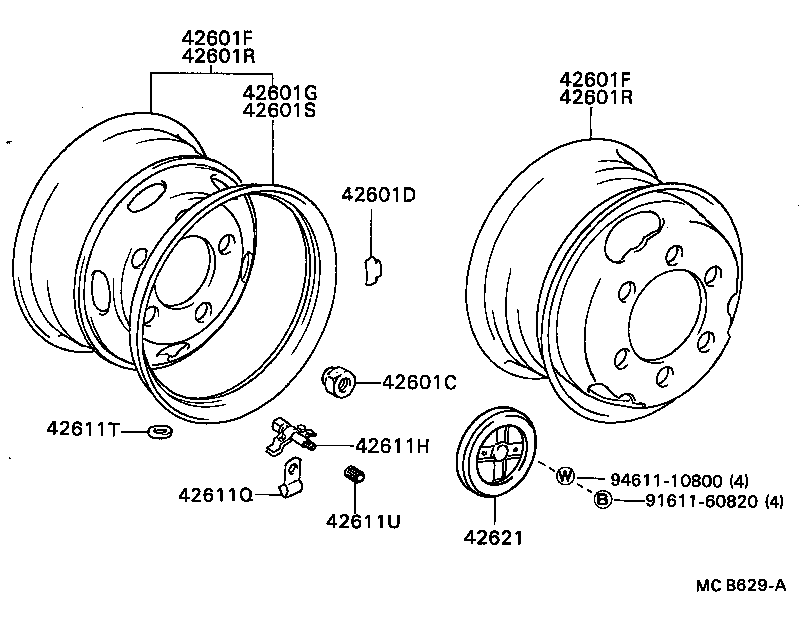

diagram 42601C 42601D 42601F 42601F 42601G 42601R 42601R 42601S 42611H 42611Q 42611T 42611U 42621 9161160820 9461110800
Part # Description Qty Price
42601C - NUT, HUB (FOR AXLE)
42634-55030

RU75,85,WU9#,YU6#,8#..WT

RR,LH

 6
90942-01023

RU75,85,WU9#,YU6#,8#..WT

FR,RH

 6
90942-01024

RU75,85,WU9#,YU6#,8#..WT

FR,LH

 6
42633-55030

RU75,85,WU9#,YU6#,8#..WT

RR,RH

 6
42601D - WEIGHT, BALANCE (FOR DISC WHEEL)
90942-03045

RU75,85,WU9#,YU6#,7#,8#

20G,20G,W/5.50F WHEEL

 1
90942-03050

RU75,85,WU9#,YU6#,7#,8#

30G,30G,W/5.50F WHEEL

 1
90942-03047

RU75,85,WU9#,YU6#,7#,8#

40G,40G,W/5.50F WHEEL

 1
90942-03064

RU75,85,WU9#,YU6#,7#,8#

70G,70G,W/5.50F WHEEL

 1
90942-03052

RU75,85,WU9#,YU6#,7#,8#

50G,50G,W/5.50F WHEEL

 1
90942-03053

RU75,85,WU9#,YU6#,7#,8#

100G,100G,W/5.50F WHEEL

 1
90942-03051

RU75,85,WU9#,YU6#,7#,8#

80G,80G,W/5.50F WHEEL

 1
90942-03049

RU75,85,WU9#,YU6#,7#,8#

60G,60G,W/5.50F WHEEL

 1
42601F - WHEEL, DISC (FOR FRONT)
42610-36220

RU75,YU6#,8#..WT

5.5F-16,5.50F-16-108

 2
42610-36230

YU60,62,8#..WT..GEN

AFJ 16X5.50F,5.50F-16-115

 2
42601F - WHEEL, DISC (FOR FRONT)
42610-36220

RU75,YU6#,8#..WT

5.5F-16,5.50F-16-108

 2
42610-36230

YU60,62,8#..WT..GEN

AFJ 16X5.50F,5.50F-16-115

 2
42601G - RING, DISC WHEEL SIDE (FOR FRONT)
42613-36080

RU75,85,YU6#,7#,8#

5.50F-16

 2
42601R - WHEEL, DISC (FOR REAR)
42610-36220

RU75,YU6#,8#..WT

5.5F-16,5.50F-16-108

 5
42610-36230

YU60,62,8#..WT..GEN

AFJ 16X5.50F,5.50F-16-115

 5
42601R - WHEEL, DISC (FOR REAR)
42610-36220

RU75,YU6#,8#..WT

5.5F-16,5.50F-16-108

 5
42610-36230

YU60,62,8#..WT..GEN

AFJ 16X5.50F,5.50F-16-115

 5
42601S - RING, DISC WHEEL SIDE (FOR REAR)
42613-36080

RU75,85,YU6#,7#,8#

5.50F-16

 5
42611Q - CLIP (FOR TUBE)
90468-10014

RU75,YU60,62..WT

 3
42611T - WASHER (FOR TUBE)
90201-11009

RU75,YU60,62..WT

 3
Common parts
91611-60820
94611-10800
