YU60R-MDBT (1984)

Toyota Dyna

Production Sep 1984 - Aug 1986
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )3Y,4Y

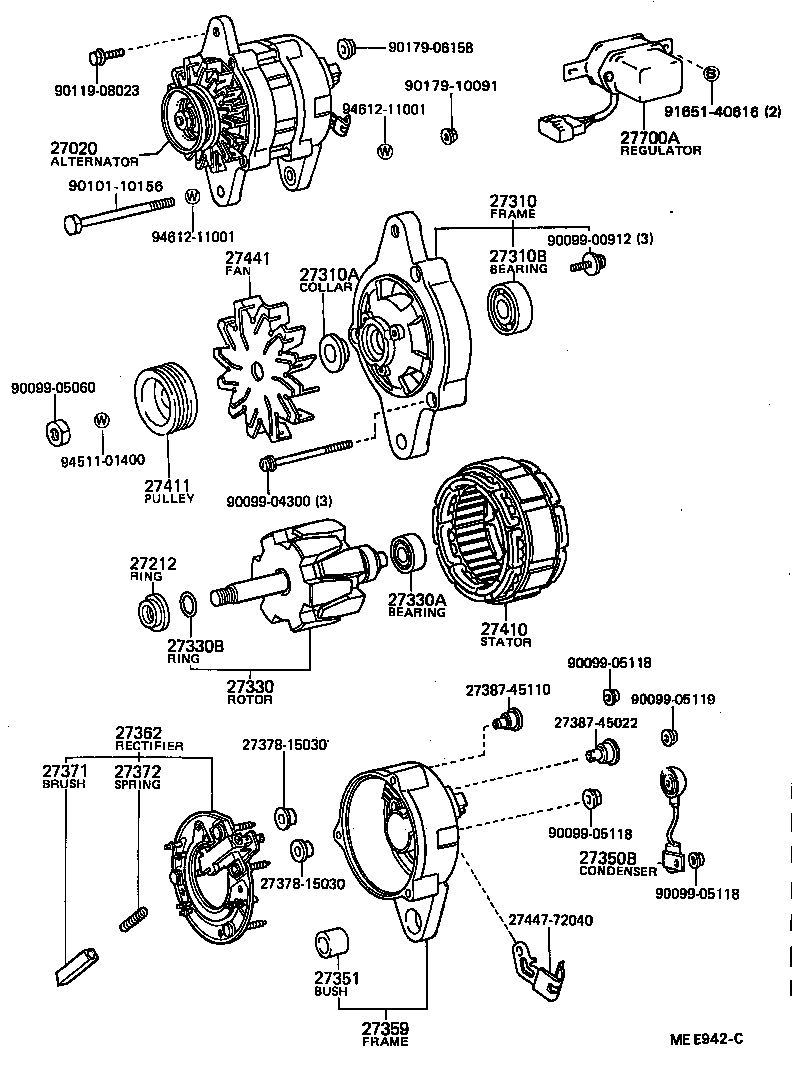

Click highlighted areas on diagram

diagram 27020 27212 27310 27310A 27310B 27330 27330A 27330B 27350B 27351 27359 27362 27371 27372 2737815030 2737815030 2738745022 2738745110 27410 27411 27441 2744772040 27700A 9009900912 9009904300 9009905060 9009905118 9009905118 9009905118 9009905119 9010110156 9011908023 9017906158 9017910091 9165140616 9451101400 9461211001 9461211001
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27020-72050

3Y,4Y..YU6#,7#,8#

12V 45A,12V 45A

 1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27212-39050

22R,3Y,4Y..RU75,85,YU6#,7#,8#

12V 45A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-72030

3Y,4Y..YU6#,7#,8#

12V 45A

 1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27412-16030

3Y,4Y..YU6#,7#,8#

12V 45A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10142

3Y,4Y..YU6#,7#,8#

12V 45A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-45020

22R,3Y,4Y..RU75,85,YU6#,7#,8#

12V 45A

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10111

22R,3Y,4Y..RU75,85,YU6#,7#,8#

12V 45A

 1
27330B - RING, SNAP(FOR ALTERNATOR ROTOR)
90099-07048

22R,3Y,4Y..RU75,85,YU6#,7#,8#

12V 45A

 1
27350B - CONDENSER, ALTERNATOR
90099-52065

22R,3Y,4Y..RU75,85,YU6#,7#,8#

12V 45A

 1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-38051

22R,3Y,4Y..RU75,85,YU6#,7#,8#

12V 45A

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-72030

3Y,4Y..YU6#,7#,8#

12V 45A

 1
27362 - RECTIFIER ASSY, W/BRUSH
27362-18011

22R,3Y,4Y..RU75,85,YU6#,7#,8#

12V 45A

 1
27371 - BRUSH, ALTERNATOR
27371-31011

22R,3Y,4Y..RU75,85,YU6#,7#,8#

12V 45A

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-31011

22R,3Y,4Y..RU75,85,YU6#,7#,8#

12V 45A

 2
27410 - STATOR ASSY, ALTERNATOR
27410-38120

22R,3Y,4Y..RU75,85,YU6#,7#,8#

12V 45A

 1
27411 - PULLEY, ALTERNATOR
27411-72040

3Y,4Y..YU6#,7#,8#

12V 45A

 1
27441 - FAN, ALTERNATOR
27441-34030

22R,3Y,4Y..RU75,85,YU6#,7#,8#

12V 45A

 1
27700A - REGULATOR ASSY, GENERATOR
27700-56060

22R,3Y,4Y..RU75,85,YU6#,7#,8#

12V 45A

 1
Common parts
27378-15030
27387-45022
27387-45110
27447-72040
90099-00912
90099-04300
90099-05060
90099-05118
90099-05119
90101-10156
90119-08023
90179-06158
90179-10091
91651-40616
94511-01400
94612-11001
