YU60L-MDBTW (1984)

Toyota Dyna

Production Sep 1984 - Aug 1986
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )3Y,4Y

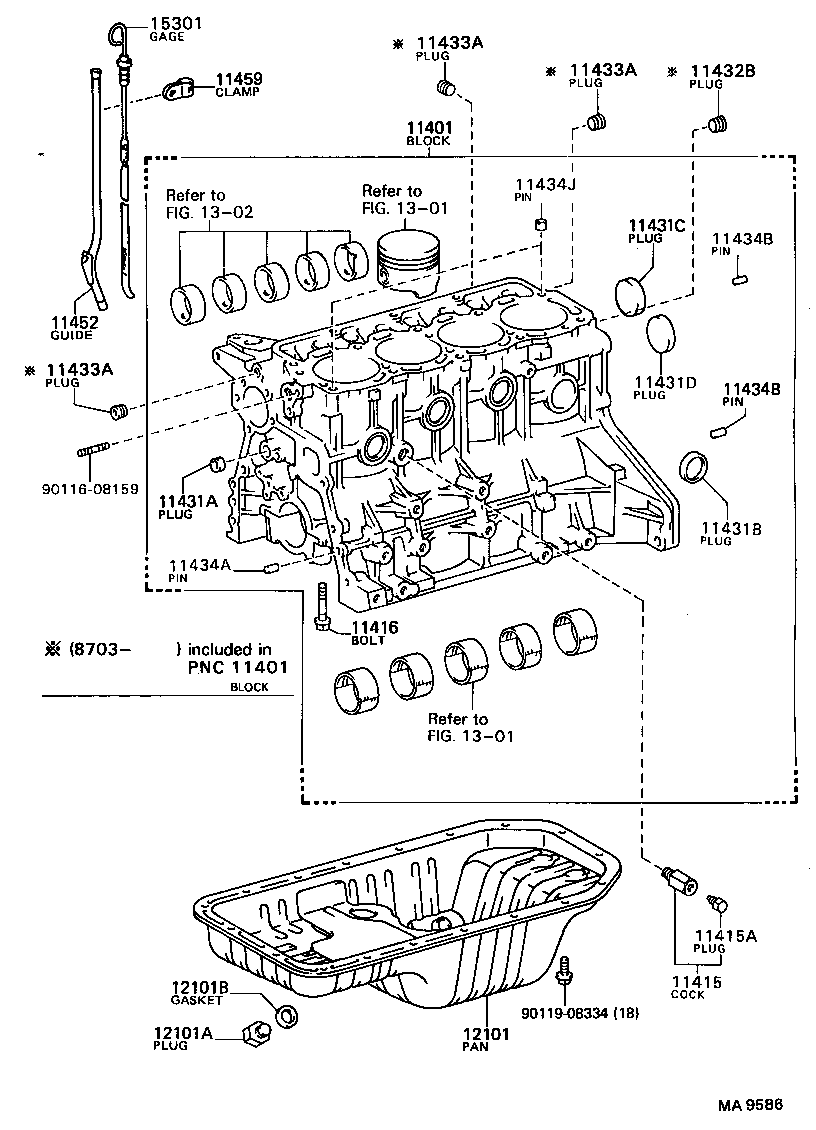

Click highlighted areas on diagram

diagram 11401 11401 11415 11415A 11416 11431A 11431B 11431C 11431D 11432B 11433A 11433A 11433A 11434A 11434B 11434B 11434J 11452 11459 12101 12101A 12101B 1301 1301 1302 15301 9011608159 9011908334
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-79085

3Y,4Y..YU6#,70,80

 1
11401-79086

3Y,4Y..YU6#,70,80

 1
11401 - BLOCK SUB-ASSY, CYLINDER
11401-79085

3Y,4Y..YU6#,70,80

 1
11401-79086

3Y,4Y..YU6#,70,80

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09070

3Y,4Y..YU6#,70,80

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90910-09072

3Y,4Y..YU6#,70,80

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02032

3Y,4Y..YU6#,7#,8#

 10
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-01800

3Y,4Y..YU6#,7#,8#

 1
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-43500

3Y,4Y..YU6#,70,80

OD=35

 4
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-45000

3Y,4Y..YU6#,7#,8#

 1
11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)
96411-45000

3Y,4Y..YU6#,7#,8#

OD=50

 1
11432B - PLUG, W/HEAD TAPER SCREW, NO.2
90344-53011

3Y,4Y..YU6#,7#,8#

 1
11433A - PLUG, STRAIGHT, NO.1
90344-51005

3Y,4Y..YU6#,70,80

 3
11433A - PLUG, STRAIGHT, NO.1
90344-51005

3Y,4Y..YU6#,70,80

 3
11433A - PLUG, STRAIGHT, NO.1
90344-51005

3Y,4Y..YU6#,70,80

 3
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-08120

3Y,4Y..YU6#,7#,8#

L=18,OD=8,L=18,OD=8

 2
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113

3Y,4Y..YU6#,7#,8#

L=22,OD=10,L=22,OD=10

 2
90250-08120

3Y,4Y..YU6#,7#,8#

L=18,OD=8,L=18,OD=8

 2
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113

3Y,4Y..YU6#,7#,8#

L=22,OD=10,L=22,OD=10

 2
90250-08120

3Y,4Y..YU6#,7#,8#

L=18,OD=8,L=18,OD=8

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-15016

3Y,4Y..YU6#,7#,8#

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-71020

3Y,4Y..YU6#,7#,8#

 1
11459 - SUPPORT, OIL LEVEL GAGE GUIDE
11459-71011

3Y,4Y..YU6#,7#,8#

 1
12101 - PAN SUB-ASSY, OIL
12101-71020

3Y,4Y..YU6#,70,80

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-18089

3Y,4Y..YU6#,70,80

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-18244

3Y,4Y..YU6#,70,80

ID=18

 1
90430-12009

3Y,4Y..YU6#,70,80

ID=12

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-71020

3Y,4Y..YU6#,7#,8#

 1
Common parts
90116-08159
90119-08334
Linked diagrams
1301
1302
