YU60L-MDBT (1984)

Toyota Dyna

Production Sep 1984 - Aug 1986
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )

Click highlighted areas on diagram

diagram 66311A
Part # Description Qty Price

(8409- )YU60,62..T3

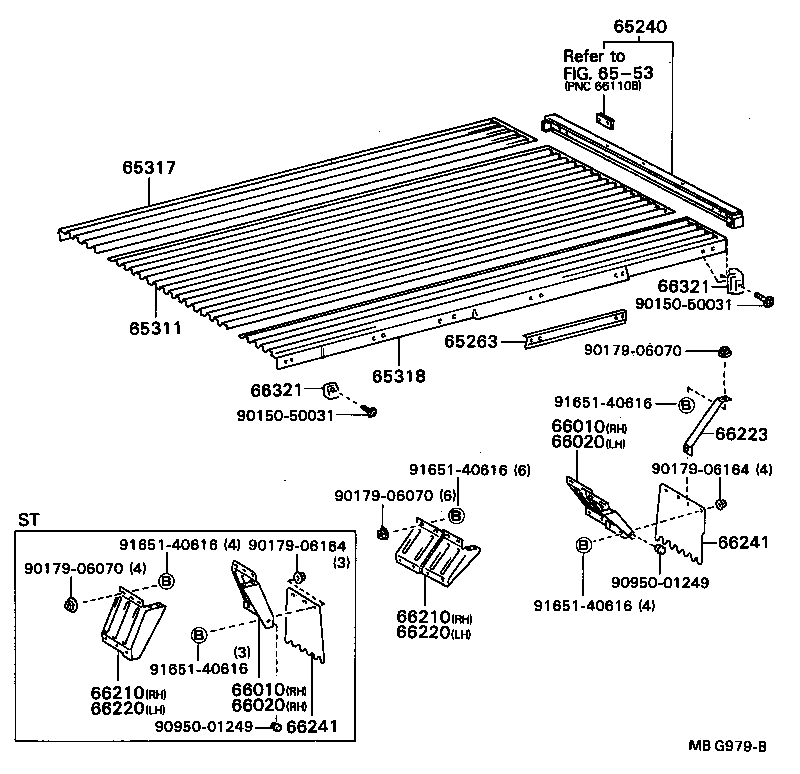

Click highlighted areas on diagram

diagram 65240 65263 65311 65317 65318 6553 66010 66010 66020 66020 66210 66210 66220 66220 66223 66241 66241 66321 66321 9015050031 9015050031 9017906070 9017906070 9017906070 9017906164 9017906164 9095001249 9095001249 9165140616 9165140616 9165140616 9165140616 9165140616
Part # Description Qty Price
65240 - CROSSMEMBER, REAR BODY FLOOR, TAIL
65240-95420

YU60,62..WT

 1
65263 - REINFORCEMENT, FLOOR SIDE FRAME
65263-95404

YU60,62..T3

 2
65311 - PANEL, FLOOR, CENTER
65311-95409

YU60,62..T3

 1
65317 - PANEL, FLOOR SIDE, RH
65317-95415

YU60,62..WT

 1
65318 - PANEL, FLOOR SIDE, LH
65318-95416

YU60,62..WT

 1
66010 - FENDER ASSY, REAR BODY, REAR RH
66210-95404

YU60,62..WT

 1
66010 - FENDER ASSY, REAR BODY, REAR RH
66210-95404

YU60,62..WT

 1
66020 - FENDER ASSY, REAR BODY, REAR LH
66220-95404

YU60,62..WT

 1
66020 - FENDER ASSY, REAR BODY, REAR LH
66220-95404

YU60,62..WT

 1
66210 - FENDER ASSY, REAR BODY, FRONT RH
66201-95401

YU60,62..WT

 1
66210 - FENDER ASSY, REAR BODY, FRONT RH
66201-95401

YU60,62..WT

 1
66220 - FENDER ASSY, REAR BODY, FRONT LH
66202-95401

YU60,62..WT

 1
66220 - FENDER ASSY, REAR BODY, FRONT LH
66202-95401

YU60,62..WT

 1
66223 - STAY, REAR FENDER REAR PLATE
66235-95402

YU60,62..WT

 2
66241 - MUDGUARD, REAR
66241-95401

YU60,62..WT

LH

 1
66241-95405

YU60,62..WT

RH

 1
66241 - MUDGUARD, REAR
66241-95401

YU60,62..WT

LH

 1
66241-95405

YU60,62..WT

RH

 1
66321 - BUMPER, GATE RUBBER
66321-95407

YU60,62..T3

TAIL GATE

 2
66321-95012

YU60,62..T3

SIDE GATE

 2
66321 - BUMPER, GATE RUBBER
66321-95407

YU60,62..T3

TAIL GATE

 2
66321-95012

YU60,62..T3

SIDE GATE

 2
Common parts
90150-50031
90179-06070
90179-06164
90950-01249
91651-40616
Linked diagrams
6553
