YU60L-MDB (1984)
Toyota Dyna
Production
Sep 1984
-
Aug 1986
Engine
3Y
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8409- )YU60,62..T3

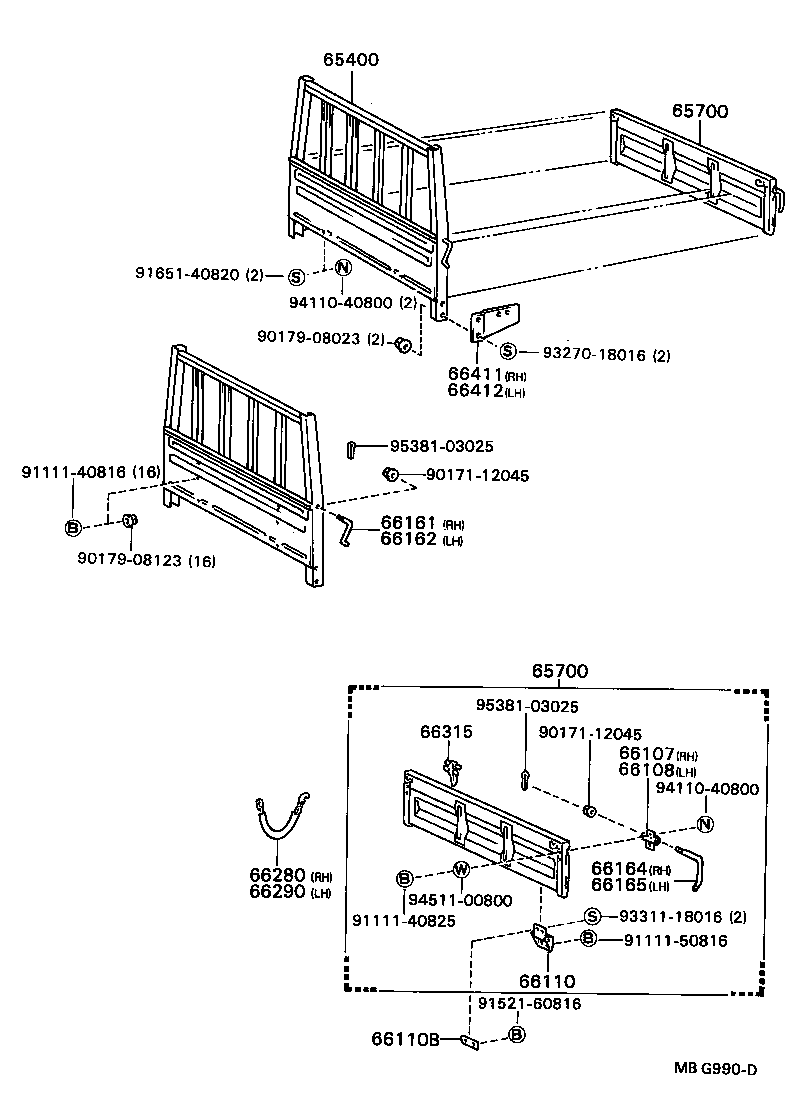

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65400 - FRAME ASSY, REAR BODY GUARD | ||||
| 65400-95432 |
YU60,62..T3..ST W/*STAC |
1 | ||
| 65400-95431 |
YU60,62..T3..ST |
1 | ||
| 65700 - GATE ASSY, REAR BODY TAIL | ||||
| 65700-95407 |
YU60,62..T3..ST |
1 | ||
| 65700 - GATE ASSY, REAR BODY TAIL | ||||
| 65700-95407 |
YU60,62..T3..ST |
1 | ||
| 66107 - BRACKET SUB-ASSY, TAIL GATE, RH | ||||
| 66107-95404 |
YU60,62..T3 |
1 | ||
| 66108 - BRACKET SUB-ASSY, TAIL GATE, LH | ||||
| 66107-95404 |
YU60,62..T3 |
1 | ||
| 66110 - HINGE ASSY, TAIL GATE | ||||
| 66110-95407 |
YU60,62..T3 |
4 | ||
| 66110B - RETAINER, TAIL GATE HINGE, LOWER | ||||
| 66115-95012 |
YU60,62..T3 |
4 | ||
| 66161 - HANDLE, SIDE GATE LATCH, RH | ||||
| 66161-95404 |
YU60,62..T3 |
1 | ||
| 66162 - HANDLE, SIDE GATE LATCH, LH | ||||
| 66162-95403 |
YU60,62..T3 |
1 | ||
| 66164 - HANDLE, TAIL GATE LATCH, RH | ||||
| 66164-95401 |
YU60,62..T3 |
1 | ||
| 66165 - HANDLE, TAIL GATE LATCH, LH | ||||
| 66164-95401 |
YU60,62..T3 |
1 | ||
| 66280 - CHAIN ASSY, TAIL GATE, RH | ||||
| 66280-95011 |
YU60,62..T3 |
1 | ||
| 66290 - CHAIN ASSY, TAIL GATE, LH | ||||
| 66280-95011 |
YU60,62..T3 |
1 | ||
| 66315 - HOOK, ROPE | ||||
| 66311-95400 |
YU60,62..T3 |
1 | ||
| 66411 - BRACKET, GUARD FRAME, RH | ||||
| 66401-95401 |
YU60,62..T3 |
1 | ||
| 66412 - BRACKET, GUARD FRAME, LH | ||||
| 66402-95401 |
YU60,62..T3 |
1 | ||
| Common parts | ||||
| 90171-12045 | ||||
| 90179-08023 | ||||
| 90179-08123 | ||||
| 91111-40816 | ||||
| 91111-40825 | ||||
| 91111-50816 | ||||
| 91521-60816 | ||||
| 91651-40820 | ||||
| 93270-18016 | ||||
| 93311-18016 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
| 95381-03025 | ||||
