XZU720L-TKFRLV3 (2012)
Toyota Dyna

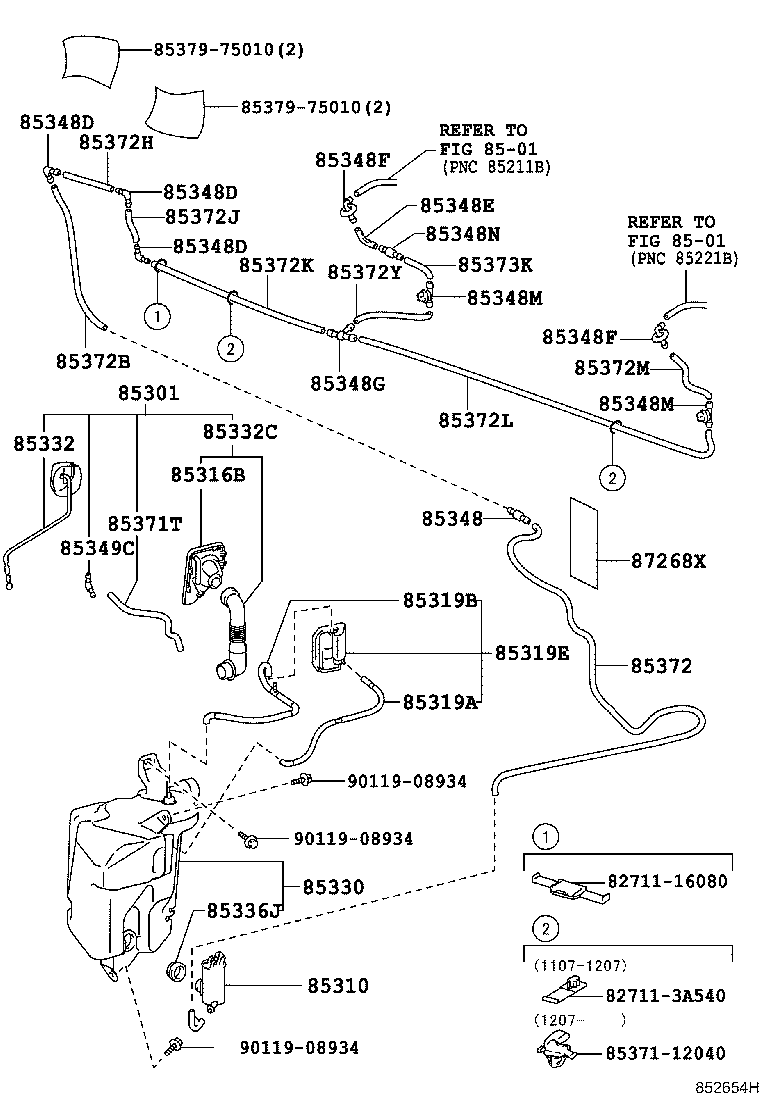

(1107-1304)LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85301 - INLET SUB-ASSY, WASHER | ||||
| 85301-37042 |
WU700,710,720..LHD;XZU710,720..MTM..GCC |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85310-90B00 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 85316B - CAP, WASHER, INLET | ||||
| 85386-37030 |
WU710,720..LHD;XZU710,720..MTM..GCC |
1 | ||
| 85386-37030 |
WU710..LHD..5F;WU710..85T..IV3;XZU710..MTM..GCC;WU720,XZU720..(75T,85T)..(GCC,GEN) |
1 | ||
| 85319A - HOSE, INLET | ||||
| 85319-37200 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 85319B - HOSE, WINDOW WASHER | ||||
| 85319-37190 |
WU700,710,720..LHD;XZU710,720..MTM..GCC |
1 | ||
| 85319E - INLET WASHER | ||||
| 85318-37190 |
WU700,710,720..LHD;XZU710,720..MTM..GCC |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-37190 |
WU700,710,720..LHD;XZU710,720..MTM..GCC |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85332-37061 |
WU700,710,720..LHD;XZU710,720..MTM..GCC |
1 | ||
| 85332C - CAP, FRONT WASHER TANK | ||||
| 85386-37040 |
WU700,710,720..LHD;XZU710,720..MTM..GCC |
1 | ||
| 85336J - PROTECTOR, WASHER JAR | ||||
| 90099-32089 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85375-12520 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85355-20200 |
WU700,710,720,XZU710,720 |
3 | ||
| 85375-33070 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85355-20200 |
WU700,710,720,XZU710,720 |
3 | ||
| 85375-33070 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85355-20200 |
WU700,710,720,XZU710,720 |
3 | ||
| 85375-33070 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2 | ||||
| 85355-14481 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 85348F - JOINT, WINDSHIELD WASHER ELBOW, NO.3 | ||||
| S8535-31020 |
WU700,710,720;XZU710,720..MTM..GCC |
2 | ||
| 85348F - JOINT, WINDSHIELD WASHER ELBOW, NO.3 | ||||
| S8535-31020 |
WU700,710,720;XZU710,720..MTM..GCC |
2 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85348-12250 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 85375-28110 |
WU700,710,720,XZU710,720 |
1 | ||
| 85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3 | ||||
| 85375-17050 |
WU700,710,720;XZU710,720..MTM..GCC |
2 | ||
| 85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3 | ||||
| 85375-17050 |
WU700,710,720;XZU710,720..MTM..GCC |
2 | ||
| 85348N - JOINT, WINDSHIELD WASHER HOSE, NO.4 | ||||
| 85375-12520 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 85349C - JOINT, WINDSHIELD WASHER ELBOW, NO.4 | ||||
| 85377-50110 |
WU710..LHD..5F;WU710..85T..IV3;XZU710..MTM..GCC;WU720,XZU720..(75T,85T)..(GCC,GEN) |
1 | ||
| 85377-50110 |
WU710,720..LHD;XZU710,720..MTM..GCC |
1 | ||
| 85371T - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT) | ||||
| 90446-06013 |
WU710..LHD..5F;WU710..85T..IV3;XZU710..MTM..GCC;WU720,XZU720..(75T,85T)..(GCC,GEN) *H,L=130 |
1 | ||
| 90446-06013 |
WU710,720..LHD;XZU710,720..MTM..GCC *H,L=130 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33080 |
XZU710..DCB;WU700,710,720;XZU720..75T..GCC..IV3 *H,L=630 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-33080 |
WU700,710,720,XZU710,720..GCC,GEN *H,L=160 |
1 | ||
| 90446-07001 |
WU700,710,720;XZU710,720..MTM..GCC *H,L=35 |
1 | ||
| 85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90446-07001 |
XZU710..DCB;WU700,710,720;XZU720..75T..GCC..IV3 *H,L=80 |
1 | ||
| 85372J - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4 | ||||
| 90446-07001 |
XZU710..DCB;WU700,710,720;XZU720..75T..GCC..IV3 *H,L=40 |
1 | ||
| 85372K - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5 | ||||
| 90446-07001 |
WU700,710,720,XZU710,720 *H,L=620 |
1 | ||
| 90099-33080 |
WU700,710,720;XZU710,720..MTM..GCC *H,L=75 |
1 | ||
| 85372L - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6 | ||||
| 90446-07001 |
XZU710..DCB;WU700,710,720;XZU720..75T..GCC..IV3 *H,L=930 |
1 | ||
| 85372M - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.7 | ||||
| 90099-33299 |
WU700,710,720;XZU710,720..MTM..GCC *H,L=35 |
1 | ||
| 90099-33080 |
WU700,710,720,XZU710,720 *H,L=75 |
1 | ||
| 85372Y - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.8 | ||||
| 90099-33080 |
WU710,720;XZU710,720..MTM..GCC *H,L=190 |
1 | ||
| 90446-07001 |
WU700,710,720,XZU710,720 *H,L=100 |
1 | ||
| 85373K - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.9 | ||||
| 90099-33299 |
WU700,710,720,XZU710,720..LHD *H,L=35 |
1 | ||
| 87268X - PROTECTOR | ||||
| 87268-37110 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| Common parts | ||||
| 82711-16080 | ||||
| 82711-3A540 | ||||
| 85371-12040 | ||||
| 85379-75010 | ||||
| 90119-08934 | ||||
| Linked diagrams | ||||
| 8501 | ||||

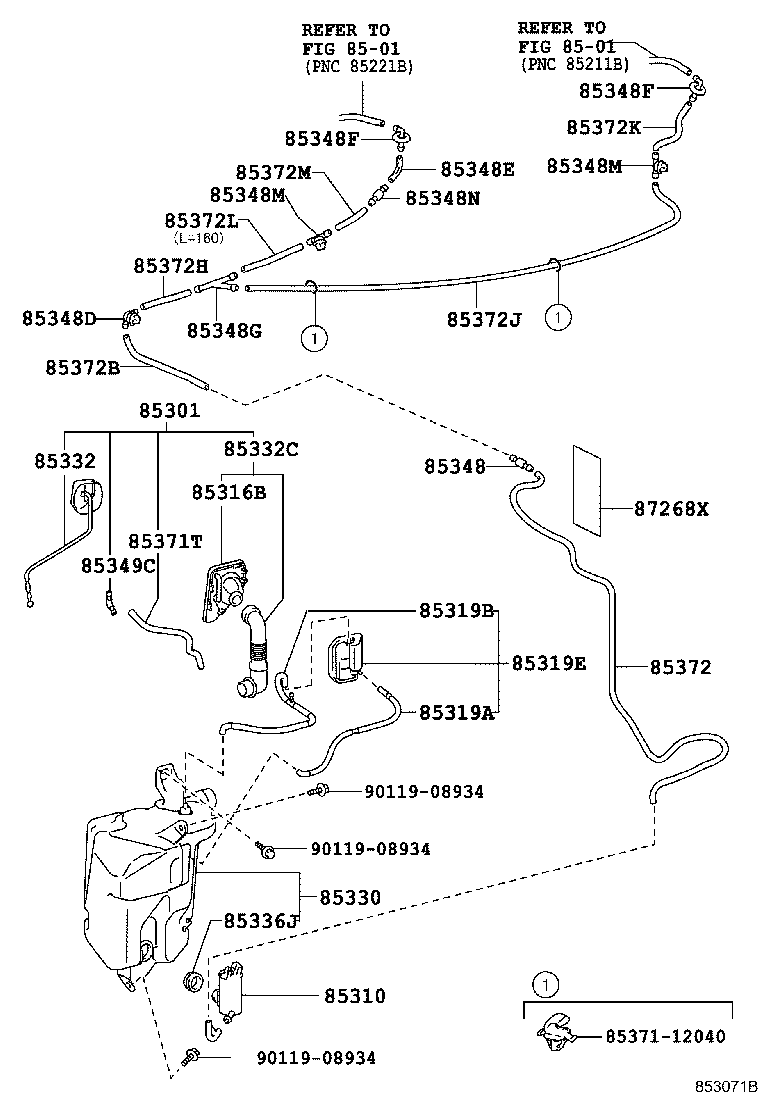

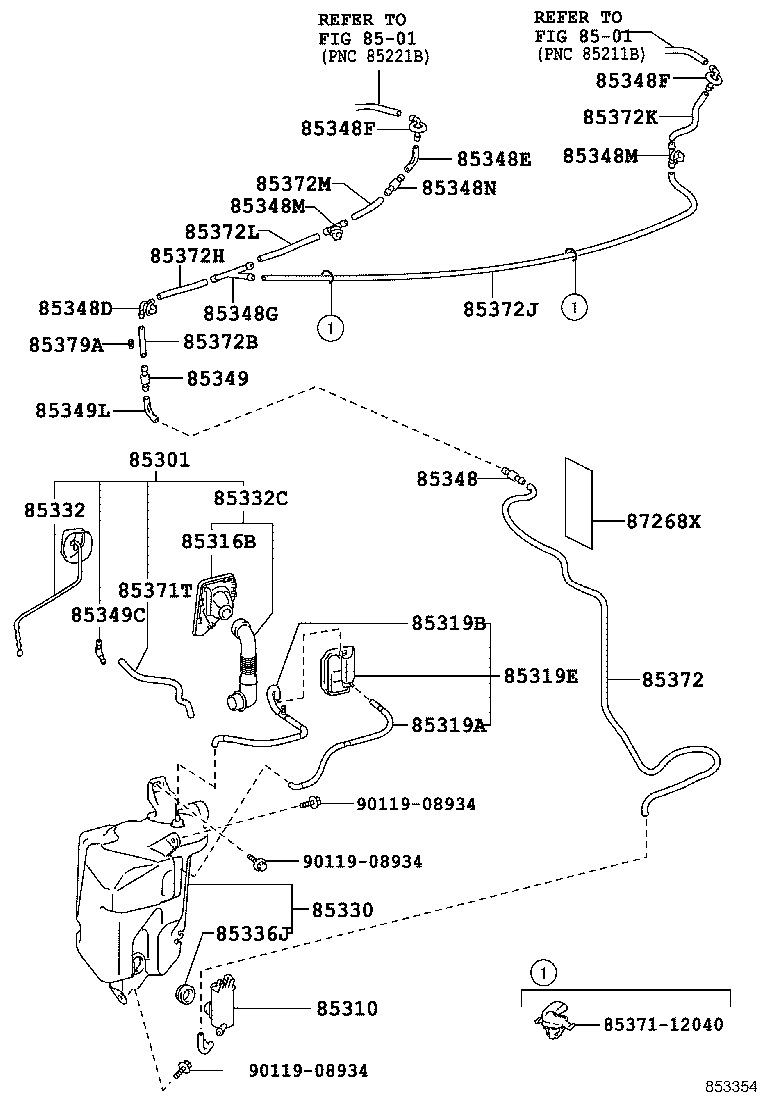

(1304-1412)LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85301 - INLET SUB-ASSY, WASHER | ||||
| 85301-37042 |
WU700,710,720..LHD;XZU710,720..MTM..GCC |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85310-90B00 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 85316B - CAP, WASHER, INLET | ||||
| 85386-37030 |
WU710,720..LHD;XZU710,720..MTM..GCC |
1 | ||
| 85386-37030 |
WU710..LHD..5F;WU710..85T..IV3;XZU710..MTM..GCC;WU720,XZU720..(75T,85T)..(GCC,GEN) |
1 | ||
| 85319A - HOSE, INLET | ||||
| 85319-37200 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 85319B - HOSE, WINDOW WASHER | ||||
| 85319-37190 |
WU700,710,720..LHD;XZU710,720..MTM..GCC |
1 | ||
| 85319E - INLET WASHER | ||||
| 85318-37190 |
WU700,710,720..LHD;XZU710,720..MTM..GCC |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-37190 |
WU700,710,720..LHD;XZU710,720..MTM..GCC |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85332-37061 |
WU700,710,720..LHD;XZU710,720..MTM..GCC |
1 | ||
| 85332C - CAP, FRONT WASHER TANK | ||||
| 85386-37040 |
WU700,710,720..LHD;XZU710,720..MTM..GCC |
1 | ||
| 85336J - PROTECTOR, WASHER JAR | ||||
| 90099-32089 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85375-12520 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85355-20200 |
WU700,710,720,XZU710,720 |
3 | ||
| 85375-33070 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2 | ||||
| 85355-14481 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 85348F - JOINT, WINDSHIELD WASHER ELBOW, NO.3 | ||||
| S8535-31020 |
WU700,710,720;XZU710,720..MTM..GCC |
2 | ||
| 85348F - JOINT, WINDSHIELD WASHER ELBOW, NO.3 | ||||
| S8535-31020 |
WU700,710,720;XZU710,720..MTM..GCC |
2 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85348-12250 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 85375-28110 |
WU700,710,720,XZU710,720 |
1 | ||
| 85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3 | ||||
| 85375-17050 |
WU700,710,720;XZU710,720..MTM..GCC |
2 | ||
| 85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3 | ||||
| 85375-17050 |
WU700,710,720;XZU710,720..MTM..GCC |
2 | ||
| 85348N - JOINT, WINDSHIELD WASHER HOSE, NO.4 | ||||
| 85375-12520 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 85349C - JOINT, WINDSHIELD WASHER ELBOW, NO.4 | ||||
| 85377-50110 |
WU710..LHD..5F;WU710..85T..IV3;XZU710..MTM..GCC;WU720,XZU720..(75T,85T)..(GCC,GEN) |
1 | ||
| 85377-50110 |
WU710,720..LHD;XZU710,720..MTM..GCC |
1 | ||
| 85371T - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT) | ||||
| 90446-06013 |
WU710..LHD..5F;WU710..85T..IV3;XZU710..MTM..GCC;WU720,XZU720..(75T,85T)..(GCC,GEN) *H,L=130 |
1 | ||
| 90446-06013 |
WU710,720..LHD;XZU710,720..MTM..GCC *H,L=130 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33080 |
XZU710..DCB;WU700,710,720;XZU720..75T..GCC..IV3 *H,L=630 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-33080 |
WU700,710,720,XZU710,720..GCC,GEN *H,L=160 |
1 | ||
| 90446-07001 |
WU700,710,720;XZU710,720..MTM..GCC *H,L=35 |
1 | ||
| 85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90446-07001 |
XZU710..DCB;WU700,710,720;XZU720..75T..GCC..IV3 *H,L=80 |
1 | ||
| 85372J - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4 | ||||
| 90446-07001 |
XZU710..DCB;WU700,710,720;XZU720..75T..GCC..IV3 *H,L=40 |
1 | ||
| 85372K - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5 | ||||
| 90446-07001 |
WU700,710,720,XZU710,720 *H,L=620 |
1 | ||
| 90099-33080 |
WU700,710,720;XZU710,720..MTM..GCC *H,L=75 |
1 | ||
| 85372L - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6 | ||||
| 90446-07001 |
XZU710..DCB;WU700,710,720;XZU720..75T..GCC..IV3 *H,L=930 |
1 | ||
| 85372M - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.7 | ||||
| 90099-33299 |
WU700,710,720;XZU710,720..MTM..GCC *H,L=35 |
1 | ||
| 90099-33080 |
WU700,710,720,XZU710,720 *H,L=75 |
1 | ||
| 87268X - PROTECTOR | ||||
| 87268-37110 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| Common parts | ||||
| 85371-12040 | ||||
| 90119-08934 | ||||
| Linked diagrams | ||||
| 8501 | ||||

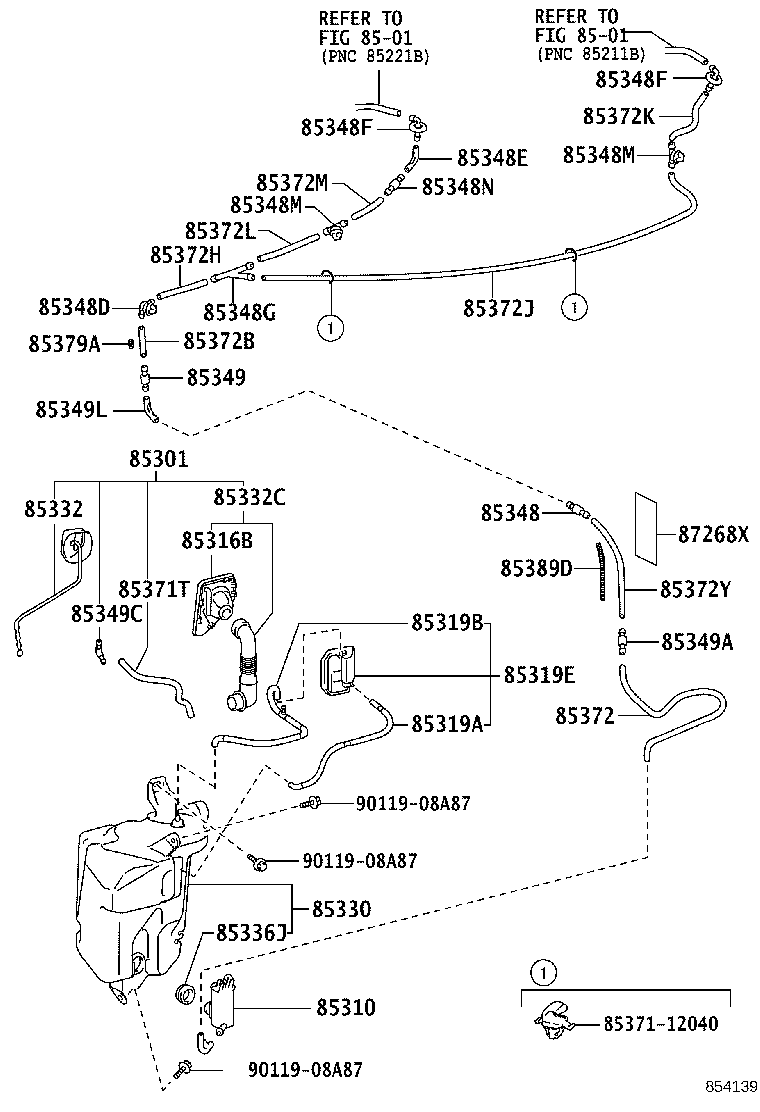

(1412-1507)LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85301 - INLET SUB-ASSY, WASHER | ||||
| 85301-37042 |
WU700,710,720..LHD;XZU710,720..MTM..GCC |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85310-90B00 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 85316B - CAP, WASHER, INLET | ||||
| 85386-37030 |
WU710,720..LHD;XZU710,720..MTM..GCC |
1 | ||
| 85386-37030 |
WU710..LHD..5F;WU710..85T..IV3;XZU710..MTM..GCC;WU720,XZU720..(75T,85T)..(GCC,GEN) |
1 | ||
| 85319A - HOSE, INLET | ||||
| 85319-37200 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 85319B - HOSE, WINDOW WASHER | ||||
| 85319-37190 |
WU700,710,720..LHD;XZU710,720..MTM..GCC |
1 | ||
| 85319E - INLET WASHER | ||||
| 85318-37190 |
WU700,710,720..LHD;XZU710,720..MTM..GCC |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-37190 |
WU700,710,720..LHD;XZU710,720..MTM..GCC |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85332-37061 |
WU700,710,720..LHD;XZU710,720..MTM..GCC |
1 | ||
| 85332C - CAP, FRONT WASHER TANK | ||||
| 85386-37040 |
WU700,710,720..LHD;XZU710,720..MTM..GCC |
1 | ||
| 85336J - PROTECTOR, WASHER JAR | ||||
| 90099-32089 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85375-12520 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85355-20200 |
WU700,710,720,XZU710,720 |
3 | ||
| 85375-33070 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2 | ||||
| 85355-14481 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 85348F - JOINT, WINDSHIELD WASHER ELBOW, NO.3 | ||||
| S8535-31020 |
WU700,710,720;XZU710,720..MTM..GCC |
2 | ||
| 85348F - JOINT, WINDSHIELD WASHER ELBOW, NO.3 | ||||
| S8535-31020 |
WU700,710,720;XZU710,720..MTM..GCC |
2 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85375-28110 |
WU700,710,720,XZU710,720 |
1 | ||
| 85348-12250 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3 | ||||
| 85375-17050 |
WU700,710,720;XZU710,720..MTM..GCC |
2 | ||
| 85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3 | ||||
| 85375-17050 |
WU700,710,720;XZU710,720..MTM..GCC |
2 | ||
| 85348N - JOINT, WINDSHIELD WASHER HOSE, NO.4 | ||||
| 85375-12520 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-89122 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 85349C - JOINT, WINDSHIELD WASHER ELBOW, NO.4 | ||||
| 85377-50110 |
WU710..LHD..5F;WU710..85T..IV3;XZU710..MTM..GCC;WU720,XZU720..(75T,85T)..(GCC,GEN) |
1 | ||
| 85377-50110 |
WU710,720..LHD;XZU710,720..MTM..GCC |
1 | ||
| 85349L - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85355-14481 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 85371T - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT) | ||||
| 90446-06013 |
WU710..LHD..5F;WU710..85T..IV3;XZU710..MTM..GCC;WU720,XZU720..(75T,85T)..(GCC,GEN) *H,L=130 |
1 | ||
| 90446-06013 |
WU710,720..LHD;XZU710,720..MTM..GCC *H,L=130 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33080 |
XZU710..DCB;WU700,710,720;XZU720..75T..GCC..IV3 *H,L=630 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-33080 |
WU700,710,720,XZU710,720..GCC,GEN *H,L=160 |
1 | ||
| 90446-07001 |
WU700,710,720;XZU710,720..MTM..GCC *H,L=35 |
1 | ||
| 85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90446-07001 |
XZU710..DCB;WU700,710,720;XZU720..75T..GCC..IV3 *H,L=80 |
1 | ||
| 85372J - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4 | ||||
| 90446-07001 |
XZU710..DCB;WU700,710,720;XZU720..75T..GCC..IV3 *H,L=40 |
1 | ||
| 85372K - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5 | ||||
| 90446-07001 |
WU700,710,720,XZU710,720 *H,L=620 |
1 | ||
| 90099-33080 |
WU700,710,720;XZU710,720..MTM..GCC *H,L=75 |
1 | ||
| 85372L - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6 | ||||
| 90446-07001 |
XZU710..DCB;WU700,710,720;XZU720..75T..GCC..IV3 *H,L=930 |
1 | ||
| 85372M - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.7 | ||||
| 90099-33299 |
WU700,710,720;XZU710,720..MTM..GCC *H,L=35 |
1 | ||
| 90099-33080 |
WU700,710,720,XZU710,720 *H,L=75 |
1 | ||
| 85379A - SPRING, WINDSHIELD WASHER HOSE | ||||
| 85389-37270 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 87268X - PROTECTOR | ||||
| 87268-37110 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| Common parts | ||||
| 85371-12040 | ||||
| 90119-08934 | ||||
| Linked diagrams | ||||
| 8501 | ||||
(1507-1905)LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85301 - INLET SUB-ASSY, WASHER | ||||
| 85301-37042 |
WU700,710,720..LHD;XZU710,720..MTM..GCC |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85310-90B00 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 85316B - CAP, WASHER, INLET | ||||
| 85386-37030 |
WU710,720..LHD;XZU710,720..MTM..GCC |
1 | ||
| 85386-37030 |
WU710..LHD..5F;WU710..85T..IV3;XZU710..MTM..GCC;WU720,XZU720..(75T,85T)..(GCC,GEN) |
1 | ||
| 85319A - HOSE, INLET | ||||
| 85319-37200 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 85319B - HOSE, WINDOW WASHER | ||||
| 85319-37190 |
WU700,710,720..LHD;XZU710,720..MTM..GCC |
1 | ||
| 85319E - INLET WASHER | ||||
| 85318-37190 |
WU700,710,720..LHD;XZU710,720..MTM..GCC |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-37190 |
WU700,710,720..LHD;XZU710,720..MTM..GCC |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85332-37061 |
WU700,710,720..LHD;XZU710,720..MTM..GCC |
1 | ||
| 85332C - CAP, FRONT WASHER TANK | ||||
| 85386-37040 |
WU700,710,720..LHD;XZU710,720..MTM..GCC |
1 | ||
| 85336J - PROTECTOR, WASHER JAR | ||||
| 90099-32089 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85375-12520 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85355-20200 |
WU700,710,720,XZU710,720 |
3 | ||
| 85375-33070 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2 | ||||
| 85355-14481 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 85348F - JOINT, WINDSHIELD WASHER ELBOW, NO.3 | ||||
| S8535-31020 |
WU700,710,720;XZU710,720..MTM..GCC |
2 | ||
| 85348F - JOINT, WINDSHIELD WASHER ELBOW, NO.3 | ||||
| S8535-31020 |
WU700,710,720;XZU710,720..MTM..GCC |
2 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85375-28110 |
WU700,710,720,XZU710,720 |
1 | ||
| 85348-12250 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3 | ||||
| 85375-17050 |
WU700,710,720;XZU710,720..MTM..GCC |
2 | ||
| 85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3 | ||||
| 85375-17050 |
WU700,710,720;XZU710,720..MTM..GCC |
2 | ||
| 85348N - JOINT, WINDSHIELD WASHER HOSE, NO.4 | ||||
| 85375-12520 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-89122 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 85349A - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85349-89122 |
WU710,720;XZU710,720..MTM..GCC |
1 | ||
| 85349C - JOINT, WINDSHIELD WASHER ELBOW, NO.4 | ||||
| 85377-50110 |
WU710..LHD..5F;WU710..85T..IV3;XZU710..MTM..GCC;WU720,XZU720..(75T,85T)..(GCC,GEN) |
1 | ||
| 85377-50110 |
WU710,720..LHD;XZU710,720..MTM..GCC |
1 | ||
| 85349L - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85355-14481 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 85371T - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT) | ||||
| 90446-06013 |
WU710..LHD..5F;WU710..85T..IV3;XZU710..MTM..GCC;WU720,XZU720..(75T,85T)..(GCC,GEN) *H,L=130 |
1 | ||
| 90446-06013 |
WU710,720..LHD;XZU710,720..MTM..GCC *H,L=130 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33080 |
XZU710..DCB;WU700,710,720;XZU720..75T..GCC..IV3 *H,L=630 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-33080 |
WU700,710,720,XZU710,720..GCC,GEN *H,L=160 |
1 | ||
| 90446-07001 |
WU700,710,720;XZU710,720..MTM..GCC *H,L=35 |
1 | ||
| 85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90446-07001 |
XZU710..DCB;WU700,710,720;XZU720..75T..GCC..IV3 *H,L=80 |
1 | ||
| 85372J - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4 | ||||
| 90446-07001 |
XZU710..DCB;WU700,710,720;XZU720..75T..GCC..IV3 *H,L=40 |
1 | ||
| 85372K - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5 | ||||
| 90446-07001 |
WU700,710,720,XZU710,720 *H,L=620 |
1 | ||
| 90099-33080 |
WU700,710,720;XZU710,720..MTM..GCC *H,L=75 |
1 | ||
| 85372L - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6 | ||||
| 90446-07001 |
XZU710..DCB;WU700,710,720;XZU720..75T..GCC..IV3 *H,L=930 |
1 | ||
| 85372M - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.7 | ||||
| 90099-33299 |
WU700,710,720;XZU710,720..MTM..GCC *H,L=35 |
1 | ||
| 90099-33080 |
WU700,710,720,XZU710,720 *H,L=75 |
1 | ||
| 85372Y - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.8 | ||||
| 90099-33080 |
WU710,720;XZU710,720..MTM..GCC *H,L=190 |
1 | ||
| 90446-07001 |
WU700,710,720,XZU710,720 *H,L=100 |
1 | ||
| 85379A - SPRING, WINDSHIELD WASHER HOSE | ||||
| 85389-37270 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 85389D - SPRING(WASHER HOSE) | ||||
| 85389-37260 |
WU710,720;XZU710,720..MTM..GCC |
1 | ||
| 87268X - PROTECTOR | ||||
| 87268-37110 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| Common parts | ||||
| 85371-12040 | ||||
| 90119-08934 | ||||
| Linked diagrams | ||||
| 8501 | ||||
(1905- )XZU710,720..EUR,GCC ; (1905- )WU710,720,XZU730..LHD ; (1911- )XZU7
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85301 - INLET SUB-ASSY, WASHER | ||||
| 85301-37042 |
WU700,710,720..LHD;XZU710,720..MTM..GCC |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85310-90B00 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 85316B - CAP, WASHER, INLET | ||||
| 85386-37030 |
WU710,720..LHD;XZU710,720..MTM..GCC |
1 | ||
| 85386-37030 |
WU710..LHD..5F;WU710..85T..IV3;XZU710..MTM..GCC;WU720,XZU720..(75T,85T)..(GCC,GEN) |
1 | ||
| 85319A - HOSE, INLET | ||||
| 85319-37200 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 85319B - HOSE, WINDOW WASHER | ||||
| 85319-37190 |
WU700,710,720..LHD;XZU710,720..MTM..GCC |
1 | ||
| 85319E - INLET WASHER | ||||
| 85318-37190 |
WU700,710,720..LHD;XZU710,720..MTM..GCC |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-37190 |
WU700,710,720..LHD;XZU710,720..MTM..GCC |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85332-37061 |
WU700,710,720..LHD;XZU710,720..MTM..GCC |
1 | ||
| 85332C - CAP, FRONT WASHER TANK | ||||
| 85386-37040 |
WU700,710,720..LHD;XZU710,720..MTM..GCC |
1 | ||
| 85336J - PROTECTOR, WASHER JAR | ||||
| 90099-32089 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85375-12520 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85355-20200 |
WU700,710,720,XZU710,720 |
3 | ||
| 85375-33070 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2 | ||||
| 85355-14481 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 85348F - JOINT, WINDSHIELD WASHER ELBOW, NO.3 | ||||
| S8535-31020 |
WU700,710,720;XZU710,720..MTM..GCC |
2 | ||
| 85348F - JOINT, WINDSHIELD WASHER ELBOW, NO.3 | ||||
| S8535-31020 |
WU700,710,720;XZU710,720..MTM..GCC |
2 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85375-28110 |
WU700,710,720,XZU710,720 |
1 | ||
| 85348-12250 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3 | ||||
| 85375-17050 |
WU700,710,720;XZU710,720..MTM..GCC |
2 | ||
| 85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3 | ||||
| 85375-17050 |
WU700,710,720;XZU710,720..MTM..GCC |
2 | ||
| 85348N - JOINT, WINDSHIELD WASHER HOSE, NO.4 | ||||
| 85375-12520 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-89122 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 85349A - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85349-89122 |
WU710,720;XZU710,720..MTM..GCC |
1 | ||
| 85349C - JOINT, WINDSHIELD WASHER ELBOW, NO.4 | ||||
| 85377-50110 |
WU710..LHD..5F;WU710..85T..IV3;XZU710..MTM..GCC;WU720,XZU720..(75T,85T)..(GCC,GEN) |
1 | ||
| 85377-50110 |
WU710,720..LHD;XZU710,720..MTM..GCC |
1 | ||
| 85349L - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85355-14481 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 85371T - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT) | ||||
| 90446-06013 |
WU710..LHD..5F;WU710..85T..IV3;XZU710..MTM..GCC;WU720,XZU720..(75T,85T)..(GCC,GEN) *H,L=130 |
1 | ||
| 90446-06013 |
WU710,720..LHD;XZU710,720..MTM..GCC *H,L=130 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33080 |
XZU710..DCB;WU700,710,720;XZU720..75T..GCC..IV3 *H,L=630 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-33080 |
WU700,710,720,XZU710,720..GCC,GEN *H,L=160 |
1 | ||
| 90446-07001 |
WU700,710,720;XZU710,720..MTM..GCC *H,L=35 |
1 | ||
| 85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90446-07001 |
XZU710..DCB;WU700,710,720;XZU720..75T..GCC..IV3 *H,L=80 |
1 | ||
| 85372J - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4 | ||||
| 90446-07001 |
XZU710..DCB;WU700,710,720;XZU720..75T..GCC..IV3 *H,L=40 |
1 | ||
| 85372K - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5 | ||||
| 90446-07001 |
WU700,710,720,XZU710,720 *H,L=620 |
1 | ||
| 90099-33080 |
WU700,710,720;XZU710,720..MTM..GCC *H,L=75 |
1 | ||
| 85372L - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6 | ||||
| 90446-07001 |
XZU710..DCB;WU700,710,720;XZU720..75T..GCC..IV3 *H,L=930 |
1 | ||
| 85372M - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.7 | ||||
| 90099-33299 |
WU700,710,720;XZU710,720..MTM..GCC *H,L=35 |
1 | ||
| 90099-33080 |
WU700,710,720,XZU710,720 *H,L=75 |
1 | ||
| 85372Y - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.8 | ||||
| 90099-33080 |
WU710,720;XZU710,720..MTM..GCC *H,L=190 |
1 | ||
| 90446-07001 |
WU700,710,720,XZU710,720 *H,L=100 |
1 | ||
| 85379A - SPRING, WINDSHIELD WASHER HOSE | ||||
| 85389-37270 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| 85389D - SPRING(WASHER HOSE) | ||||
| 85389-37260 |
WU710,720;XZU710,720..MTM..GCC |
1 | ||
| 87268X - PROTECTOR | ||||
| 87268-37110 |
WU700,710,720;XZU710,720..MTM..GCC |
1 | ||
| Common parts | ||||
| 85371-12040 | ||||
| 90119-08A87 | ||||
| Linked diagrams | ||||
| 8501 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
