XZU720L-TKFRLV3 (2012)
Toyota Dyna

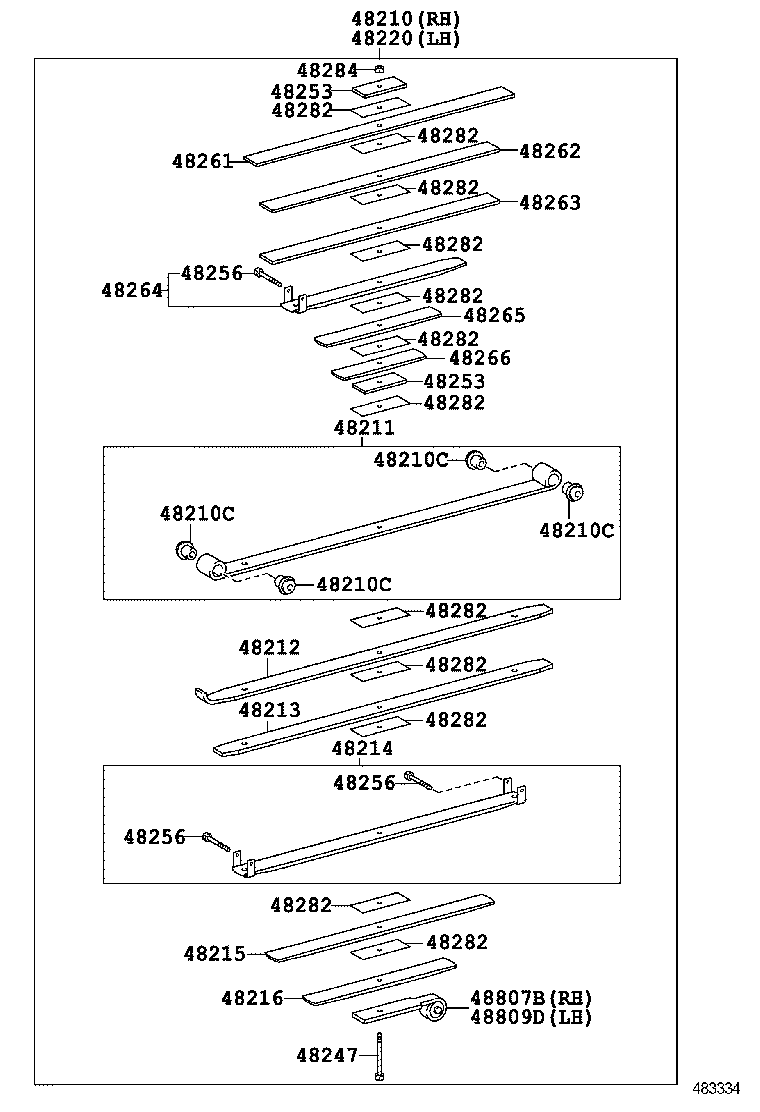

ILLUST NO. 2 OF 2(1211- )XZU710,720..6F..GCC
MAIN 6+HELPER 6-LEAF,W(STABILIZER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37M30 |
WU720,XZU720..75T..GCC MAIN 6+HELPER 5-LEAF |
1 | ||
| 48210-37N80 |
WU720,XZU720..75T..GCC MAIN 6+HELPER 6-LEAF,REAR SUSPENSION-MULTI LEAF REIN TENSION |
1 | ||
| 48210-37M90 |
XZU720..75T..GCC MAIN 6+HELPER 5-LEAF,STABILIZER-WITH(FRONT & REAR) |
1 | ||
| 48210-37N90 |
XZU720..75T..GCC MAIN 6+HELPER 6-LEAF,REAR SUSPENSION-MULTI LEAF REIN TENSION&STABILIZER-WITH(FRONT & REAR) |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
WU720..GCC;WU710,XZU710,720..6F..GCC |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
WU720..GCC;WU710,XZU710,720..6F..GCC |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
WU720..GCC;WU710,XZU710,720..6F..GCC |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
WU720..GCC;WU710,XZU710,720..6F..GCC |
8 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37M30 |
WU720,XZU720..75T..GCC |
2 | ||
| 48201-37N80 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
2 | ||
| 48201-37N80 |
XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION&STABILIZER-WITH(FRONT & REAR) |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-37M30 |
WU720,XZU720..75T..GCC |
2 | ||
| 48212-37N80 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
2 | ||
| 48212-37N80 |
XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION&STABILIZER-WITH(FRONT & REAR) |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48213-37M30 |
WU720,XZU720..75T..GCC |
2 | ||
| 48213-37N80 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
2 | ||
| 48213-37N80 |
XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION&STABILIZER-WITH(FRONT & REAR) |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48205-37M30 |
WU720,XZU720..75T..GCC |
2 | ||
| 48205-37N80 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
2 | ||
| 48205-37N80 |
XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION&STABILIZER-WITH(FRONT & REAR) |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-37M30 |
WU720,XZU720..75T..GCC |
2 | ||
| 48215-37N80 |
XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION&STABILIZER-WITH(FRONT & REAR) |
2 | ||
| 48215-37N80 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-37M30 |
WU720,XZU720..75T..GCC |
2 | ||
| 48216-37N80 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
2 | ||
| 48216-37N80 |
XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION&STABILIZER-WITH(FRONT & REAR) |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37M30 |
WU720,XZU720..75T..GCC MAIN 6+HELPER 5-LEAF |
1 | ||
| 48210-37N00 |
XZU720..75T..GCC MAIN 6+HELPER 5-LEAF,STABILIZER-WITH(FRONT & REAR) |
1 | ||
| 48210-37N80 |
WU720,XZU720..75T..GCC MAIN 6+HELPER 6-LEAF,REAR SUSPENSION-MULTI LEAF REIN TENSION |
1 | ||
| 48210-37P00 |
XZU720..75T..GCC MAIN 6+HELPER 6-LEAF,REAR SUSPENSION-MULTI LEAF REIN TENSION&STABILIZER-WITH(FRONT & REAR) |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37M20 |
WU720,XZU720..75T..GCC |
2 | ||
| 48247-37N80 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
2 | ||
| 48247-37N80 |
XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION&STABILIZER-WITH(FRONT & REAR) |
2 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48215-37B60 |
WU710,720,XZU710,720..6F..GCC |
4 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48215-37B60 |
WU710,720,XZU710,720..6F..GCC |
4 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-37B60 |
WU720,XZU720..GCC;WU700,710,XZU710..MTM..(65T,85T) |
6 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-37B60 |
WU720,XZU720..GCC;WU700,710,XZU710..MTM..(65T,85T) |
6 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-37B60 |
WU720,XZU720..GCC;WU700,710,XZU710..MTM..(65T,85T) |
6 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48261-37M30 |
WU720,XZU720..75T..GCC |
2 | ||
| 48261-37N80 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
2 | ||
| 48261-37N80 |
XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION&STABILIZER-WITH(FRONT & REAR) |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48262-37M30 |
WU720,XZU720..75T..GCC |
2 | ||
| 48262-37N80 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
2 | ||
| 48262-37N80 |
XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION&STABILIZER-WITH(FRONT & REAR) |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48207-37M30 |
WU720,XZU720..75T..GCC |
2 | ||
| 48263-37N80 |
XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION&STABILIZER-WITH(FRONT & REAR) |
2 | ||
| 48263-37N80 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48264-37M30 |
WU720,XZU720..75T..GCC |
2 | ||
| 48207-37N80 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
2 | ||
| 48207-37N80 |
XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION&STABILIZER-WITH(FRONT & REAR) |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48265-37M30 |
WU720,XZU720..75T..GCC |
2 | ||
| 48265-37N80 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
2 | ||
| 48265-37N80 |
XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION&STABILIZER-WITH(FRONT & REAR) |
2 | ||
| 48266 - LEAF, REAR HELPER SPRING, NO.6 | ||||
| 48266-37N80 |
XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION&STABILIZER-WITH(FRONT & REAR) |
2 | ||
| 48266-37N80 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
2 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-37G50 |
WU720,XZU720..75T..GCC |
22 | ||
| 48282-37G50 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
24 | ||
| 48282-37G50 |
XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION&STABILIZER-WITH(FRONT & REAR) |
24 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-37G50 |
WU720,XZU720..75T..GCC |
22 | ||
| 48282-37G50 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
24 | ||
| 48282-37G50 |
XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION&STABILIZER-WITH(FRONT & REAR) |
24 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-37G50 |
WU720,XZU720..75T..GCC |
22 | ||
| 48282-37G50 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
24 | ||
| 48282-37G50 |
XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION&STABILIZER-WITH(FRONT & REAR) |
24 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-37G50 |
WU720,XZU720..75T..GCC |
22 | ||
| 48282-37G50 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
24 | ||
| 48282-37G50 |
XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION&STABILIZER-WITH(FRONT & REAR) |
24 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-37G50 |
WU720,XZU720..75T..GCC |
22 | ||
| 48282-37G50 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
24 | ||
| 48282-37G50 |
XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION&STABILIZER-WITH(FRONT & REAR) |
24 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-37G50 |
WU720,XZU720..75T..GCC |
22 | ||
| 48282-37G50 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
24 | ||
| 48282-37G50 |
XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION&STABILIZER-WITH(FRONT & REAR) |
24 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-37G50 |
WU720,XZU720..75T..GCC |
22 | ||
| 48282-37G50 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
24 | ||
| 48282-37G50 |
XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION&STABILIZER-WITH(FRONT & REAR) |
24 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-37G50 |
WU720,XZU720..75T..GCC |
22 | ||
| 48282-37G50 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
24 | ||
| 48282-37G50 |
XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION&STABILIZER-WITH(FRONT & REAR) |
24 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-37G50 |
WU720,XZU720..75T..GCC |
22 | ||
| 48282-37G50 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
24 | ||
| 48282-37G50 |
XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION&STABILIZER-WITH(FRONT & REAR) |
24 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-37G50 |
WU720,XZU720..75T..GCC |
22 | ||
| 48282-37G50 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
24 | ||
| 48282-37G50 |
XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION&STABILIZER-WITH(FRONT & REAR) |
24 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-37G50 |
WU720,XZU720..75T..GCC |
22 | ||
| 48282-37G50 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
24 | ||
| 48282-37G50 |
XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION&STABILIZER-WITH(FRONT & REAR) |
24 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-37G50 |
WU720,XZU720..75T..GCC |
22 | ||
| 48282-37G50 |
WU720,XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION |
24 | ||
| 48282-37G50 |
XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION&STABILIZER-WITH(FRONT & REAR) |
24 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W070 |
WU720;WU710..75T,85T;XZU710,720..6F..GCC |
2 | ||
| 48807B - BRACKET SUB-ASSY, STABILIZER, RH | ||||
| 48809-37070 |
WU710,720..GEN;XZU710,720..6F..GCC STABILIZER-WITH(FRONT & REAR) |
1 | ||
| 48809-37070 |
XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION&STABILIZER-WITH(FRONT & REAR) |
1 | ||
| 48809D - BRACKET SUB-ASSY, STABILIZER, LH | ||||
| 48807-37010 |
WU710,720..GEN;XZU710,720..6F..GCC STABILIZER-WITH(FRONT & REAR) |
1 | ||
| 48807-37010 |
XZU720..75T..GCC REAR SUSPENSION-MULTI LEAF REIN TENSION&STABILIZER-WITH(FRONT & REAR) |
1 | ||
