XZU720L-SKMRK3 (2019)

Toyota Dyna

Production Nov 2019 - Sep 9999
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

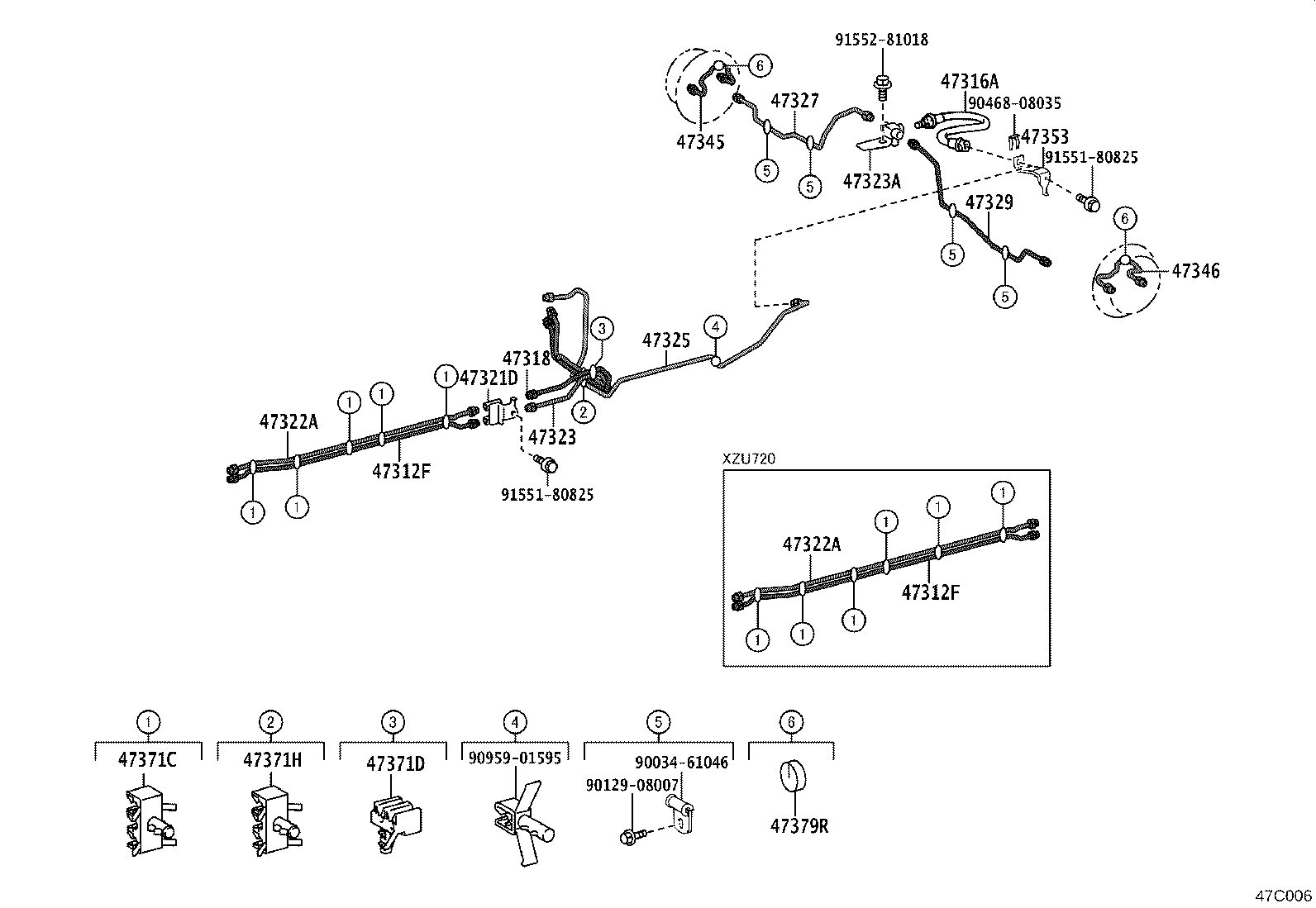

ILLUST NO. 2 OF 4(1911- )XZU710,720..GEN

Click highlighted areas on diagram

W/O(ABS)

diagram 47312F 47312F 47316A 47318 47321D 47322A 47322A 47323 47323A 47325 47327 47329 47345 47346 47353 47371C 47371D 47371H 47379R 9003461046 9012908007 9046808035 9095901595 9155180825 9155180825 9155281018
Part # Description Qty Price
47312F - TUBE, FRONT BRAKE, FRAME, NO.2
47312-37G60

XZU720..GEN

 1
47312F - TUBE, FRONT BRAKE, FRAME, NO.2
47312-37G60

XZU720..GEN

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02B78

WU700,710,720

 1
90947-02B78

XZU710,720..GEN

ABS-WITH(POWER ASSIST BRAKE)

 2
90947-02B78

XZU710,720..GEN

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-37541

XZU710,720..GEN

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10229

WU700,710,720;XZU710,720..MTM..GCC

 1
47391-37680

XZU710,720..GEN

 1
47322A - TUBE, REAR BRAKE, FRAME NO.2
47322-37J40

XZU720..GEN

 1
47322A - TUBE, REAR BRAKE, FRAME NO.2
47322-37J40

XZU720..GEN

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-37770

WU710,720..GEN

BRAKE CONTROL VALVE-WITHOUT

 1
47323-37C80

XZU710,720..GEN

 1
47323-37C20

XZU710,720..GEN

ABS-WITH(POWER ASSIST BRAKE)

 1
47323A - WAY, NO.3(FOR REAR BRAKE TUBE)
47391-37150

WU700,710,720

 1
47391-37090

XZU710,720..GEN

ABS-WITH(POWER ASSIST BRAKE)

 1
47391-37150

XZU710,720..GEN

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-37571

XZU710,720..GEN

 1
47325-37690

XZU710,720..GEN

ABS-WITH(POWER ASSIST BRAKE)

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-37D20

XZU710,720..GEN

 1
47327-37C51

XZU710,720..GEN

FRONT WHEEL BRAKE-320(100) DRUM AUTO ADJUSTR&ABS-WITH(POWER ASSIST BRAKE)

 1
47329 - TUBE, REAR BRAKE, NO.9
47329-37A01

XZU710,720..GEN

 1
47345 - TUBE, WHEEL CYLINDER, REAR RH
47345-37030

XZU710,720..GEN

 1
47346 - TUBE, WHEEL CYLINDER, REAR LH
47346-37020

XZU710,720..GEN

 1
47346-37030

XZU710,720..GEN

FRONT WHEEL BRAKE-320(100) DRUM AUTO ADJUSTR&ABS-WITH(POWER ASSIST BRAKE)

 1
47353 - BRACKET, FLEXIBLE HOSE(FOR REAR)
47353-37250

WU700,710,720;XZU710,720..MTM..GCC

 1
47353-37250

XZU710,720..GEN

 1
47371C - CLAMP, BRAKE TUBE, NO.7
47371-37240

XZU720..GEN

 6
47371-37100

WU710,720;XZU720..75T..CBU;XZU710,720..MTM..(65T,85T)

 2
47371D - CLAMP, BRAKE TUBE, NO.8
47371-37250

XZU710,720..GEN

 1
47371H - CLAMP, BRAKE TUBE, NO.12
47371-37240

XZU710,720..GEN

 1
47371-37240

XZU710,720..GEN

ABS-WITH(POWER ASSIST BRAKE)

 2
47379R - DAMPER, TUBE(FOR REAR)
47379-37010

XZU710,720..GEN

 2
Common parts
90034-61046
90129-08007
90468-08035
90959-01595
91551-80825
91552-81018

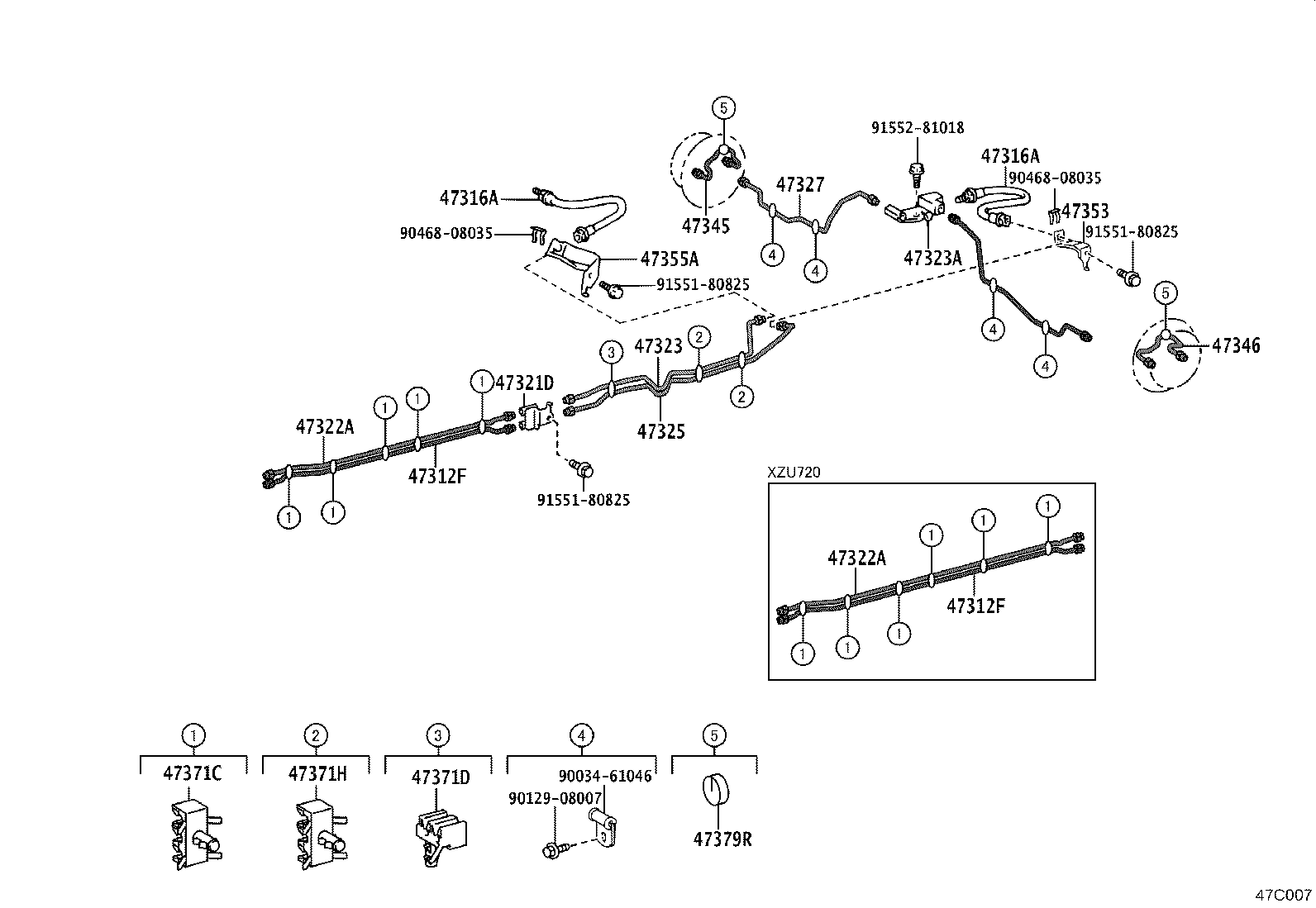

ILLUST NO. 2 OF 4(1911- )XZU710,720..GEN

Click highlighted areas on diagram

W(ABS)

diagram 47312F 47312F 47316A 47316A 47321D 47322A 47322A 47323 47323A 47325 47327 47329 47345 47346 47353 47355A 47371C 47371D 47371H 47379R 9003461046 9012908007 9046808035 9046808035 9155180825 9155180825 9155180825 9155281018
Part # Description Qty Price
47312F - TUBE, FRONT BRAKE, FRAME, NO.2
47312-37G60

XZU720..GEN

 1
47312F - TUBE, FRONT BRAKE, FRAME, NO.2
47312-37G60

XZU720..GEN

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02B78

WU700,710,720

 1
90947-02B78

XZU710,720..GEN

ABS-WITH(POWER ASSIST BRAKE)

 2
90947-02B78

XZU710,720..GEN

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02B78

WU700,710,720

 1
90947-02B78

XZU710,720..GEN

ABS-WITH(POWER ASSIST BRAKE)

 2
90947-02B78

XZU710,720..GEN

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10229

WU700,710,720;XZU710,720..MTM..GCC

 1
47391-37680

XZU710,720..GEN

 1
47322A - TUBE, REAR BRAKE, FRAME NO.2
47322-37J40

XZU720..GEN

 1
47322A - TUBE, REAR BRAKE, FRAME NO.2
47322-37J40

XZU720..GEN

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-37770

WU710,720..GEN

BRAKE CONTROL VALVE-WITHOUT

 1
47323-37C80

XZU710,720..GEN

 1
47323-37C20

XZU710,720..GEN

ABS-WITH(POWER ASSIST BRAKE)

 1
47323A - WAY, NO.3(FOR REAR BRAKE TUBE)
47391-37150

WU700,710,720

 1
47391-37090

XZU710,720..GEN

ABS-WITH(POWER ASSIST BRAKE)

 1
47391-37150

XZU710,720..GEN

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-37571

XZU710,720..GEN

 1
47325-37690

XZU710,720..GEN

ABS-WITH(POWER ASSIST BRAKE)

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-37D20

XZU710,720..GEN

 1
47327-37C51

XZU710,720..GEN

FRONT WHEEL BRAKE-320(100) DRUM AUTO ADJUSTR&ABS-WITH(POWER ASSIST BRAKE)

 1
47329 - TUBE, REAR BRAKE, NO.9
47329-37A01

XZU710,720..GEN

 1
47345 - TUBE, WHEEL CYLINDER, REAR RH
47345-37030

XZU710,720..GEN

 1
47346 - TUBE, WHEEL CYLINDER, REAR LH
47346-37020

XZU710,720..GEN

 1
47346-37030

XZU710,720..GEN

FRONT WHEEL BRAKE-320(100) DRUM AUTO ADJUSTR&ABS-WITH(POWER ASSIST BRAKE)

 1
47353 - BRACKET, FLEXIBLE HOSE(FOR REAR)
47353-37250

WU700,710,720;XZU710,720..MTM..GCC

 1
47353-37250

XZU710,720..GEN

 1
47355A - BRACKET, FLEXIBLE HOSE, NO.5
47354-37230

XZU710,720..GEN

ABS-WITH(POWER ASSIST BRAKE)

 1
47371C - CLAMP, BRAKE TUBE, NO.7
47371-37240

XZU720..GEN

 6
47371-37100

WU710,720;XZU720..75T..CBU;XZU710,720..MTM..(65T,85T)

 2
47371D - CLAMP, BRAKE TUBE, NO.8
47371-37250

XZU710,720..GEN

 1
47371H - CLAMP, BRAKE TUBE, NO.12
47371-37240

XZU710,720..GEN

 1
47371-37240

XZU710,720..GEN

ABS-WITH(POWER ASSIST BRAKE)

 2
47379R - DAMPER, TUBE(FOR REAR)
47379-37010

XZU710,720..GEN

 2
Common parts
90034-61046
90129-08007
90468-08035
91551-80825
91552-81018

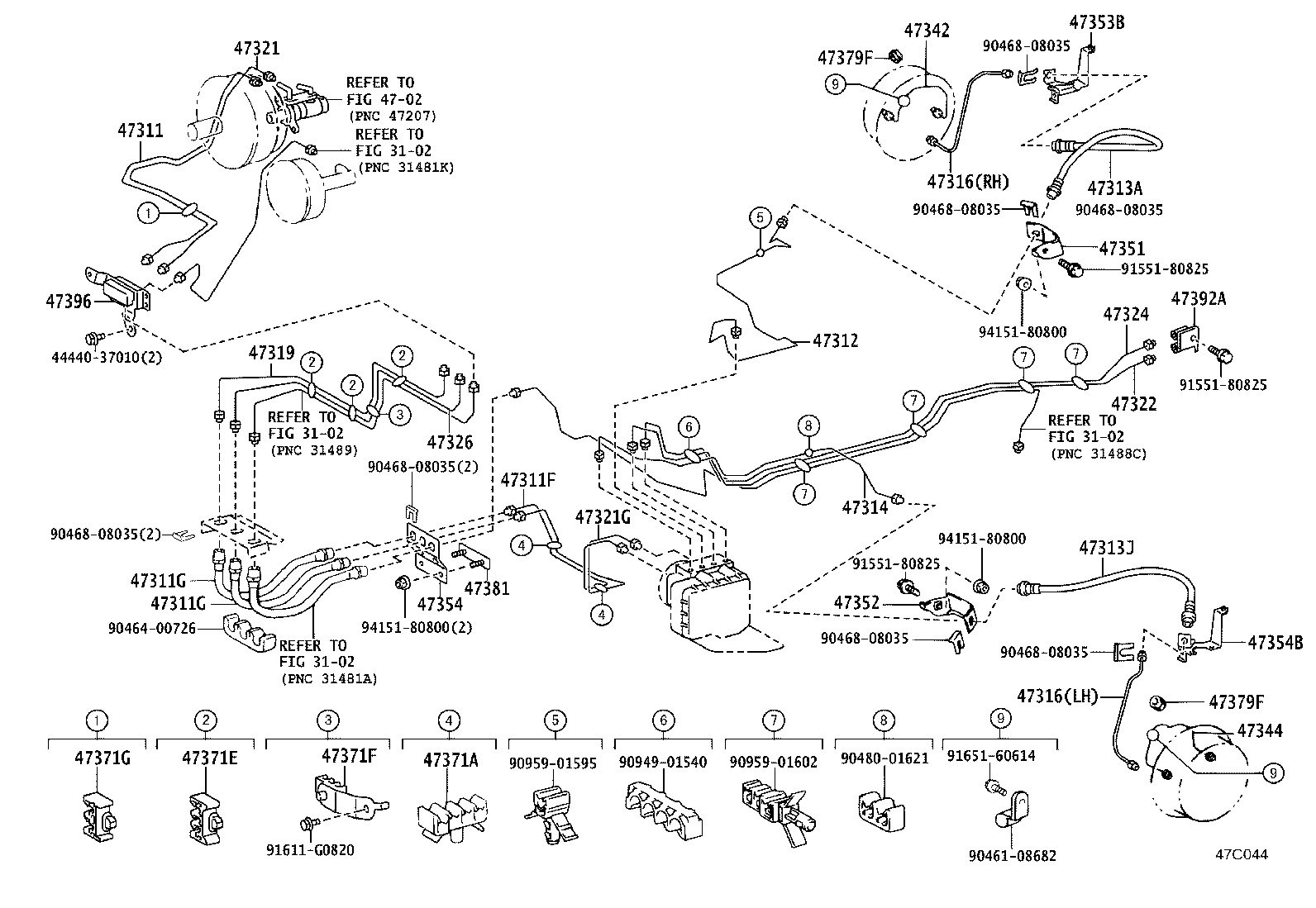

ILLUST NO. 1 OF 4(1911- )XZU710,720..GEN

Click highlighted areas on diagram

DRUM BRAKE-W(ABS)

diagram 3102 3102 3102 3102 4444037010 4702 47311 47311F 47311G 47311G 47312 47313A 47313J 47314 47316 47316 47319 47321 47321G 47322 47324 47326 47342 47344 47351 47352 47353B 47354 47354B 47371A 47371E 47371F 47371G 47379F 47379F 47381 47392A 47396 9046108682 9046400726 9046808035 9046808035 9046808035 9046808035 9046808035 9046808035 9046808035 9048001621 9094901540 9095901595 9095901602 9155180825 9155180825 9155180825 91611G0820 9165160614 9415180800 9415180800 9415180800
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-37770

XZU710,720..GEN

 1
47311F - TUBE, FRONT BRAKE, FRAME NO.1
47311-37700

WU700,710,720

 1
47311-37790

XZU710,720..GEN

 1
47311-37620

XZU710,720..GEN

ABS-WITH(POWER ASSIST BRAKE)

 1
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
90947-02J55

WU710,720

 2
90947-02J58

XZU710,720..GEN

ABS-WITH(POWER ASSIST BRAKE)

 2
90947-02J55

XZU710,720..GEN

 2
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
90947-02J55

WU710,720

 2
90947-02J58

XZU710,720..GEN

ABS-WITH(POWER ASSIST BRAKE)

 2
90947-02J55

XZU710,720..GEN

 2
47312 - TUBE, FRONT BRAKE, NO.2
47312-37C50

XZU710,720..GEN

ABS-WITH(POWER ASSIST BRAKE)

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02H85

XZU710,720..GEN

 1
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-02H85

XZU710,720..GEN

 1
47314 - TUBE, FRONT BRAKE, NO.4
47314-37830

XZU710,720..GEN

ABS-WITH(POWER ASSIST BRAKE)

 1
47316 - TUBE, FRONT BRAKE, NO.6
47312-37D90

XZU710,720..GEN

RH

 1
47311-37740

XZU710,720..GEN

LH

 1
47316 - TUBE, FRONT BRAKE, NO.6
47312-37D90

XZU710,720..GEN

RH

 1
47311-37740

XZU710,720..GEN

LH

 1
47319 - TUBE, FRONT BRAKE, NO.9
47312-37D51

XZU710,720..GEN

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-37602

XZU710,720..GEN

 1
47321G - TUBE, REAR BRAKE, FRAME NO.1
47321-37670

WU700,710,720

 1
47321-37590

XZU710,720..GEN

ABS-WITH(POWER ASSIST BRAKE)

 1
47321-37800

XZU710,720..GEN

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-37B40

XZU710,720..GEN

ABS-WITH(POWER ASSIST BRAKE)

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-37390

XZU710,720..GEN

ABS-WITH(POWER ASSIST BRAKE)

 1
47326 - TUBE, REAR BRAKE, NO.6
47322-37C81

XZU710,720..GEN

 1
47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2
47342-37061

XZU710,720..GEN

 1
47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2
47342-37061

XZU710,720..GEN

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-37300

XZU710,720..GEN

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-37180

XZU710,720..GEN

 1
47353B - BRACKET, FLEXIBLE HOSE, NO.3
47353-37330

XZU710,720..GEN

 1
47354 - BRACKET, FRONT FLEXIBLE HOSE
47354-37240

XZU710,720..GEN

ABS-WITH(POWER ASSIST BRAKE)

 1
47354-37420

XZU710,720..GEN

 1
47354-37420

WU710,720

 1
47354B - BRACKET, FLEXIBLE HOSE, NO.4
47354-37380

XZU710,720..GEN

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-37350

WU700,710,720

 1
47371-37350

XZU710,720..GEN

ABS-WITH(POWER ASSIST BRAKE)

 2
47371-37350

XZU710,720..GEN

 1
47371E - CLAMP, BRAKE TUBE, NO.9
47371-37160

WU700,710,720..LHD;XZU710,720..MTM..GCC

 3
47371-37160

XZU710,720..GEN

 3
47371F - CLAMP, BRAKE TUBE, NO.10
47371-37210

XZU710,720..GEN

 1
47371-37210

WU700,710,720..LHD;XZU710,720..MTM..GCC

 1
47371G - CLAMP, BRAKE TUBE, NO.11
47371-37110

XZU710,720..GEN

 1
47379F - DAMPER, TUBE(FOR FRONT)
47379-37010

XZU710,720..GEN

 4
47379F - DAMPER, TUBE(FOR FRONT)
47379-37010

XZU710,720..GEN

 4
47381 - BRACKET, BRAKE TUBE CLAMP NO.1
47381-37281

WU700,710,720;XZU710,720..MTM..GCC

 1
47381-37281

XZU710,720..GEN

 1
47392A - WAY, BRAKE TUBE, NO.2
47391-37410

XZU710,720..GEN

 1
47391-37410

WU700,710,720;XZU710,720..MTM..GCC

 1
47396 - WAY, BRAKE TUBE, NO.4
47391-37470

WU700,710,720;XZU710,720..MTM..GCC

 1
47391-37470

XZU710,720..GEN

 1
Common parts
44440-37010
90461-08682
90464-00726
90468-08035
90480-01621
90949-01540
90959-01595
90959-01602
91551-80825
91611-G0820
91651-60614
94151-80800
