XZU720L-SKMRK3 (2019)

Toyota Dyna

Production Nov 2019 - Sep 9999
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1911- )XZU710,720..GEN

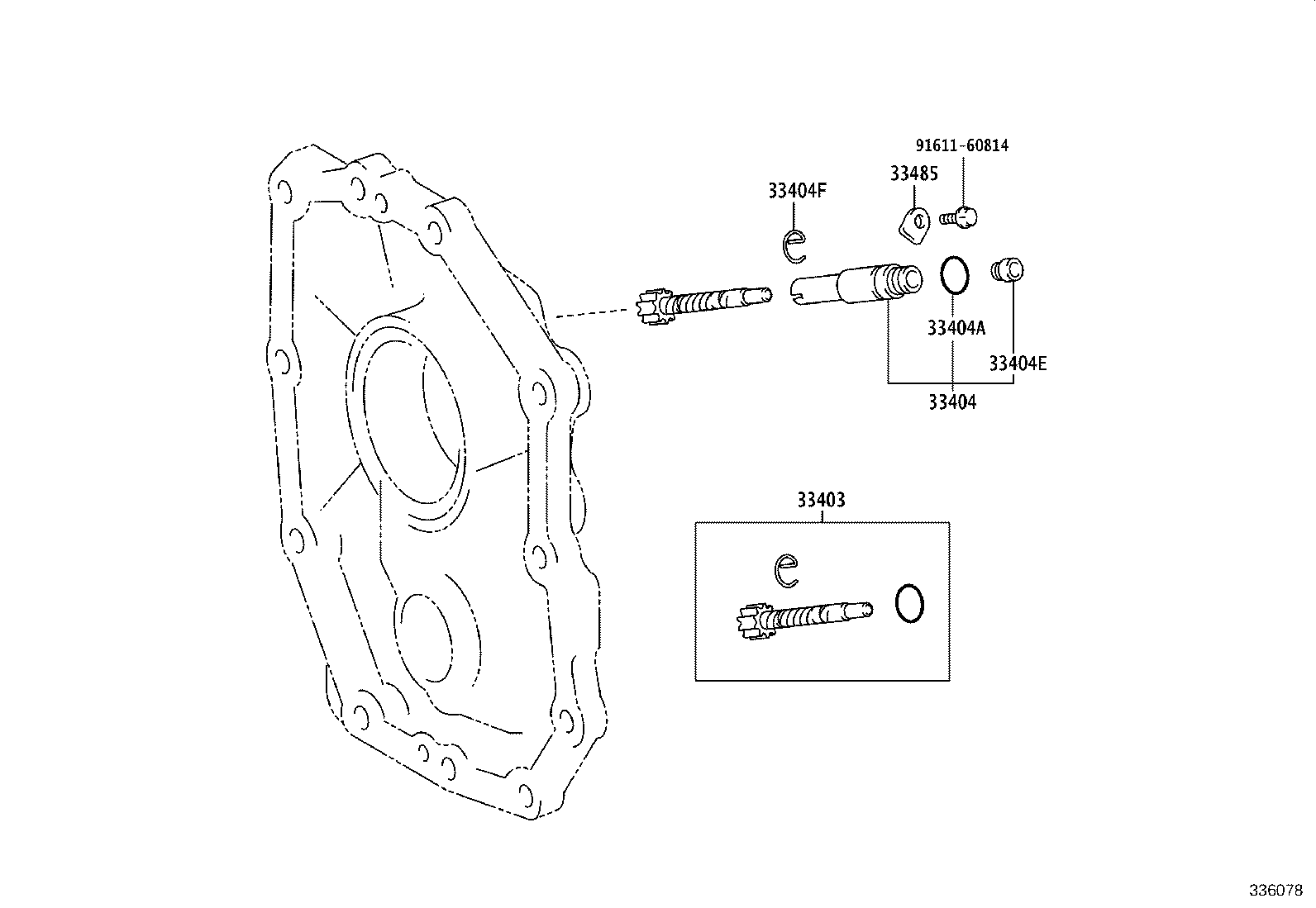

Click highlighted areas on diagram

RE50

diagram 33403 33404 33404A 33404E 33404F 33485 9161160814
Part # Description Qty Price
33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)
33482-39245

WU710,720..GEN

N=24,MARK 24:6,REAR DIFFERENTIAL-12 INCH, FINAL GEAR RATIO =6.500

 1
33482-39235

WU710,720..LHD..75T..GEN

N=23,MARK 23:6,REAR DIFFERENTIAL-12 INCH, FINAL GEAR RATIO =6.167

 1
33482-39205

XZU710,720..GEN

N=20,MARK 20:6,REAR DIFFERENTIAL-12 INCH, FINAL GEAR RATIO =5.571&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISC WHEEL-215/75R17.5 124 RIB

 1
33482-39205

XZU710,720..GEN

N=20,MARK 20:6

 1
33482-39205

XZU710,720..GEN

N=20,MARK 20:6,ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISC WHEEL-215/75R17.5 124 RIB

 1
33482-39215

XZU710,720..GEN

N=21,MARK 21:6,TIRE & DISC WHEEL-215/75R17.5 124 RIB

 1
33482-39205

XZU710,720..GEN

N=20,MARK 20:6,ABS-WITH(POWER ASSIST BRAKE)

 1
33482-39205

XZU710,720..GEN

N=20,MARK 20:6,REAR DIFFERENTIAL-12 INCH, FINAL GEAR RATIO =5.571&ABS-WITH(POWER ASSIST BRAKE)

 1
33482-39215

XZU710,720..GEN

N=21,MARK 21:6,REAR DIFFERENTIAL-12 INCH, FINAL GEAR RATIO =5.571

 1
33482-39225

XZU710,720..GEN

N=22,MARK 22:6,REAR DIFFERENTIAL-12 INCH, FINAL GEAR RATIO =5.571&TIRE & DISC WHEEL-215/75R17.5 124 RIB

 1
33404 - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)
33404-36020

WU700,710,720..5F

 1
33404-36020

XZU710,720..GEN

 1
33404-36020

XZU710,720..GEN

REAR DIFFERENTIAL-12 INCH, FINAL GEAR RATIO =5.571&ABS-WITH(POWER ASSIST BRAKE)

 1
33404-36020

XZU710,720..GEN

ABS-WITH(POWER ASSIST BRAKE)

 1
33404-36020

XZU710,720..GEN

ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISC WHEEL-215/75R17.5 124 RIB

 1
33404-36020

XZU710,720..GEN

REAR DIFFERENTIAL-12 INCH, FINAL GEAR RATIO =5.571&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISC WHEEL-215/75R17.5 124 RIB

 1
33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90301-18018

WU700,710,720..5F

 1
90301-18018

XZU710,720..GEN

REAR DIFFERENTIAL-12 INCH, FINAL GEAR RATIO =5.571&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISC WHEEL-215/75R17.5 124 RIB

 1
90301-18018

XZU710,720..GEN

REAR DIFFERENTIAL-12 INCH, FINAL GEAR RATIO =5.571&ABS-WITH(POWER ASSIST BRAKE)

 1
90301-18018

XZU710,720..GEN

ABS-WITH(POWER ASSIST BRAKE)

 1
90301-18018

XZU710,720..GEN

 1
90301-18018

XZU710,720..GEN

ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISC WHEEL-215/75R17.5 124 RIB

 1
33404E - SEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90310-09001

WU700,710,720..5F

 1
90310-09001

XZU710,720..GEN

REAR DIFFERENTIAL-12 INCH, FINAL GEAR RATIO =5.571&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISC WHEEL-215/75R17.5 124 RIB

 1
90310-09001

XZU710,720..GEN

ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISC WHEEL-215/75R17.5 124 RIB

 1
90310-09001

XZU710,720..GEN

ABS-WITH(POWER ASSIST BRAKE)

 1
90310-09001

XZU710,720..GEN

 1
90310-09001

XZU710,720..GEN

REAR DIFFERENTIAL-12 INCH, FINAL GEAR RATIO =5.571&ABS-WITH(POWER ASSIST BRAKE)

 1
33404F - CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90468-12005

WU700,710,720..5F

 1
90468-12005

XZU710,720..GEN

 1
90468-12005

XZU710,720..GEN

ABS-WITH(POWER ASSIST BRAKE)

 1
90468-12005

XZU710,720..GEN

REAR DIFFERENTIAL-12 INCH, FINAL GEAR RATIO =5.571&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISC WHEEL-215/75R17.5 124 RIB

 1
90468-12005

XZU710,720..GEN

ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISC WHEEL-215/75R17.5 124 RIB

 1
90468-12005

XZU710,720..GEN

REAR DIFFERENTIAL-12 INCH, FINAL GEAR RATIO =5.571&ABS-WITH(POWER ASSIST BRAKE)

 1
33485 - PLATE, SPEEDOMETER SLEEVE LOCK (MTM)
33485-30020

WU700,710,720..5F

 1
33485-30020

XZU710,720..GEN

 1
33485-30020

XZU710,720..GEN

ABS-WITH(POWER ASSIST BRAKE)

 1
33485-30020

XZU710,720..GEN

REAR DIFFERENTIAL-12 INCH, FINAL GEAR RATIO =5.571&ABS-WITH(POWER ASSIST BRAKE)

 1
33485-30020

XZU710,720..GEN

REAR DIFFERENTIAL-12 INCH, FINAL GEAR RATIO =5.571&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISC WHEEL-215/75R17.5 124 RIB

 1
33485-30020

XZU710,720..GEN

ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISC WHEEL-215/75R17.5 124 RIB

 1
Common parts
91611-60814
