XZU720L-SKMRK3 (2019)

Toyota Dyna

Production Nov 2019 - Sep 9999
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1911- )N04C..XZU710,720..GEN

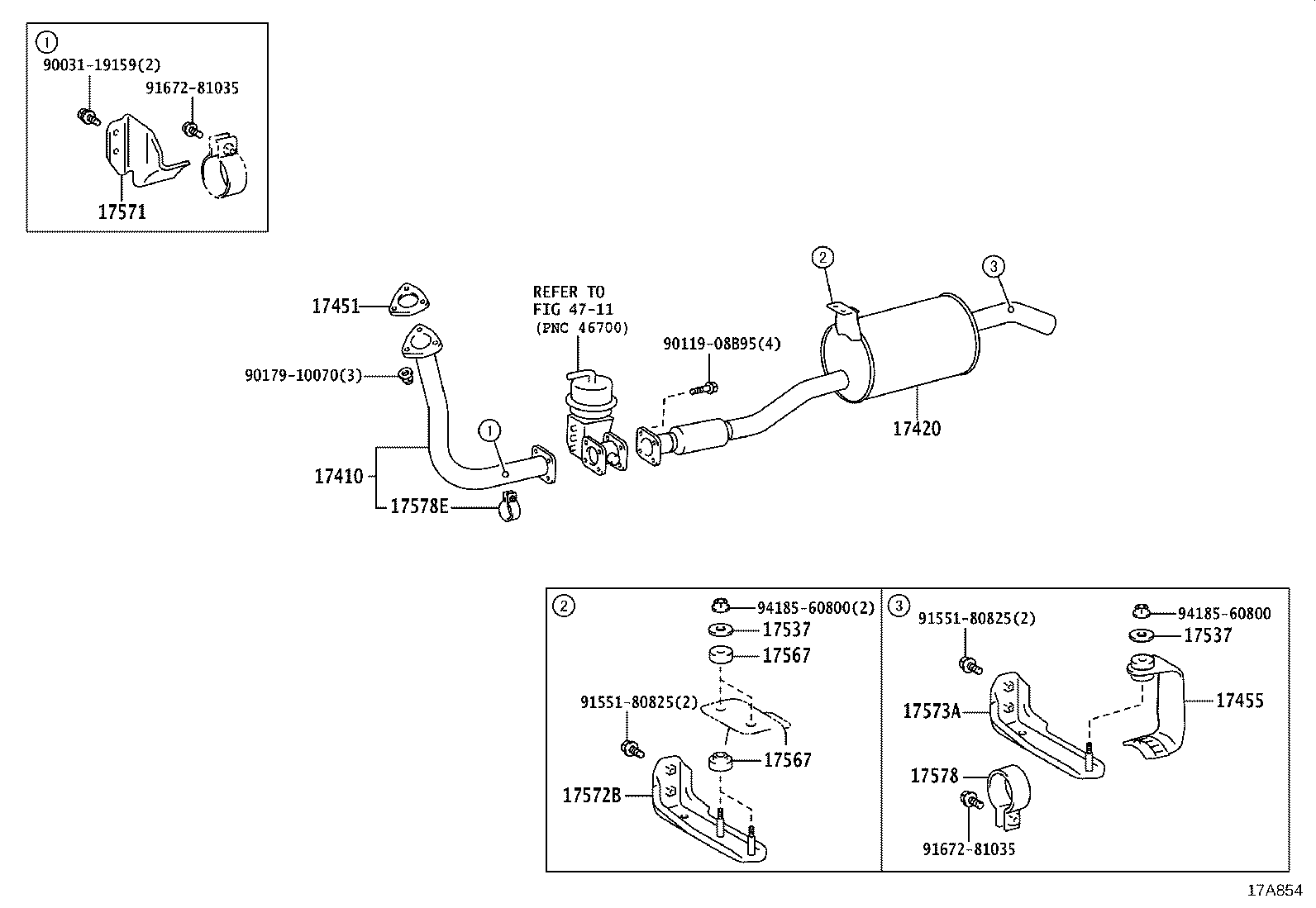

Click highlighted areas on diagram

diagram 17410 17420 17451 17455 17537 17537 17567 17567 17571 17572B 17573A 17578 17578E 4711 9003119159 9011908B95 9017910070 9155180825 9155180825 9167281035 9167281035 9418560800 9418560800
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17401-78320

N04C..XZU710,720..GEN

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17403-78C70

N04C..XZU710,720..GEN

 1
17451 - GASKET, EXHAUST PIPE
17451-E0110

N04C..XZU710,720..GEN

 1
17455 - BRACKET, EXHAUST PIPE
17455-78320

N04C..XZU710,720..GEN

 1
17537 - PLATE, EXHAUST PIPE
16721-78010

N04C..XZU710,720..GEN

 3
17537 - PLATE, EXHAUST PIPE
16721-78010

N04C..XZU710,720..GEN

 3
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-78010

N04C..XZU710,720..GEN

 4
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-78010

N04C..XZU710,720..GEN

 4
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-78050

N04C..XZU710,720..GEN

 1
17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2
17572-78560

N04C..XZU710,720..GEN

 1
17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3
17573-78610

N04C..XZU710,720..GEN

 1
17578 - CLAMP, PIPE
17578-78010

N04C..XZU710,720..GEN

 1
17578E - CLAMP, PIPE(FOR FRONT EXHAUST PIPE)
17578-78010

N04C..XZU710,720..GEN

 1
Common parts
90031-19159
90119-08B95
90179-10070
91551-80825
91672-81035
94185-60800
Linked diagrams
4711
