XZU720L-SKMRK3 (2019)

Toyota Dyna

Production Nov 2019 - Sep 9999
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1911- )N04C..XZU710,720..GEN

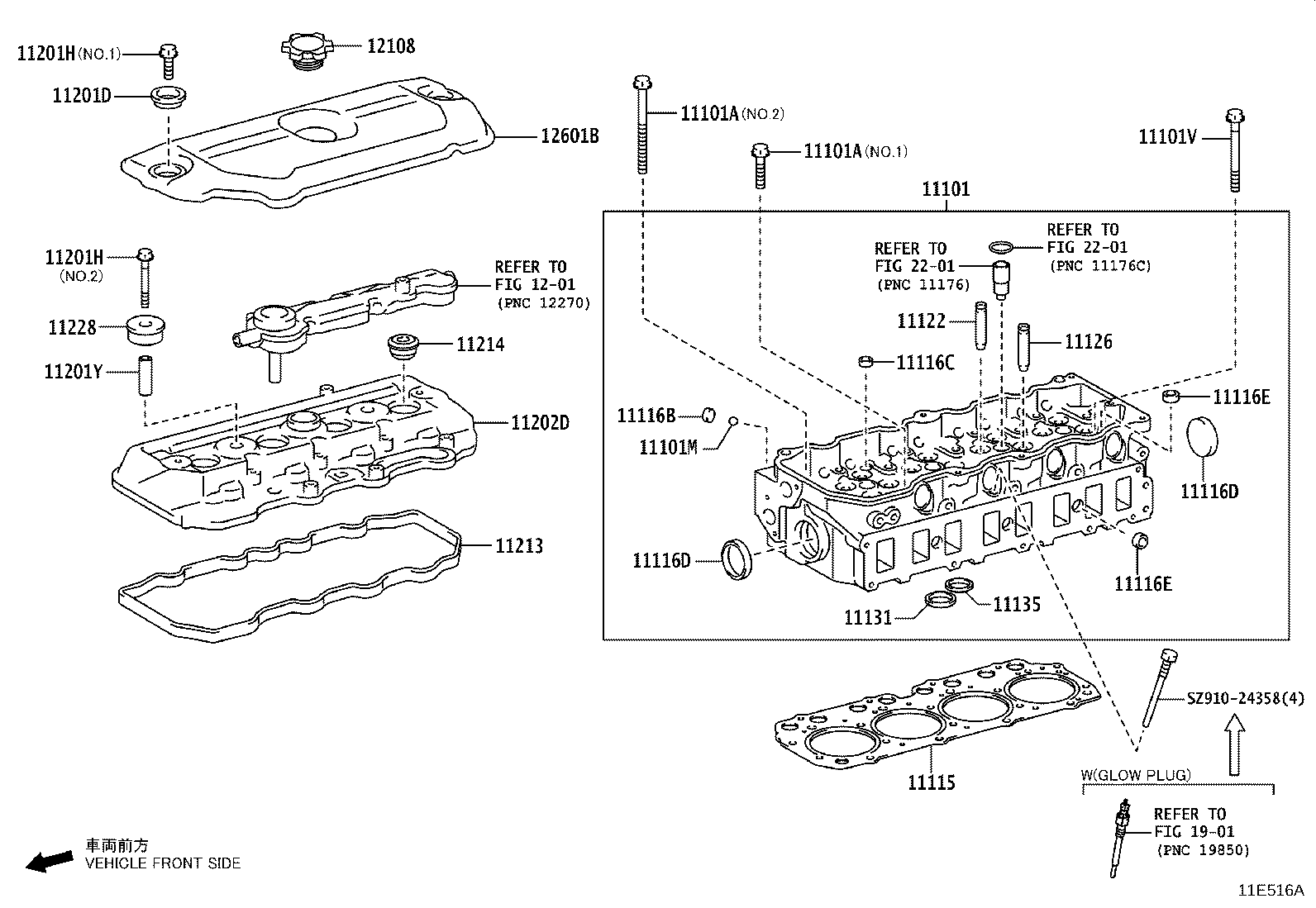

Click highlighted areas on diagram

diagram 11101 11101A 11101A 11101M 11101V 11115 11116B 11116C 11116D 11116D 11116E 11116E 11122 11126 11131 11135 11201D 11201H 11201H 11201Y 11202D 11213 11214 11228 1201 12108 12601B 1901 2201 2201 SZ91024358
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-78221

N04C..XZU710,720..GEN

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
SH552-11035

N04C..XZU710,720..GEN

NO.1

 3
S1118-52700

N04C..XZU710,720..GEN

NO.2

 18
11101A - BOLT(FOR CYLINDER HEAD SET)
SH552-11035

N04C..XZU710,720..GEN

NO.1

 3
S1118-52700

N04C..XZU710,720..GEN

NO.2

 18
11101M - BALL NO.1(FOR CYLINDER HEAD)
SN441-00508

N04C..XZU710,720..GEN

 4
11101V - BOLT(FOR CYLINDER HEAD SET SUB)
SH552-11000

N04C..XZU710,720..GEN

 1
11115 - GASKET, CYLINDER HEAD
11115-78101

N04C..XZU710,720..GEN

 1
11116B - PLUG, TIGHT, NO.2
SN411-01412

N04C..XZU710,720..GEN

 4
11116C - PLUG, TIGHT, NO.3
SN411-01712

N04C..XZU710,720..GEN

 5
11116D - PLUG, TIGHT, NO.4
SN411-05016

N04C..XZU710,720..GEN

 2
11116D - PLUG, TIGHT, NO.4
SN411-05016

N04C..XZU710,720..GEN

 2
11116E - PLUG, TIGHT, NO.5
SN411-02216

N04C..XZU710,720..GEN

 11
11116E - PLUG, TIGHT, NO.5
SN411-02216

N04C..XZU710,720..GEN

 11
11122 - BUSH, INTAKE VALVE GUIDE
S1112-21220

N04C..XZU710,720..GEN

STD

 8
11126 - BUSH, EXHAUST VALVE GUIDE
S1112-21220

N04C..XZU710,720..GEN

STD

 8
11131 - SEAT, INTAKE VALVE
S1113-11540

N04C..XZU710,720..GEN

STD

 8
11135 - SEAT, EXHAUST VALVE
11135-E0010

N04C..XZU710,720..GEN

STD

 8
11201D - WASHER, LOCK(FOR CYLINDER HEAD COVER)
S1129-61030

N04C..XZU710,720..GEN

 2
11201H - BOLT(FOR CYLINDER HEAD COVER)
SH552-10816

N04C..XZU710,720..GEN

NO.1

 2
SH552-10865

N04C..XZU710,720..GEN

NO.2

 2
11201H - BOLT(FOR CYLINDER HEAD COVER)
SH552-10816

N04C..XZU710,720..GEN

NO.1

 2
SH552-10865

N04C..XZU710,720..GEN

NO.2

 2
11201Y - SPACER(FOR CYLINDER HEAD COVER)
SZ910-16303

N04C..XZU710,720..GEN

 2
11202D - COVER SUB-ASSY, CYLINDER HEAD, NO.2
11201-78061

N04C..XZU710,720..GEN

 1
11213 - GASKET, CYLINDER HEAD COVER
11213-78070

N04C..XZU710,720..GEN

 1
11214 - GASKET, CYLINDER HEAD COVER, NO.2
11213-78090

N04C..XZU710,720..GEN

 4
11228 - CUSHION, CYLINDER HEAD COVER
11228-78050

N04C..XZU710,720..GEN

 2
12108 - CAP SUB-ASSY, OIL FILLER
12180-E0010

N04C..XZU710,720..GEN

 1
12601B - COVER SUB-ASSY, ENGINE, NO.1
12601-78030

N04C..XZU710,720..GEN

 1
Common parts
SZ910-24358
Linked diagrams
1201
1901
2201
