XZU710L-TKFRSW3 (2013)

Toyota Dyna

Production Jun 2013 - Sep 9999
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

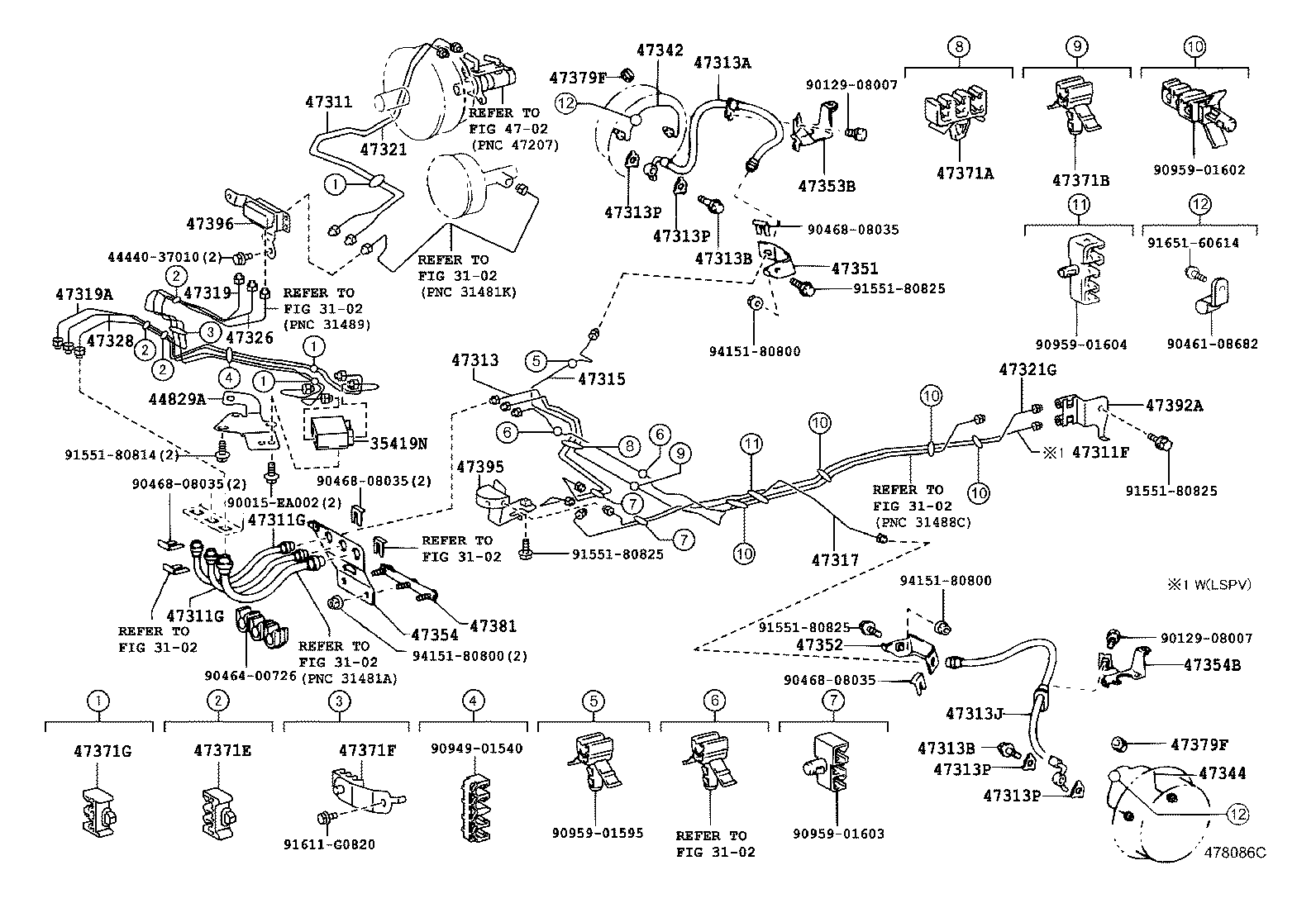

ILLUST NO. 1 OF 4(1107-1509)LHD..65T..GEN ; (1107-1509)WU710..LHD..75T,85T ; (1107-1509)WU720,XZU710

Click highlighted areas on diagram

DRUM BRAKE-W/O(ABS) & W(CHECK VALVE

diagram 3102 3102 3102 3102 3102 3102 3102 35419N 4444037010 44829A 4702 47311 47311F 47311G 47311G 47313 47313A 47313B 47313B 47313J 47313P 47313P 47313P 47313P 47315 47317 47319 47319A 47321 47321G 47326 47328 47342 47344 47351 47352 47353B 47354 47354B 47371A 47371B 47371E 47371F 47371G 47379F 47379F 47381 47392A 47395 47396 90015EA002 9012908007 9012908007 9046108682 9046400726 9046808035 9046808035 9046808035 9046808035 9094901540 9095901595 9095901602 9095901603 9095901604 9155180814 9155180825 9155180825 9155180825 9155180825 91611G0820 9165160614 9415180800 9415180800 9415180800
Part # Description Qty Price
47311F - TUBE, FRONT BRAKE, FRAME NO.1
47311-37620

XZU710,720,730..EUR

 1
47311-37700

WU700,710,720

 1
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
90947-02G01

XZU710,720,730..EUR

 2
90947-02G02

WU700,710,720

 2
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
90947-02G01

XZU710,720,730..EUR

 2
90947-02G02

WU700,710,720

 2
47313 - TUBE, FRONT BRAKE, NO.3
47313-37670

WU700,710,720

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02D86

XZU710,720,730..EUR

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

XZU710,720,730..EUR

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

XZU710,720,730..EUR

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-02D87

XZU710,720,730..EUR

 1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010

XZU710,720,730..EUR

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010

XZU710,720,730..EUR

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010

XZU710,720,730..EUR

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010

XZU710,720,730..EUR

 4
47321G - TUBE, REAR BRAKE, FRAME NO.1
47321-37590

XZU710,720,730..EUR

 1
47321-37670

WU700,710,720

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-37300

XZU710,720,730..EUR

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-37180

XZU710,720,730..EUR

 1
47353B - BRACKET, FLEXIBLE HOSE, NO.3
47353-37261

XZU710,720,730..EUR

 1
47354 - BRACKET, FRONT FLEXIBLE HOSE
47354-37360

WU700,710,720

 1
47354-37240

XZU710,720,730..EUR

 1
47354B - BRACKET, FLEXIBLE HOSE, NO.4
47354-37141

XZU710,720,730..EUR

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-37350

XZU710,720,730..EUR

 2
47371-37350

WU700,710,720

 1
47371B - CLAMP, BRAKE TUBE, NO.6
47371-37050

WU700,710,720

 1
47371E - CLAMP, BRAKE TUBE, NO.9
47371-37160

XZU710,720,730..EUR

 3
47371-37160

WU700,710,720..LHD;XZU710,720..MTM..GCC

 3
47371F - CLAMP, BRAKE TUBE, NO.10
47371-37210

XZU710,720,730..EUR

 1
47371-37210

WU700,710,720..LHD;XZU710,720..MTM..GCC

 1
47381 - BRACKET, BRAKE TUBE CLAMP NO.1
47381-37281

XZU710,720,730..EUR

 1
47381-37281

WU700,710,720;XZU710,720..MTM..GCC

 1
47392A - WAY, BRAKE TUBE, NO.2
47391-37410

XZU710,720,730..EUR

 1
47391-37410

WU700,710,720;XZU710,720..MTM..GCC

 1
47395 - WAY, BRAKE TUBE, NO.3
47391-37390

WU700,710,720

 1
47396 - WAY, BRAKE TUBE, NO.4
47391-37470

WU700,710,720;XZU710,720..MTM..GCC

 1
47391-37470

XZU710,720,730..EUR

 1
Common parts
44440-37010
90015-EA002
90129-08007
90461-08682
90464-00726
90468-08035
90949-01540
90959-01595
90959-01602
90959-01603
90959-01604
91551-80814
91551-80825
91611-G0820
91651-60614
94151-80800
Linked diagrams
3102
4702
