XZU710L-SKMRK3 (2019)

Toyota Dyna

Production Nov 2019 - Sep 9999
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1911- )N04C..XZU710,720..GEN

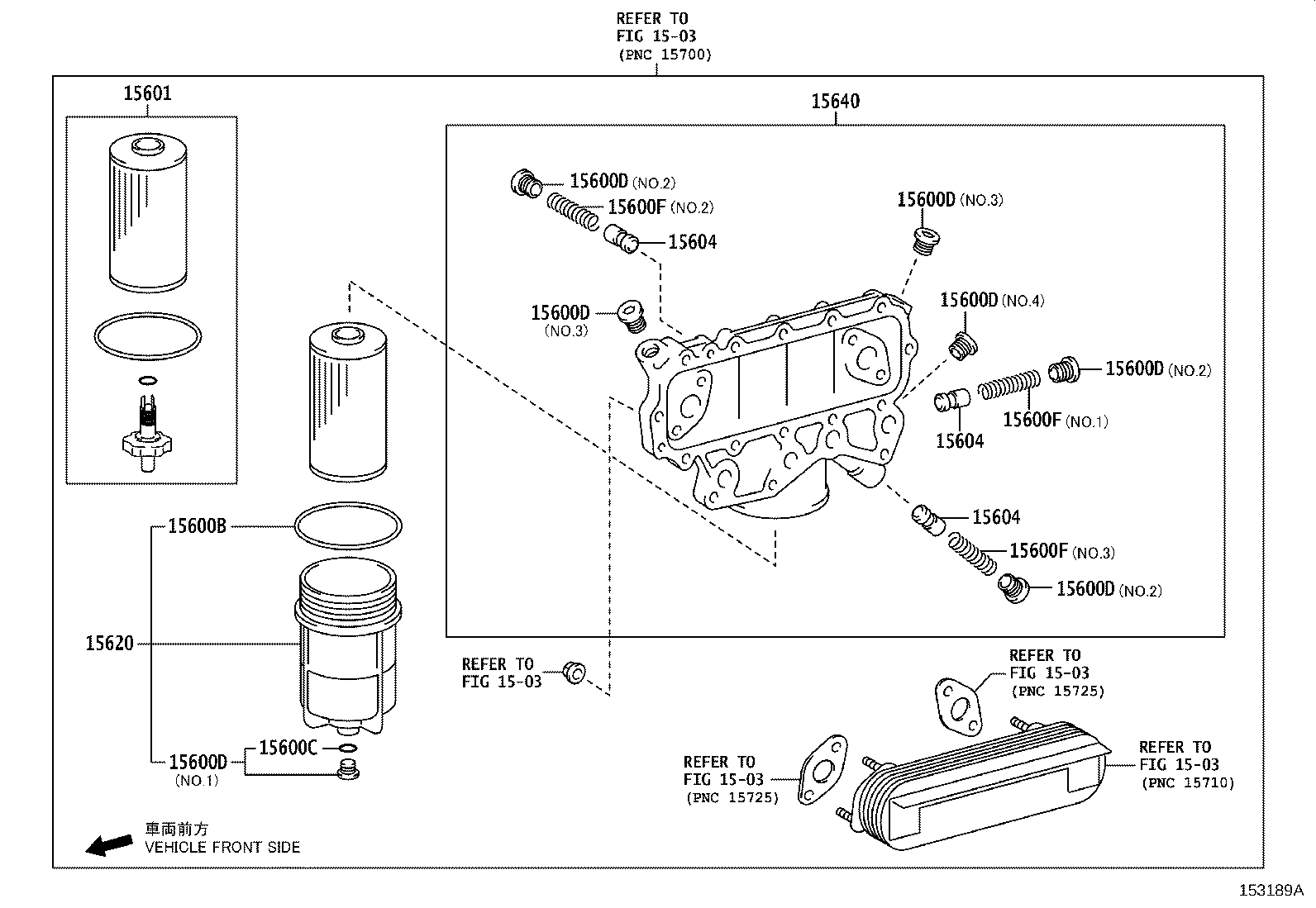

Click highlighted areas on diagram

diagram 1503 1503 1503 1503 1503 15600B 15600C 15600D 15600D 15600D 15600D 15600D 15600D 15600D 15600F 15600F 15600F 15601 15604 15604 15604 15620 15640
Part # Description Qty Price
15600B - RING, O, NO.1(FOR OIL FILTER)
16442-78140

N04C..XZU710,720..GEN

 1
15600C - RING, O, NO.2(FOR OIL FILTER)
15188-78140

N04C..XZU710,720..GEN

 1
15600D - PLUG(FOR OIL FILTER)
15529-EV010

N04C..XZU710,720..GEN

NO.3:REFER ILLUST.

 2
21677-78140

N04C..XZU710,720..GEN

NO.4:REFER ILLUST.

 1
21784-78140

N04C..XZU710,720..GEN

NO.1:REFER ILLUST.

 1
15529-78140

N04C..XZU710,720..GEN

NO.2:REFER ILLUST.

 3
15600D - PLUG(FOR OIL FILTER)
15529-EV010

N04C..XZU710,720..GEN

NO.3:REFER ILLUST.

 2
21677-78140

N04C..XZU710,720..GEN

NO.4:REFER ILLUST.

 1
21784-78140

N04C..XZU710,720..GEN

NO.1:REFER ILLUST.

 1
15529-78140

N04C..XZU710,720..GEN

NO.2:REFER ILLUST.

 3
15600D - PLUG(FOR OIL FILTER)
15529-EV010

N04C..XZU710,720..GEN

NO.3:REFER ILLUST.

 2
21677-78140

N04C..XZU710,720..GEN

NO.4:REFER ILLUST.

 1
21784-78140

N04C..XZU710,720..GEN

NO.1:REFER ILLUST.

 1
15529-78140

N04C..XZU710,720..GEN

NO.2:REFER ILLUST.

 3
15600D - PLUG(FOR OIL FILTER)
15529-EV010

N04C..XZU710,720..GEN

NO.3:REFER ILLUST.

 2
21677-78140

N04C..XZU710,720..GEN

NO.4:REFER ILLUST.

 1
21784-78140

N04C..XZU710,720..GEN

NO.1:REFER ILLUST.

 1
15529-78140

N04C..XZU710,720..GEN

NO.2:REFER ILLUST.

 3
15600D - PLUG(FOR OIL FILTER)
15529-EV010

N04C..XZU710,720..GEN

NO.3:REFER ILLUST.

 2
21677-78140

N04C..XZU710,720..GEN

NO.4:REFER ILLUST.

 1
21784-78140

N04C..XZU710,720..GEN

NO.1:REFER ILLUST.

 1
15529-78140

N04C..XZU710,720..GEN

NO.2:REFER ILLUST.

 3
15600D - PLUG(FOR OIL FILTER)
15529-EV010

N04C..XZU710,720..GEN

NO.3:REFER ILLUST.

 2
21677-78140

N04C..XZU710,720..GEN

NO.4:REFER ILLUST.

 1
21784-78140

N04C..XZU710,720..GEN

NO.1:REFER ILLUST.

 1
15529-78140

N04C..XZU710,720..GEN

NO.2:REFER ILLUST.

 3
15600D - PLUG(FOR OIL FILTER)
15529-EV010

N04C..XZU710,720..GEN

NO.3:REFER ILLUST.

 2
21677-78140

N04C..XZU710,720..GEN

NO.4:REFER ILLUST.

 1
21784-78140

N04C..XZU710,720..GEN

NO.1:REFER ILLUST.

 1
15529-78140

N04C..XZU710,720..GEN

NO.2:REFER ILLUST.

 3
15600F - SPRING, COMPRESSION(FOR OIL FILTER)
15661-78140

N04C..XZU710,720..GEN

NO.1:REFER ILLUST.

 1
S1566-11560

N04C..XZU710,720..GEN

NO.3:REFER ILLUST.

 1
S1566-11250

N04C..XZU710,720..GEN

NO.2:REFER ILLUST.

 1
15600F - SPRING, COMPRESSION(FOR OIL FILTER)
15661-78140

N04C..XZU710,720..GEN

NO.1:REFER ILLUST.

 1
S1566-11560

N04C..XZU710,720..GEN

NO.3:REFER ILLUST.

 1
S1566-11250

N04C..XZU710,720..GEN

NO.2:REFER ILLUST.

 1
15600F - SPRING, COMPRESSION(FOR OIL FILTER)
15661-78140

N04C..XZU710,720..GEN

NO.1:REFER ILLUST.

 1
S1566-11560

N04C..XZU710,720..GEN

NO.3:REFER ILLUST.

 1
S1566-11250

N04C..XZU710,720..GEN

NO.2:REFER ILLUST.

 1
15601 - FILTER SUB-ASSY, OIL
15601-78140

N04C..XZU710,720..GEN

 1
15604 - VALVE SUB-ASSY, OIL SAFETY
S1571-41120

N04C..XZU710,720..GEN

 3
15604 - VALVE SUB-ASSY, OIL SAFETY
S1571-41120

N04C..XZU710,720..GEN

 3
15604 - VALVE SUB-ASSY, OIL SAFETY
S1571-41120

N04C..XZU710,720..GEN

 3
15620 - CAP ASSY, OIL FILTER
15620-78140

N04C..XZU710,720..GEN

 1
15640 - CASE ASSY, OIL FILTER
15640-78140

N04C..XZU710,720..GEN

 1
Linked diagrams
1503
