XZU435L-TKFRDW3 (2007)

Toyota Dyna

Production Aug 2007 - May 2009
Engine N04C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )

Click highlighted areas on diagram

diagram 28550 5551 84110 84118 84119 84119A 84150 84150A 84151 84262 84262 84310 84312 84330 84450 84650 84730 84730A 84731 85500 85540 86690 9010911002 9010911008 9016450048 9017011206 9020109351 9046107028 9046808007 9331514012 9331915012 9354016014 9356614512
Part # Description Qty Price
Common parts
90109-11002
90109-11008
90164-50048
90170-11206
90201-09351
90461-07028
90468-08007
93315-14012
93319-15012
93540-16014
93566-14512
Linked diagrams
5551

(7708- )

Click highlighted areas on diagram

diagram 1903 27790 28300 28371A 28371A 28490 28491 28521 28610 81980 82600F 82600F 82600F 82616 8406 84095 84095 84231 84231 8501 85916 85916 85940 85991 85999 85999A 85999A 85999A 85999C 86530 86650 89320 89550 89550 9017906011 9017906015 9017906070 9017906078 9017906078 9151140612 9155140616 9161140612 9161140612 9161140612 9161140612 9161140616 9161140616 9165140612 9165140612 9165140612 9165140612 9165140612 9165140612 9165140612 9165140616 9165140616 9165140816 9331915008 9331915014 9411540500 9412040800
Part # Description Qty Price
Common parts
90179-06011
90179-06015
90179-06070
90179-06078
91511-40612
91551-40616
91611-40612
91611-40616
91651-40612
91651-40616
91651-40816
93319-15008
93319-15014
94115-40500
94120-40800
Linked diagrams
1903
8406
8501

(7708- )

Click highlighted areas on diagram

diagram 27679 27690 27690 28610 28611 4711 83320 83361 83390 84113A 84113A 84113A 84221 84233 84233 84234 84340 84461 84510A 84510A 84510A 84640 84641 86651 89411B 89421B 89426A 9011906142 9017906007 9017906158 9017906158 9046400190 9056008268 9056008268 9056008268 9161140812 9161140816 9161141025 9165140612 9165140612 9165140820 9165640818 9165640818 9331914010 9411040800 9412041000 9412041000
Part # Description Qty Price
Common parts
90119-06142
90179-06007
90179-06158
90464-00190
90560-08268
91611-40812
91611-40816
91611-41025
91651-40612
91651-40820
91656-40818
93319-14010
94110-40800
94120-41000
Linked diagrams
4711

(7708- )

Click highlighted areas on diagram

diagram 8271136020 8271136020 83420 83420 83530 83530 84210 84210 84210 84210T 84540B 84540B 84540C 84540C 89427 9020210012
Part # Description Qty Price
Common parts
82711-36020
90202-10012

ILLUST NO. 5 OF10(0110-0802)BU410,420,XZU412,414,415,422,424,425,434,435..LHD..DCR,DSL,TD ; (0212-06

Click highlighted areas on diagram

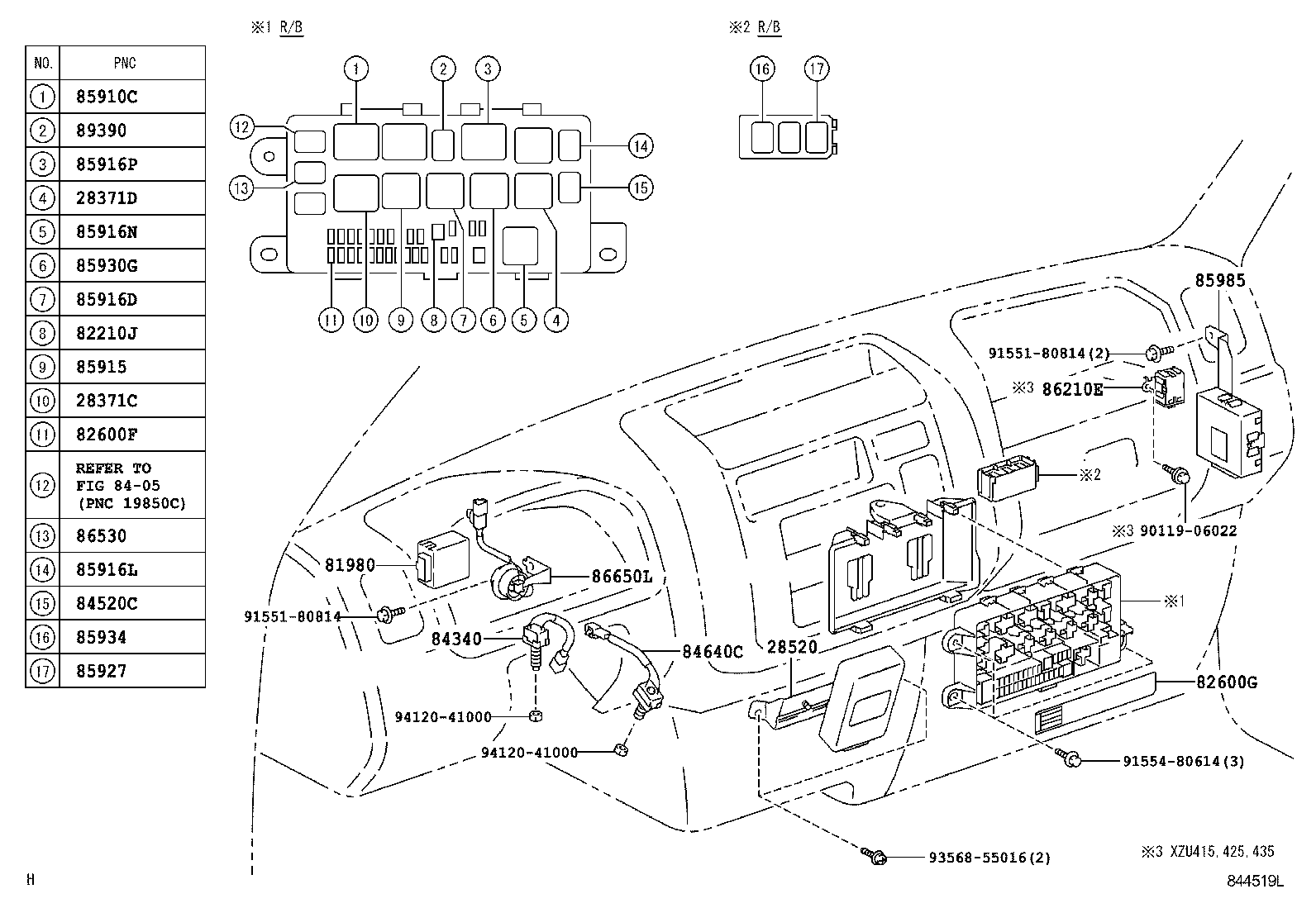

INSTRUMENT PANEL & COWL

diagram 28371C 28371D 28520 81980 82210J 82600F 82600G 8405 84340 84520C 84640C 85910C 85915 85916D 85916L 85916N 85916P 85927 85930G 85934 85985 86210E 86530 86650L 89390 9011906022 9155180814 9155180814 9155480614 9356855016 9412041000 9412041000
Part # Description Qty Price
28371C - RELAY, IGNITION, NO.2
90987-02019

N04C..XZU415,425,435

 1
28371D - RELAY, IGNITION, NO.3
90987-02018

N04C..XZU415,425,435

 1
81980 - FLASHER ASSY, TURN SIGNAL
81980-37130

XZU415,425,435

 1
82210J - FUSIBLE LINK
90982-08280

XZU415,425,435

30A,TERM.:FEMALE,PNK

 1
90982-08202

XZU415,425,435

60A,TERM.:MALE,YEL

 1
90982-08246

XZU415,425,435

100A,TERM.:MALE,BLUE

 1
90982-08282

XZU415,425,435

50A,TERM.:FEMALE,RED

 1
90982-08281

XZU415,425,435

40A,TERM.:FEMALE,GRN

 1
82600F - FUSE, FUSE BLOCK
90982-09010

XZU415,425,435

15A,MINI FUSE,BLUE

 1
90982-09008

XZU415,425,435

7.5A,MINI FUSE,BRN

 1
90982-09009

XZU415,425,435

10A,MINI FUSE,RED

 1
90982-09011

XZU415,425,435

20A,MINI FUSE,YELLOW

 1
82600G - PLATE, CAUTION(FOR FUSE)
82683-37390

WU410..65T..SA;WU420,XZU415,423,425,433,435..EUR,SA

 1
84640C - SWITCH ASSY, EXHAUST RETARDER
84640-37050

XZU415,425,435

 1
85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR)
90987-04007

XZU415,425,435

 1
85915 - RELAY, MAIN
90987-02018

XZU415,425,435

 1
85916L - RELAY, REAR FOG LAMP
90987-02017

XZU415,425,435

 1
85916N - RELAY, TAIL LAMP
90987-02018

XZU415,425,435

 1
85916P - RELAY, HEADLAMP
90987-02019

XZU415,425,435

 1
85930G - RELAY, ACC
90987-02018

XZU415,425,435

 1
86530 - RELAY ASSY, HORN
90987-02017

XZU415,425,435

 1
86650L - BUZZER ASSY, VACUUM WARNING
86650-37060

XZU412,422..6F;BU410,420,WU410,420,XZU415,420,425,430,435..EUR,SA,TAIW

 1
Common parts
90119-06022
91551-80814
91554-80614
93568-55016
94120-41000
Linked diagrams
8405

ILLUST NO. 6 OF10(0110-0802)BU410,420,XZU412,414,415,422,424,425,434,435..LHD..DCR,DSL,TD ; (0212-06

Click highlighted areas on diagram

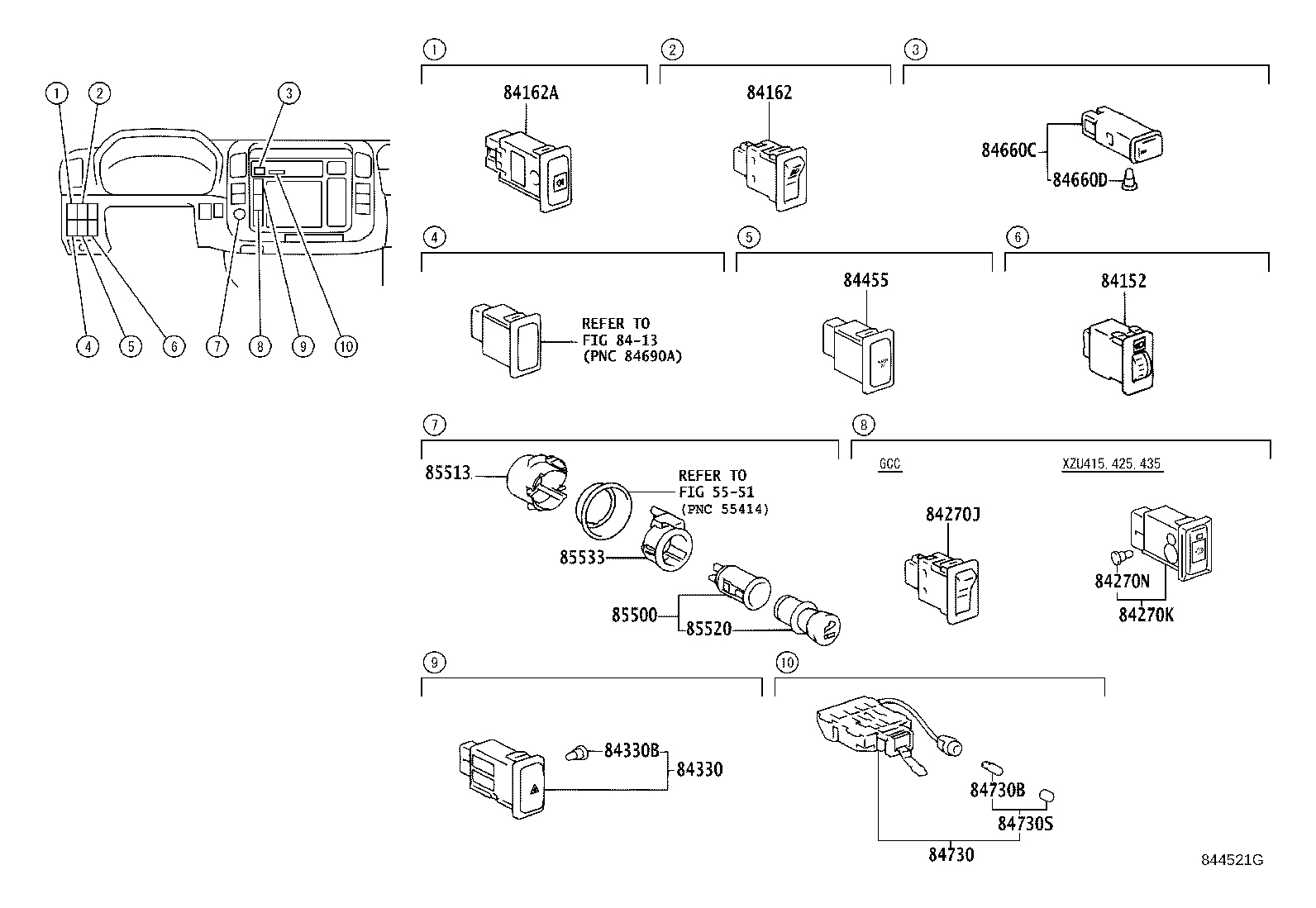

INSTRUMENT PANEL SWITCH

diagram 5551 8413 84152 84162 84162A 84270J 84270K 84270N 84330 84330B 84455 84660C 84660D 84730 84730B 84730S 85500 85513 85520 85533
Part # Description Qty Price
84162A - SWITCH, REAR FOG LAMP
84165-37010

XZU415,425,435

 1
84330B - BULB, HAZARD WARNING SIGNAL SWITCH
84999-10570

BU410,420,WU410,420,XZU404,412,414,415,420,422,424,425,43#..DCR,DSL,TD

28V 0.024A

 1
84730 - SWITCH ASSY, HEATER BLOWER
84732-37050

BU410,420,WU410,420,XZU404,412,414,415,420,422,424,425,43#..DCR,DSL,TD

 1
84730B - BULB, HEATER BLOWER SWITCH
90981-16020

XZU415,425,435

24V 1.8W

 1
84730S - BULB, HEATER BLOWER SWITCH
90010-01153

XZU415,425,435

24V 1.8W,W(CAP)

 1
85500 - LIGHTER ASSY, CIGARETTE
85500-36020

XZU415,425,435

 1
85513 - COVER, CIGARETTE LIGHTER
85513-12020

XZU415,425,435

 1
85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER
85520-95400

XZU415,425,435

 1
85533 - LENS, CIGARETTE LIGHTER INDICATOR
85533-26010

XZU415,425,435

 1
Linked diagrams
5551
8413

ILLUST NO. 7 OF10(0110- )LHD

Click highlighted areas on diagram

STEERING

diagram 4501 8271116830 827111E340 8271637241 84110 84140 84310 84312 84329 84450 84650 9008046104 9016840129 9046400551 91611G0612 9331915012
Part # Description Qty Price
84312 - PLATE, HORN CONTACT
84312-20011

XZU415,425,435

 1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-37160

XZU415,425,435

 1
Common parts
82711-16830
82711-1E340
82716-37241
90080-46104
90168-40129
90464-00551
91611-G0612
93319-15012
Linked diagrams
4501

ILLUST NO. 8 OF10(0110- )LHD

Click highlighted areas on diagram

DOOR,ROOF & FLOOR

diagram 8197337010 83390 84233 84233 84550 84810 84820 86206D 9010906296 9010906296 9011908827 9016430009 9090148003
Part # Description Qty Price
83390 - SWITCH ASSY, VACUUM WARNING
83390-12340

XZU415,425,435

 1
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-60070

XZU415,425,435

 1
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-60070

XZU415,425,435

 1
84550 - SWITCH ASSY, PARKING BRAKE
84550-37021

XZU415,425,435

 1
84810 - SWITCH ASSY, POWER WINDOW REGULATOR
84810-37050

XZU415,425,435

 1
84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR
84820-37032

XZU415,425,435

 1
Common parts
81973-37010
90109-06296
90119-08827
90164-30009
90901-48003

ILLUST NO.10 OF10(0110- )

Click highlighted areas on diagram

REAR BODY

diagram 83320 83361 86650B 91611B0816 93319A4010
Part # Description Qty Price
83320 - GAGE ASSY, FUEL SENDER
83320-80374

XZU415,425,435

 1
83361 - GASKET, FUEL SENDER GAGE
83361-20030

XZU415,425,435

 1
86650B - BUZZER ASSY, REVERSE WARNING
86650-37050

XZU415,425,435

 1
Common parts
91611-B0816
93319-A4010
