XZU435L-TKFRDW3 (2007)

Toyota Dyna

Production Aug 2007 - May 2009
Engine N04C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0708- )XZU433,435,439

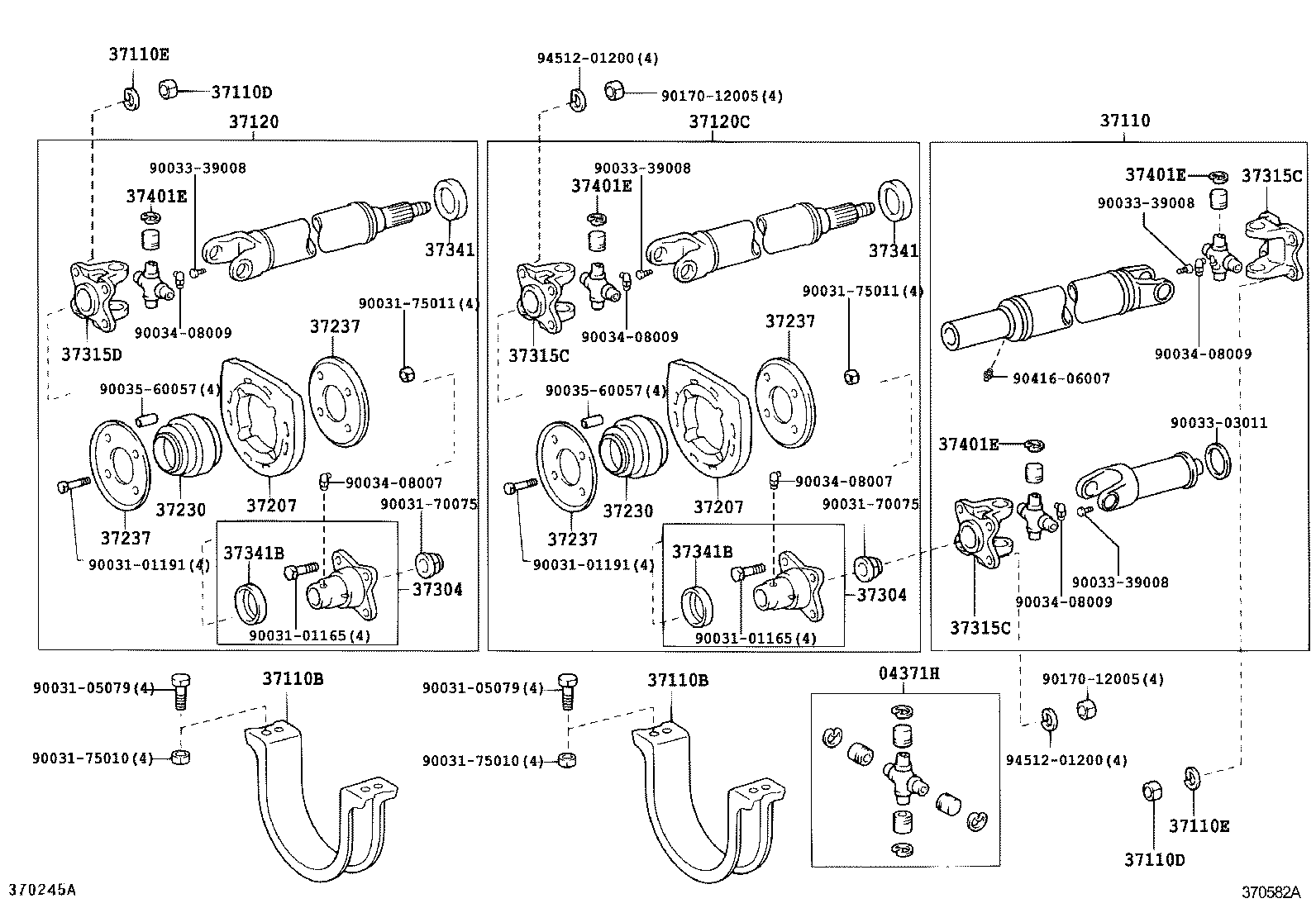

Click highlighted areas on diagram

diagram 04371H 37110 37110B 37110B 37110D 37110D 37110E 37110E 37120 37120C 37207 37207 37230 37230 37237 37237 37237 37237 37304 37304 37315C 37315C 37315C 37315D 37341 37341 37341B 37341B 37401E 37401E 37401E 37401E 9003101165 9003101165 9003101191 9003101191 9003105079 9003105079 9003170075 9003170075 9003175010 9003175010 9003175011 9003175011 9003303011 9003339008 9003339008 9003339008 9003339008 9003408007 9003408009 9003408009 9003408009 9003408009 9003560057 9003560057 9017012005 9017012005 9041606007 9451201200 9451201200
Part # Description Qty Price
04371H - SPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT
04371-37011

XZU415,425,435;WU410,420,XZU404,412,422..5F;XZU414,420,424,430,434..ARL,GEN,SA

 1
37110 - SHAFT ASSY, PROPELLER
37110-37580

XZU415,435;XZU412..5F..(55T,65T,75T);WU410,XZU414..ARL,GCC,GEN,SA

 1
37110B - GUARD, PROPELLER SHAFT
37231-37020

XZU435

 2
37110B - GUARD, PROPELLER SHAFT
37231-37020

XZU435

 2
37120C - SHAFT ASSY, PROPELLER, CENTER
37120-37170

XZU435;XZU430,434..85T

 1
37207 - CUSHION SUB-ASSY, CENTER SUPPORT BEARING, NO.1
37235-37020

XZU435;XZU430,434..85T

 2
37207 - CUSHION SUB-ASSY, CENTER SUPPORT BEARING, NO.1
37235-37020

XZU435;XZU430,434..85T

 2
37230 - BEARING ASSY, CENTER SUPPORT, NO.1
37201-37010

XZU435;XZU430,434..85T

 2
37230 - BEARING ASSY, CENTER SUPPORT, NO.1
37201-37010

XZU435;XZU430,434..85T

 2
37237 - PLATE, CENTER SUPPORT BEARING, NO.1
37237-37010

XZU435;XZU430,434..85T

T=3.0

 4
37237 - PLATE, CENTER SUPPORT BEARING, NO.1
37237-37010

XZU435;XZU430,434..85T

T=3.0

 4
37237 - PLATE, CENTER SUPPORT BEARING, NO.1
37237-37010

XZU435;XZU430,434..85T

T=3.0

 4
37237 - PLATE, CENTER SUPPORT BEARING, NO.1
37237-37010

XZU435;XZU430,434..85T

T=3.0

 4
37304 - FLANGE SUB-ASSY, UNIVERSAL JOINT
37304-37020

XZU435;XZU430,434..85T

 2
37304 - FLANGE SUB-ASSY, UNIVERSAL JOINT
37304-37020

XZU435;XZU430,434..85T

 2
37341 - DEFLECTOR, PROPELLER SHAFT DUST, NO.1
37341-37020

XZU435;XZU430,434..85T

 2
37341 - DEFLECTOR, PROPELLER SHAFT DUST, NO.1
37341-37020

XZU435;XZU430,434..85T

 2
37341B - DEFLECTOR, PROPELLER SHAFT DUST, NO.5
37341-37020

XZU435;XZU430,434..85T

 2
37341B - DEFLECTOR, PROPELLER SHAFT DUST, NO.5
37341-37020

XZU435;XZU430,434..85T

 2
37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI
90035-21023

XZU425,435;WU410,420,XZU404,412,422..5F;XZU414,420,424,430,434..ARL,GEN,SA

T=1.55

 8
90035-21022

XZU425,435;WU410,420,XZU404,412,422..5F;XZU414,420,424,430,434..ARL,GEN,SA

T=1.50

 8
90035-21025

XZU425,435;WU410,420,XZU404,412,422..5F;XZU414,420,424,430,434..ARL,GEN,SA

T=1.65

 8
90035-21024

XZU425,435;WU410,420,XZU404,412,422..5F;XZU414,420,424,430,434..ARL,GEN,SA

T=1.60

 8
90035-21026

XZU425,435;WU410,420,XZU404,412,422..5F;XZU414,420,424,430,434..ARL,GEN,SA

T=1.70

 8
37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI
90035-21023

XZU425,435;WU410,420,XZU404,412,422..5F;XZU414,420,424,430,434..ARL,GEN,SA

T=1.55

 8
90035-21022

XZU425,435;WU410,420,XZU404,412,422..5F;XZU414,420,424,430,434..ARL,GEN,SA

T=1.50

 8
90035-21025

XZU425,435;WU410,420,XZU404,412,422..5F;XZU414,420,424,430,434..ARL,GEN,SA

T=1.65

 8
90035-21024

XZU425,435;WU410,420,XZU404,412,422..5F;XZU414,420,424,430,434..ARL,GEN,SA

T=1.60

 8
90035-21026

XZU425,435;WU410,420,XZU404,412,422..5F;XZU414,420,424,430,434..ARL,GEN,SA

T=1.70

 8
37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI
90035-21023

XZU425,435;WU410,420,XZU404,412,422..5F;XZU414,420,424,430,434..ARL,GEN,SA

T=1.55

 8
90035-21022

XZU425,435;WU410,420,XZU404,412,422..5F;XZU414,420,424,430,434..ARL,GEN,SA

T=1.50

 8
90035-21025

XZU425,435;WU410,420,XZU404,412,422..5F;XZU414,420,424,430,434..ARL,GEN,SA

T=1.65

 8
90035-21024

XZU425,435;WU410,420,XZU404,412,422..5F;XZU414,420,424,430,434..ARL,GEN,SA

T=1.60

 8
90035-21026

XZU425,435;WU410,420,XZU404,412,422..5F;XZU414,420,424,430,434..ARL,GEN,SA

T=1.70

 8
37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI
90035-21023

XZU425,435;WU410,420,XZU404,412,422..5F;XZU414,420,424,430,434..ARL,GEN,SA

T=1.55

 8
90035-21022

XZU425,435;WU410,420,XZU404,412,422..5F;XZU414,420,424,430,434..ARL,GEN,SA

T=1.50

 8
90035-21025

XZU425,435;WU410,420,XZU404,412,422..5F;XZU414,420,424,430,434..ARL,GEN,SA

T=1.65

 8
90035-21024

XZU425,435;WU410,420,XZU404,412,422..5F;XZU414,420,424,430,434..ARL,GEN,SA

T=1.60

 8
90035-21026

XZU425,435;WU410,420,XZU404,412,422..5F;XZU414,420,424,430,434..ARL,GEN,SA

T=1.70

 8
Common parts
90031-01165
90031-01191
90031-05079
90031-70075
90031-75010
90031-75011
90033-03011
90033-39008
90034-08007
90034-08009
90035-60057
90170-12005
90416-06007
94512-01200
