XZU434L-TKFRWW3 (2001)
Toyota Dyna
(0110- )S05C..XZU404,414,424,434
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11271G - COVER, CYLINDER BLOCK SIDE | ||||
| 11271-78052 |
S05C..XZU414,424,434..EUR |
1 | ||
| 11271-78040 |
S05C..XZU404,414,424,434 |
1 | ||
| 11271-78050 |
S05C..XZU404,434;S05C..XZU414,424..RHD;S05C..XZU414,424..EUR |
1 | ||
| 11271G - COVER, CYLINDER BLOCK SIDE | ||||
| 11271-78052 |
S05C..XZU414,424,434..EUR |
1 | ||
| 11271-78040 |
S05C..XZU404,414,424,434 |
1 | ||
| 11271-78050 |
S05C..XZU404,434;S05C..XZU414,424..RHD;S05C..XZU414,424..EUR |
1 | ||
| 15431C - PIPE, OIL FEED | ||||
| 15431-78030 |
S05C..XZU414,424,434..EUR |
1 | ||
| 22100 - PUMP ASSY, INJECTION OR SUPPLY | ||||
| 22100-78091 |
S05C..XZU404,414,424,434 |
1 | ||
| 22100-78092 |
S05C..XZU414,424,434..EUR |
1 | ||
| 22100-78090 |
S05C..XZU404,414,424,434 |
1 | ||
| 22100P - HOSE, FUEL(FOR FUEL PIPE TO FUEL TUBE) | ||||
| 23273-78050 |
S05C..XZU414,424,434..EUR |
1 | ||
| 22100S - HOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE) | ||||
| 23271-78050 |
S05C..XZU414,424,434..EUR |
1 | ||
| 22811 - STAY, INJECTION PUMP, NO.1 | ||||
| 22811-78060 |
S05C..XZU414,424,434..EUR |
1 | ||
| 23083 - PIPE SUB-ASSY, NOZZLE LEAKAGE, NO.3 | ||||
| 23803-78040 |
S05C..XZU414,424,434..EUR NO.1 |
1 | ||
| 23803-78050 |
S05C..XZU414,424,434..EUR NO.2 |
1 | ||
| 23803-78070 |
S05C..XZU414,424,434..EUR NO.3 |
1 | ||
| 23083 - PIPE SUB-ASSY, NOZZLE LEAKAGE, NO.3 | ||||
| 23803-78040 |
S05C..XZU414,424,434..EUR NO.1 |
1 | ||
| 23803-78050 |
S05C..XZU414,424,434..EUR NO.2 |
1 | ||
| 23803-78070 |
S05C..XZU414,424,434..EUR NO.3 |
1 | ||
| 23083 - PIPE SUB-ASSY, NOZZLE LEAKAGE, NO.3 | ||||
| 23803-78040 |
S05C..XZU414,424,434..EUR NO.1 |
1 | ||
| 23803-78050 |
S05C..XZU414,424,434..EUR NO.2 |
1 | ||
| 23803-78070 |
S05C..XZU414,424,434..EUR NO.3 |
1 | ||
| 23211A - BRACKET(FOR INJECTION PIPE NO.3) | ||||
| 23211-78070 |
S05C..XZU414,424,434..EUR |
1 | ||
| 23681A - SEAL, NOZZLE HOLDER | ||||
| 23681-78010 |
S05C..XZU414,424,434..EUR |
4 | ||
| 23681A - SEAL, NOZZLE HOLDER | ||||
| 23681-78010 |
S05C..XZU414,424,434..EUR |
4 | ||
| 23681A - SEAL, NOZZLE HOLDER | ||||
| 23681-78010 |
S05C..XZU414,424,434..EUR |
4 | ||
| 23681A - SEAL, NOZZLE HOLDER | ||||
| 23681-78010 |
S05C..XZU414,424,434..EUR |
4 | ||
| 23701 - PIPE SUB-ASSY, INJECTION, NO.1 | ||||
| 23701-78050 |
S05C..XZU414,424,434..EUR |
2 | ||
| 23701 - PIPE SUB-ASSY, INJECTION, NO.1 | ||||
| 23701-78050 |
S05C..XZU414,424,434..EUR |
2 | ||
| 23702 - PIPE SUB-ASSY, INJECTION, NO.2 | ||||
| 23702-78050 |
S05C..XZU414,424,434..EUR |
2 | ||
| 23702 - PIPE SUB-ASSY, INJECTION, NO.2 | ||||
| 23702-78050 |
S05C..XZU414,424,434..EUR |
2 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 90034-68024 |
S05C..XZU414,424,434..EUR |
2 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 90034-68024 |
S05C..XZU414,424,434..EUR |
2 | ||
| 23761 - PIPE, NOZZLE LEAKAGE, NO.1 | ||||
| 23761-78030 |
S05C..XZU414,424,434..EUR |
1 | ||
| 23810A - RAIL ASSY, COMMON | ||||
| 23810-78010 |
S05C..XZU414,424,434..EUR |
1 | ||
| 23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP) | ||||
| 23811-78070 |
S05C..XZU414,424,434..EUR NO.3 |
1 | ||
| 23811-78040 |
S05C..XZU414,424,434..EUR NO.1 |
1 | ||
| 23811-78060 |
S05C..XZU414,424,434..EUR NO.2 |
1 | ||
| 23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP) | ||||
| 23811-78070 |
S05C..XZU414,424,434..EUR NO.3 |
1 | ||
| 23811-78040 |
S05C..XZU414,424,434..EUR NO.1 |
1 | ||
| 23811-78060 |
S05C..XZU414,424,434..EUR NO.2 |
1 | ||
| 23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP) | ||||
| 23811-78070 |
S05C..XZU414,424,434..EUR NO.3 |
1 | ||
| 23811-78040 |
S05C..XZU414,424,434..EUR NO.1 |
1 | ||
| 23811-78060 |
S05C..XZU414,424,434..EUR NO.2 |
1 | ||
| 23811A - PIPE, FUEL, NO.2(FOR FUEL FILTER TO INJECTION PUMP) | ||||
| 23811-78090 |
S05C..XZU414,424,434..EUR |
1 | ||
| 23812D - PIPE, FUEL, NO.2 | ||||
| 23812-78020 |
S05C..XZU414,424,434..EUR |
1 | ||
| 23849 - SUPPORT, FUEL | ||||
| 23849-78040 |
S05C..XZU414,424,434..EUR NO.2 |
1 | ||
| 23849-78030 |
S05C..XZU414,424,434..EUR NO.1 |
1 | ||
| 23849 - SUPPORT, FUEL | ||||
| 23849-78040 |
S05C..XZU414,424,434..EUR NO.2 |
1 | ||
| 23849-78030 |
S05C..XZU414,424,434..EUR NO.1 |
1 | ||
| Common parts | ||||
| 12144-78010 | ||||
| 90031-01188 | ||||
| 90031-01189 | ||||
| 90031-05028 | ||||
| 90031-05064 | ||||
| 90031-05130 | ||||
| 90031-05140 | ||||
| 90031-19106 | ||||
| 90031-19121 | ||||
| 90031-75001 | ||||
| 90031-75002 | ||||
| 90032-09019 | ||||
| 90032-09020 | ||||
| 90032-09030 | ||||
| 90034-01009 | ||||
| 90034-01010 | ||||
| 90034-01016 | ||||
| 90034-05016 | ||||
| 90034-68022 | ||||
| 90034-68028 | ||||
| 90034-68032 | ||||
| 90034-68033 | ||||
| 90035-60066 | ||||
| 90202-14004 | ||||
| 90467-18008 | ||||
| 96132-51300 | ||||

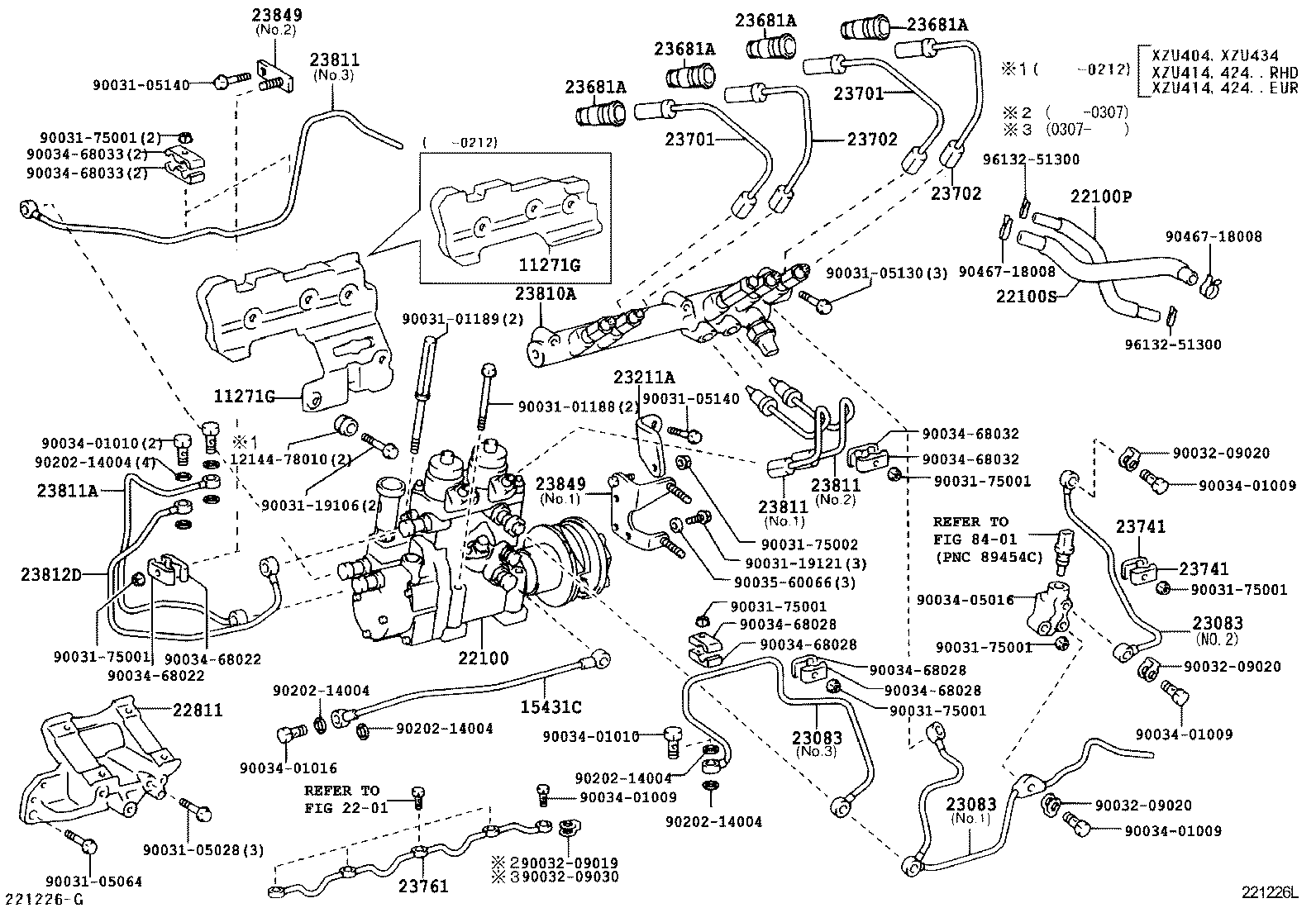

| Linked diagrams | ||||
| 2201 | ||||
| 8401 | ||||
