XZU430R-TKFTSN3 (2003)
Toyota Dyna
Production
Apr 2003
-
Feb 2008
Engine
J05C
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0304- )J05C

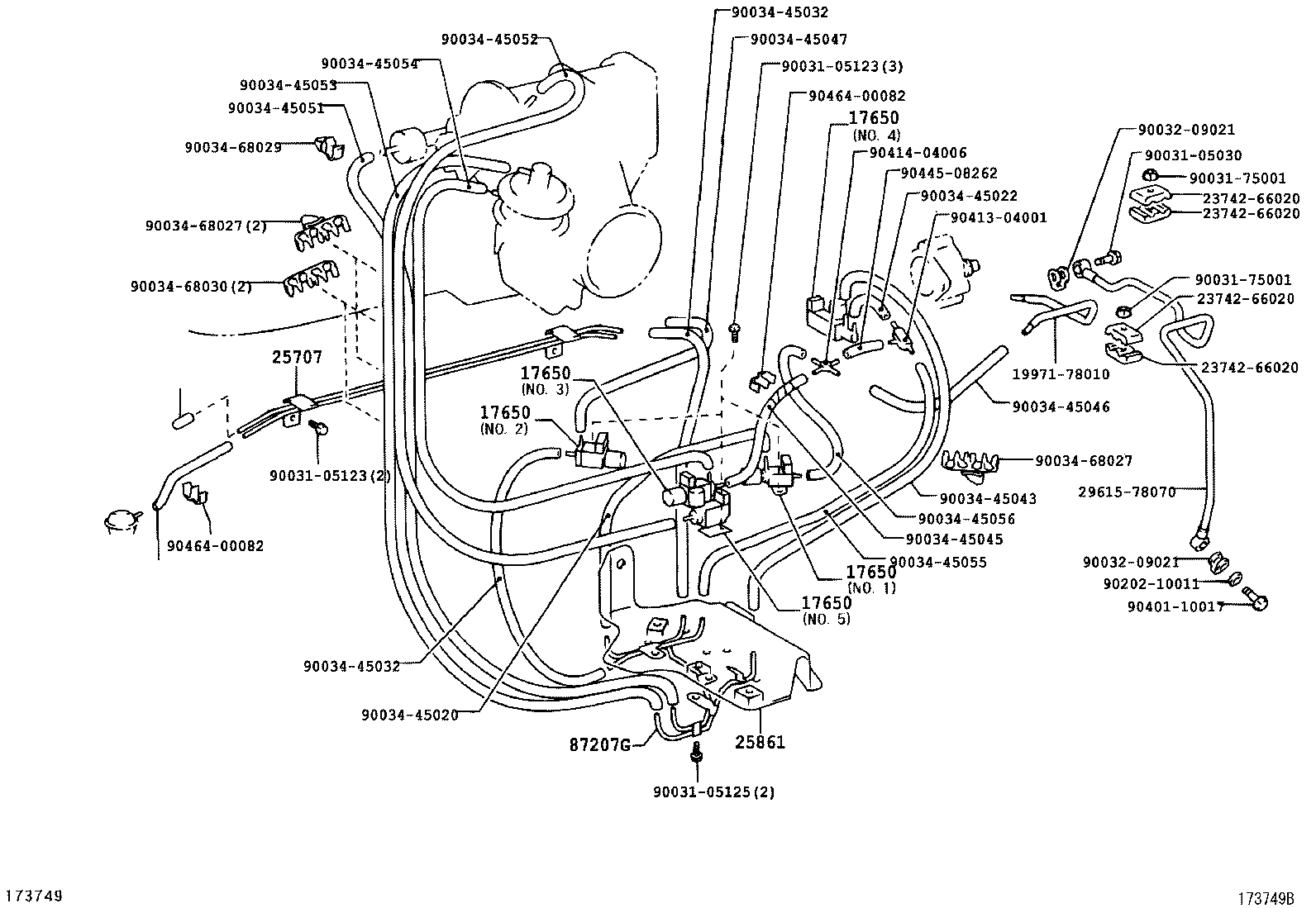

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89470-37040 |
J05C..XZU420,430 NO.3 |
1 | ||
| 89470-37030 |
J05C..XZU420,430 NO.2 |
1 | ||
| 89470-37050 |
J05C..XZU420,430 NO.4 |
1 | ||
| 89470-37080 |
J05C..XZU420,430 NO.5 |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89470-37040 |
J05C..XZU420,430 NO.3 |
1 | ||
| 89470-37030 |
J05C..XZU420,430 NO.2 |
1 | ||
| 89470-37050 |
J05C..XZU420,430 NO.4 |
1 | ||
| 89470-37080 |
J05C..XZU420,430 NO.5 |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89470-37040 |
J05C..XZU420,430 NO.3 |
1 | ||
| 89470-37030 |
J05C..XZU420,430 NO.2 |
1 | ||
| 89470-37050 |
J05C..XZU420,430 NO.4 |
1 | ||
| 89470-37080 |
J05C..XZU420,430 NO.5 |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89470-37040 |
J05C..XZU420,430 NO.3 |
1 | ||
| 89470-37030 |
J05C..XZU420,430 NO.2 |
1 | ||
| 89470-37050 |
J05C..XZU420,430 NO.4 |
1 | ||
| 89470-37080 |
J05C..XZU420,430 NO.5 |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89470-37040 |
J05C..XZU420,430 NO.3 |
1 | ||
| 89470-37030 |
J05C..XZU420,430 NO.2 |
1 | ||
| 89470-37050 |
J05C..XZU420,430 NO.4 |
1 | ||
| 89470-37080 |
J05C..XZU420,430 NO.5 |
1 | ||
| 25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2 | ||||
| 29602-78110 |
J05C..XZU420,430 |
1 | ||
| 29602-78040 |
J05C..XZU420,430 |
1 | ||
| 25861 - BRACKET, VACUUM SWITCHING VALVE | ||||
| 25861-78050 |
J05C..XZU420,430 |
1 | ||
| 87207G - PIPE SUB-ASSY, VACUUM | ||||
| 87207-3V100 |
XZU420,430 |
1 | ||
| Common parts | ||||
| 19971-78010 | ||||
| 23742-66020 | ||||
| 29615-78070 | ||||
| 90031-05030 | ||||
| 90031-05123 | ||||
| 90031-05125 | ||||
| 90031-75001 | ||||
| 90032-09021 | ||||
| 90034-45020 | ||||
| 90034-45022 | ||||
| 90034-45032 | ||||
| 90034-45043 | ||||
| 90034-45045 | ||||
| 90034-45046 | ||||
| 90034-45047 | ||||
| 90034-45051 | ||||
| 90034-45052 | ||||
| 90034-45053 | ||||
| 90034-45054 | ||||
| 90034-45055 | ||||
| 90034-45056 | ||||
| 90034-68027 | ||||
| 90034-68029 | ||||
| 90034-68030 | ||||
| 90202-10011 | ||||
| 90401-10017 | ||||
| 90413-04001 | ||||
| 90414-04006 | ||||
| 90445-08262 | ||||
| 90464-00082 | ||||
