XZU430-TKFSS3 (2000)

Toyota Dyna

Production Oct 2000 - Jun 2002
Engine J05C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

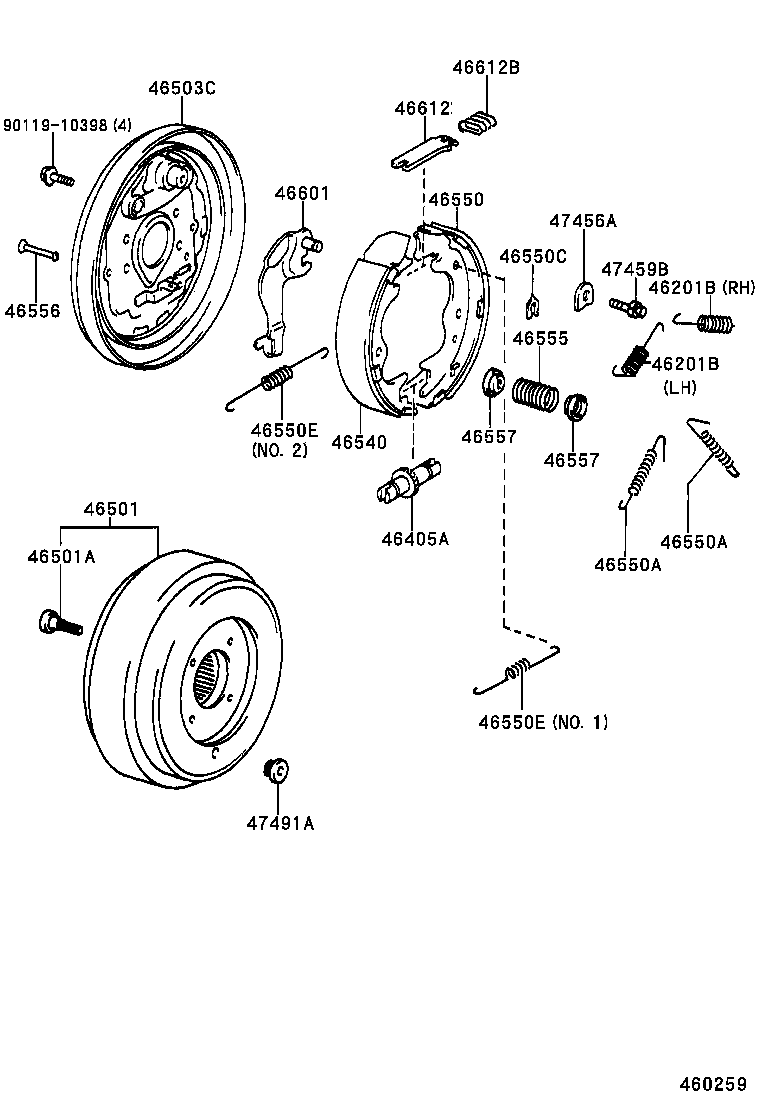

ILLUST NO. 2 OF 2(0010- )XZU410,411,420,430

Click highlighted areas on diagram

diagram 46201B 46201B 46405A 46501 46501A 46503C 46540 46550 46550A 46550A 46550C 46550E 46550E 46555 46556 46557 46557 46601 46612 46612B 47456A 47459B 47491A 9011910398
Part # Description Qty Price
46201B - SPRING, TENSION
90507-20021

XZU410,411,420,430

LH

 1
90507-20020

XZU410,411,420,430

RH

 1
46201B - SPRING, TENSION
90507-20021

XZU410,411,420,430

LH

 1
90507-20020

XZU410,411,420,430

RH

 1
46405A - SCREW SET, SHOE ADJUSTING, RH
47405-36010

XZU410,411,420,430

 1
46501 - DRUM SUB-ASSY, PARKING BRAKE
46501-37050

XZU410,411,420,430..MTM

 1
46501A - BOLT, SERRATION(FOR PARKING BRAKE DRUM)
90031-01170

XZU402,41#,420,430

 4
46503C - PLATE SUB-ASSY, PARKING BRAKE
46503-36060

XZU410,411,420,430

 1
46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1
46540-36040

XZU410,411,420,430

 1
46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2
46550-36040

XZU410,411,420,430

 1
46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN)
90905-06020

XZU410,411,420,430

 2
46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN)
90905-06020

XZU410,411,420,430

 2
46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE)
90213-06003

XZU410,411,420,430

 1
46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN)
90506-14054

XZU410,411,420,430

NO.2

 1
90506-23049

XZU410,411,420,430

NO.1

 1
46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN)
90506-14054

XZU410,411,420,430

NO.2

 1
90506-23049

XZU410,411,420,430

NO.1

 1
46555 - SPRING, BRAKE SHOE HOLD DOWN
90501-16108

XZU410,411,420,430

 2
46556 - PIN, SHOE HOLD DOWN SPRING
47447-20030

XZU410,411,420,430

 2
46557 - CUP, BRAKE SHOE HOLD DOWN
47449-20011

XZU402,41#,420,430

 4
46557 - CUP, BRAKE SHOE HOLD DOWN
47449-20011

XZU402,41#,420,430

 4
46601 - LEVER SUB-ASSY, PARKING BRAKE SHOE
46601-36051

XZU410,411,420,430

 1
46612 - STRUT, PARKING BRAKE SHOE LEVER
46612-36050

XZU410,411,420,430

 1
46612B - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT)
90504-10010

XZU410,411,420,430

 1
47456A - PLATE, SHOE GUIDE(FOR PARKING BRAKE)
47456-20030

XZU410,411,420,430

 1
47459B - BOLT, SHOE GUIDE PLATE SET(FOR PARKING BRAKE)
47459-30010

XZU410,411,420,430

 1
47491A - PLUG, SHOE ADJUSTING HOLE(FOR PARKING BRAKE SHOE)
47491-22020

XZU410,411,420,430

 1
Common parts
90119-10398

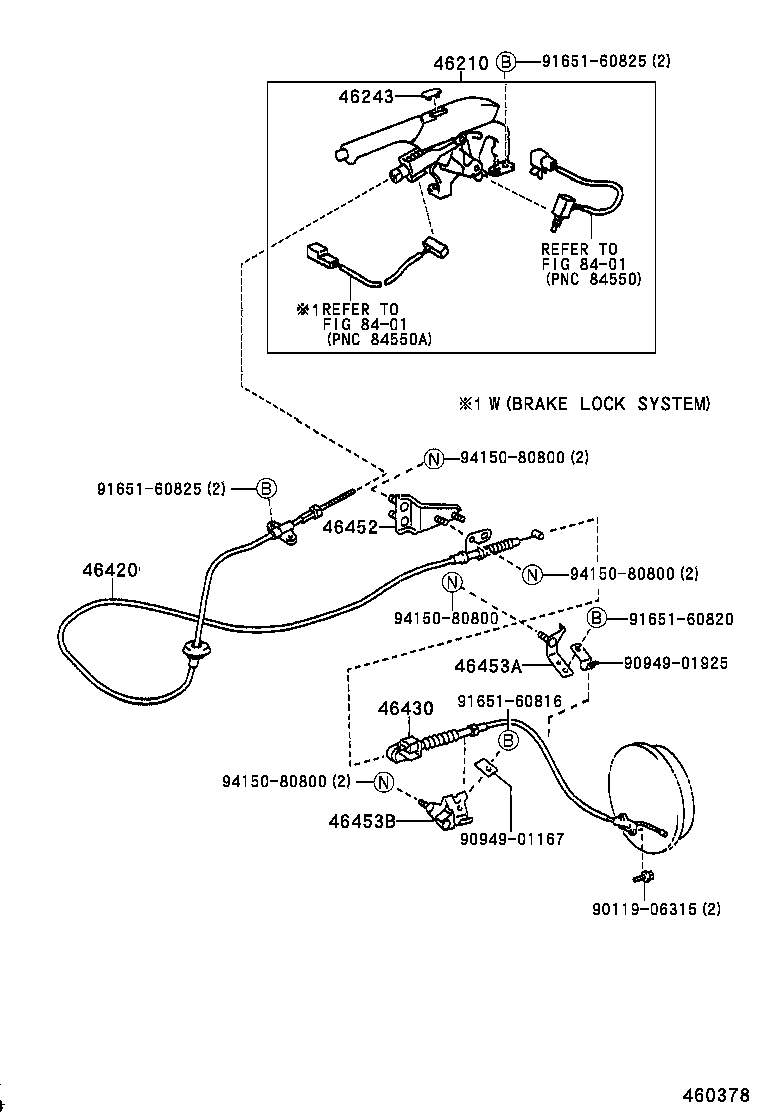

ILLUST NO. 1 OF 2(0010- )XZU410,411,420,430

Click highlighted areas on diagram

diagram 46210 46243 46420 46430 46452 46453A 46453B 8401 8401 9011906315 9094901167 9094901925 9165160816 9165160820 9165160825 9165160825 9415080800 9415080800 9415080800 9415080800
Part # Description Qty Price
46210 - LEVER ASSY, PARKING BRAKE
46210-37012B0

XZU402,41#,420,430

DK.CHARCOAL,TRIM1#

 1
46243 - COVER, PARKING BRAKE LEVER
46243-37020B0

XZU402,41#,420,430

DK.CHARCOAL,TRIM1#

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-37240

XZU402,41#,420,430

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-37430

XZU410,411,420,430

 1
46452 - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2
46452-37050

XZU402,41#,420,430

 1
46453A - BRACKET, CABLE SUPPORT, NO.3
46453-37100

XZU402,41#,420,430

 1
46453B - BRACKET, CABLE SUPPORT, NO.3
46453-37110

XZU402,41#,420,430

 1
Common parts
90119-06315
90949-01167
90949-01925
91651-60816
91651-60820
91651-60825
94150-80800
Linked diagrams
8401

ILLUST NO. 1 OF 2(0110-0610)WU410,XZU412,414,422,424,434..65T,75T,85T..ARL,EUR,GCC,GEN ; (0304-0801)

Click highlighted areas on diagram

diagram 46210 46420 46430 46452 46453A 46453B 8401 9011906315 9094901167 9094901925 9165160816 91651B0820 91651B0820 91651B0825 91651B0825 9415080800 9415080800 9415080800 9415080800
Part # Description Qty Price
Common parts
90119-06315
90949-01167
90949-01925
91651-60816
91651-B0820
91651-B0825
94150-80800
Linked diagrams
8401

ILLUST NO. 2 OF 2(0110- )XZU413,423..5F..75T ; (0110- )XZU412,422,424,430,434..65T,75T,85T ; (

Click highlighted areas on diagram

diagram 46201B 46201B 46405A 46501 46501A 46503C 46540 46550 46550A 46550A 46550C 46550E 46550E 46555 46556 46557 46557 46601 46612 46612B 47456A 47459B 47491A 9011910398 9011912211
Part # Description Qty Price
Common parts
90119-10398
90119-12211
