XZU430-TKFSS3 (2000)

Toyota Dyna

Production Oct 2000 - Jun 2002
Engine J05C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0010- )MTM

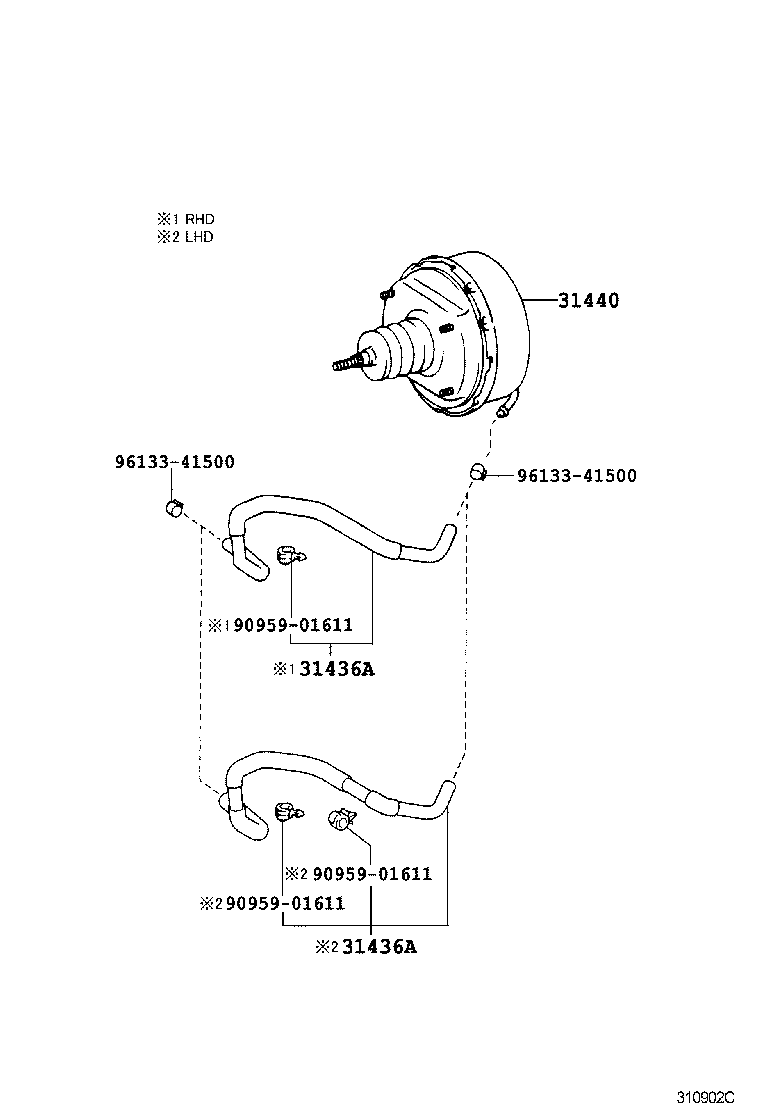

Click highlighted areas on diagram

diagram 31436A 31440 9046716002 9046716002 9095901611
Part # Description Qty Price
31436A - HOSE, NO.1(FOR CLUTCH BOOSTER VACUUM)
31436-37030

XZU402,41#,420,430..MTM

 1
31440 - BOOSTER ASSY, CLUTCH W/AIR CLEANER
31440-37050

XZU402,41#,420,430..MTM

MARK 31440-37050

 1
31440-37030

XZU402,41#,420,430..MTM

AUSTRALIA SPEC

 1
31440-37040

XZU402,41#,420,430..MTM

MARK 31440-37040

 1
Common parts
90467-16002
90959-01611

(0110- )XZU412,422..5F ; (0110- )BU410,420,WU410,XZU404,414,415,424,425,434,4

Click highlighted areas on diagram

diagram 31436A 31436A 31440 9095901611 9095901611 9095901611 9613341500 9613341500
Part # Description Qty Price
Common parts
90959-01611
96133-41500
