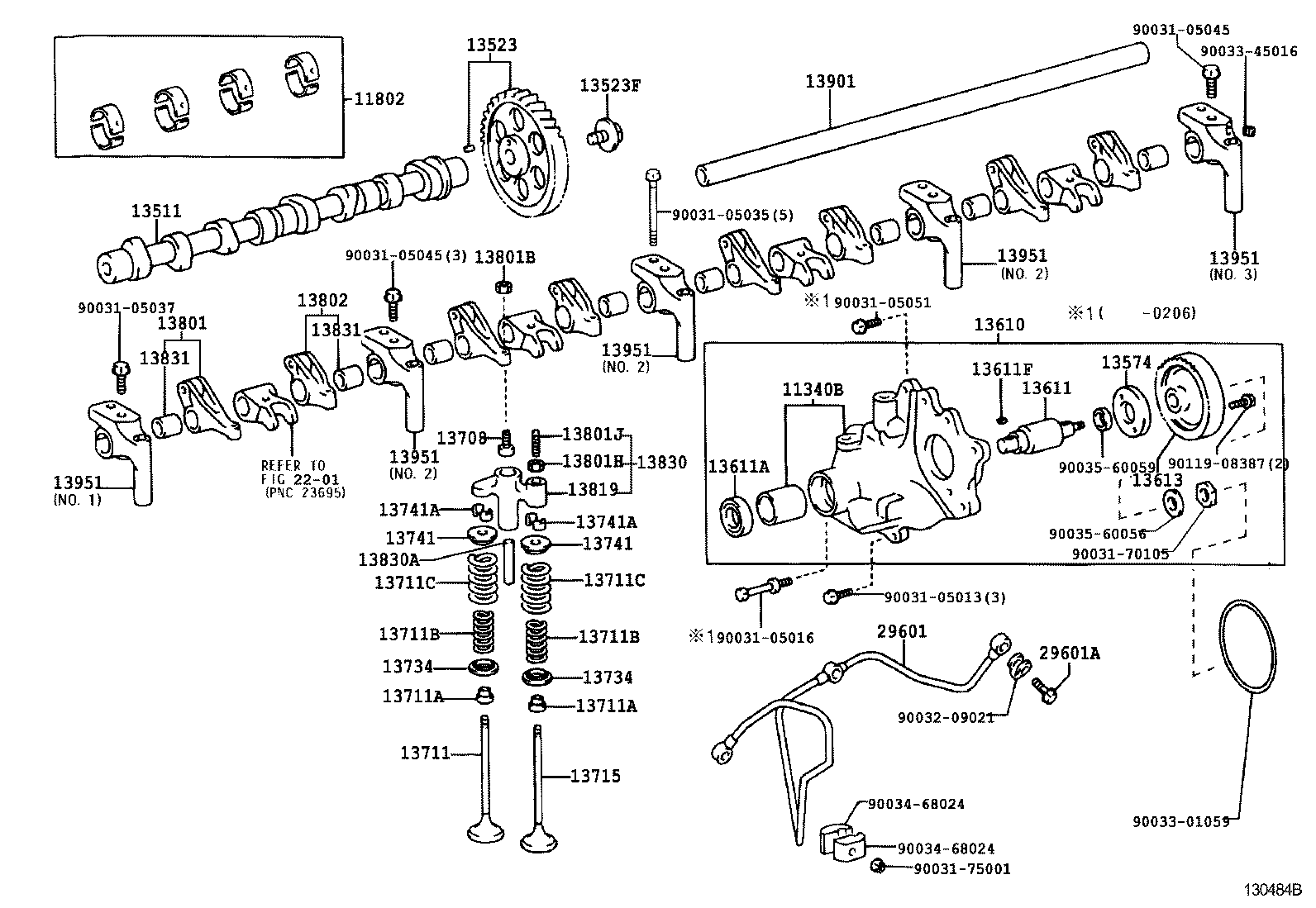

XZU430-TKFSS3 (2000)
Toyota Dyna
(0010- )J05C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11340B - SLEEVE(FOR INJECTION PUMP DRIVE SHAFT BEARING HOLDER) | ||||
| 11340-78010 |
J05C..XZU410,420,430 |
1 | ||
| 11802 - BEARING SET, CAMSHAFT | ||||
| 11801-78020 |
J05C,S05#..XZU402,41#,420,430 STD |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13501-78030 |
J05C..XZU410,420,430 |
1 | ||
| 13523 - GEAR OR SPROCKET, CAMSHAFT TIMING | ||||
| 13050-78010 |
J05C,S05#..XZU402,41#,420,430 |
1 | ||
| 13523F - BOLT(FOR CAMSHAFT TIMING GEAR) | ||||
| 90038-01021 |
J05C,S05#..XZU402,41#,420,430 |
1 | ||
| 13574 - PLATE, PUMP DRIVE SHAFT | ||||
| 13574-78010 |
J05C..XZU410,420,430 |
1 | ||
| 13610 - SHAFT ASSY, INJECTION PUMP DRIVE HOUSING | ||||
| 13610-78010 |
J05C..XZU410,420,430 |
1 | ||
| 13611 - SHAFT, INJECTION | ||||
| 13611-78010 |
J05C..XZU410,420,430 |
1 | ||
| 13611A - SEAL, OIL(FOR INJECTION SHAFT) | ||||
| 90033-11034 |
J05C..XZU410,420,430 |
1 | ||
| 13611F - KYE, WOODRUFF(FOR INJECTION SHAFT) | ||||
| 90029-18002 |
J05C..XZU410,420,430 |
2 | ||
| 13613 - GEAR, INJECTION PUMP DRIVE | ||||
| 13613-78020 |
J05C..XZU410,420,430 |
1 | ||
| 13708 - SCREW SUB-ASSY, VALVE ADJUSTING | ||||
| 13708-89104 |
J05C,S05#..XZU402,41#,420,430 |
8 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-89104 |
J05C,S05#..XZU402,41#,420,430 |
8 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90038-12004 |
J05C,S05#..XZU402,41#,420,430 |
16 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90038-12004 |
J05C,S05#..XZU402,41#,420,430 |
16 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90035-01052 |
J05C,S05#..XZU402,41#,420,430 |
16 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90035-01052 |
J05C,S05#..XZU402,41#,420,430 |
16 | ||
| 13711C - SPRING, COMPRESSION(FOR OUTER) | ||||
| 90035-01051 |
J05C,S05#..XZU402,41#,420,430 |
16 | ||
| 13711C - SPRING, COMPRESSION(FOR OUTER) | ||||
| 90035-01051 |
J05C,S05#..XZU402,41#,420,430 |
16 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-78020 |
J05C,S05#..XZU402,41#,420,430 |
8 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-89102 |
J05C,S05#..XZU402,41#,420,430 |
16 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-89102 |
J05C,S05#..XZU402,41#,420,430 |
16 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-89103 |
J05C,S05#..XZU402,41#,420,430 |
16 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-89103 |
J05C,S05#..XZU402,41#,420,430 |
16 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90038-13006 |
J05C,S05#..XZU402,41#,420,430 |
32 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90038-13006 |
J05C,S05#..XZU402,41#,420,430 |
32 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13801-78010 |
J05C,S05#..XZU402,41#,420,430 |
4 | ||
| 13801-78030 |
J05C,S05#..XZU402,41#,420,430 |
4 | ||
| 13801B - NUT, HEXAGON(FOR VALVE ADJUSTING) | ||||
| 90031-78090 |
J05C,S05#..XZU402,41#,420,430 |
8 | ||
| 13801H - NUT | ||||
| 90031-78090 |
J05C,S05#..XZU402,41#,420,430 |
8 | ||
| 13801J - SCREW, VALVE ADJUSTING | ||||
| 13788-89101 |
J05C,S05#..XZU402,41#,420,430 |
8 | ||
| 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13801-78040 |
J05C,S05#..XZU402,41#,420,430 |
4 | ||
| 13801-78020 |
J05C,S05#..XZU402,41#,420,430 |
4 | ||
| 13819 - BRIDGE, VALVE | ||||
| 13819-78020 |
J05C,S05#..XZU402,41#,420,430 |
8 | ||
| 13819-78010 |
J05C,S05#..XZU402,41#,420,430 |
8 | ||
| 13830 - BRIDGE ASSY, VALVE | ||||
| 13830-78020 |
J05C,S05#..XZU402,41#,420,430 |
8 | ||
| 13830-78010 |
J05C,S05#..XZU402,41#,420,430 |
8 | ||
| 13830A - PIN, CROSSHEAD | ||||
| 38753-37010 |
J05C,S05#..XZU402,41#,420,430 |
8 | ||
| 13831 - BUSHING, VALVE ROCKER ARM | ||||
| 13831-89101 |
J05C,S05#..XZU402,41#,420,430 |
8 | ||
| 13831 - BUSHING, VALVE ROCKER ARM | ||||
| 13831-89101 |
J05C,S05#..XZU402,41#,420,430 |
8 | ||
| 13901 - SHAFT SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13901-89102 |
J05C,S05#..XZU402,41#,420,430 |
1 | ||
| 13901-78020 |
J05C,S05#..XZU402,41#,420,430 |
1 | ||
| 13951 - SUPPORT, VALVE ROCKER, NO.1 | ||||
| 13951-78050 |
J05C,S05#..XZU402,41#,420,430 NO.2 |
3 | ||
| 13951-78060 |
J05C,S05#..XZU402,41#,420,430 NO.3 |
1 | ||
| 13951-78040 |
J05C,S05#..XZU402,41#,420,430 NO.1 |
1 | ||
| 13951 - SUPPORT, VALVE ROCKER, NO.1 | ||||
| 13951-78050 |
J05C,S05#..XZU402,41#,420,430 NO.2 |
3 | ||
| 13951-78060 |
J05C,S05#..XZU402,41#,420,430 NO.3 |
1 | ||
| 13951-78040 |
J05C,S05#..XZU402,41#,420,430 NO.1 |
1 | ||
| 13951 - SUPPORT, VALVE ROCKER, NO.1 | ||||
| 13951-78050 |
J05C,S05#..XZU402,41#,420,430 NO.2 |
3 | ||
| 13951-78060 |
J05C,S05#..XZU402,41#,420,430 NO.3 |
1 | ||
| 13951-78040 |
J05C,S05#..XZU402,41#,420,430 NO.1 |
1 | ||
| 13951 - SUPPORT, VALVE ROCKER, NO.1 | ||||
| 13951-78050 |
J05C,S05#..XZU402,41#,420,430 NO.2 |
3 | ||
| 13951-78060 |
J05C,S05#..XZU402,41#,420,430 NO.3 |
1 | ||
| 13951-78040 |
J05C,S05#..XZU402,41#,420,430 NO.1 |
1 | ||
| 13951 - SUPPORT, VALVE ROCKER, NO.1 | ||||
| 13951-78050 |
J05C,S05#..XZU402,41#,420,430 NO.2 |
3 | ||
| 13951-78060 |
J05C,S05#..XZU402,41#,420,430 NO.3 |
1 | ||
| 13951-78040 |
J05C,S05#..XZU402,41#,420,430 NO.1 |
1 | ||
| 29601 - PIPE SUB-ASSY, OIL(FOR INJECTION PUMP DRIVE HOUSING SHA | ||||
| 29601-78040 |
J05C..XZU410,420,430 |
1 | ||
| 29601A - BOLT, UNION(FOR INJECTION PUMP DRIVE HOUSING SHAFT) | ||||
| 90034-01012 |
J05C..XZU410,420,430 |
1 | ||
| Common parts | ||||
| 90031-05013 | ||||
| 90031-05016 | ||||
| 90031-05035 | ||||
| 90031-05037 | ||||
| 90031-05045 | ||||
| 90031-05051 | ||||
| 90031-70105 | ||||
| 90031-75001 | ||||
| 90032-09021 | ||||
| 90033-01059 | ||||
| 90033-45016 | ||||
| 90034-68024 | ||||
| 90035-60056 | ||||
| 90035-60059 | ||||
| 90119-08387 | ||||
| Linked diagrams | ||||
| 2201 | ||||
