XZU427L-TKFTDR3 (2007)

Toyota Dyna

Production Jan 2007 - Jan 2009
Engine N04C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0701- )N04C..XZU415,417,419,425,427,429,435,439..DCRTK

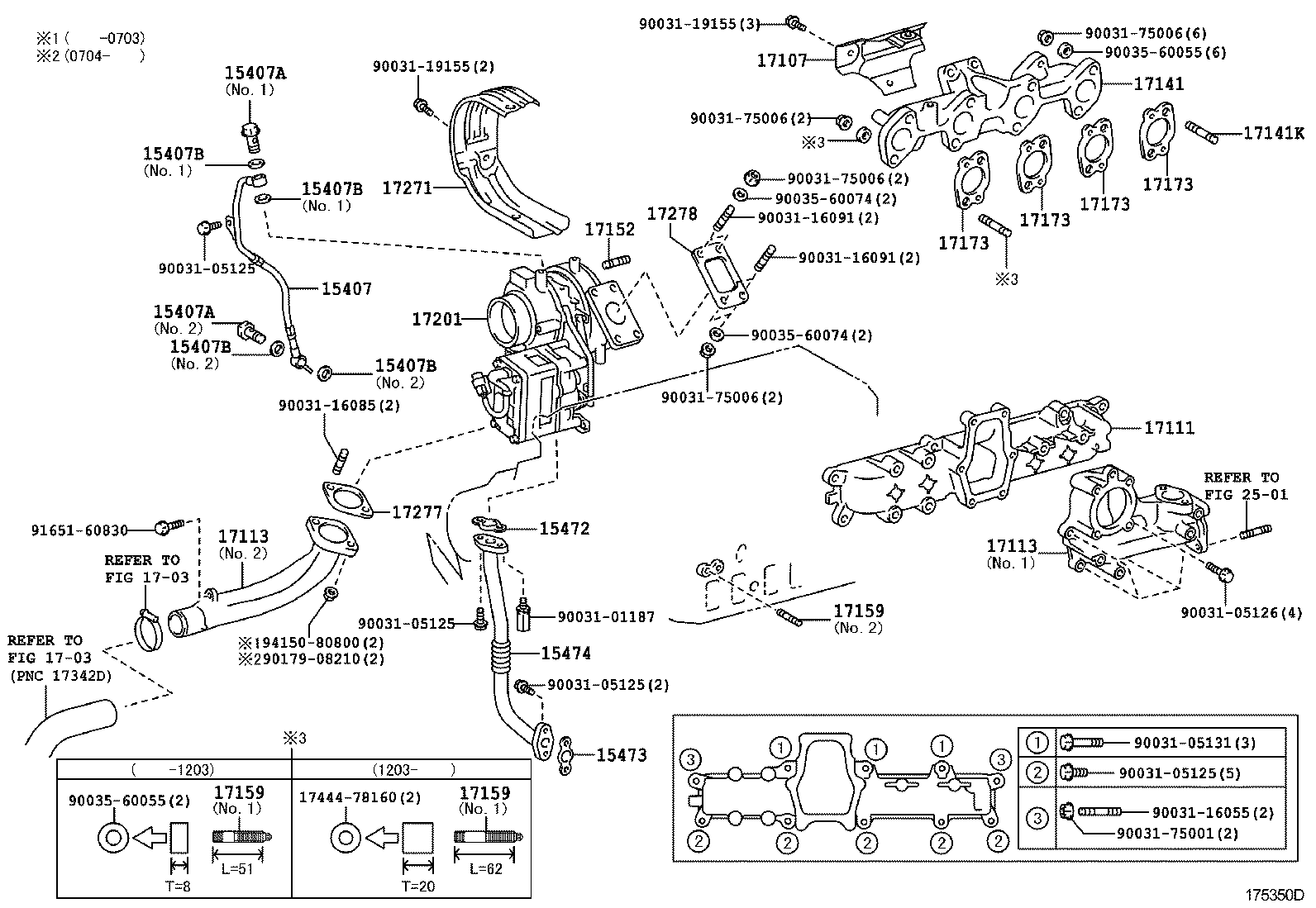

Click highlighted areas on diagram

diagram 15407 15407A 15407A 15407B 15407B 15407B 15407B 15472 15473 15474 1703 1703 17107 17111 17113 17113 17141 17141K 17152 17159 17159 17159 17173 17173 17173 17173 17201 17271 17277 17278 1744478160 2501 9003101187 9003105125 9003105125 9003105125 9003105125 9003105126 9003105131 9003116055 9003116085 9003116091 9003116091 9003119155 9003119155 9003175001 9003175006 9003175006 9003175006 9003175006 9003560055 9003560055 9003560074 9003560074 9017908210 9165160830 9415080800
Part # Description Qty Price
15407 - PIPE SUB-ASSY, TURBO OIL INLET
15407-78030

N04C..XZU415,417,419,425,427,429,435,439..DCRTK

 1
15473 - GASKET, TURBO OIL OUTLET, NO.2
15471-78011

N04C..XZU415,417,419,425,427,429,435,439..DCRTK

 1
15474 - PIPE, TURBO OIL OUTLET
15407-78040

N04C..XZU415,417,419,425,427,429,435,439..DCRTK

 1
17107 - INSULATOR SUB-ASSY, EXHAUST MANIFOLD HEAT
17107-78162

N04C..XZU41#,42#,43#

 1
17201 - TURBOCHARGER SUB-ASSY
17201-78142

N04C..XZU415,417,425,427,435

 1
17201-78141

N04C..XZU415,417,425,427,435..DCRTK

 1
17271 - INSULATOR, TURBO, NO.1
17271-78040

N04C..XZU415,417,419,425,427,429,435,439..DCRTK

 1
Common parts
17444-78160
90031-01187
90031-05125
90031-05126
90031-05131
90031-16055
90031-16085
90031-16091
90031-19155
90031-75001
90031-75006
90035-60055
90035-60074
90179-08210
91651-60830
94150-80800
Linked diagrams
1703
2501
