XZU424R-TKMRW3 (2001)

Toyota Dyna

Production Oct 2001 - Oct 2006
Engine S05C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0110- )BU410,420,WU41#,42#,XZU404,412,413,414,415,417,420,422,423,424,425,427,4

Click highlighted areas on diagram

O-RING

diagram 9009914119 9009914120 9009914121 9009914122
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122

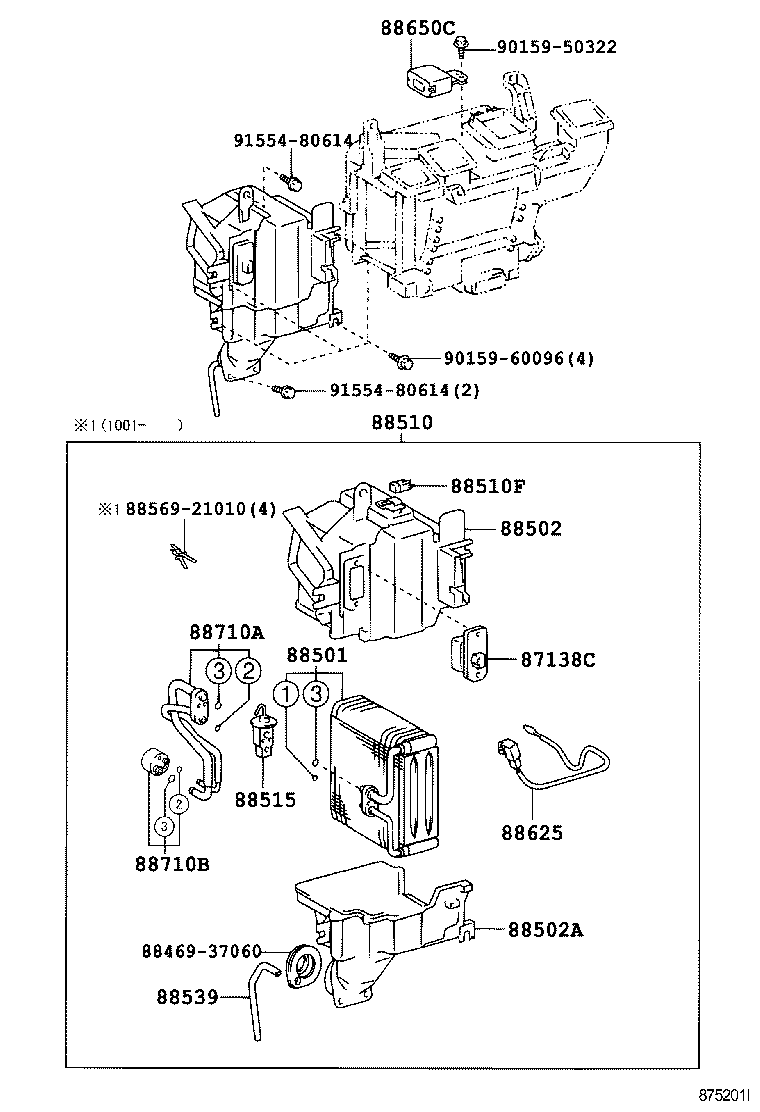

ILLUST NO. 1 OF 2(0110- )WU410,XZU404,412,414,420,422,424,434..RHD

Click highlighted areas on diagram

diagram 87138C 8846937060 88501 88502 88502A 88510 88510F 88515 88539 8856921010 88625 88650C 88710A 88710B 9015950322 9015960096 9155480614 9155480614
Part # Description Qty Price
87138C - RESISTOR, BLOWER
87138-37090

WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-37060

WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)

 1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-37050

WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)

 1
88502A - CASE SUB-ASSY, COOLING UNIT
88502-37040

WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)

 1
88510 - UNIT ASSY, COOLER
88510-37120

WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)

 1
88510F - HOLDER, FUSE
82630-95J03

WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)

 1
88515 - VALVE, COOLER EXPANSION
88515-48040

WU410,XZU404,41#,422,424,434..RHD..(ARL,GEN)

 1
88515-28160

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-37060

WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)

 1
88625 - THERMISTOR, COOLER, NO.1
88625-20460

WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)

 1
88650C - AMPLIFIER SUB-ASSY, AIRCONDITIONER
88650-37120

WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-37340

WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)

 1
Common parts
88469-37060
88569-21010
90159-50322
90159-60096
91554-80614
