XZU424R-TKMRW3 (2001)

Toyota Dyna

Production Oct 2001 - Oct 2006
Engine S05C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0110- )RHD

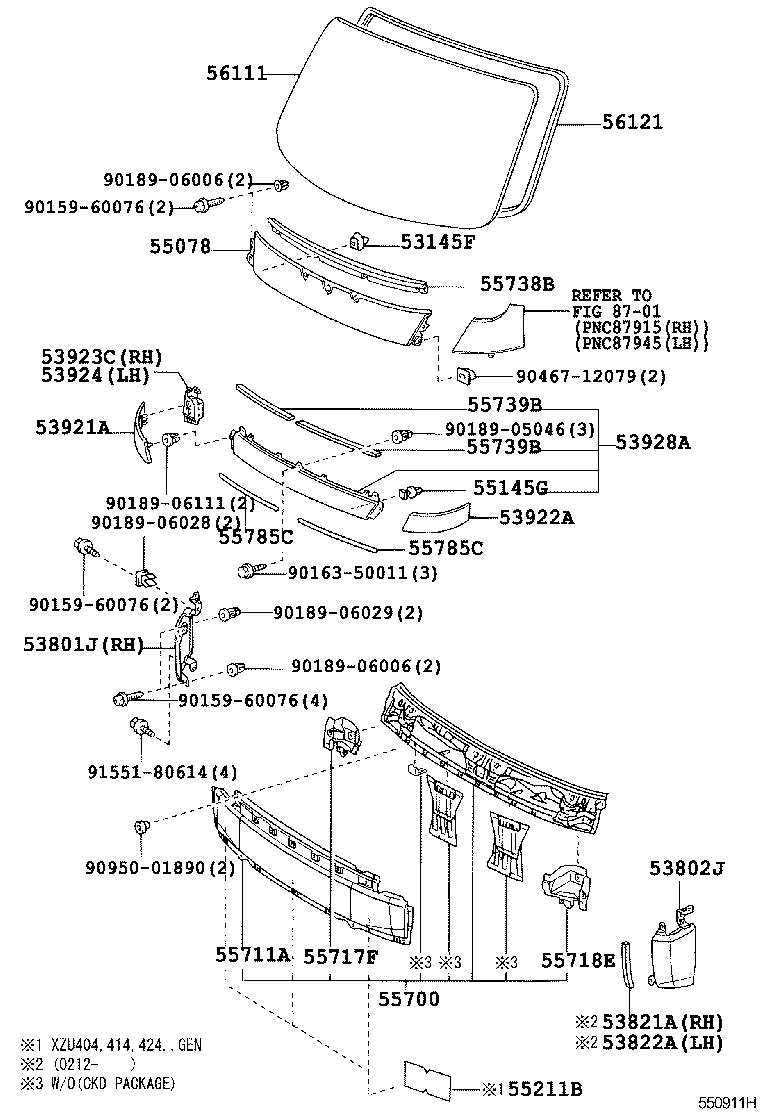

Click highlighted areas on diagram

diagram 53145F 53801J 53802J 53821A 53822A 53921A 53922A 53923C 53924 53928A 55078 55145G 55211B 55700 55711A 55717F 55718E 55738B 55739B 55739B 55785C 55785C 56111 56121 8701 9015960076 9015960076 9015960076 9016350011 9018905046 9018906006 9018906006 9018906028 9018906029 9018906111 9046712079 9095001890 9155180614
Part # Description Qty Price
53145F - CLIP, RADIATOR GRILLE GARNISH
90467-08208

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
53801J - PANEL SUB-ASSY, FRONT SIDE, RH
53801-37021

XZU404,414,424..GEN

 1
53801-37020

XZU404,414,424,434

 1
53801-37061

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
53802J - PANEL SUB-ASSY, FRONT SIDE, LH
53802-37020

XZU404,414,424,434

 1
53802-37021

XZU404,414,424..GEN

 1
53802-37061

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
53821A - PROTECTOR, FRONT SIDE PANEL, NO.1 RH
53821-37070

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
53822A - PROTECTOR, FRONT SIDE PANEL, NO.1 LH
53821-37070

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
53921A - PANEL, FRONT VALANCE, RH
53921-25010

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
53922A - PANEL, FRONT VALANCE, LH
53922-25010

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
53923C - SUPPORT, FRONT SIDE GARNISH, RH
53923-25010

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
53924 - PLATE, NOISE SHUTTER SUPPORT, NO.2
53924-25010

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
53928A - GARNISH, FRONT PANEL, CENTER
53928-37020

WU410,420,XZU404,41#,42#,43#

 1
53928-37021

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
55078 - COVER SUB-ASSY, FRONT PANEL
55078-37080

WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)

 1
55145G - CLIP, RADIATOR GRILLE GARNISH
53145-27010

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 9
55211B - SILENCER, FRONT PANEL
55211-37030

XZU404,414,424..RHD..GEN

 3
55700 - PANEL ASSY, FRONT
55700-37171

WU410,420,XZU404,41#,42#,43#..RHD

 1
55700-37143

XZU404,414,424..RHD..GEN

 1
55700-37142

XZU404,414,424..RHD..GEN

 1
55711A - PANEL, FRONT, LOWER
55711-37060

WU410,420,XZU404,41#,42#,43#

 1
55711-37061

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
55717F - EXTENSION, FRONT PANEL REINFORCEMENT, RH
55717-37020

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
55718E - EXTENSION, FRONT PANEL REINFORCEMENT, LH
55718-37010

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
55738B - PROTECTOR, FRONT PANEL COVER, NO.1
55738-37060

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
55739B - PROTECTOR, FRONT PANEL COVER, NO.2
55739-37080

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
55739B - PROTECTOR, FRONT PANEL COVER, NO.2
55739-37080

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
55785C - PAD, FRONT PANEL COVER
55785-37030

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
55785C - PAD, FRONT PANEL COVER
55785-37030

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
56111 - GLASS, WINDSHIELD
56111-37150

BU410,420,WU410,420,XZU404,41#,42#,43#

*LAM,T=5.76,GREEN

 1
56111-37240

XZU414,424,434;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

*LAM,T=5.76,GREEN

 1
56121 - WEATHERSTRIP, WINDSHIELD
56121-37050

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
Common parts
90159-60076
90163-50011
90189-05046
90189-06006
90189-06028
90189-06029
90189-06111
90467-12079
90950-01890
91551-80614
Linked diagrams
8701
