XZU424R-TKMRW3 (2001)
Toyota Dyna
(0110- )S05C..XZU404,414,424,434

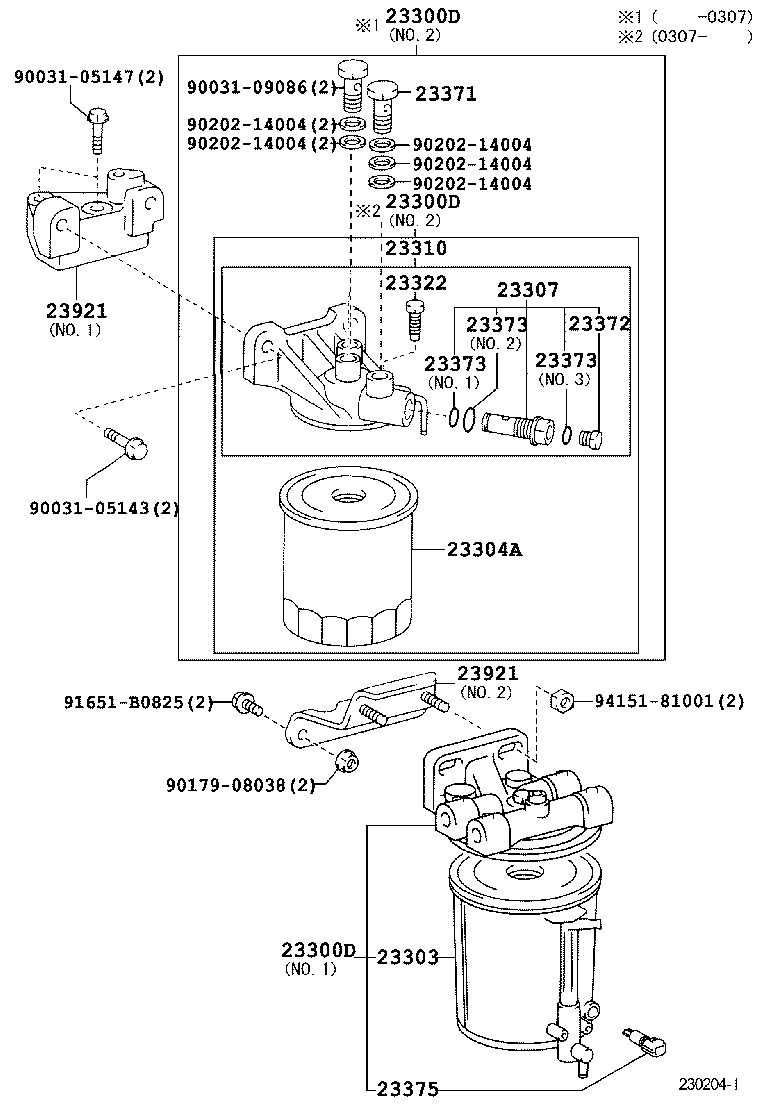

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23300D - FILTER ASSY, FUEL(FOR DIESEL) | ||||
| 23300-78201 |
S05C..XZU404,414,424,434 NO.2 |
1 | ||
| 23300-78170 |
S05C..XZU404,414,424,434 NO.2 |
1 | ||
| 23300-78270 |
S05C..XZU404,414,424,434..ARL,GEN NO.2 |
1 | ||
| 23300-78110 |
S05C..XZU404,414,424,434..ARL,GEN NO.1 |
1 | ||
| 23300D - FILTER ASSY, FUEL(FOR DIESEL) | ||||
| 23300-78201 |
S05C..XZU404,414,424,434 NO.2 |
1 | ||
| 23300-78170 |
S05C..XZU404,414,424,434 NO.2 |
1 | ||
| 23300-78270 |
S05C..XZU404,414,424,434..ARL,GEN NO.2 |
1 | ||
| 23300-78110 |
S05C..XZU404,414,424,434..ARL,GEN NO.1 |
1 | ||
| 23300D - FILTER ASSY, FUEL(FOR DIESEL) | ||||
| 23300-78201 |
S05C..XZU404,414,424,434 NO.2 |
1 | ||
| 23300-78170 |
S05C..XZU404,414,424,434 NO.2 |
1 | ||
| 23300-78270 |
S05C..XZU404,414,424,434..ARL,GEN NO.2 |
1 | ||
| 23300-78110 |
S05C..XZU404,414,424,434..ARL,GEN NO.1 |
1 | ||
| 23303 - ELEMENT SUB-ASSY, FUEL FILTER | ||||
| 23304-78110 |
S05C..XZU404,414,424,434..ARL,GEN |
1 | ||
| 23304A - ELEMENT SET, FUEL FILTER | ||||
| 23304-78270 |
S05C..XZU404,414,424,434..ARL,GEN |
1 | ||
| 23304-89105 |
S05C..XZU404,414,424,434 |
1 | ||
| 23304-89103 |
S05C..XZU404,414,424,434 |
1 | ||
| 23307 - OVERFLOW SUB-ASSY, FUEL FILTER | ||||
| 23307-89101 |
S05C..XZU404,414,424,434..ARL,GEN |
1 | ||
| 23310 - BODY, FUEL FILTER, UPPER | ||||
| 23310-78080 |
S05C..XZU404,414,424,434..ARL,GEN |
1 | ||
| 23322 - PLUG, DRAIN(FOR FUEL FILTER) | ||||
| 23322-78030 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN |
1 | ||
| 23371 - BOLT, OVER FLOW | ||||
| 23371-89101 |
S05C..XZU404,414,424,434..ARL,GEN |
1 | ||
| 23372 - PLUG, OVER FLOW | ||||
| 23372-89101 |
S05C..XZU404,414,424,434..ARL,GEN |
1 | ||
| 23373 - GASKET, OVER FLOW PLUG | ||||
| 23373-89101 |
S05C..XZU404,414,424,434..ARL,GEN NO.1 |
1 | ||
| 23373-89103 |
S05C..XZU404,414,424,434..ARL,GEN NO.3 |
1 | ||
| 23373-89102 |
S05C..XZU404,414,424,434..ARL,GEN NO.2 |
1 | ||
| 23373 - GASKET, OVER FLOW PLUG | ||||
| 23373-89101 |
S05C..XZU404,414,424,434..ARL,GEN NO.1 |
1 | ||
| 23373-89103 |
S05C..XZU404,414,424,434..ARL,GEN NO.3 |
1 | ||
| 23373-89102 |
S05C..XZU404,414,424,434..ARL,GEN NO.2 |
1 | ||
| 23373 - GASKET, OVER FLOW PLUG | ||||
| 23373-89101 |
S05C..XZU404,414,424,434..ARL,GEN NO.1 |
1 | ||
| 23373-89103 |
S05C..XZU404,414,424,434..ARL,GEN NO.3 |
1 | ||
| 23373-89102 |
S05C..XZU404,414,424,434..ARL,GEN NO.2 |
1 | ||
| 23375 - SENSOR, FUEL FILTER | ||||
| 23375-78110 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN |
1 | ||
| 23921 - SUPPORT, FUEL FILTER | ||||
| 23921-78150 |
S05C..XZU404,414,424,434..ARL,GEN NO.2 |
1 | ||
| 23264-78020 |
S05C..XZU404,414,424,434..ARL,GEN NO.1 |
1 | ||
| 23921 - SUPPORT, FUEL FILTER | ||||
| 23921-78150 |
S05C..XZU404,414,424,434..ARL,GEN NO.2 |
1 | ||
| 23264-78020 |
S05C..XZU404,414,424,434..ARL,GEN NO.1 |
1 | ||
| Common parts | ||||
| 90031-05143 | ||||
| 90031-05147 | ||||
| 90031-09086 | ||||
| 90179-08038 | ||||
| 90202-14004 | ||||
| 91651-B0825 | ||||
| 94151-81001 | ||||
