XZU424R-TKMMW3 (2001)

Toyota Dyna

Production Oct 2001 - Oct 2006
Engine S05C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0110- )S05C..XZU404,414,424,434

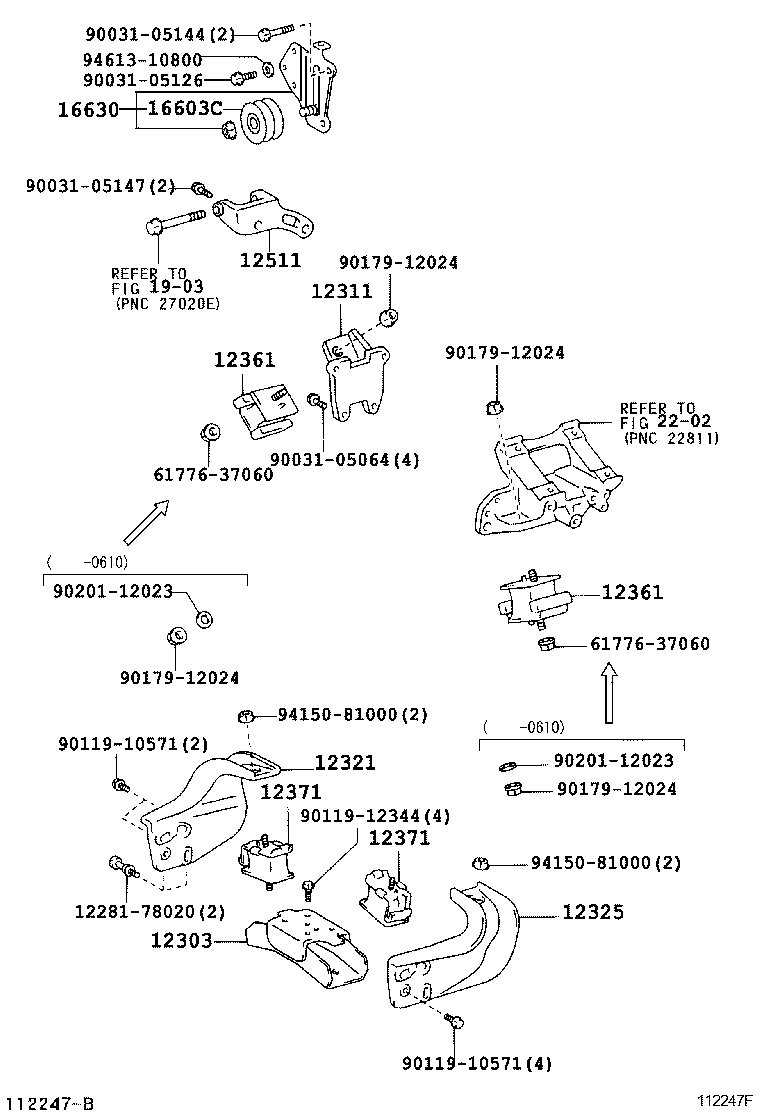

Click highlighted areas on diagram

diagram 1228178020 12303 12311 12321 12325 12361 12361 12371 12371 12511 16603C 16630 1903 2202 6177637060 6177637060 9003105064 9003105126 9003105144 9003105147 9011910571 9011910571 9011912344 9017912024 9017912024 9017912024 9017912024 9020112023 9020112023 9415081000 9415081000 9461310800
Part # Description Qty Price
12303 - BRACKET SUB-ASSY, ENGINE MOUNTING, REAR
12303-78030

S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN

 1
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-78030

S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-78140

S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN

 1
12325 - BRACKET, ENGINE MOUNTING, NO.3
12325-78120

S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-78060

S05C..XZU404,414,424,434..ARL,GEN

LH

 1
12361-78031

S05C..XZU404,414,424,434..ARL,GEN

RH

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-78060

S05C..XZU404,414,424,434..ARL,GEN

LH

 1
12361-78031

S05C..XZU404,414,424,434..ARL,GEN

RH

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-78010

S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-78010

S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN

 2
12511 - BRACKET, ALTERNATOR, NO.1
12501-78020

S05C..XZU404,414,424,434..ARL,GEN

 1
16603C - PULLEY SUB-ASSY, IDLER
16603-78040

S05C..XZU404,414,424,434..ARL,GEN

 1
16630 - PULLEY ASSY, IDLER
16630-78060

S05C..XZU404,414,424,434..ARL,GEN

 1
Common parts
12281-78020
61776-37060
90031-05064
90031-05126
90031-05144
90031-05147
90119-10571
90119-12344
90179-12024
90201-12023
94150-81000
94613-10800
Linked diagrams
1903
2202
