XZU424L-TKFRWW3 (2001)
Toyota Dyna

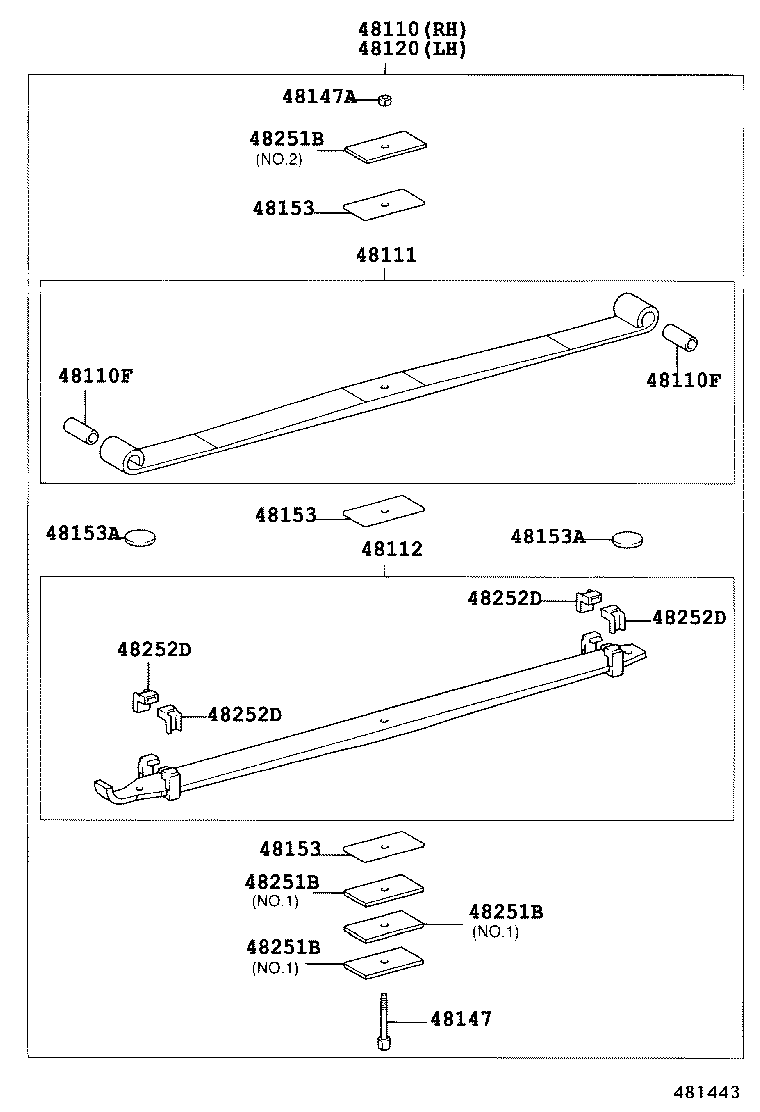

ILLUST NO. 2 OF 2(0110- )XZU424..EUR ; (0110- )XZU424..RHD..75T,85T ; (0110- )XZU414,415,42
2-LEAF 48110-3V310
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-3V310 |
XZU414,424,434..EUR 2-LEAF |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90033-84013 |
XZU414,424,434..EUR |
4 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90033-84013 |
XZU414,424,434..EUR |
4 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-3V310 |
XZU414,424,434..EUR DRIVER SIDE |
1 | ||
| 48101-3V410 |
XZU414,424,434..EUR PASSENGER SIDE |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48102-3V410 |
XZU414,424,434..EUR PASSENGER SIDE |
1 | ||
| 48102-3V310 |
XZU414,424,434..EUR DRIVER SIDE |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-3V410 |
XZU414,424,434..EUR 2-LEAF |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-3V310 |
XZU414,415,424,425,434,435..6F..(75T,85T) |
2 | ||
| 48147A - NUT, FRONT SPRING CENTER BOLT | ||||
| 48284-37130 |
XZU414,424,434..EUR |
2 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48251-36530 |
XZU414,424,434..EUR |
6 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48251-36530 |
XZU414,424,434..EUR |
6 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48251-36530 |
XZU414,424,434..EUR |
6 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-37670 |
XZU414,424,434..EUR |
4 | ||
| 48252-3B800 |
XZU414,424,434..6F |
2 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-37670 |
XZU414,424,434..EUR |
4 | ||
| 48252-3B800 |
XZU414,424,434..6F |
2 | ||
| 48251B - SPACER(FOR FRONT SPRING) | ||||
| 48216-3B060 |
XZU414,424,434..EUR NO.2 |
2 | ||
| 48253-36530 |
XZU414,424,434..EUR NO.1 |
6 | ||
| 48251B - SPACER(FOR FRONT SPRING) | ||||
| 48216-3B060 |
XZU414,424,434..EUR NO.2 |
2 | ||
| 48253-36530 |
XZU414,424,434..EUR NO.1 |
6 | ||
| 48251B - SPACER(FOR FRONT SPRING) | ||||
| 48216-3B060 |
XZU414,424,434..EUR NO.2 |
2 | ||
| 48253-36530 |
XZU414,424,434..EUR NO.1 |
6 | ||
| 48251B - SPACER(FOR FRONT SPRING) | ||||
| 48216-3B060 |
XZU414,424,434..EUR NO.2 |
2 | ||
| 48253-36530 |
XZU414,424,434..EUR NO.1 |
6 | ||
| 48252D - SILENCER | ||||
| 48252-37380 |
XZU414,424,434..EUR |
8 | ||
| 48252D - SILENCER | ||||
| 48252-37380 |
XZU414,424,434..EUR |
8 | ||
| 48252D - SILENCER | ||||
| 48252-37380 |
XZU414,424,434..EUR |
8 | ||
| 48252D - SILENCER | ||||
| 48252-37380 |
XZU414,424,434..EUR |
8 | ||
ILLUST NO. 2 OF 2(0110-0801)XZU414,424..RHD..75T..GEN ; (0110-0801)BU410,420,WU410,420,XZU412..65T ;
5-LEAF 48110-3V620,3V630
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-3V310 |
XZU414,424,434..EUR 2-LEAF |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90033-84013 |
XZU414,424,434..EUR |
4 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-3V310 |
XZU414,424,434..EUR DRIVER SIDE |
1 | ||
| 48101-3V410 |
XZU414,424,434..EUR PASSENGER SIDE |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48102-3V410 |
XZU414,424,434..EUR PASSENGER SIDE |
1 | ||
| 48102-3V310 |
XZU414,424,434..EUR DRIVER SIDE |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-3V410 |
XZU414,424,434..EUR 2-LEAF |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-3V310 |
XZU414,415,424,425,434,435..6F..(75T,85T) |
2 | ||
| 48147A - NUT, FRONT SPRING CENTER BOLT | ||||
| 48284-37130 |
XZU414,424,434..EUR |
2 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48251-36530 |
XZU414,424,434..EUR |
6 | ||
| 48251B - SPACER(FOR FRONT SPRING) | ||||
| 48216-3B060 |
XZU414,424,434..EUR NO.2 |
2 | ||
| 48253-36530 |
XZU414,424,434..EUR NO.1 |
6 | ||
ILLUST NO. 1 OF 2(0110-0801)WU410..65T ; (0110-0801)XZU412,422..5F ; (0110-0801)XZU414..6F..ARL ; (0
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48191 - WEDGE, CASTER(FOR FRONT LEAF SPRING) | ||||
| 48191-37070 |
WU410,420,XZU41#,42#,43#..65T,75T,85T |
2 | ||
| 48191-37070 |
WU410,420,XZU41#,42#,43#..65T,75T,85T |
2 | ||
| 48191-37070 |
WU410,420,XZU41#,42#,43#..65T,75T,85T |
2 | ||
| 48304 - BUMPER SUB-ASSY, FRONT SPRING, NO.1 | ||||
| 48304-37080 |
XZU414,424,434..EUR |
2 | ||
| 48304-37080 |
XZU414,424,434..EUR |
2 | ||
| 48304-37080 |
XZU414,424,434..EUR |
2 | ||
| 48323 - PIN, FRONT SPRING BRACKET, FRONT | ||||
| 48323-37020 |
XZU414,424,434..EUR |
2 | ||
| 48323-37020 |
XZU414,424,434..EUR |
2 | ||
| 48323-37020 |
XZU414,424,434..EUR |
2 | ||
| 48323A - NIPPLE, GREASE(FOR FRONT SPRING BRACKET, FRONT PIN) | ||||
| 90034-08004 |
XZU414,424,434..EUR |
2 | ||
| 90034-08004 |
XZU414,424,434..EUR |
2 | ||
| 90034-08004 |
XZU414,424,434..EUR |
2 | ||
| 48323B - PIN, FRONT SPRING BRACKET, REAR | ||||
| 48323-37030 |
XZU414,424,434..EUR |
4 | ||
| 48323-37030 |
XZU414,424,434..EUR |
4 | ||
| 48323-37030 |
XZU414,424,434..EUR |
4 | ||
| 48323C - NIPPLE, GREASE(FOR FRONT SPRING BRACKET, REAR PIN) | ||||
| 90034-08006 |
XZU414,424,434..EUR |
4 | ||
| 90034-08006 |
XZU414,424,434..EUR |
4 | ||
| 90034-08006 |
XZU414,424,434..EUR |
4 | ||
| 48442A - SHACKLE, FRONT SPRING, RH | ||||
| 48442-37040 |
XZU414,424,434..EUR |
1 | ||
| 48442-37040 |
XZU414,424,434..EUR |
1 | ||
| 48442-37040 |
XZU414,424,434..EUR |
1 | ||
| 48442B - SHACKLE, FRONT SPRING, LH | ||||
| 48442-37050 |
XZU414,424,434..EUR |
1 | ||
| 48442-37050 |
XZU414,424,434..EUR |
1 | ||
| 48442-37050 |
XZU414,424,434..EUR |
1 | ||
| 48443A - PLATE, FORNT SPRING SHACKLE, OUTER | ||||
| 48443-37010 |
XZU414,424,434..EUR |
2 | ||
| 48443-37010 |
XZU414,424,434..EUR |
2 | ||
| 48443-37010 |
XZU414,424,434..EUR |
2 | ||
| 48475 - PLATE, DISTANCE(FOR FRONT) | ||||
| 48475-37060 |
XZU414,424,434..EUR |
1 | ||
| 48475-37060 |
XZU414,424,434..EUR |
1 | ||
| 48475-37060 |
XZU414,424,434..EUR |
1 | ||
| 48505A - BOLT, U(FOR FRONT SPRING) | ||||
| 90117-16080 |
XZU414,424,434..EUR L=130 |
2 | ||
| 90117-16080 |
XZU414,424,434..EUR L=130 |
2 | ||
| 90117-16080 |
XZU414,424,434..EUR L=130 |
2 | ||
| 90117-16065 |
XZU414,424,434..EUR L=150 |
2 | ||
| 90117-16065 |
XZU414,424,434..EUR L=150 |
2 | ||
| 90117-16065 |
XZU414,424,434..EUR L=150 |
2 | ||
| 48505A - BOLT, U(FOR FRONT SPRING) | ||||
| 90117-16080 |
XZU414,424,434..EUR L=130 |
2 | ||
| 90117-16080 |
XZU414,424,434..EUR L=130 |
2 | ||
| 90117-16080 |
XZU414,424,434..EUR L=130 |
2 | ||
| 90117-16065 |
XZU414,424,434..EUR L=150 |
2 | ||
| 90117-16065 |
XZU414,424,434..EUR L=150 |
2 | ||
| 90117-16065 |
XZU414,424,434..EUR L=150 |
2 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48511-80115 |
BU410,420,WU410,420,XZU404,41#,42#,43# MARK 48511-37161 |
1 | ||
| 48511-80115 |
BU410,420,WU410,420,XZU404,41#,42#,43# MARK 48511-37161 |
1 | ||
| 48511-80115 |
BU410,420,WU410,420,XZU404,41#,42#,43# MARK 48511-37161 |
1 | ||
| 48511-89215 |
XZU414,424,434..EUR MARK 48511-37260 |
1 | ||
| 48511-89215 |
XZU414,424,434..EUR MARK 48511-37260 |
1 | ||
| 48511-89215 |
XZU414,424,434..EUR MARK 48511-37260 |
1 | ||
| 48511-80095 |
XZU414,420,424,43#;WU410,420,XZU404,412,422..5F MARK 48511-37160 |
1 | ||
| 48511-80095 |
XZU414,420,424,43#;WU410,420,XZU404,412,422..5F MARK 48511-37160 |
1 | ||
| 48511-80095 |
XZU414,420,424,43#;WU410,420,XZU404,412,422..5F MARK 48511-37160 |
1 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01031 |
XZU414,424,434..EUR |
4 | ||
| 90948-01031 |
XZU414,424,434..EUR |
4 | ||
| 90948-01031 |
XZU414,424,434..EUR |
4 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01031 |
XZU414,424,434..EUR |
4 | ||
| 90948-01031 |
XZU414,424,434..EUR |
4 | ||
| 90948-01031 |
XZU414,424,434..EUR |
4 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02017 |
XZU414,424,434..EUR |
2 | ||
| 90948-02017 |
XZU414,424,434..EUR |
2 | ||
| 90948-02017 |
XZU414,424,434..EUR |
2 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-03018 |
XZU414,424,434..EUR |
4 | ||
| 90948-03018 |
XZU414,424,434..EUR |
4 | ||
| 90948-03018 |
XZU414,424,434..EUR |
4 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-03018 |
XZU414,424,434..EUR |
4 | ||
| 90948-03018 |
XZU414,424,434..EUR |
4 | ||
| 90948-03018 |
XZU414,424,434..EUR |
4 | ||
| 48510N - BUSH(FOR FRONT SHOCK ABSORBER RH) | ||||
| 90385-19011 |
XZU414,424,434..EUR |
1 | ||
| 90385-19011 |
XZU414,424,434..EUR |
1 | ||
| 90385-19011 |
XZU414,424,434..EUR |
1 | ||
| 48514 - BRACKET, FRONT SHOCK ABSORBER, LOWER RH | ||||
| 48514-37020 |
XZU414,424,434..EUR |
1 | ||
| 48514-37020 |
XZU414,424,434..EUR |
1 | ||
| 48514-37020 |
XZU414,424,434..EUR |
1 | ||
| 48515 - BRACKET, FRONT SHOCK ABSORBER, LOWER LH | ||||
| 48515-37030 |
XZU414,424,434..EUR |
1 | ||
| 48515-37030 |
XZU414,424,434..EUR |
1 | ||
| 48515-37030 |
XZU414,424,434..EUR |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48511-89215 |
XZU414,424,434..EUR MARK 48511-37260 |
1 | ||
| 48511-89215 |
XZU414,424,434..EUR MARK 48511-37260 |
1 | ||
| 48511-89215 |
XZU414,424,434..EUR MARK 48511-37260 |
1 | ||
| 48511-80115 |
BU410,420,WU410,420,XZU404,41#,42#,43# MARK 48511-37161 |
1 | ||
| 48511-80115 |
BU410,420,WU410,420,XZU404,41#,42#,43# MARK 48511-37161 |
1 | ||
| 48511-80115 |
BU410,420,WU410,420,XZU404,41#,42#,43# MARK 48511-37161 |
1 | ||
| 48511-80095 |
XZU414,420,424,43#;WU410,420,XZU404,412,422..5F MARK 48511-37160 |
1 | ||
| 48511-80095 |
XZU414,420,424,43#;WU410,420,XZU404,412,422..5F MARK 48511-37160 |
1 | ||
| 48511-80095 |
XZU414,420,424,43#;WU410,420,XZU404,412,422..5F MARK 48511-37160 |
1 | ||
| 48520C - BUSH(FOR FRONT SHOCK ABSORBER LH) | ||||
| 90385-19011 |
XZU414,424,434..EUR |
1 | ||
| 90385-19011 |
XZU414,424,434..EUR |
1 | ||
| 90385-19011 |
XZU414,424,434..EUR |
1 | ||
| Common parts | ||||
| 90031-01174 | ||||
| 90031-78086 | ||||
| 90032-01144 | ||||
| 90032-01146 | ||||
| 90032-04032 | ||||
| 90032-04033 | ||||
| 90032-04034 | ||||
| 90032-15012 | ||||
| 90101-12074 | ||||
| 90178-16004 | ||||
| 90179-10036 | ||||
| 90201-24003 | ||||
| 94130-01202 | ||||
| 94130-01402 | ||||
| 94183-60801 | ||||
| 94184-61001 | ||||
