XZU424L-TKFRWW3 (2001)
Toyota Dyna
Production
Oct 2001
-
Aug 2006
Engine
S05C
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0110-0610)XZU412,414,422,424,434..LHD ; (0610-)XZU412,422

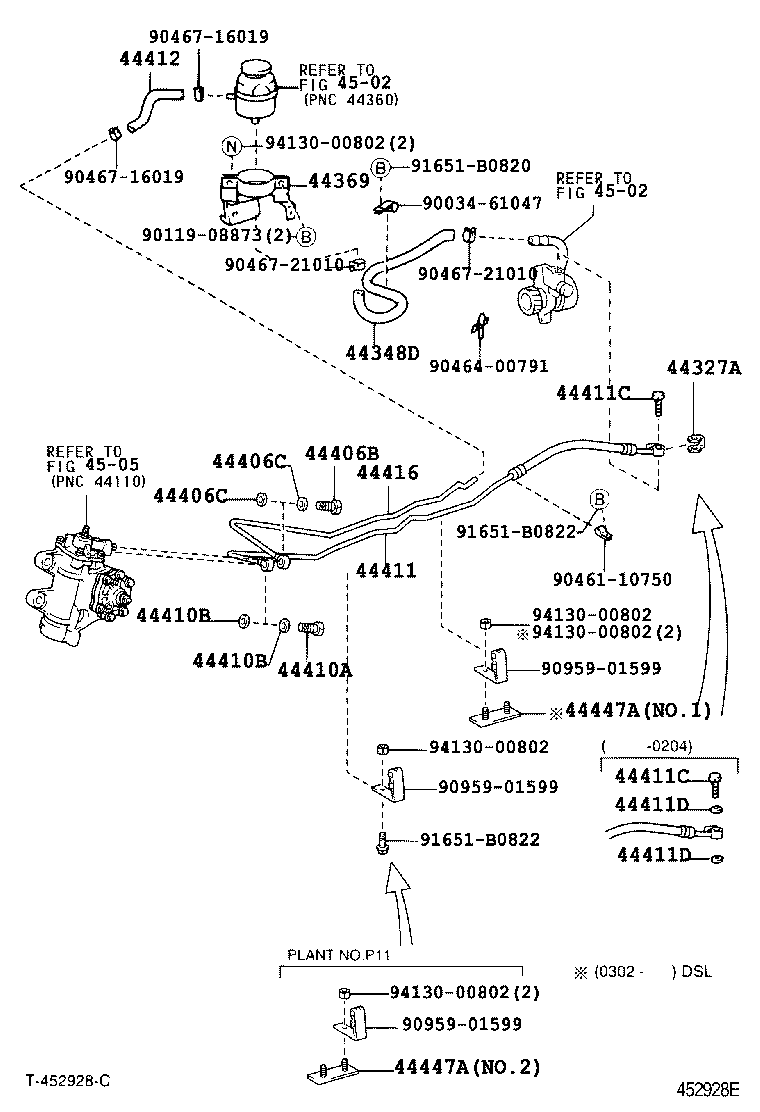

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-30030 |
XZU414,424,434..EUR |
1 | ||
| 44348D - HOSE, OIL RESERVOIR TO PUMP, NO.2 | ||||
| 44348-37250 |
XZU414,424,434..EUR |
1 | ||
| 44369 - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44369-37150 |
XZU414,424,434..EUR |
1 | ||
| 44406B - BOLT, UNION(FOR RETURN TUBE) | ||||
| 90401-14003 |
XZU414,424,434..EUR |
1 | ||
| 44406C - GASKET(FOR RETURN TUBE) | ||||
| 90430-14235 |
XZU414,424,434..EUR |
2 | ||
| 44406C - GASKET(FOR RETURN TUBE) | ||||
| 90430-14235 |
XZU414,424,434..EUR |
2 | ||
| 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) | ||||
| 90401-14003 |
XZU414,424,434..EUR |
1 | ||
| 44410B - GASKET(FOR PRESSURE FEED TUBE) | ||||
| 90430-14235 |
XZU414,424,434..EUR |
2 | ||
| 44410B - GASKET(FOR PRESSURE FEED TUBE) | ||||
| 90430-14235 |
XZU414,424,434..EUR |
2 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-37211 |
XZU414,424,434..EUR |
1 | ||
| 44411-37210 |
XZU414,424,434..EUR |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-16027 |
XZU414,424,434..EUR |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-16027 |
XZU414,424,434..EUR |
1 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 90430-16168 |
XZU404,414,424,434 |
2 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 90430-16168 |
XZU404,414,424,434 |
2 | ||
| 44412 - HOSE, RETURN | ||||
| 44412-37080 |
XZU414,424,434..EUR |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-37371 |
WU410,XZU41#,422,424,434..LHD |
1 | ||
| 44416-37372 |
XZU414,424,434..EUR |
1 | ||
| 44416-37370 |
XZU414,424,434..EUR |
1 | ||
| 44447A - BRACKET, HOSE SUPPORT, NO.1 | ||||
| 44447-37170 |
XZU414,424,434..EUR PLANT NO. P11,NO.2 |
1 | ||
| 44447A - BRACKET, HOSE SUPPORT, NO.1 | ||||
| 44447-37170 |
XZU414,424,434..EUR PLANT NO. P11,NO.2 |
1 | ||
| Common parts | ||||
| 90034-61047 | ||||
| 90119-08873 | ||||
| 90461-10750 | ||||
| 90464-00791 | ||||
| 90467-16019 | ||||
| 90467-21010 | ||||
| 90959-01599 | ||||
| 91651-B0820 | ||||
| 91651-B0822 | ||||
| 94130-00802 | ||||
| Linked diagrams | ||||
| 4502 | ||||
| 4505 | ||||
