XZU422L-TKMTW3 (2002)

Toyota Dyna

Production Dec 2002 - Oct 2006
Engine S05C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0212- )S05C..XZU412,422..TD

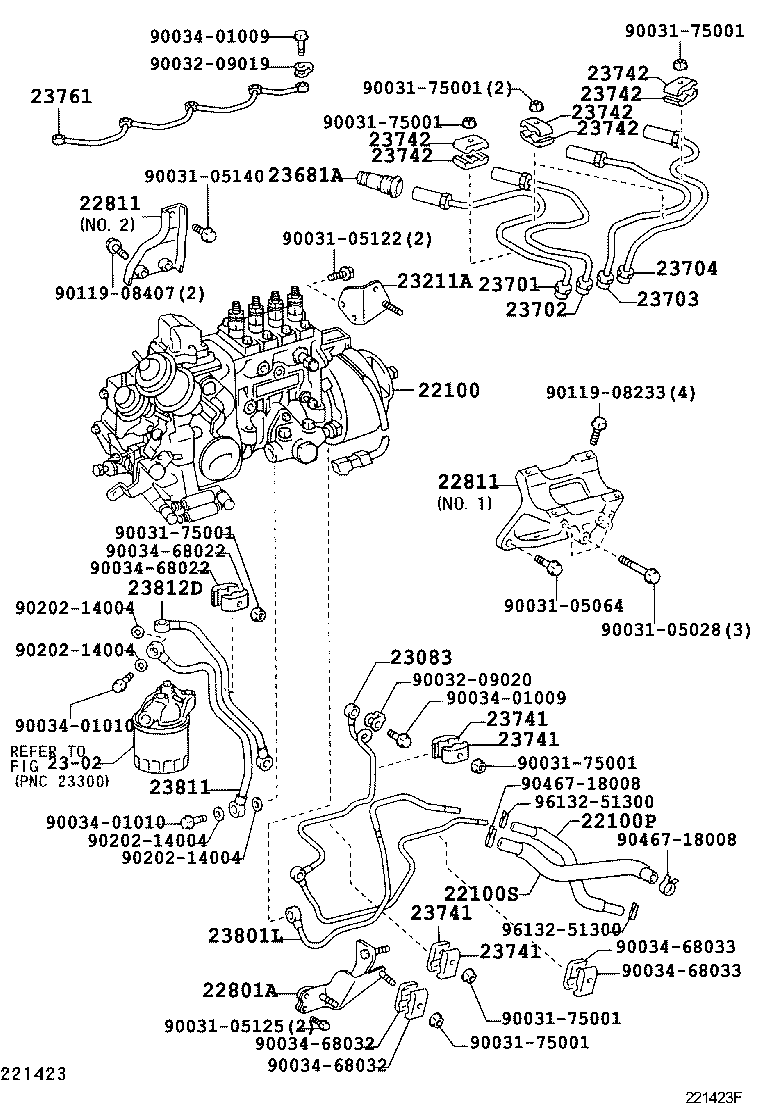

Click highlighted areas on diagram

diagram 22100 22100P 22100S 22801A 22811 22811 2302 23083 23211A 23681A 23701 23702 23703 23704 23741 23741 23741 23741 23742 23742 23742 23742 23742 23742 23761 23801L 23811 23812D 9003105028 9003105064 9003105122 9003105125 9003105140 9003175001 9003175001 9003175001 9003175001 9003175001 9003175001 9003175001 9003209019 9003209020 9003401009 9003401009 9003401010 9003401010 9003468022 9003468022 9003468032 9003468032 9003468033 9003468033 9011908233 9011908407 9020214004 9020214004 9020214004 9020214004 9046718008 9046718008 9613251300 9613251300
Part # Description Qty Price
22100 - PUMP ASSY, INJECTION OR SUPPLY
22010-78350

S05C..XZU412,422..LHD..5F..TD

 1
22100P - HOSE, FUEL(FOR FUEL PIPE TO FUEL TUBE)
23273-78050

S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN

 1
22100S - HOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE)
23271-78050

S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN

 1
22801A - BRACKET SUB-ASSY, INJECTION PUMP
22801-78041

S05C..XZU412,422..5F

 1
22811 - STAY, INJECTION PUMP, NO.1
22811-78080

S05C..XZU412,422..5F

NO.1

 1
22801-78060

S05C..XZU412,422..5F

NO.2

 1
22811 - STAY, INJECTION PUMP, NO.1
22811-78080

S05C..XZU412,422..5F

NO.1

 1
22801-78060

S05C..XZU412,422..5F

NO.2

 1
23083 - PIPE SUB-ASSY, NOZZLE LEAKAGE, NO.3
23803-78101

S05C..XZU412,422..5F

 1
23211A - BRACKET(FOR INJECTION PIPE NO.3)
23211-78140

S05C..XZU412,422..5F

 1
23681A - SEAL, NOZZLE HOLDER
23681-78010

S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN

 4
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-78070

S05C..XZU412,422..5F..TD

 1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-78070

S05C..XZU412,422..5F..TD

 1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-78060

S05C..XZU412,422..5F..TD

 1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-78060

S05C..XZU412,422..5F..TD

 1
23741 - CLAMP, INJECTION PIPE, NO.1
90034-68024

S05C..XZU412,422..5F

 4
23741 - CLAMP, INJECTION PIPE, NO.1
90034-68024

S05C..XZU412,422..5F

 4
23741 - CLAMP, INJECTION PIPE, NO.1
90034-68024

S05C..XZU412,422..5F

 4
23741 - CLAMP, INJECTION PIPE, NO.1
90034-68024

S05C..XZU412,422..5F

 4
23742 - CLAMP, INJECTION PIPE, NO.2
23742-66020

S05C..XZU412,422..5F

 8
23742 - CLAMP, INJECTION PIPE, NO.2
23742-66020

S05C..XZU412,422..5F

 8
23742 - CLAMP, INJECTION PIPE, NO.2
23742-66020

S05C..XZU412,422..5F

 8
23742 - CLAMP, INJECTION PIPE, NO.2
23742-66020

S05C..XZU412,422..5F

 8
23742 - CLAMP, INJECTION PIPE, NO.2
23742-66020

S05C..XZU412,422..5F

 8
23742 - CLAMP, INJECTION PIPE, NO.2
23742-66020

S05C..XZU412,422..5F

 8
23761 - PIPE, NOZZLE LEAKAGE, NO.1
23761-78020

S05C..XZU412,422..5F

 1
23801L - PIPE SUB-ASSY, FUEL(FOR FUEL FILTER TO INJECTION PUMP)
23801-78021

S05C..XZU412,422..5F

 1
23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)
23811-78102

S05C..XZU412,422..5F..TD

 1
23812D - PIPE, FUEL, NO.2
23812-78031

S05C..XZU412,422..5F

 1
Common parts
90031-05028
90031-05064
90031-05122
90031-05125
90031-05140
90031-75001
90032-09019
90032-09020
90034-01009
90034-01010
90034-68022
90034-68032
90034-68033
90119-08233
90119-08407
90202-14004
90467-18008
96132-51300
Linked diagrams
2302
