XZU422L-TKMRSV (2002)

Toyota Dyna

Production Dec 2002 - Oct 2006
Engine S05C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0110-0506)ARL,GEN,SA,TAIW ; (0506-0610)ARL,GEN,SA ; (0610- )WU41#,42#,XZU413,41

Click highlighted areas on diagram

diagram 51436B 51436B 51473A 51474 51961C 51962 51963B 51964B 9017814007 91651B0825 91651B0825 9167201460 9167201460 9413001402
Part # Description Qty Price
51436B - BRACKET, ENGINE SIDE COVER, NO.1 RH
51436-37080

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
51436B - BRACKET, ENGINE SIDE COVER, NO.1 RH
51436-37080

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
51473A - COVER SUB-ASSY, ENGINE SIDE, RH
51473-37160

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
51474 - COVER SUB-ASSY, ENGINE SIDE, LH
51474-37140

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
51961C - HOOK, FRONT
51961-37040

XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

 1
51962 - HOOK, NO.2
51965-37030

XZU415,425,435;BU410,420,WU410,420,XZU412,414,420,422,424,430,434..ARL,GCC,GEN,SA,TAIW

 1
51963B - HOOK, TRANSPORT, FRONT RH
51963-37030

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
51964B - HOOK, TRANSPORT, FRONT LH
51964-37040

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
Common parts
90178-14007
91651-B0825
91672-01460
94130-01402

(0212-0610)GCC

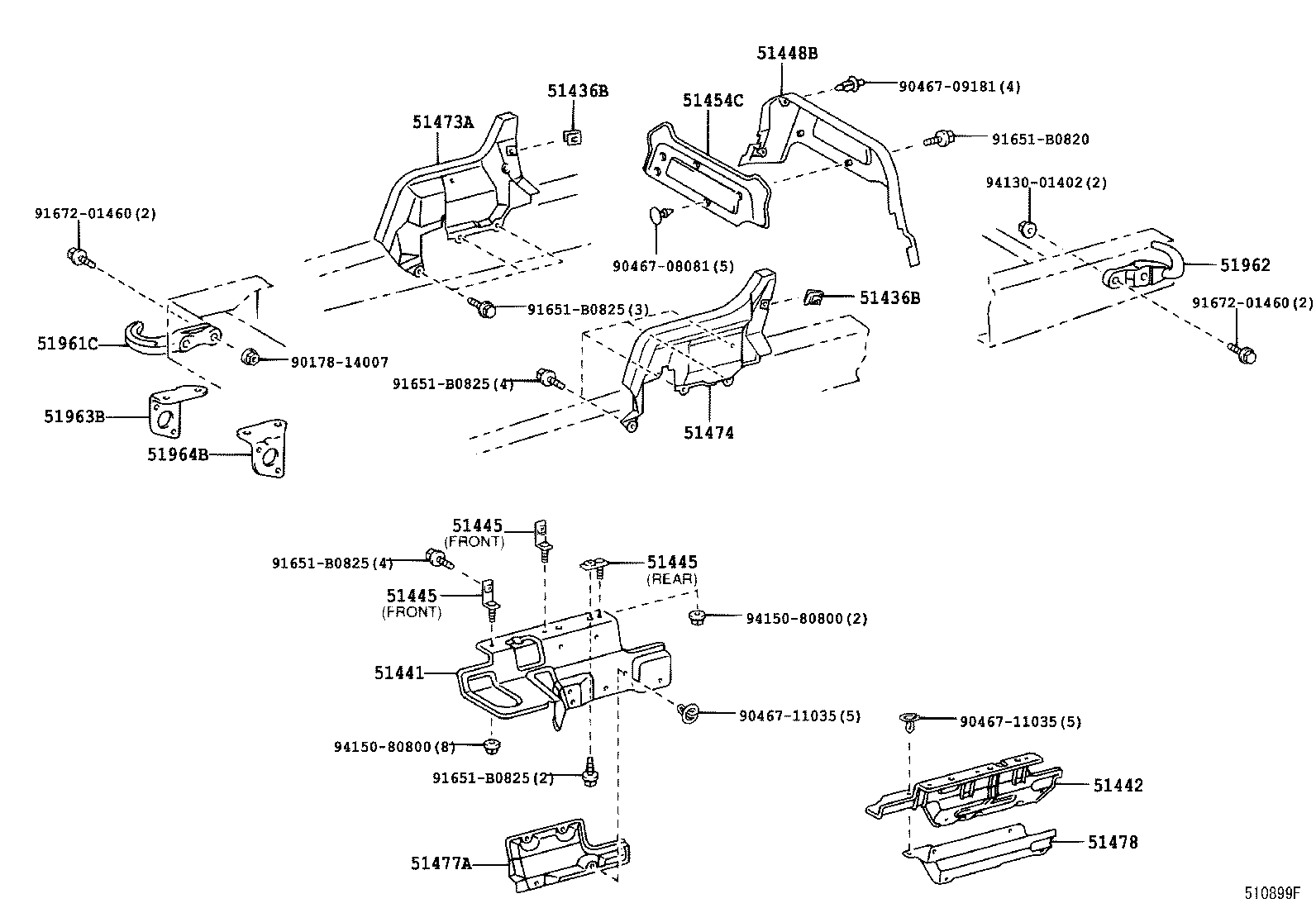

Click highlighted areas on diagram

diagram 51436B 51436B 51441 51442 51445 51445 51445 51448B 51454C 51473A 51474 51477A 51478 51961C 51962 51963B 51964B 9017814007 9046708081 9046709181 9046711035 9046711035 91651B0820 91651B0825 91651B0825 91651B0825 91651B0825 9167201460 9167201460 9413001402 9415080800 9415080800
Part # Description Qty Price
51436B - BRACKET, ENGINE SIDE COVER, NO.1 RH
51436-37080

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
51436B - BRACKET, ENGINE SIDE COVER, NO.1 RH
51436-37080

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
51441 - COVER, ENGINE UNDER, NO.1
51440-37061

XZU412,422..GCC

 1
51442 - COVER, ENGINE UNDER, NO.2
51440-37070

XZU412,422..GCC

 1
51445 - BRACKET, ENGINE UNDER COVER
51445-37130

XZU412,422..GCC

REAR

 2
51445-37140

XZU412,422..GCC

FRONT

 4
51445 - BRACKET, ENGINE UNDER COVER
51445-37130

XZU412,422..GCC

REAR

 2
51445-37140

XZU412,422..GCC

FRONT

 4
51445 - BRACKET, ENGINE UNDER COVER
51445-37130

XZU412,422..GCC

REAR

 2
51445-37140

XZU412,422..GCC

FRONT

 4
51448B - SHUTTER, ENGINE REAR SIDE
51448-37010

XZU412,422..GCC

 1
51454C - SILENCER, ENGINE UNDER COVER, REAR
51454-37080

XZU41#,422,424,434..EUR,GCC

 1
51454-37161

XZU412,422..GCC

 1
51473A - COVER SUB-ASSY, ENGINE SIDE, RH
51473-37160

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
51474 - COVER SUB-ASSY, ENGINE SIDE, LH
51474-37140

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
51477A - SILENCER, ENGINE UNDER COVER, RH
51477-37010

XZU412,422..GCC

 1
51478 - PLATE, ENGINE SIDE UNDER COVER, UPPER LH
51478-37090

XZU412,422..GCC

 1
51961C - HOOK, FRONT
51961-37040

XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

 1
51962 - HOOK, NO.2
51965-37030

XZU415,425,435;BU410,420,WU410,420,XZU412,414,420,422,424,430,434..ARL,GCC,GEN,SA,TAIW

 1
51963B - HOOK, TRANSPORT, FRONT RH
51963-37030

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
51964B - HOOK, TRANSPORT, FRONT LH
51964-37040

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
Common parts
90178-14007
90467-08081
90467-09181
90467-11035
91651-B0820
91651-B0825
91672-01460
94130-01402
94150-80800
