XZU419L-TKFRDW3 (2009)

Toyota Dyna

Production Aug 2009 - Aug 2012
Engine N04C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

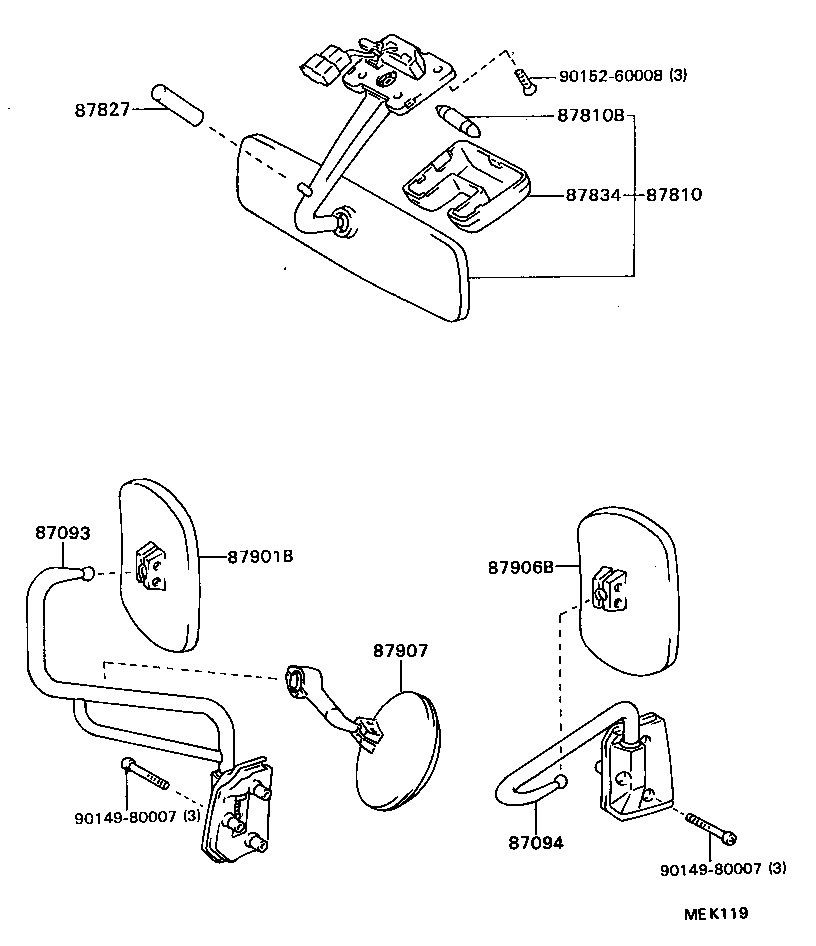

(8708- )

Click highlighted areas on diagram

diagram 87093 87094 87810 87810B 87827 87834 87901B 87906B 87907 9014980007 9014980007 9015260008
Part # Description Qty Price
Common parts
90149-80007
90152-60008

ILLUST NO. 1 OF 3(0110- )

Click highlighted areas on diagram

INNER MIRROR

diagram 87810 87810B 87819 9015260015
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-37050B0

WU410,420,XZU41#,42#,43#..EUR,GCC,SA

MD.CHARCOAL,TRIM1#

 1
Common parts
90152-60015

ILLUST NO. 3 OF 3(0110- )

Click highlighted areas on diagram

OUTER MIRROR COVER

diagram 6777112050 6777112050 6777112050 6777112050 6777112050 6777112050 6777112050 6777112050 87912 87912 87915 87915 87916 87916 87919A 87919A 87945 87945 87965 87965 87967 87968 9011908C00 9011908C00 9011908C00 9011908C00 9024906132 9024906132 9024906132 9024906132
Part # Description Qty Price
Common parts
67771-12050
90119-08C00
90249-06132

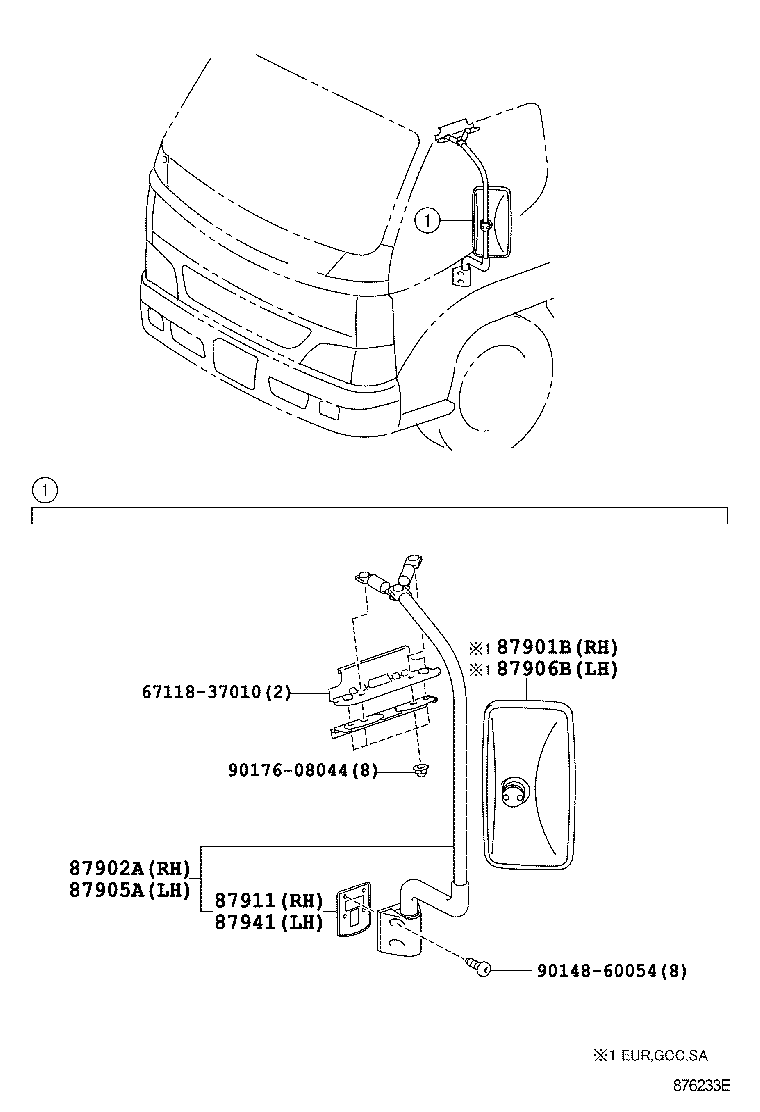

ILLUST NO. 2 OF 3(0110- )ARL,EUR,GCC,SA

Click highlighted areas on diagram

OUTER MIRROR(DOOR MIRROR)

diagram 6711837010 87901B 87902A 87905A 87906B 87911 87941 9014860054 9017608044
Part # Description Qty Price
87902A - ARM SUB-ASSY, OUTER REAR VIEW MIRROR, RH
87902-0W010

WU410,XZU41#,422,424,434..EUR,GCC

 1
87905A - ARM SUB-ASSY, OUTER REAR VIEW MIRROR, LH
87905-0W010

WU410,XZU41#,422,424,434..EUR,GCC

 1
Common parts
67118-37010
90148-60054
90176-08044
