XZU419L-TKFRDW3 (2009)

Toyota Dyna

Production Aug 2009 - Aug 2012
Engine N04C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

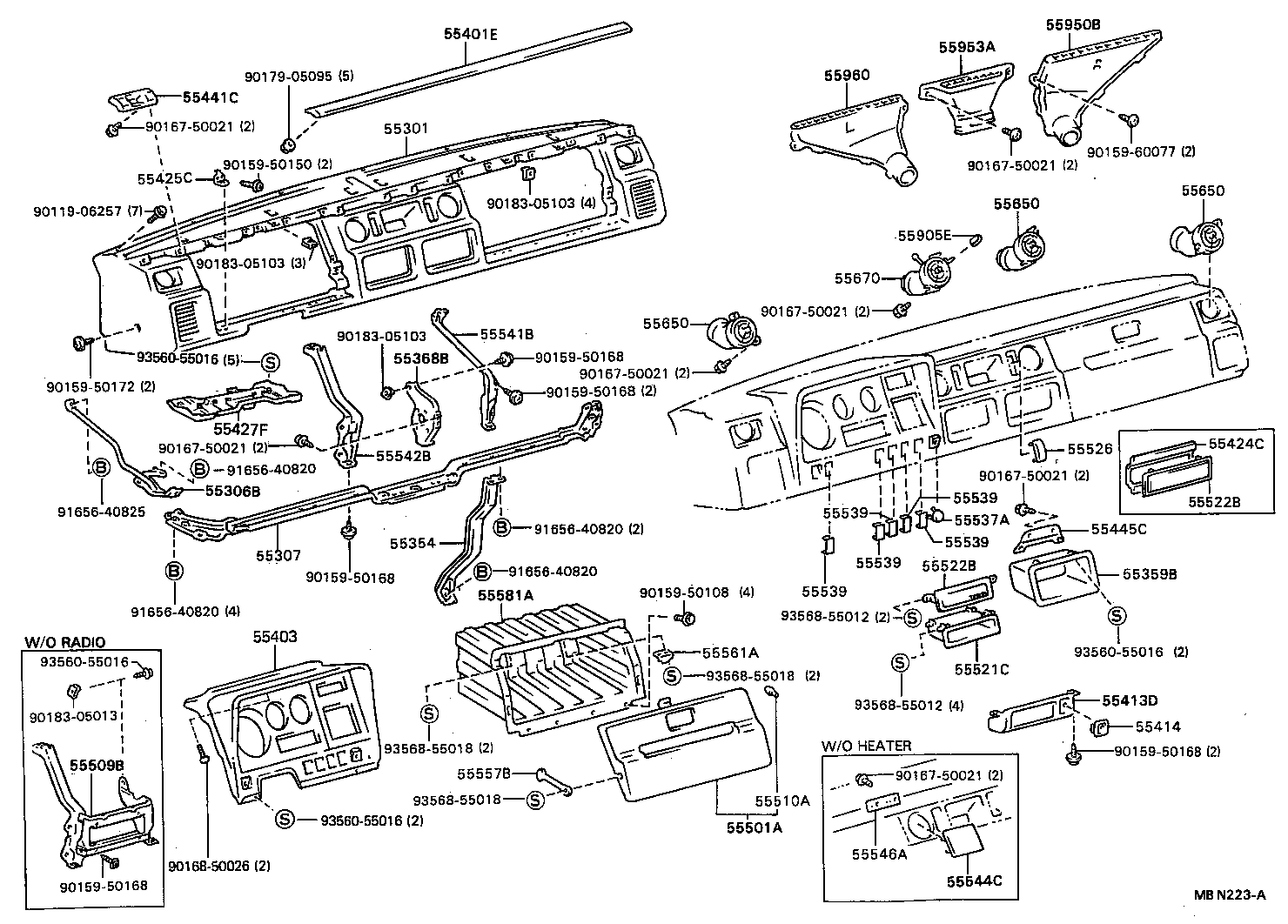

Click highlighted areas on diagram

diagram 55301 55306B 55307 55354 55359B 55368B 55401E 55403 55413D 55414 55424C 55425C 55427F 55441C 55445C 55501A 55509B 55510A 55521C 55522B 55522B 55526 55537A 55539 55539 55539 55539 55539 55541B 55542B 55544C 55546A 55557B 55561A 55581A 55650 55650 55650 55670 55905E 55950B 55953A 55960 9011906257 9015950108 9015950150 9015950168 9015950168 9015950168 9015950168 9015950168 9015950172 9015960077 9016750021 9016750021 9016750021 9016750021 9016750021 9016750021 9016750021 9016850026 9017905095 9018305013 9018305103 9018305103 9018305103 9165640820 9165640820 9165640820 9165640820 9165640825 9356055016 9356055016 9356055016 9356055016 9356855012 9356855012 9356855018 9356855018 9356855018
Part # Description Qty Price
Common parts
90119-06257
90159-50108
90159-50150
90159-50168
90159-50172
90159-60077
90167-50021
90168-50026
90179-05095
90183-05013
90183-05103
91656-40820
91656-40825
93560-55016
93568-55012
93568-55018

ILLUST NO. 1 OF 2(0010- )

Click highlighted areas on diagram

diagram 45288C 55301 55306A 55307C 55328A 55328A 55331 55394B 55970A 55980A 55990A 61181 61183B 61184B 73970A 9010508341 9011906022 9017906156 9017906278 9017908102 9018305103 9046705101B2 9046707041B8 9161660616 9162660818 9162660822 9163560820 9356715016
Part # Description Qty Price
Common parts
90105-08341
90119-06022
90179-06156
90179-06278
90179-08102
90183-05103
90467-05101B2
90467-07041B8
91616-60616
91626-60818
91626-60822
91635-60820
93567-15016

ILLUST NO. 2 OF 2(0010- )

Click highlighted areas on diagram

diagram 55317A 55326A 55327A 55405B 55407C 55411G 55414 55441 55441C 55441C 55442K 55448B 55458B 55460C 55479B 55479C 55510 55511 55521C 55521C 55521C 55521C 55521C 55521C 55521H 55521H 55531B 55532C 55539C 55539C 55539C 55539C 55539C 55539C 55539C 55539C 55539C 55539C 55539C 55539C 55539C 55539E 55539E 55545 55545 55547 55565 55574 55574 55606 55620 55650C 55660D 55961 5596350010 62199 9011906022 9018304046 9024904002 9025403022 9046707041B8 9046709087 9046710203 9046712080 9046714013 9046714013 9046714023 9046714024 9046714025 9046714027 9046714028 9054103078 9054105080 9356053008 9356715016 9356755016 9356855012
Part # Description Qty Price
Common parts
55963-50010
90119-06022
90183-04046
90249-04002
90254-03022
90467-07041B8
90467-09087
90467-10203
90467-12080
90467-14013
90467-14023
90467-14024
90467-14025
90467-14027
90467-14028
90541-03078
90541-05080
93560-53008
93567-15016
93567-55016
93568-55012

ILLUST NO. 2 OF 2(0110- )LHD

Click highlighted areas on diagram

diagram 55405B 55407C 55411G 55414 55441C 55441C 55458B 55479B 55479C 55510 55511 55521C 55532C 55537A 55539C 55539C 55539C 55539C 55539C 55539C 55539C 55545 55556B 55565 55574 55574 55619D 55620 55650C 55660D 9015960382 9015960413 9024904002 9046707041B8 9046710203 9046712080 9054105080 9356053008 9356855012 9356855016
Part # Description Qty Price
55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER
55405-37161

WU41#,422,XZU41#,42#,439..LHD

 1
55407C - COVER SUB-ASSY, INSTRUMENT, LOWER
55320-37021B0

WU41#,422,XZU41#,42#,439..LHD

MD.CHARCOAL,TRIM1#

 1
55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1
55411-25031B0

WU41#,422,XZU41#,42#,439..LHD

MD.CHARCOAL,TRIM1#

 1
55458B - COVER, INSTRUMENT, LWR
55458-37021B0

WU41#,422,XZU41#,42#,439..LHD

MD.CHARCOAL,TRIM1#

 1
55510 - DOOR ASSY, GLOVE COMPARTMENT
55550-37011B0

WU41#,422,XZU41#,42#,439

MD.CHARCOAL,TRIM1#

 1
55511 - DOOR, GLOVE COMPARTMENT
55511-37021B0

WU41#,422,XZU41#,42#,439

MD.CHARCOAL,TRIM1#

 1
55521C - COVER, STEREO OPENING
55521-37030

WU41#,422,XZU41#,42#,439

 1
55545 - COVER, FUSE BOX OPENING
55545-37011B0

WU41#,422,XZU41#,42#,439

MD.CHARCOAL,TRIM1#

 1
55556B - SPRING, GLOVE COMPARTMENT DOOR CHECK
55518-37010

WU41#,422,XZU41#,42#,439

 1
Common parts
90159-60382
90159-60413
90249-04002
90467-07041B8
90467-10203
90467-12080
90541-05080
93560-53008
93568-55012
93568-55016

ILLUST NO. 1 OF 2(0110- )LHD

Click highlighted areas on diagram

diagram 45288C 55301 55306A 55307C 55317A 55328A 55331 55394B 55394B 55449B 55961 5596350010 55970A 55980A 55990A 61181 61182D 61184B 9010508341 9011906022 9017906156 9017906278 9017908102 9018305103 9020109024 9046705101B2 9046707041B8 9046714013 9046714013 9046714023 9046714024 9046714025 9046714027 9046714028 9155180614 9155180614 9155180814 9155180814 9155180814 9155480614 9161660616 91631B0614 91631B0818 91651B0820 9356855016
Part # Description Qty Price
Common parts
55963-50010
90105-08341
90119-06022
90179-06156
90179-06278
90179-08102
90183-05103
90201-09024
90467-05101B2
90467-07041B8
90467-14013
90467-14023
90467-14024
90467-14025
90467-14027
90467-14028
91551-80614
91551-80814
91554-80614
91616-60616
91631-B0614
91631-B0818
91651-B0820
93568-55016
