XZU419L-TKFRDW3 (2009)

Toyota Dyna

Production Aug 2009 - Aug 2012
Engine N04C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

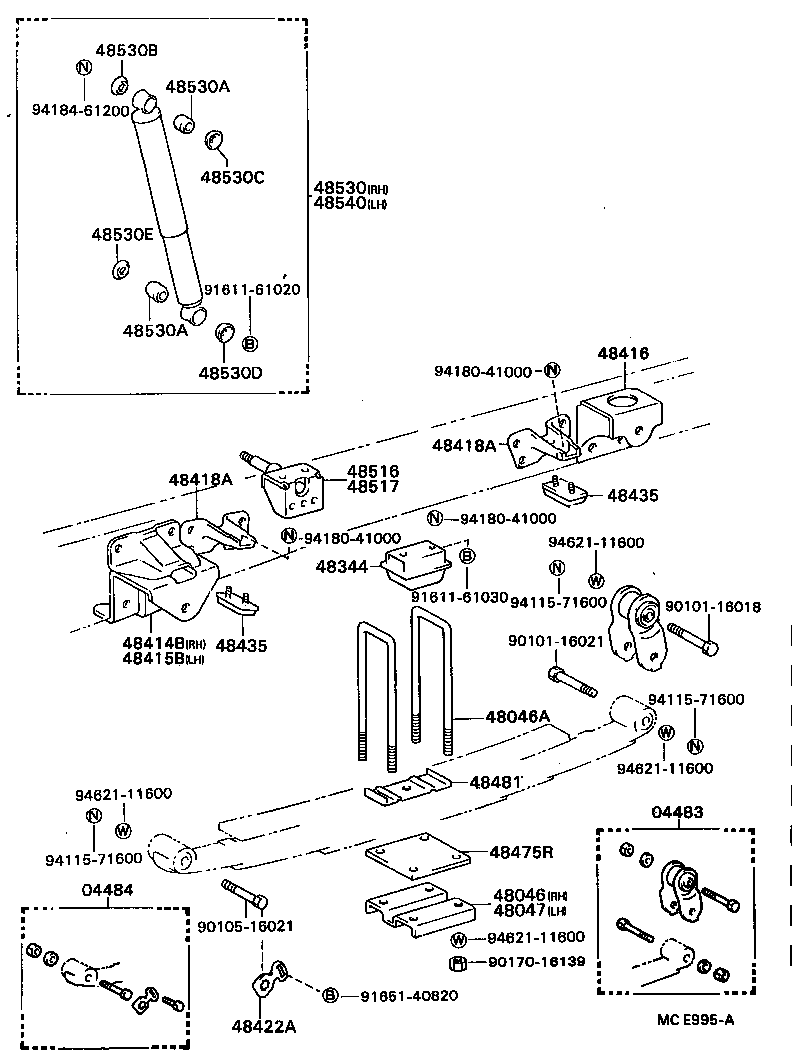

ILLUST NO. 1 OF 2(8708- )

Click highlighted areas on diagram

diagram 04483 04484 48046 48046A 48047 48344 48414B 48415B 48416 48418A 48418A 48422A 48435 48435 48475R 48481 48516 48517 48530 48530A 48530A 48530B 48530C 48530D 48530E 48540 9010116018 9010116021 9010516021 9017016139 9161161020 9161161030 9165140820 9411571600 9411571600 9411571600 9418041000 9418041000 9418041000 9418461200 9462111600 9462111600 9462111600 9462111600
Part # Description Qty Price
Common parts
90101-16018
90101-16021
90105-16021
90170-16139
91611-61020
91611-61030
91651-40820
94115-71600
94180-41000
94184-61200
94621-11600

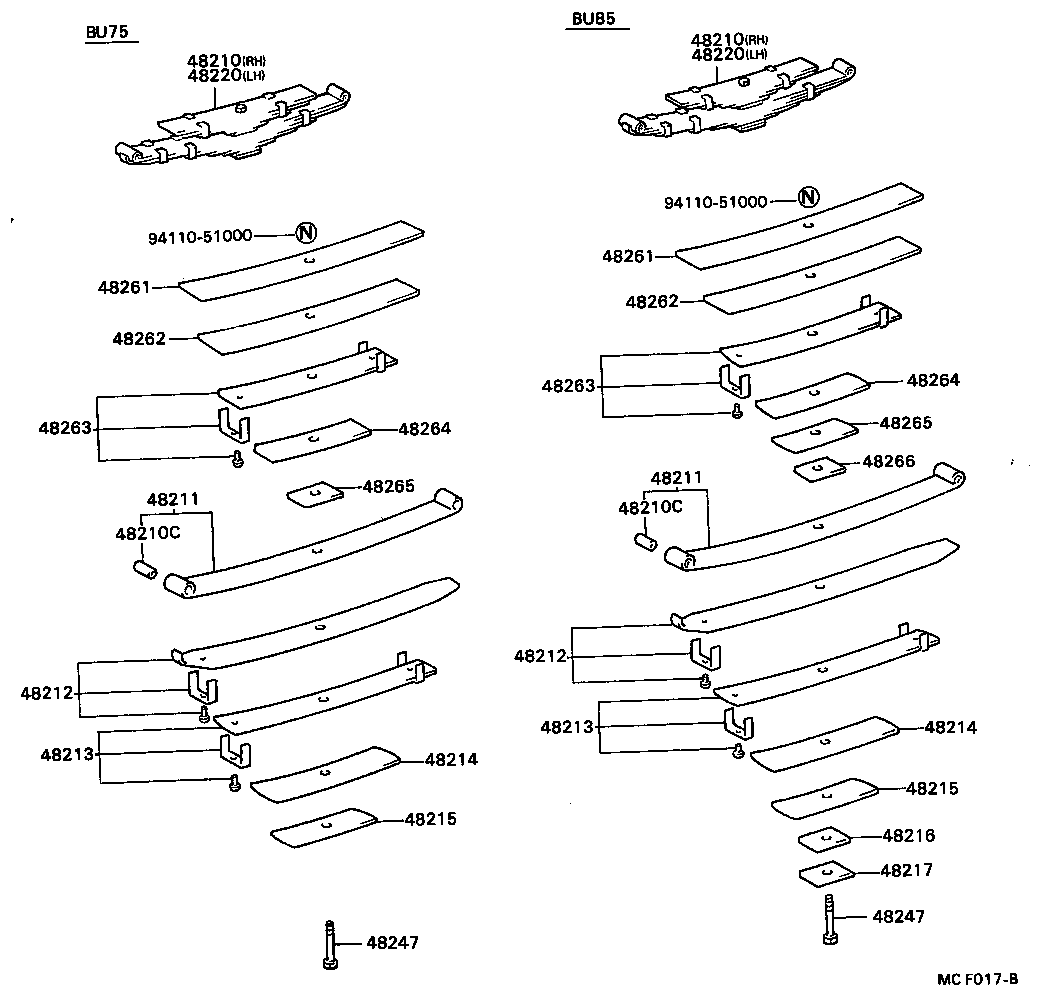

ILLUST NO. 2 OF 2(8708- )

Click highlighted areas on diagram

diagram 48210 48210 48210C 48210C 48211 48211 48212 48212 48213 48213 48214 48214 48215 48215 48216 48217 48220 48220 48247 48247 48261 48261 48262 48262 48263 48263 48264 48264 48265 48265 48266 9411051000 9411051000
Part # Description Qty Price
Common parts
94110-51000

(7708- )

Click highlighted areas on diagram

diagram 48210 48210 48210 48210C 48210C 48210C 48211 48211 48211 48212 48212 48212 48213 48213 48213 48214 48214 48214 48215 48215 48215 48216 48217 48220 48220 48220 48241 48241 48241 48242 48242 48242 48247 48247 48247 48261 48261 48261 48262 48262 48262 48263 48263 48263 48264 48264 48264 48265 48265 48265 48266 48281 48281 48281 9411041000 9411041000 9411041000 9511100816 9511100816 9511100816 9511100818 9511100818 9511100818 9511100822 9511100822 9511100822
Part # Description Qty Price
Common parts
94110-41000
95111-00816
95111-00818
95111-00822

(7708- )

Click highlighted areas on diagram

diagram 48210 48210 48210C 48210C 48211 48211 48212 48212 48213 48213 48214 48214 48215 48215 48216 48216 48217 48220 48220 48241 48241 48242 48242 48247 48247 48261 48261 48262 48262 48263 48263 48264 48264 48265 48265 48266 48266 48267 48267 48281 48281 9411041000 9411041000 9511100816 9511100816 9511100818 9511100818 9511100822 9511100822
Part # Description Qty Price
Common parts
94110-41000
95111-00816
95111-00818
95111-00822

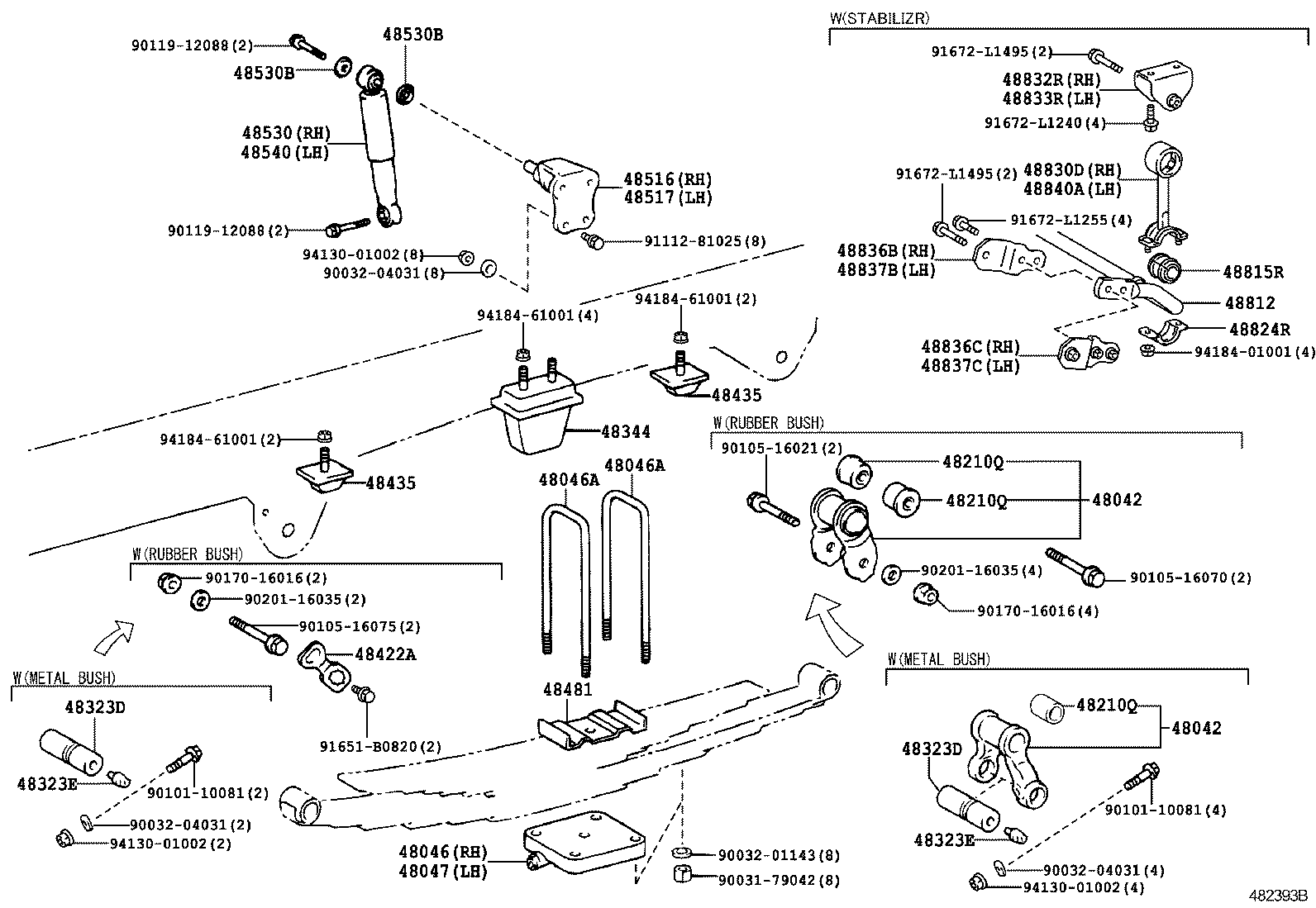

ILLUST NO. 1 OF 2(0010- )

Click highlighted areas on diagram

diagram 48042 48042 48046 48046A 48046A 48047 48210Q 48210Q 48210Q 48323D 48323E 48344 48422A 48435 48435 48475R 48481 48516 48517 48530 48530A 48530A 48530B 48530B 48540 9003179042 9003201143 9003204031 9003204031 9010110081 9010516021 9010516070 9010516075 9011912088 9011912088 9017016016 9017016016 9020116035 9020116035 9111281025 9165160820 9413001002 9413001002 9418461001 9418461001 9418461001
Part # Description Qty Price
Common parts
90031-79042
90032-01143
90032-04031
90101-10081
90105-16021
90105-16070
90105-16075
90119-12088
90170-16016
90201-16035
91112-81025
91651-60820
94130-01002
94184-61001

ILLUST NO. 1 OF 2(0110- )

Click highlighted areas on diagram

diagram 48042 48042 48046 48046A 48046A 48047 48210Q 48210Q 48210Q 48323D 48323D 48323E 48323E 48344 48422A 48435 48435 48481 48516 48517 48530 48530B 48530B 48540 48812 48815R 48824R 48830D 48832R 48833R 48836B 48836C 48837B 48837C 48840A 9003179042 9003201143 9003204031 9003204031 9003204031 9010110081 9010110081 9010516021 9010516070 9010516075 9011912088 9011912088 9017016016 9017016016 9020116035 9020116035 9111281025 91651B0820 91672L1240 91672L1255 91672L1495 91672L1495 9413001002 9413001002 9413001002 9418401001 9418461001 9418461001 9418461001
Part # Description Qty Price
48042 - SHACKLE SUB-ASSY, REAR SPRING, NO.2
48042-37051

XZU419,429,439

 2
48042 - SHACKLE SUB-ASSY, REAR SPRING, NO.2
48042-37051

XZU419,429,439

 2
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48473-37111

WU41#,422,XZU41#,42#,439..55T,65T,75T

 1
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48473-37111

WU41#,422,XZU41#,42#,439..55T,65T,75T

 1
48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH
48505-37052

XZU419,429,439

 1
48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH
48505-37052

XZU419,429,439

 1
48812 - BAR, STABILIZER, REAR
48812-37060

XZU419,429,439

 1
48815R - BUSH, STABILIZER(FOR REAR)
48815-37090

XZU419,429,439

 2
48824R - BRACKET, STABILIZER(FOR REAR)
48824-37060

XZU419,429,439

 2
48830D - LINK ASSY, REAR STABILIZER, RH
48830-37030

XZU419,429,439

 1
48832R - BRACKET, REAR STABILIZER BAR, NO.1 RH
48832-37030

XZU419,429,439

 1
48832-37040

XZU419,429,439

 1
48833R - BRACKET, REAR STABILIZER BAR, NO.1 LH
48832-37030

XZU419,429,439

 1
48832-37040

XZU419,429,439

 1
48836B - BRACKET, REAR STABILIZER END, INNER RH
48836-37060

XZU419,429,439

 1
48836C - BRACKET, REAR STABILIZER END, OUTER RH
48809-37060

XZU419,429,439

 1
48837B - BRACKET, REAR STABILIZER END, INNER LH
48836-37060

XZU419,429,439

 1
48837C - BRACKET, REAR STABILIZER END, OUTER LH
48809-37060

XZU419,429,439

 1
48840A - LINK ASSY, REAR STABILIZER, LH
48830-37030

XZU419,429,439

 1
Common parts
90031-79042
90032-01143
90032-04031
90101-10081
90105-16021
90105-16070
90105-16075
90119-12088
90170-16016
90201-16035
91112-81025
91651-B0820
91672-L1240
91672-L1255
91672-L1495
94130-01002
94184-01001
94184-61001

ILLUST NO. 2 OF 2(0908- )XZU419,429,439

Click highlighted areas on diagram

MAIN 2+HELPER 3-LEAF 48210-37F70

diagram 48210 48210C 48210C 48211 48212 48220 48247 48251 48251 48251 48251 48251 48251 48251 48251 48252 48252 48252 48252 48252B 48252B 48253 48254 48261 48262 48263 48284 48807B 48809D
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-37F70

XZU419,429,439

MAIN 2+HELPER 3-LEAF,W(STABILIZER)

 1
48210C - BUSH(FOR REAR SPRING LEAF)
90033-84013

XZU419,429,439

W(STABILIZER),RH

 2
90033-84014

XZU419,429,439

W(STABILIZER),LH

 2
48210C - BUSH(FOR REAR SPRING LEAF)
90033-84013

XZU419,429,439

W(STABILIZER),RH

 2
90033-84014

XZU419,429,439

W(STABILIZER),LH

 2
48211 - LEAF, REAR SPRING, NO.1
48201-37F80

XZU419,429,439

LH

 1
48201-37F70

XZU419,429,439

RH

 1
48212 - LEAF, REAR SPRING, NO.2
48202-37F70

XZU419,429,439

RH

 1
48202-37F80

XZU419,429,439

LH

 1
48220 - SPRING ASSY, REAR LH
48210-37F80

XZU419,429,439

MAIN 2+HELPER 3-LEAF,W(STABILIZER)

 1
48251 - SPACER, REAR SPRING LEAF
48253-3V470

XZU419,429,439

NO.2

 8
48253-3V020

XZU419,429,439

NO.1

 8
48251 - SPACER, REAR SPRING LEAF
48253-3V470

XZU419,429,439

NO.2

 8
48253-3V020

XZU419,429,439

NO.1

 8
48251 - SPACER, REAR SPRING LEAF
48253-3V470

XZU419,429,439

NO.2

 8
48253-3V020

XZU419,429,439

NO.1

 8
48251 - SPACER, REAR SPRING LEAF
48253-3V470

XZU419,429,439

NO.2

 8
48253-3V020

XZU419,429,439

NO.1

 8
48251 - SPACER, REAR SPRING LEAF
48253-3V470

XZU419,429,439

NO.2

 8
48253-3V020

XZU419,429,439

NO.1

 8
48251 - SPACER, REAR SPRING LEAF
48253-3V470

XZU419,429,439

NO.2

 8
48253-3V020

XZU419,429,439

NO.1

 8
48251 - SPACER, REAR SPRING LEAF
48253-3V470

XZU419,429,439

NO.2

 8
48253-3V020

XZU419,429,439

NO.1

 8
48251 - SPACER, REAR SPRING LEAF
48253-3V470

XZU419,429,439

NO.2

 8
48253-3V020

XZU419,429,439

NO.1

 8
48252 - SILENCER, REAR SPRING
48252-37380

XZU419,429,439

W(STABILIZER)

 16
48252 - SILENCER, REAR SPRING
48252-37380

XZU419,429,439

W(STABILIZER)

 16
48252 - SILENCER, REAR SPRING
48252-37380

XZU419,429,439

W(STABILIZER)

 16
48252 - SILENCER, REAR SPRING
48252-37380

XZU419,429,439

W(STABILIZER)

 16
48253 - SPACER, REAR SPRING, NO.1
48254-3V080

XZU419,429,439

W(STABILIZER)

 2
48261 - LEAF, REAR HELPER SPRING, NO.1
48213-37F80

XZU419,429,439

LH

 1
48213-37F70

XZU419,429,439

RH

 1
48262 - LEAF, REAR HELPER SPRING, NO.2
48214-37F80

XZU419,429,439

LH

 1
48214-37F70

XZU419,429,439

RH

 1
48263 - LEAF, REAR HELPER SPRING, NO.3
48215-37F70

XZU419,429,439

RH

 1
48215-37F80

XZU419,429,439

LH

 1
48807B - BRACKET SUB-ASSY, STABILIZER, RH
48809-37070

XZU419,429,439

 1
48809D - BRACKET SUB-ASSY, STABILIZER, LH
48807-37010

XZU419,429,439

 1
