XZU419L-TKFRDW3 (2009)

Toyota Dyna

Production Aug 2009 - Aug 2012
Engine N04C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0010- )

Click highlighted areas on diagram

diagram 25601 25620 25627 25628 9003105033 9003105035 9003105053 9003105054 9003116065 9003116066 9003116070 9003175001 9003175007 9003175007
Part # Description Qty Price
Common parts
90031-05033
90031-05035
90031-05053
90031-05054
90031-16065
90031-16066
90031-16070
90031-75001
90031-75007

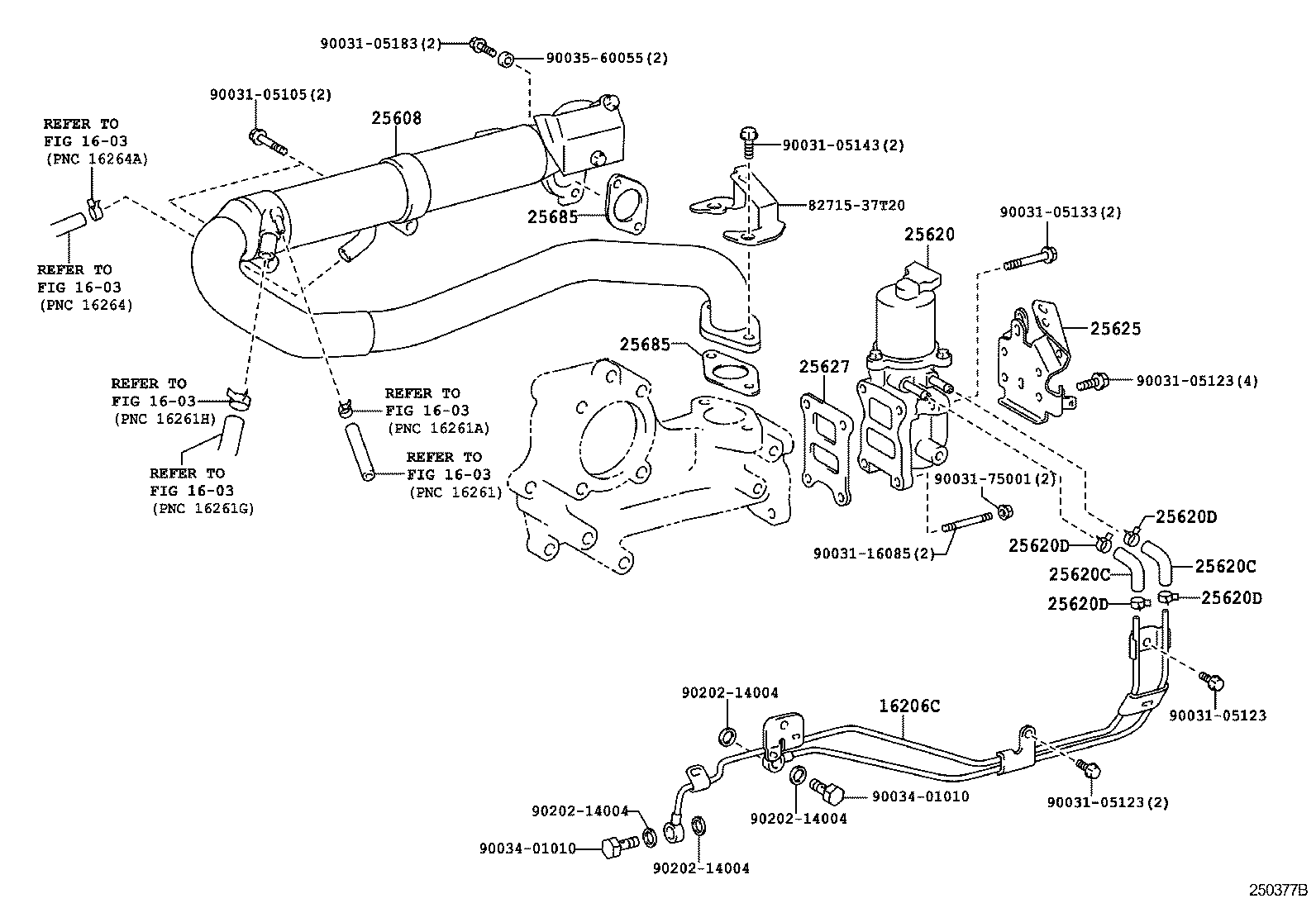

(0908- )N04C..XZU419,429,439

Click highlighted areas on diagram

diagram 1603 1603 1603 1603 1603 1603 16206C 25608 25620 25620C 25620C 25620D 25620D 25620D 25620D 25625 25627 25685 25685 8271537T20 9003105105 9003105123 9003105123 9003105123 9003105133 9003105143 9003105183 9003116085 9003175001 9003401010 9003401010 9003560055 9020214004 9020214004 9020214004 9020214004
Part # Description Qty Price
25608 - COOLER SUB-ASSY, EGR
25608-78140

N04C..XZU419,429,439

 1
25620 - VALVE ASSY, EGR
25620-78062

N04C..XZU419,429,439

 1
25620-78061

N04C..XZU419,429,439

 1
25625 - BRACKET, EGR VALVE
25625-78040

N04C..XZU419,429,439

 1
25685 - GASKET, EGR COOLER, NO.1
S1710-42020

N04C..XZU419,429,439

 2
25685 - GASKET, EGR COOLER, NO.1
S1710-42020

N04C..XZU419,429,439

 2
Common parts
82715-37T20
90031-05105
90031-05123
90031-05133
90031-05143
90031-05183
90031-16085
90031-75001
90034-01010
90035-60055
90202-14004
Linked diagrams
1603
